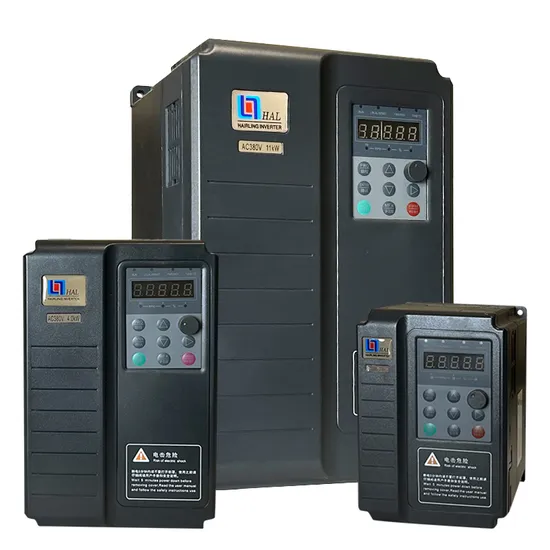

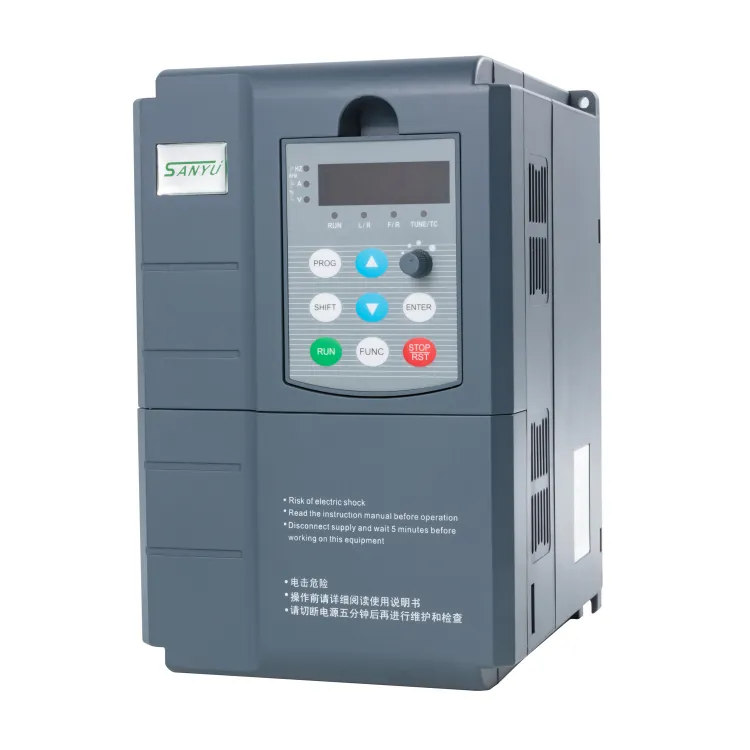

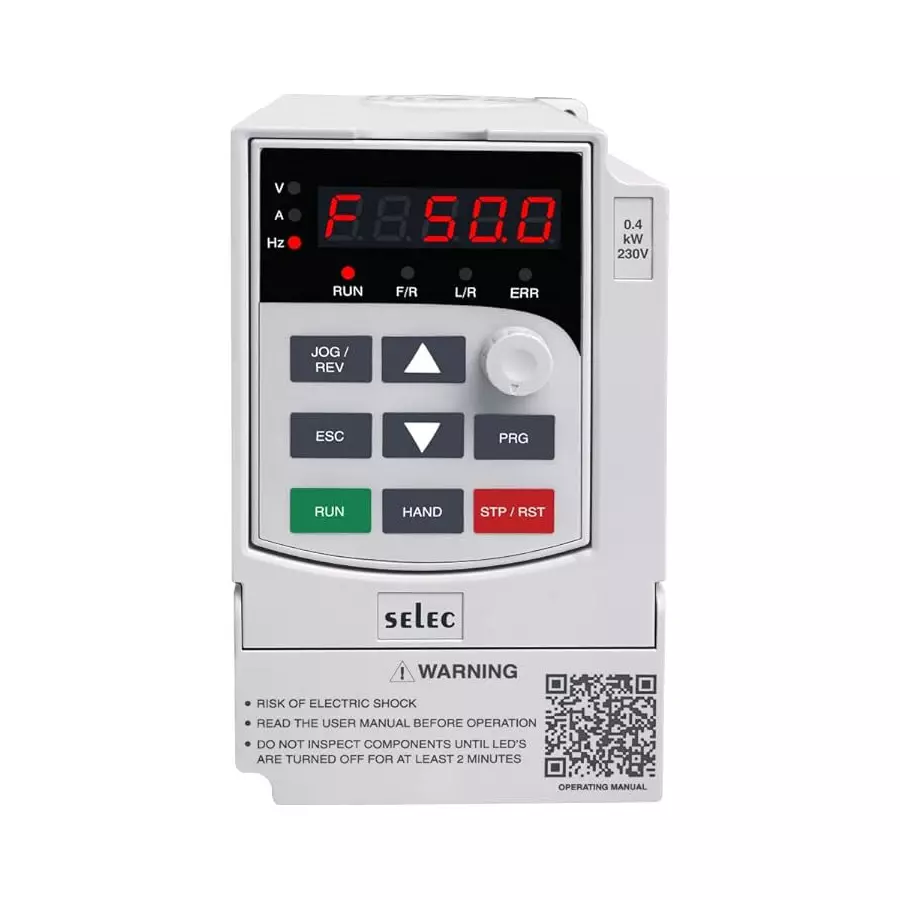

Variable Frequency Drive Heavy Duty

Description

1. Product Overview
   Variable Frequency Drive Heavy Duty is a robust electronic motor control device engineered to precisely regulate AC motor speed and torque for demanding industrial environments. It delivers energy-efficient variable-speed operation, optimized process control, and reduced mechanical stress across heavy machinery. Its key value proposition is improved process throughput and significant energy and maintenance cost reductions through adaptive motor management. Strategically, this VFD enables manufacturers and asset owners to meet stricter efficiency targets, extend equipment lifetime, and de-risk operations in high-duty-cycle applications.

2. Key Specifications & Technical Characteristics

• Rated Power Range: 15 kW–2000 kW (select models), three-phase input

• Voltage Ratings: 380–480 V AC (standard), 220–240 V and 525–690 V options available

• Frequency Range: 0.1–400 Hz (programmable)

• Overload Capacity: 150% for 60 s; 200% for 3 s (model dependent)

• Control Methods: V/Hz, sensorless vector control (SVC), closed-loop vector control (with encoder)

• Switching Technology: IGBT-based power module with PWM carrier switching

• Harmonic Management: Built-in Active Front-End (AFE) or optional DC-link reactors for THD mitigation

• Cooling: Forced air cooling; liquid-cooled variants for high-power applications

• Enclosure Ratings: IP20 (standard cabinet), IP54/IP55/NEMA 3R/4X options for harsh environments

• Materials: Powder-coated steel or stainless-steel enclosures for corrosive environments; COTS electronic components meeting industrial grade specifications

• Ambient Operating Range: -20 °C to +50 °C (derating above 40 °C), up to 1000 m altitude standard, higher altitude options available

• EMC/Certifications: CE, UL, IEC61800-3 compliance, optional marine and ATEX/IECEx zone certifications

• Communications & Integration: Modbus RTU/TCP, EtherNet/IP, PROFINET, CANopen, BACnet; native PLC-friendly I/O and fieldbus adapters

• Monitoring & Diagnostics: Built-in energy metering, event logging, predictive fault diagnostics (temperature, vibration inputs), remote monitoring ready

• Physical Characteristics: Modular cabinet footprint; weight varies by power rating (approx. 50 kg for 30 kW frame to 1200 kg for 1.5 MW liquid-cooled units)

• Packaging Options: Palletized crate for bulk, wooden reinforced crates for export, fitted shock-absorbent packaging for sensitive electronics

• Shelf Life: Electronics rated for 10+ years in storage with recommended controlled conditions (relative humidity <60%, 0–30 °C); batteries/backup modules require separate handling

• Accessories: Line reactors, DC-link chokes, EMC filters, harmonic filters, braking resistors, external cooling kits, encoder kits

3. Core Industrial Applications

• Primary Industries: Mining, oil & gas, petrochemical, cement, metals & steel mills, pulp & paper, water & wastewater treatment, bulk material handling, heavy manufacturing

• Operational Use Cases: Conveyor drives with variable loading, crusher and mill motor control, pump and fan energy optimization, hoist and winch speed control, extruder and rolling mill torque management, HVAC in large industrial facilities

• Why it performs better: Advanced vector control maintains torque at low speeds and under high inertia loads, reducing stall risk and improving throughput. Robust overload capacity and thermal management enable continuous operation in high-duty cycles. Integrated harmonic and EMC options protect plant power quality without costly external upgrades.

• Efficiency, Durability, Cost Advantages: Reduces energy consumption by enabling process-driven motor speed instead of fixed-speed operation; decreases mechanical wear and extends bearing/gear life; lowers maintenance and downtime costs via onboard diagnostics and remote fault detection. Total cost of ownership (TCO) typically improves within 12–36 months depending on duty profile.

4. Competitive Advantages

• Quality Consistency: Factory-calibrated control algorithms, standardized BOM and ISO-driven manufacturing ensure repeatable performance across batches.

• Supply Reliability: Scalable production lines and multi-regional distribution reduce lead-times; strategic inventory for spare power modules and control cards.

• Logistics Capability: Configurable packaging for bulk sea freight, air freight-ready express kits, and white-glove on-site commissioning options.

• Price Competitiveness: Tiered pricing for volume procurement and long-term framework agreements; lifecycle service contracts to optimize cost predictability.

• Sustainability: Energy savings lower upstream emissions; models with AFE reduce harmonic losses and improve grid compatibility; recyclable materials and RoHS compliance where applicable.

• Technical Support & Documentation: Comprehensive datasheets, application notes, wiring diagrams, commissioning guides, and firmware update support; 24/7 technical hotline and field service options including startup commissioning, tuning, and preventive maintenance programs.

5. Commercial & Supply Information

• Minimum order quantity (MOQ) BULK: 20 MT

• Loading capacity (MT per container): Standard 20-ft container up to ~18–20 MT (depending on unit configuration and packaging); 40-ft HC container up to ~24–26 MT; breakbulk and flat-rack options for oversized frames available upon request
