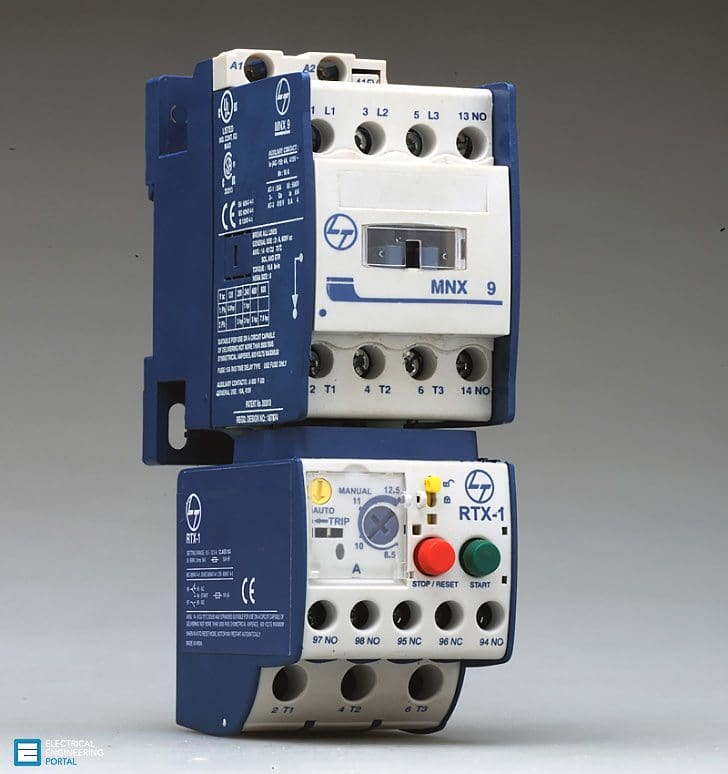

Thermal Overload Relay Motor Protection

Description

1. Product Overview

Thermal Overload Relay Motor Protection is an electromechanical/electronic protective device designed to prevent motor damage from sustained overcurrent and thermal stress. It is used in industrial motor control panels, starter assemblies, and packaged drives to detect overload conditions and interrupt supply before motor windings overheat. The key value proposition is precise, repeatable trip characteristics that minimize unplanned downtime, extend motor life, and reduce maintenance and replacement costs. Strategically, this relay is critical for reliable operation across manufacturing, utilities, oil & gas, and heavy industry where continuous motor availability directly impacts throughput and safety.

2. Key Specifications & Technical Characteristics

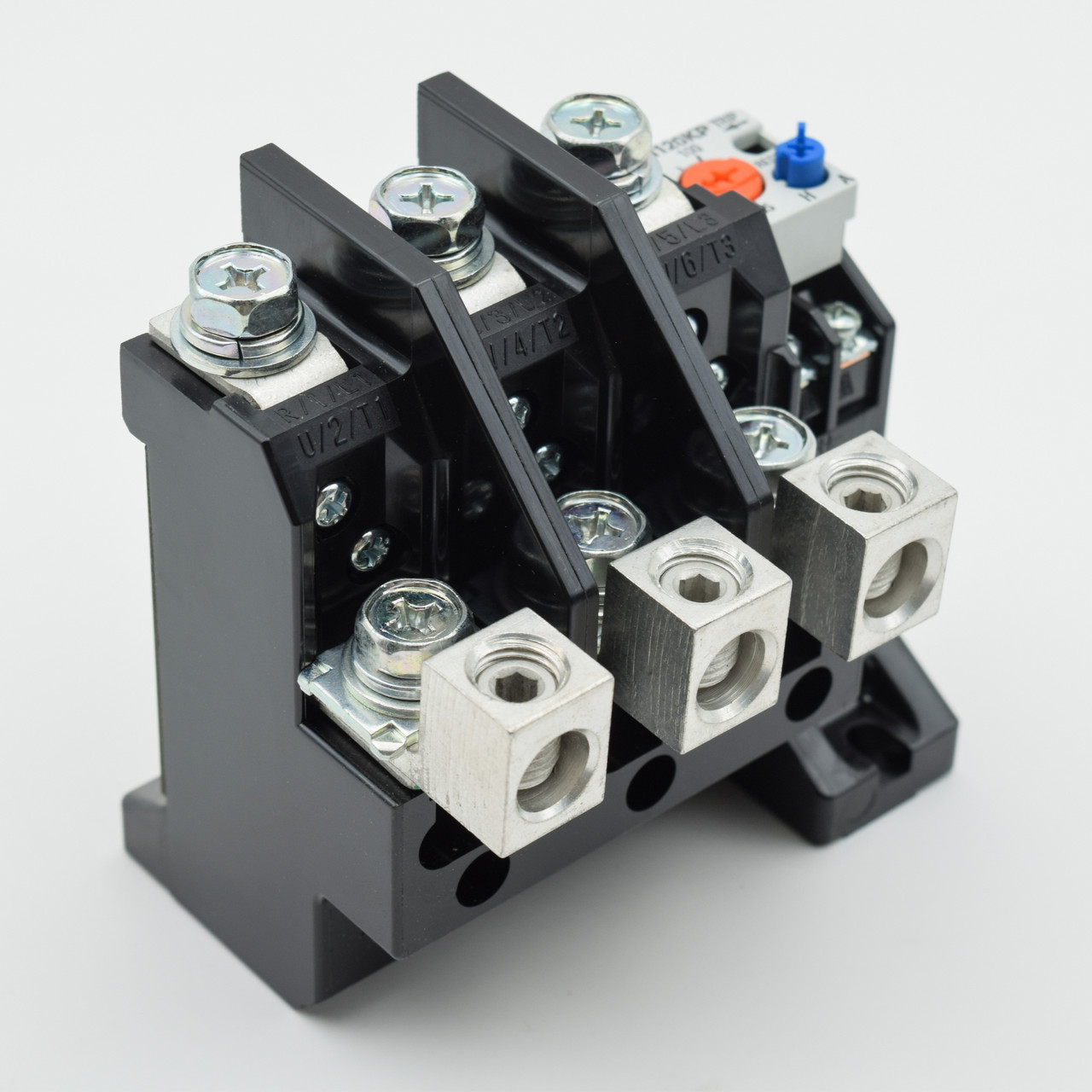

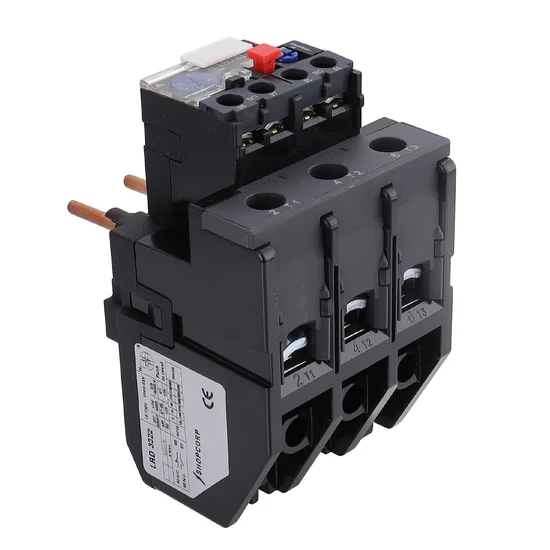

• Device type: Thermal overload relay (bimetallic or electronic thermal-magnetic option), DIN-rail or panel-mount compatible.

• Materials & construction: High-grade engineering thermoplastic housing (UL94 V-0 rated), copper alloy current paths, silver-plated contacts, stainless steel terminals; optional sealed variants for corrosive environments.

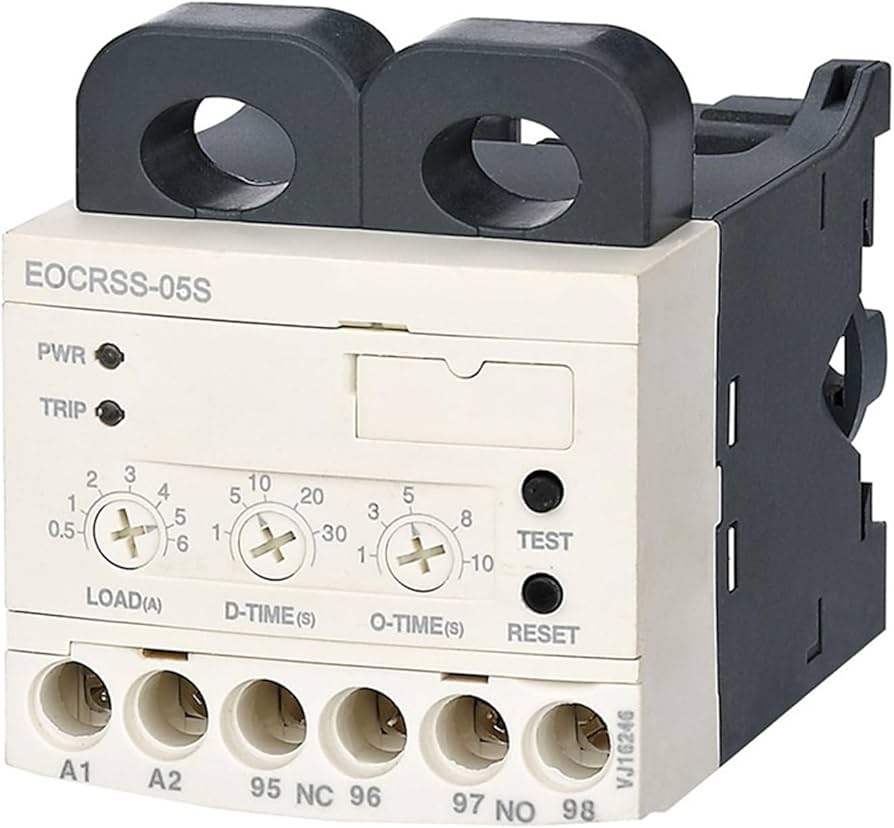

• Trip technology: Bimetallic thermal element or electronic thermal modeling with adjustable thermal current setting and trip class (e.g., 10A–600A range, trip class 10/20/30 selectable).

• Setting & adjustment: Thermal current range with fine calibration dial, manual or remote reset, phase-failure protection, adjustable time-delay feature.

• Electrical ratings: Rated operational voltage up to 690 V AC, short-time withstand and breaking capacity per IEC/EN standards, typical insulation class F/H options.

• Accuracy & repeatability: ±5% trip repeatability (electronic), consistent bimetal behaviour within specified ambient range.

• Physical characteristics: Compact modular form factor; weight typically 0.2–3.5 kg depending on variant; mounting options include DIN-rail, screw panel, or direct motor terminal integration.

• Environmental ratings: Operating temperature range -25 °C to +70 °C (variants with extended ranges available); IP20 standard, IP54/IP65 options for harsh environments.

• Certifications & standards: IEC 60947-4-1, IEC 60204, UL, CE, RoHS compliant; optional ATEX/IECEx for hazardous areas.

• Packaging options: Industrial-grade palletized crates, fumigation-free wooden boxes, steel-cornered export cartons; protective inner packaging (anti-static and moisture barrier) for electronic variants.

• Shelf life & storage: Indefinite shelf life for mechanical units when stored in dry conditions; recommended storage 0–40 °C, <75% RH for electronic variants, recommended use within 24 months for optimal warranty coverage.

3. Core Industrial Applications

• Primary industries: Manufacturing (textile, automotive, FMCG), oil & gas, mining, water & wastewater treatment, power generation and utilities, HVAC and commercial buildings, marine and offshore.

• Specific operational use cases: Protection of induction and synchronous motors in pump stations, compressors, conveyor drives, fans, chillers, and extruders; integration into motor control centers (MCCs) and packaged drive units; line-side protection for critical rotating assets.

• Performance vs alternatives: Compared with simple circuit breakers or fuses, thermal overload relays provide time-delayed, current-sensitive protection that mimics motor thermal dynamics—reducing nuisance trips on startup while ensuring protection under sustained overload. Electronic thermal relays add programmable accuracy and diagnostics, enabling predictive maintenance and lower lifecycle cost.

• Efficiency & durability: Precise thermal matching reduces motor heating cycles and energy loss during transient conditions. Robust construction and corrosion-resistant terminals extend mean time between failures (MTBF) in heavy-duty environments.

• Commercial relevance: Lowers total cost of ownership by minimizing unscheduled downtime and extending motor service intervals; simplifies compliance with safety and electrical standards during audits and inspections.

4. Competitive Advantages

• Quality consistency: Manufactured to strict IEC/UL processes with batch traceability and factory calibration to ensure repeatable trip curves.

• Supply reliability: Managed inventory with forward-stocking and configurable lead times; scalable production to support OEM and large-frame project schedules.

• Logistics capability: Export-ready packaging, consolidated palletization, and carrier-agnostic shipping options with documentation for customs clearance in major markets.

• Price competitiveness: Tiered pricing for volume purchases (project and OEM pricing), cost-effective mechanical options alongside higher-value electronic variants.

• Sustainability: RoHS compliance, recyclable packaging options, and energy-saving benefits by protecting motors (reducing premature replacements and material waste).

• Technical support & documentation: Full technical datasheets, wiring diagrams, application notes, adjustable setting guides, and on-demand engineering support for sizing, coordination studies, and start-up assistance.

• Strategic sourcing position: Offered as a long-term, spec-ready component for capital projects and maintenance spares programs, reducing vendor proliferation and simplifying procurement.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity: MT per container — typical 20-foot container capacity approximately 20 MT (subject to packing density and variant dimensions); 40-foot container capacity approximately 24–26 MT depending on packaging and palletization.

• Lead times: Standard stock units ship within typical commercial lead times; project or OEM-configured units require confirmation at order (lead times vary with volume and certification options).

• Warranty & after-sales: Standard manufacturer warranty with optional extended support contracts; spare parts availability and calibration/repair services available through authorized service centers.
