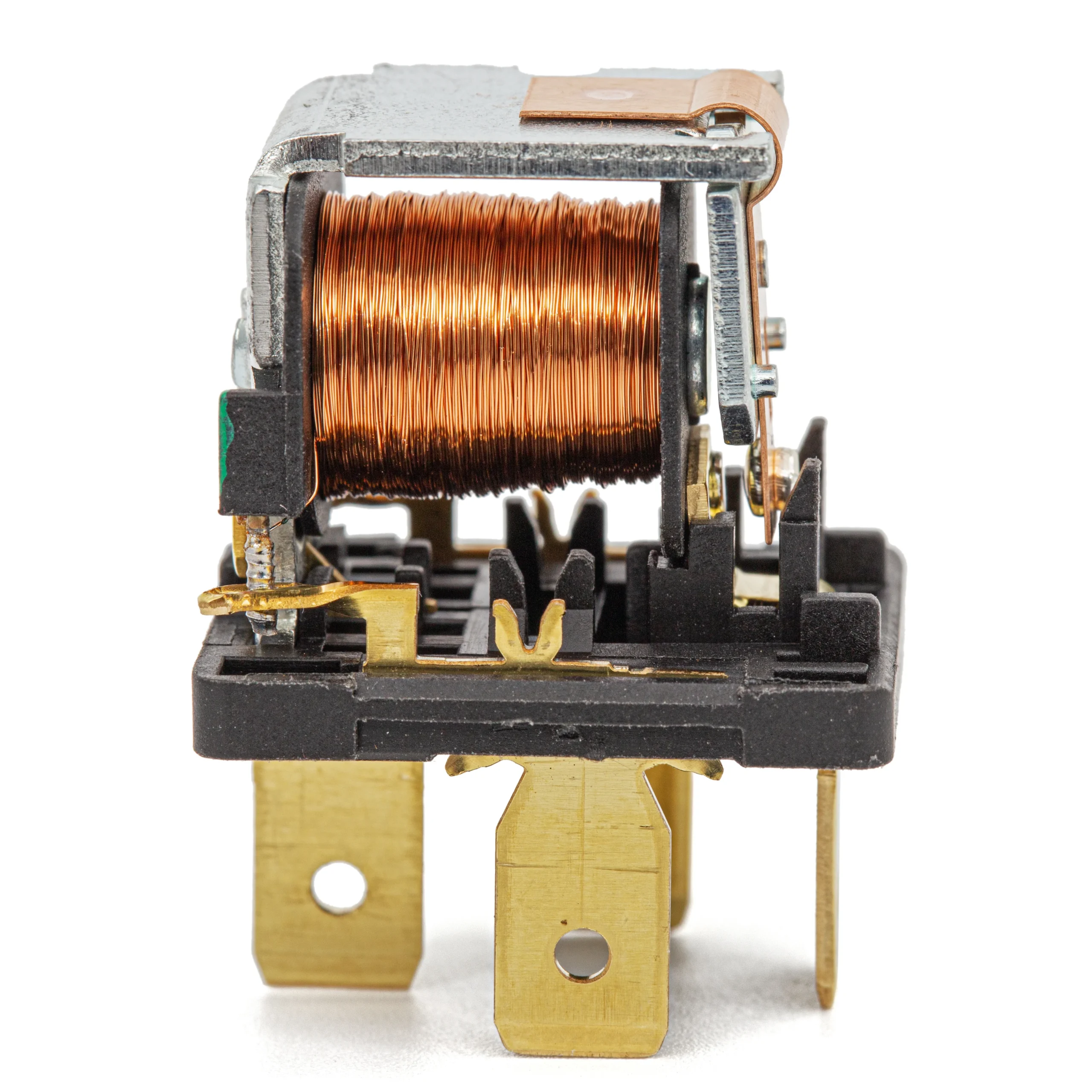

Industrial Relay Electromechanical Type

Description

1. Product Overview

Industrial Relay — Electromechanical Type is a robust switching device engineered for reliable control and isolation in heavy-duty electrical systems. Designed for use in industrial control panels, motor starters, switchgear, and automation racks, it provides precise, repeatable switching of high-current and high-voltage circuits. Its key value proposition is rugged, field-proven electromechanical switching that balances long mechanical life with predictable electrical performance, simplifying maintenance and protecting downstream equipment. Strategically, this relay is critical for plants seeking low-risk, easy-to-service control components that ensure uptime across manufacturing, utilities, oil & gas, and infrastructure projects.

2. Key Specifications & Technical Characteristics

• Contact configuration: SPST, SPDT, DPDT options (specify per SKU).

• Rated coil voltage: 12 VDC, 24 VDC, 48 VDC, 110 VAC, 230 VAC (model-dependent).

• Contact rating: up to 30 A resistive at 250 VAC; mechanical switching capacity and load type specified per model.

• Dielectric strength: 2.5 kV between coil and contacts (typical).

• Insulation resistance: ≥ 100 MΩ at 500 VDC.

• Mechanical life: ≥ 10 million operations (no-load); electrical life: ≥ 100,000 operations at rated load.

• Response time: operate 10–20 ms; release 5–15 ms (model-dependent).

• Materials: contact material silver-alloy (AgSnO2 or AgNi), contact rivets and terminals copper or brass with tin/lead-free plating; housing thermoset plastic (glass-filled polyester or PA66) for thermal stability.

• Environmental ratings: operating temperature -40 °C to +85 °C, humidity tolerant design; optional conformal coating for harsh environments.

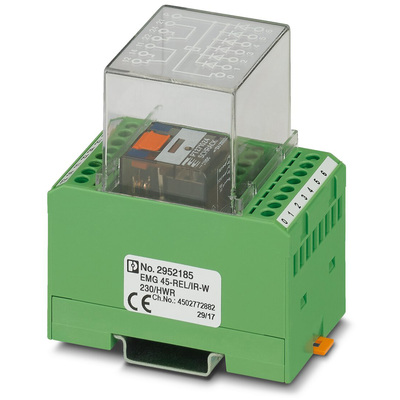

• Mounting options: DIN-rail, panel screw, PCB through-hole variants.

• Dimensions & form factor: compact modular footprint (details per SKU); available high-power plug-in bases for rapid field replacement.

• Packaging options: inner carton with foam separators, export-grade corrugated outer cartons; palletized wooden crates for bulk shipments; custom packaging on request.

• Shelf life: components and packaged relays maintain specified performance for up to 24 months when stored in a dry, temperature-controlled environment (per IEC storage recommendations).

3. Core Industrial Applications

• Primary industries: manufacturing (discrete and process), power generation and distribution, oil & gas, mining, water/wastewater treatment, building automation, transportation (rail/metro), HVAC, and heavy machinery OEMs.

• Operational use cases: motor starting and reversing, interlocking and safety circuits, contactor/contactor-booster arrangements, control logic isolation, emergency shutdown circuits, remote switching in SCADA/PLC systems.

• Why it outperforms alternatives: electromechanical relays offer clear, visible contact operation and higher tolerance to transient overloads vs. low-cost solid-state options; they provide simpler diagnostics and field-repairability compared with integrated semiconductor switches. For many industrial applications, this relay delivers superior surge robustness, predictable contact wear characteristics, and lower mean-time-to-repair, yielding lower total cost of ownership.

• Efficiency & durability advantages: designed for high inrush currents (motor loads) and frequent cycling; silver-alloy contacts reduce welding and pitting; modular bases enable rapid swap-outs minimizing downtime.

4. Competitive Advantages

• Quality consistency: manufactured to ISO 9001 processes with batch traceability, 100% electrical testing, and incoming component inspection.

• Supply reliability: multi-source components, regional stocking hubs, and firm production capacity to support recurring contracts and emergency replenishment.

• Logistics capability: export-ready packaging, containerized LCL/FCL support, CIF/EXW terms available, and expedited shipping options for critical spares.

• Price competitiveness: tiered pricing for volume purchases, long-term supply agreements, and frequent BOM optimization to reduce landed cost.

• Sustainability: lead-free plating options, RoHS compliance, and optimized packaging to reduce waste and transport emissions.

• Technical support & documentation: full datasheets, wiring diagrams, coil power curves, MTBF estimates, test certificates (insulation, dielectric), and application engineering support for system integration and failure-mode analysis.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): standard 20-foot container up to ~18–20 MT depending on packaging density and pallet configuration; 40-foot container up to ~24–26 MT (confirm exact pack plan at order).
