Plug valve industrial

Description

1. Product Overview

Plug valve industrial is a robust quarter-turn shut-off valve designed for high-demand fluid control across industrial piping systems. It provides reliable on/off flow isolation for liquids, gases and slurries in process, utility and marine environments. The valve’s key value proposition is simple, fast operation with low pressure drop and minimal maintenance, delivering long service life and predictable performance under abrasive, corrosive or high-temperature conditions. Strategically, plug valves reduce total cost of ownership by lowering downtime, simplifying maintenance regimes, and standardizing isolation across disparate process units—making them a critical sourcing choice for asset-intensive operators.

2. Key Specifications & Technical Characteristics

• Material construction: Body and bonnet options in ductile iron, carbon steel (A216 WCB), stainless steel (CF8/316), duplex stainless (UNS S32750) and optionally corrosion-resistant alloys (Hastelloy C276, Monel 400).

• Plug material/coating: Solid stainless steel plug, polyurethane-lined plug, PTFE-faced plug, or nickel-based hardfacing (for erosive service).

• Sealing: Resilient seat options (PTFE, filled PTFE, NBR, EPDM), metal-to-metal seat variants for high-temperature service.

• Face-to-face standards: Compliant with ISO 5752 / API 599 dimensional profiles (sizes and classes per request).

• Pressure ratings: Standard classes ASME 150, 300, 600; higher classes available on request up to ASME 2500 / PN 420 equivalents.

• Temperature range: -40 °C to +425 °C depending on materials and seal selection; extreme-temperature trims available.

• End connections: Flanged (ANSI/ASME B16.5 / EN1092), butt-weld ends, threaded (NPT / BSP) for small sizes.

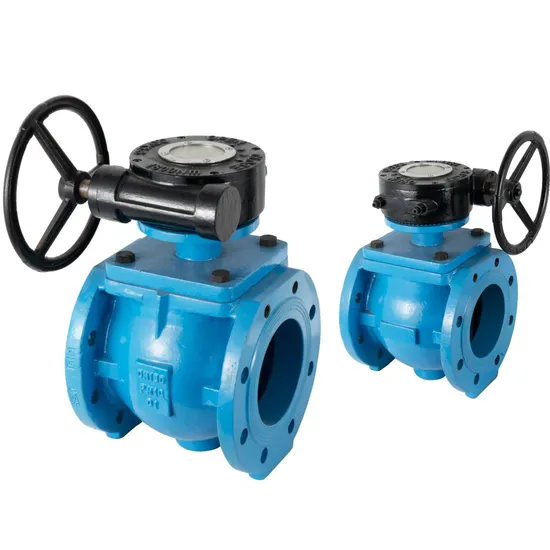

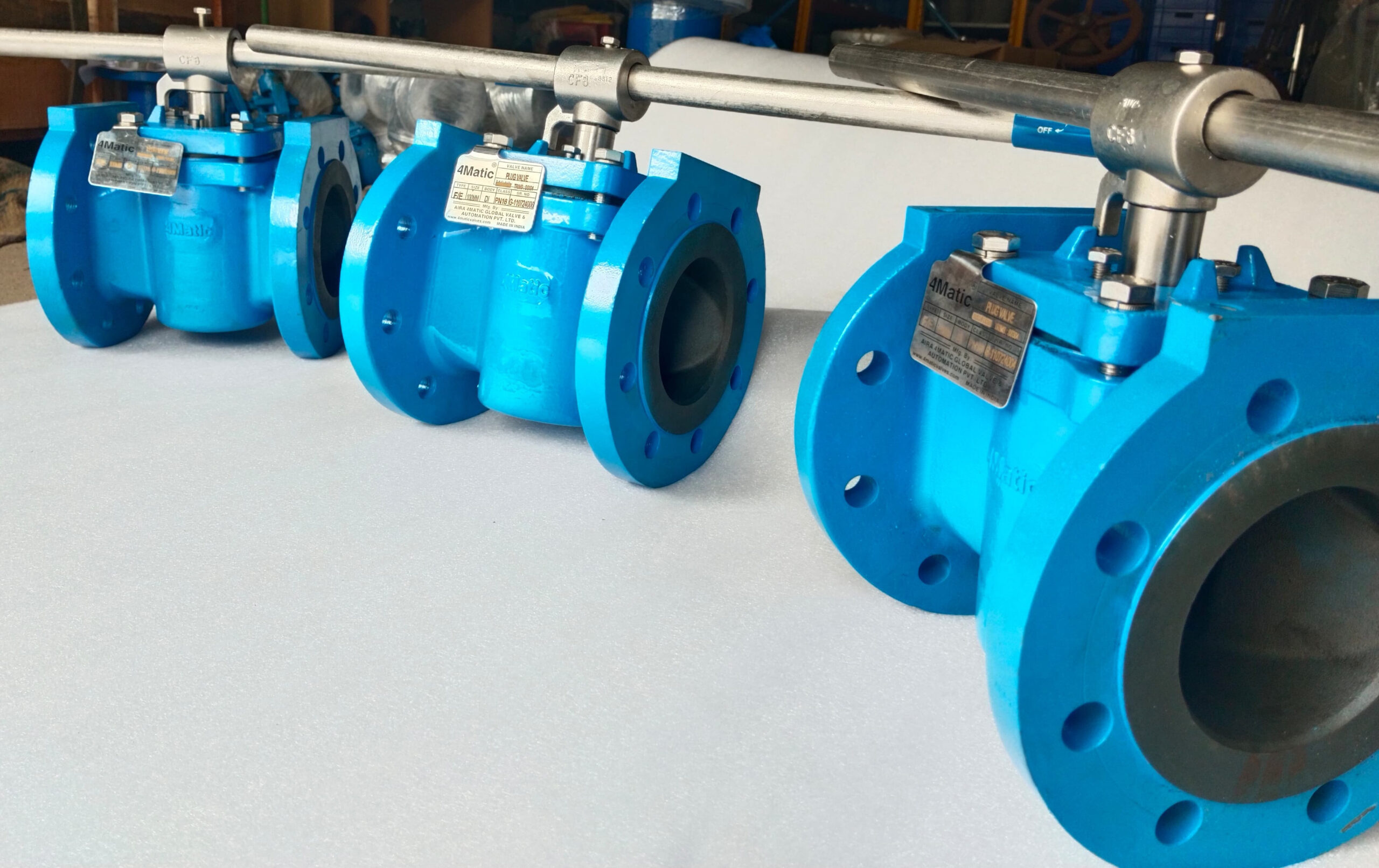

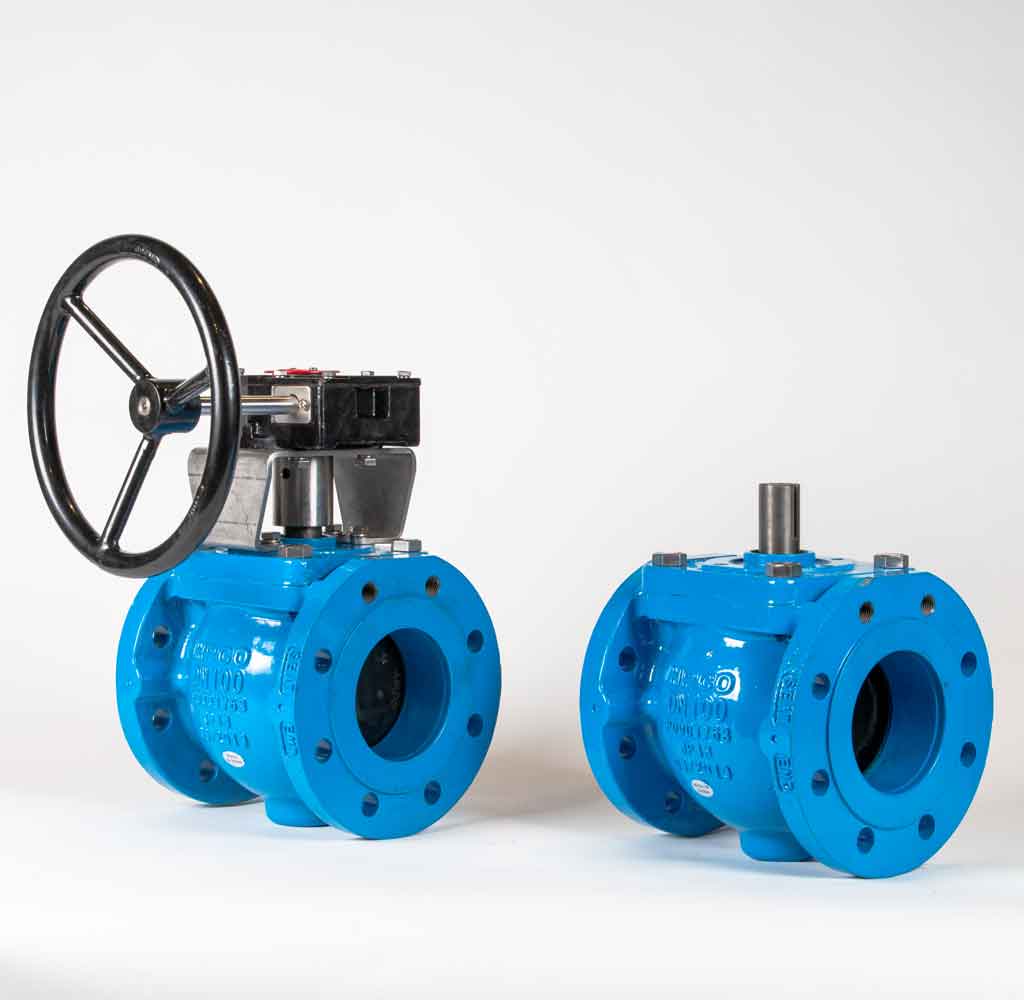

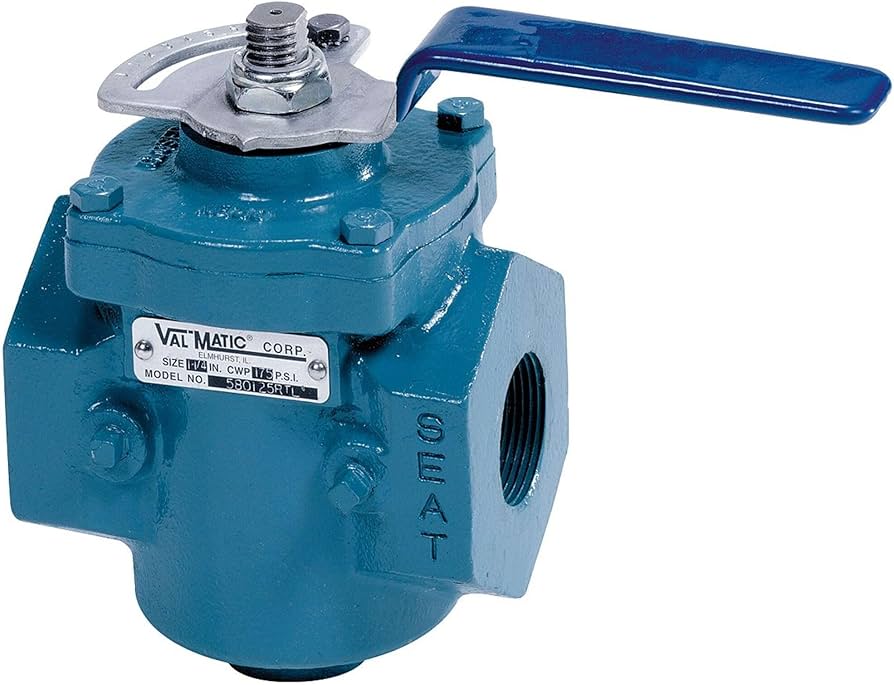

• Actuation: Manual (lever or gearbox), pneumatic piston or rack-and-pinion, electric actuators with integrated positioners; ISO 5211 mounting pad standard.

• Flow characteristics: Low pressure drop in full-bore configuration; reduced-bore, V-port and multi-port plug options for throttling/control applications.

• Surface finish & tolerances: Machined plug and bore to industrial valve tolerances; optional hard chrome or ceramic coatings for wear resistance.

• Corrosion protection: External epoxy coating, galvanization, or specialized coatings for marine/CO2 service.

• Testing & certification: Hydrostatic shell and seat test per API 6D / API 598; material mill test reports (MTRs), NDT (PT/RT) on request, and third-party inspection available.

• Packaging options: Wooden export crates, palletized with desiccant and VCI film, sea/air freight ready; special packaging for long-term storage.

• Shelf life: Not applicable for metal equipment; recommended storage in dry, climate-controlled conditions to prevent surface corrosion.

3. Core Industrial Applications

• Oil & Gas midstream/downstream: Mainline and isolation valves for crude, refined products and intermediate streams; ideal where rapid quarter-turn isolation minimizes leak paths and maintenance windows.

• Petrochemical & Chemical processing: Handling corrosive and viscous fluids; lined or alloy trims resist chemical attack and erosion, outperforming soft-seated alternatives in aggressive environments.

• Power generation & utilities: Steam, cooling water and fuel isolation where high temperature and pressure cycles demand reliable sealing and minimal maintenance.

• Mining & slurry transport: Robust solid-body designs and wear-resistant linings provide superior erosion resistance compared with gate or ball valves in high-solid flows.

• Water & wastewater treatment: Full-bore and V-port options for diversion, isolation and flow control; low head loss supports energy-efficient pumping.

• Marine & FPSO: Compact footprint and rugged construction meet space and vibration constraints; materials and coatings configured for seawater and ballast systems.
  Why it performs better than alternatives:

• Faster operation and simpler mechanics than multi-turn gate valves, reducing intervention time.

• Lower pressure drop and full-bore availability reduce pumping costs vs. globe valves.

• Durable lined and hardfaced options extend life in erosive slurries compared with soft-seated valves, reducing replacement frequency and lifecycle cost.

4. Competitive Advantages

• Quality consistency: Manufactured to ISO 9001 quality system with documented traceability (MTRs) and strict dimensional and functional inspection protocols.

• Supply reliability: Proven production throughput with screened suppliers and safety-stock programs; flexible lead-time options for standard and engineered trims.

• Logistics capability: Export-compliant packing, inland haulage coordination from production hubs, and FOB/CIF/DAP shipping terms supported; container consolidation for multi-unit orders.

• Price competitiveness: Tiered pricing for bulk orders (volume discounts at MOQ multiples), optimized BOMs across material options to balance capex and lifecycle cost.

• Sustainability: Options for recyclable packaging, reduced-VOC coatings, and material selection guidance to minimize waste and extend service life.

• Technical support: Comprehensive datasheets, 3D CAD models, FAT documentation, application engineering evaluations, and post-sale commissioning support; spares kits and recommended maintenance intervals available.
  Positioning: Sourcing this valve is a strategic decision that reduces operational risk, simplifies maintenance logistics, and improves asset uptime—delivering measurable savings over the asset lifecycle.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Standard 20-foot container ~18–20 MT depending on packaging/individual unit weights; 40-foot HC container ~24–26 MT depending on packing density and unit dimensions.

• Lead times: Standard trims typically 8–12 weeks; engineered or exotic alloy configurations subject to material procurement timelines—confirm at RFQ stage.

• Warranty & terms: Standard commercial warranty on workmanship; extended warranty and service agreements available on request.
