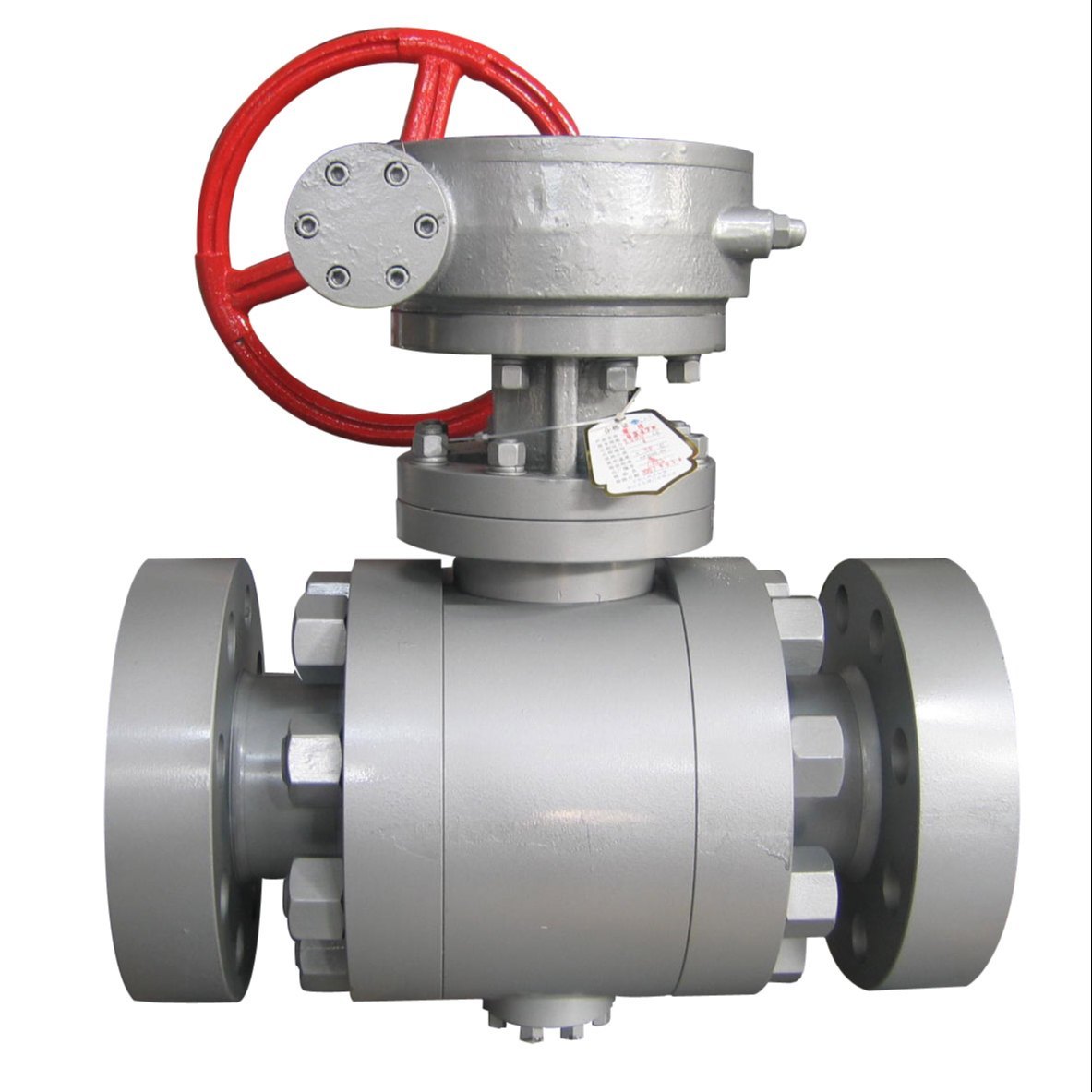

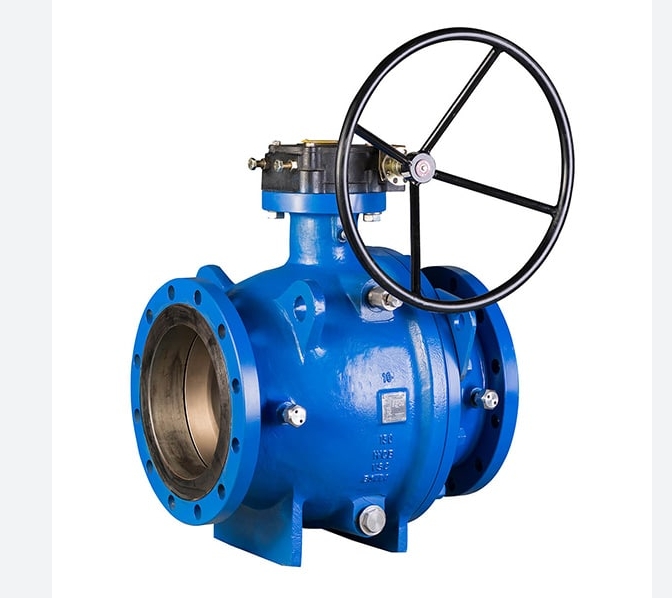

API 6D ball valve

Description

1. Product Overview
   API 6D ball valve is a high-performance quarter-turn valve engineered for pipeline isolation and flow control in high-pressure, high-temperature hydrocarbon transport systems. Designed to meet API 6D standards for pipeline valves, it delivers tight shutoff, rapid operation, and robust seismic and pressure-cycle resilience for upstream, midstream, and downstream pipeline networks. Its key value proposition is reliable, low-leakage isolation with proven service life under demanding sour service and extreme environmental conditions. As a strategically important component, the API 6D ball valve reduces unplanned downtime, simplifies maintenance, and protects asset integrity across large-scale pipeline projects and LNG, oil, and gas distribution infrastructure.

2. Key Specifications & Technical Characteristics

• Standard compliance: API 6D (Specification for Pipeline Valves), API 598 (inspection and testing) where required

• Materials of construction: body and end connections in ASTM A105/A350 LF2 carbon steel, duplex or super duplex stainless steel (e.g., UNS S31803/S32750) options, Ni-Cr-Mo alloys (e.g., 6Mo) for corrosion-resistant service; stem and ball in stainless steel (SS316/SS316L) or hardened/stellite-faced options

• Sealing systems: metal-to-metal and resilient soft-seat options (PTFE, RPTFE, PEEK), anti-blowout stem design

• Pressure-temperature ratings: available for ASME Class 150–2500 equivalents, pressure ratings up to 420 bar (depending on class and size); temperature capability from -46 °C to +250 °C for standard materials, extended ranges with special materials

• End connections: flanged (RF, RTJ), butt-weld ends, socket-weld, or flanged keyed ends per customer specification

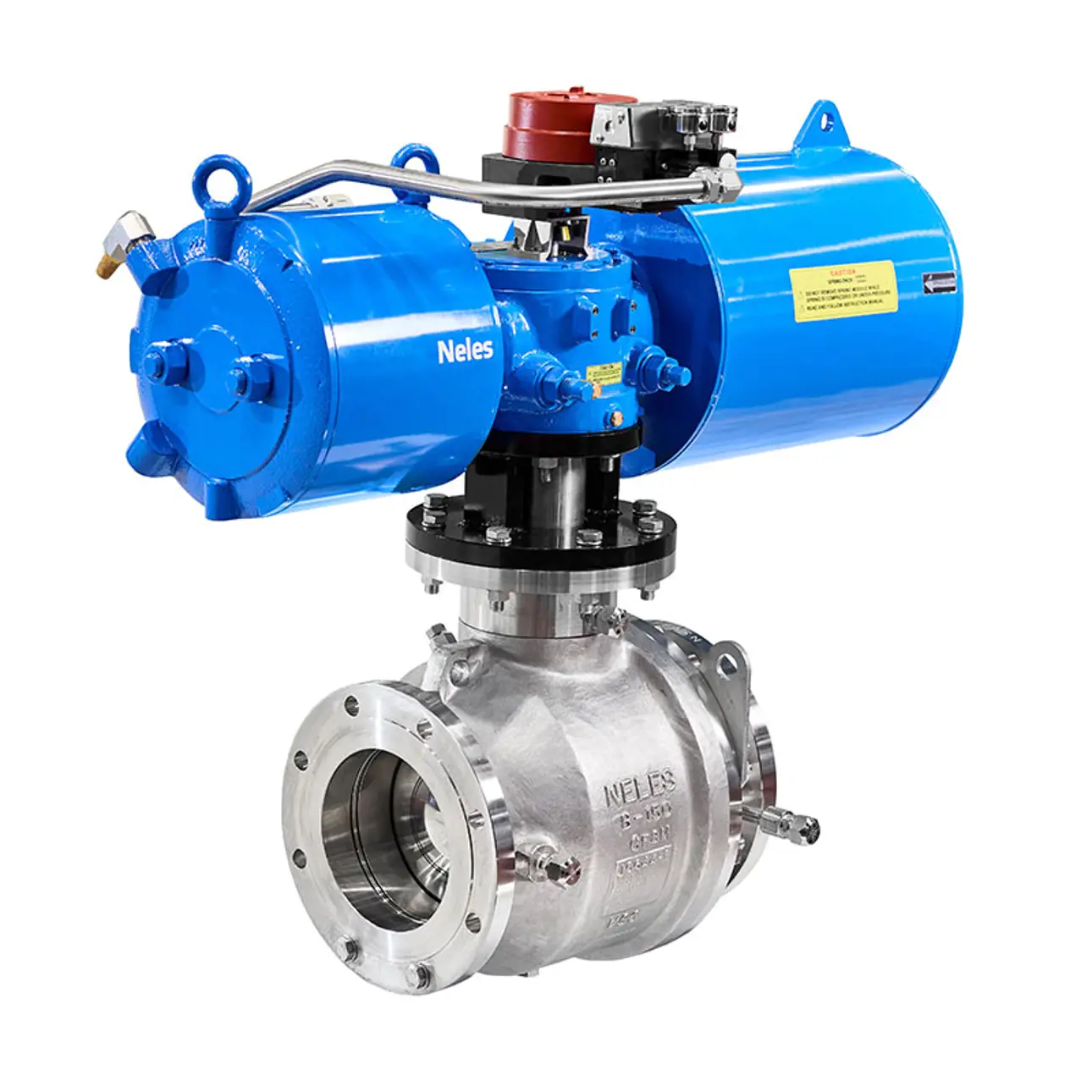

• Actuation: manual gearbox and lever, pneumatic spring-return/double-acting, hydraulic, and electric actuators; ISO 5211 mounting for direct actuator coupling

• Fire-safe design: API 607/ISO 10497 fire-tested options available

• Fugitive emissions control: low-emission stem packing and packing box design compliant with ISO 15848 where required

• Sizes: standard diameter range DN25–DN1200 (1”–48”) depending on configuration

• Physical characteristics: solid or floating ball designs; full bore or reduced bore; face-to-face dimensions per API 6D

• Surface treatments: internal coating options (epoxy, fusion-bonded epoxy), external painting per NORSOK/ISO/SSPC; corrosion allowance available

• Packaging options: factory-sealed wooden crates, shock-protected skids, sea/air-worthy export packaging with desiccant and preservative oil as required

• Shelf life / preservation: preserved for storage up to 24 months with routine preservation inspection; dry, climate-controlled storage recommended for extended shelf life

3. Core Industrial Applications

• Oil & Gas Pipelines: primary isolation and sectionalizing valves for trunkline and gathering networks, pig trap isolation, and block valves on pipeline manifolds.

• LNG Terminals and Processing: cryogenic-capable designs for isolation and emergency shutoff in liquefaction and regasification trains (with suitable low-temperature materials).

• Refining and Petrochemicals: process isolation in high-pressure service, blending, and feedstock distribution lines where tight shutoff and quick operation reduce process losses.

• Offshore Platforms and Subsea Systems: subsea-ready configurations with enhanced materials and coatings for corrosion resistance, designed for ROV actuation compatibility.

• Power Generation and Utilities: high-pressure feedwater and fuel gas isolation where reliability and low leakage are critical.
  Why it performs better:

• Engineered to API 6D tolerances for predictable leakage performance and long cycle life under pressure cycling.

• Material and seat flexibility allow tailoring for sour service (H2S), high-temperature, or cryogenic environments, delivering longer service intervals.

• Full-bore options reduce pressure drop and permit pigging operations, improving operational efficiency and lowering lifecycle costs.

4. Competitive Advantages

• Quality consistency: manufactured to strict API 6D machining, heat-treatment, nondestructive testing, and dimensional control protocols to ensure repeatable performance across batches.

• Supply reliability: global production and stocking strategy with staggered lead times and expedited fulfilment for critical spares; flexibility for engineered-to-order variants.

• Logistics capability: containerized export-ready packaging, certified lifting/handling, and documentation for international shipping, customs clearance, and project logistics.

• Price competitiveness: modular designs and standardized subassemblies reduce total cost of ownership while enabling price-competitive bulk procurement.

• Sustainability: material selection and coatings designed to extend service life and reduce replacement frequency; recyclable packaging and options for low-VOC coatings.

• Technical support: comprehensive datasheets, hydrostatic and functional test certificates, material test reports (MTRs), dimensional drawings, and lifecycle maintenance manuals; engineering support for specification and integration.
  Positioning: sourcing this API 6D ball valve is a strategic decision to secure pipeline integrity, reduce operational risk, and optimize total lifecycle cost.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Typical loading capacity: loading capacity varies by unit weight and configuration; approximate container load planning:

  • 20-foot container: up to 12–18 MT depending on valve sizes and skid packing

  • 40-foot HC container: up to 24–28 MT depending on valve sizes and packing

• Lead times: subject to configuration and material selection; standard models typically available from stock or 8–12 weeks for configured builds, expedited options available for critical spares

• Documentation supplied: commercial invoice, packing list, certificate of origin, MTRs, hydrostatic test certificates, QA/QC dossier, and user/maintenance manuals

• Warranty and after-sales: standard warranty terms per purchase agreement; optional extended maintenance and spares programs available
