Valve actuator electric

Description

Product Overview

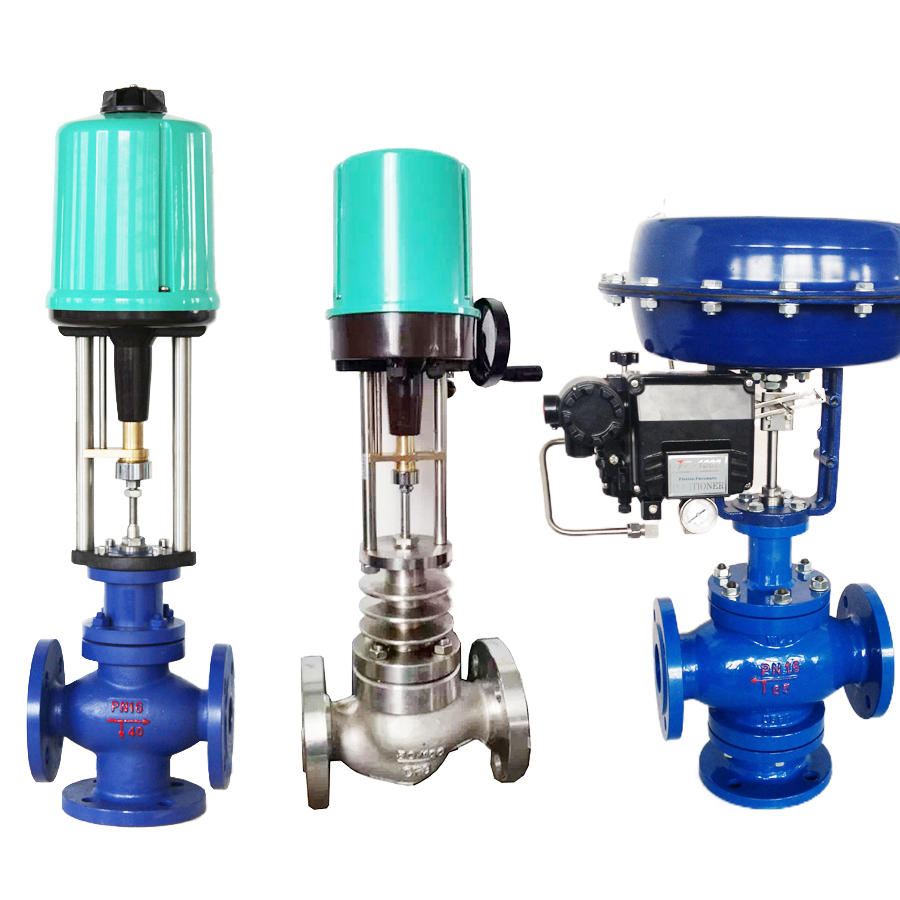

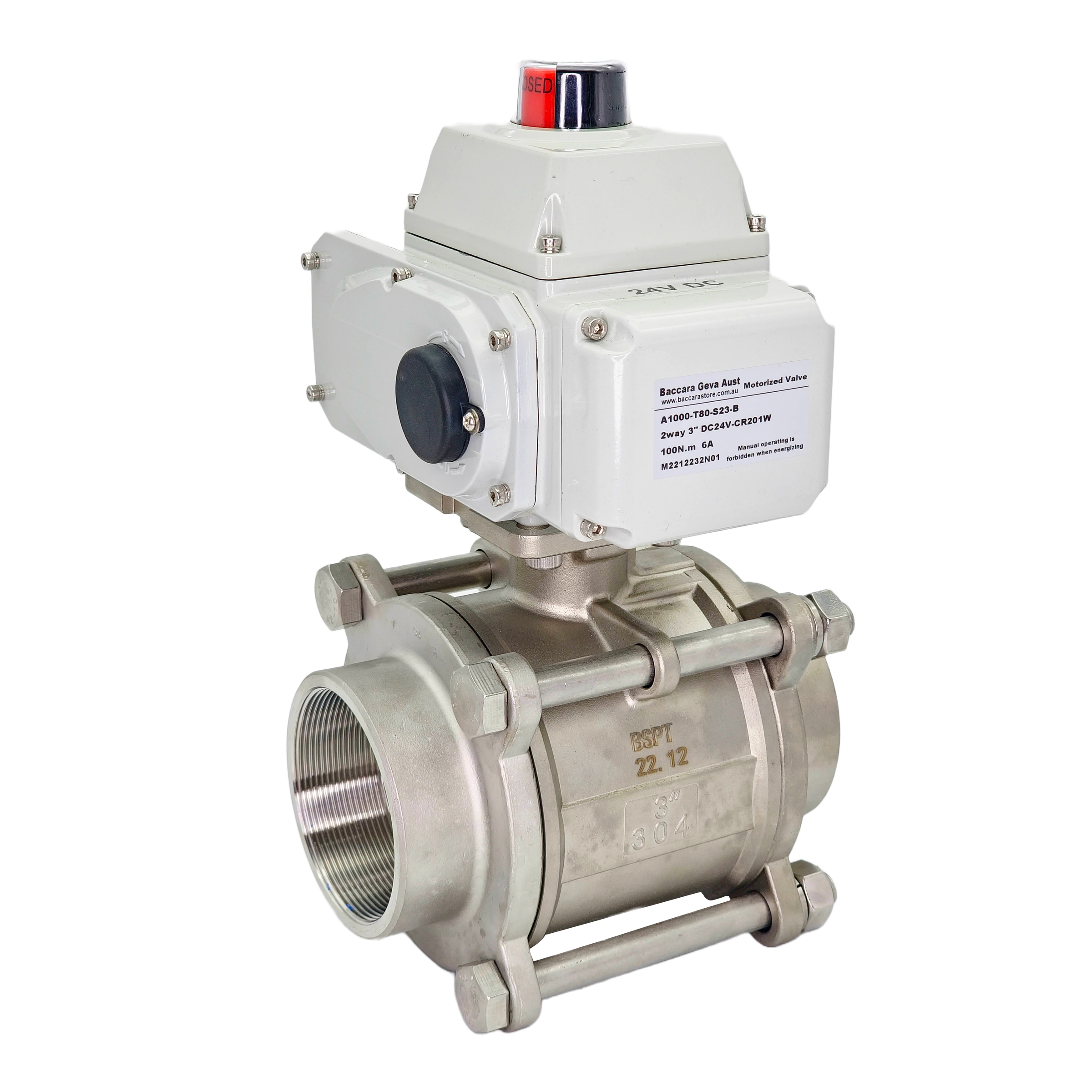

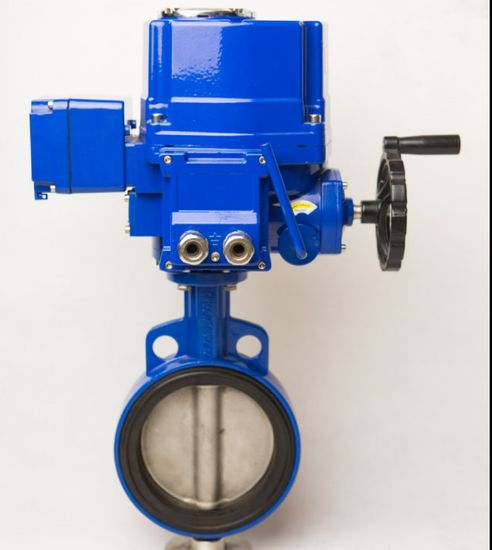

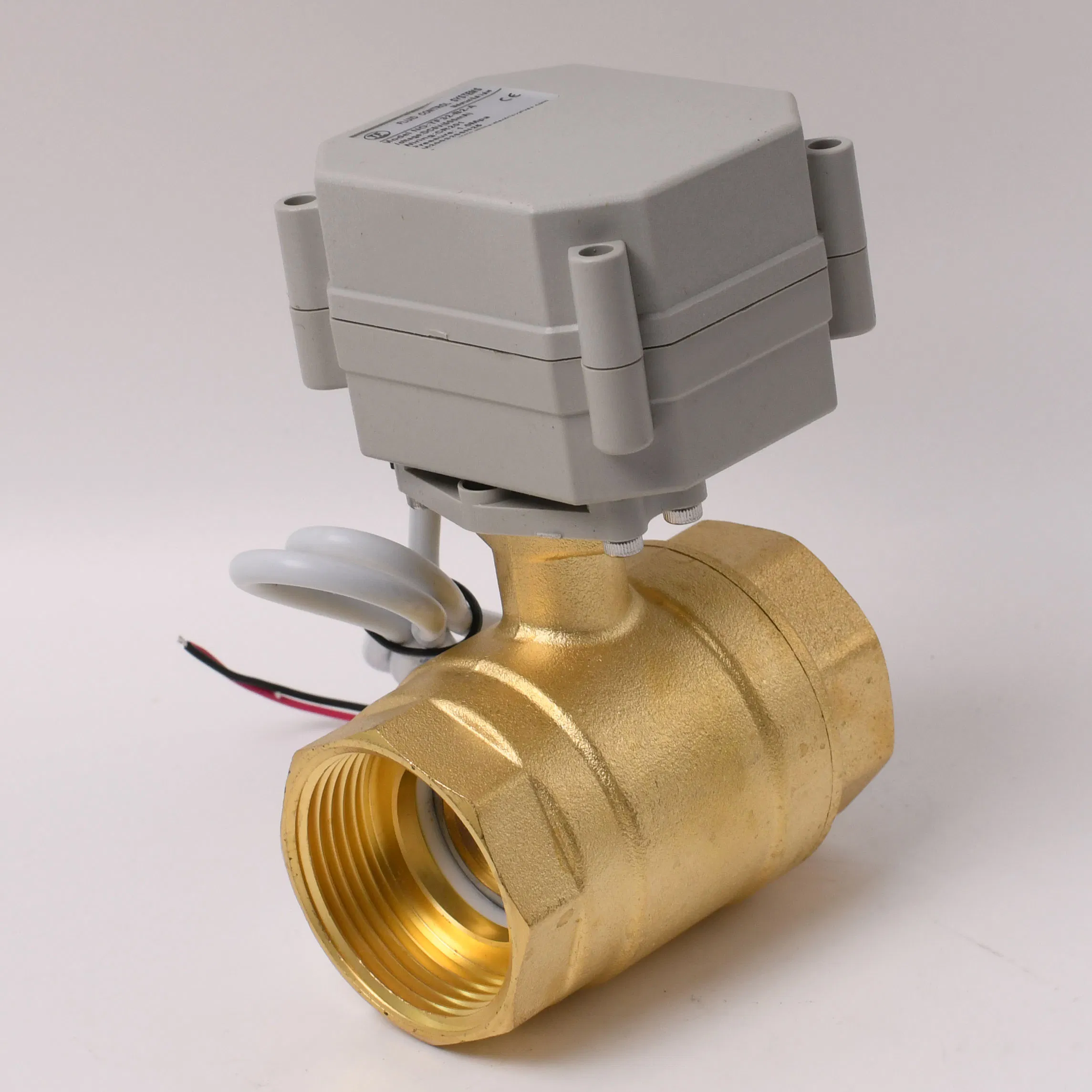

Valve actuator electric is a precision-engineered electric actuator designed to automate quarter-turn and linear valve operations across demanding industrial systems. It provides reliable torque delivery and accurate positioning for ball, butterfly, gate, globe, and plug valves used in process control, water treatment, power generation, and oil & gas distribution. The key value proposition is precise, repeatable valve control with robust IP-rated enclosures and integrated feedback, reducing manual intervention, downtime, and process variability. Strategically, this actuator enables digitalization of valve assets, supports remote operations and predictive maintenance, and lowers total cost of ownership in large-scale industrial installations.

Key Specifications & Technical Characteristics

• Materials: aluminum die-cast housing (standard) with stainless steel fasteners; optional corrosion-resistant coatings (epoxy, polyurethane) and 316L stainless steel body for corrosive environments

• Drive/geartrain: helical gearset with hardened steel gears and bronze washers; options for planetary gearing for high torque payloads

• Torque range: configurable from 10 Nm up to 6,000 Nm (model-dependent)

• Speed: adjustable from 1°/s to 60°/s depending on gearing and motor option

• Motor: 230/240 VAC single-phase or 110/120 VAC, 380–480 VAC three-phase; DC and explosion-proof motor variants available

• Control input: Modbus RTU, Modbus TCP/IP, 4–20 mA, 0–10 V, dry contact start/stop; optional ProfiBus/Profinet and HART interfaces

• Feedback & position sensing: absolute encoder (12–16 bit), potentiometer, and limit switches; feedback accuracy ±0.5° (model-dependent)

• Protection rating: standard IP67; optional IP68 and NEMA 4X configurations

• Ambient temperature range: –40 °C to +80 °C (dependent on motor and seal options)

• Ingress and corrosion resistance: optional salt-spray rated finishes up to 1,000 hours

• Enclosure classification: flameproof/ex d and increased-safety/Ex e options for hazardous locations

• Duty cycle / rating: S2 intermittent to S4/S5 heavy-duty cyclic duty (specify per model)

• Physical characteristics: typical unit weight 6 kg to 650 kg depending on torque class; compact footprint with standard ISO5211 mounting flange

• Cabling and entries: multiple M20/M25 gland options; removable terminal block for onsite commissioning

• Packaging: heavy-duty wooden crates for export, palletized shrink-wrapped for regional shipments, and skidded solutions for oversized units

• Shelf life: mechanical devices — indefinite under proper storage; recommended storage in dry, temperature-controlled environment (–10 °C to +40 °C)

• Documentation: factory calibration certificate, material certificates (upon request), CE/UL/ATEX/IECEx certificates where applicable

Core Industrial Applications

• Oil & Gas: mainline and subsea isolation and control valves, pigging stations, and choke control; electric actuation removes need for hydraulic systems and simplifies remote operation in pipeline networks.

• Water & Wastewater: automated isolation and flow control in treatment plants, distribution networks, and desalination facilities; reliable IP-rated units reduce leak points and maintenance cycles.

• Power Generation & Utilities: steam, cooling, and fuel control valves in thermal, nuclear, and renewable plants; precise positioning supports load-following and grid stability.

• Chemical & Petrochemical: corrosive and high-temperature processes using stainless variants and hazardous-area certified actuators; reduces exposure risk and improves process safety.

• HVAC & Building Services: large dampers and chilled-water control in commercial and industrial facilities; electrical actuation offers quieter, energy-efficient operation than pneumatic systems.
  Why it outperforms alternatives

• Higher positioning accuracy and repeatability than pneumatic or legacy motorized units, enabling finer process control.

• Eliminates hydraulic/pneumatic infrastructure and associated leak, maintenance, and energy losses.

• Modular options for control protocols facilitate integration into DCS/SCADA and IIoT systems.

• Heavy-duty gearing and materials optioned for longer lifecycle and lower through-life maintenance costs.

Competitive Advantages

• Quality consistency: factory-tested torque curves, position calibration, and full electrical testing before shipment; traceable material and test certificates.

• Supply reliability: structured production capacity with safety stock, scheduled weekly dispatch windows, and contract manufacturing scale for high-volume orders.

• Logistics capability: export-grade packaging, lift points and skids for heavy units, consolidation options for multi-unit shipments, and preferred carrier contracts for FCL/LCL worldwide.

• Price competitiveness: tiered pricing for volume contracts, OEM/partner program discounts, and total-cost-of-ownership modeling available for procurement evaluation.

• Sustainability: energy-efficient motor options, RoHS-compliant components, and recyclable packaging materials; optional low-energy standby modes to reduce site consumption.

• Technical support: dedicated engineering support for sizing and valve matching, FAT documentation, commissioning assistance (onsite or remote), and spare-parts kits; 24/7 technical hotline for critical installations.

Commercial & Supply Information

• Minimum order quantity (MOQ) BULK: 20 MT

• Loading capacity (MT per container): Typical 20-foot container loading capacity up to 20 MT gross for standard palletized actuators; 40-foot HC container up to 26–28 MT depending on packaging and crate dimensions. Final loading metrics confirmed per order based on selected models and packaging.
