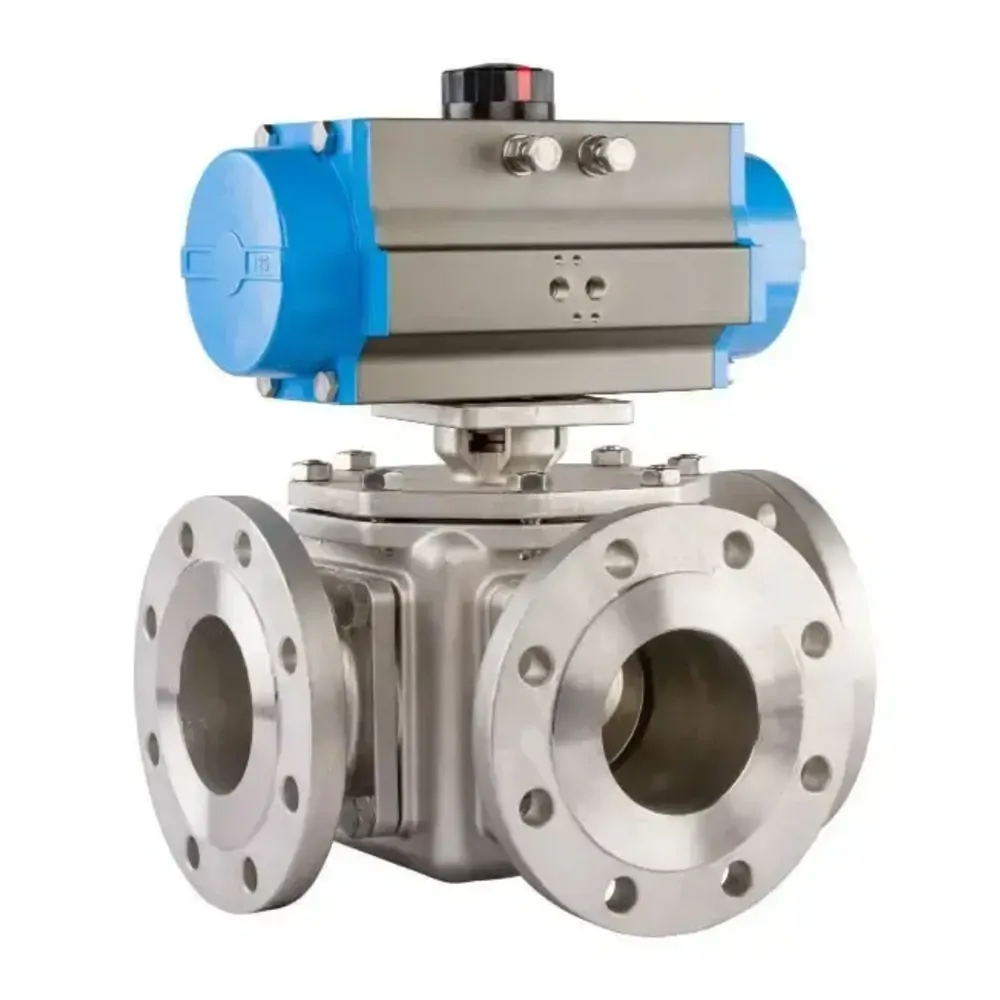

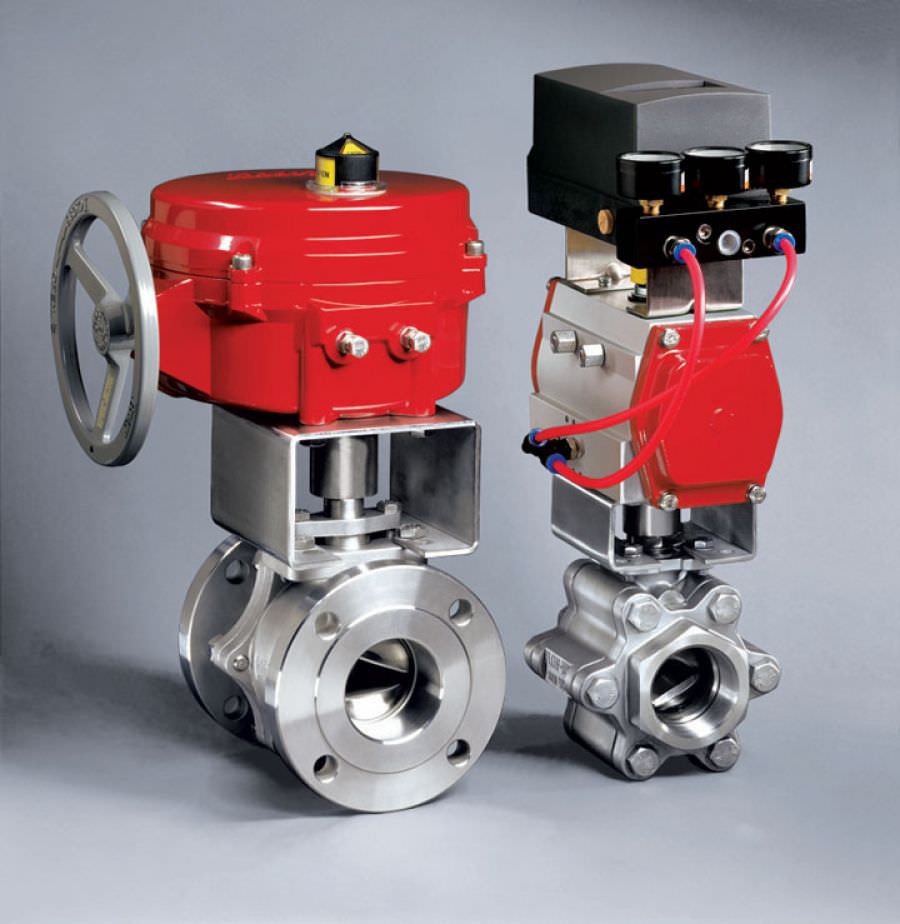

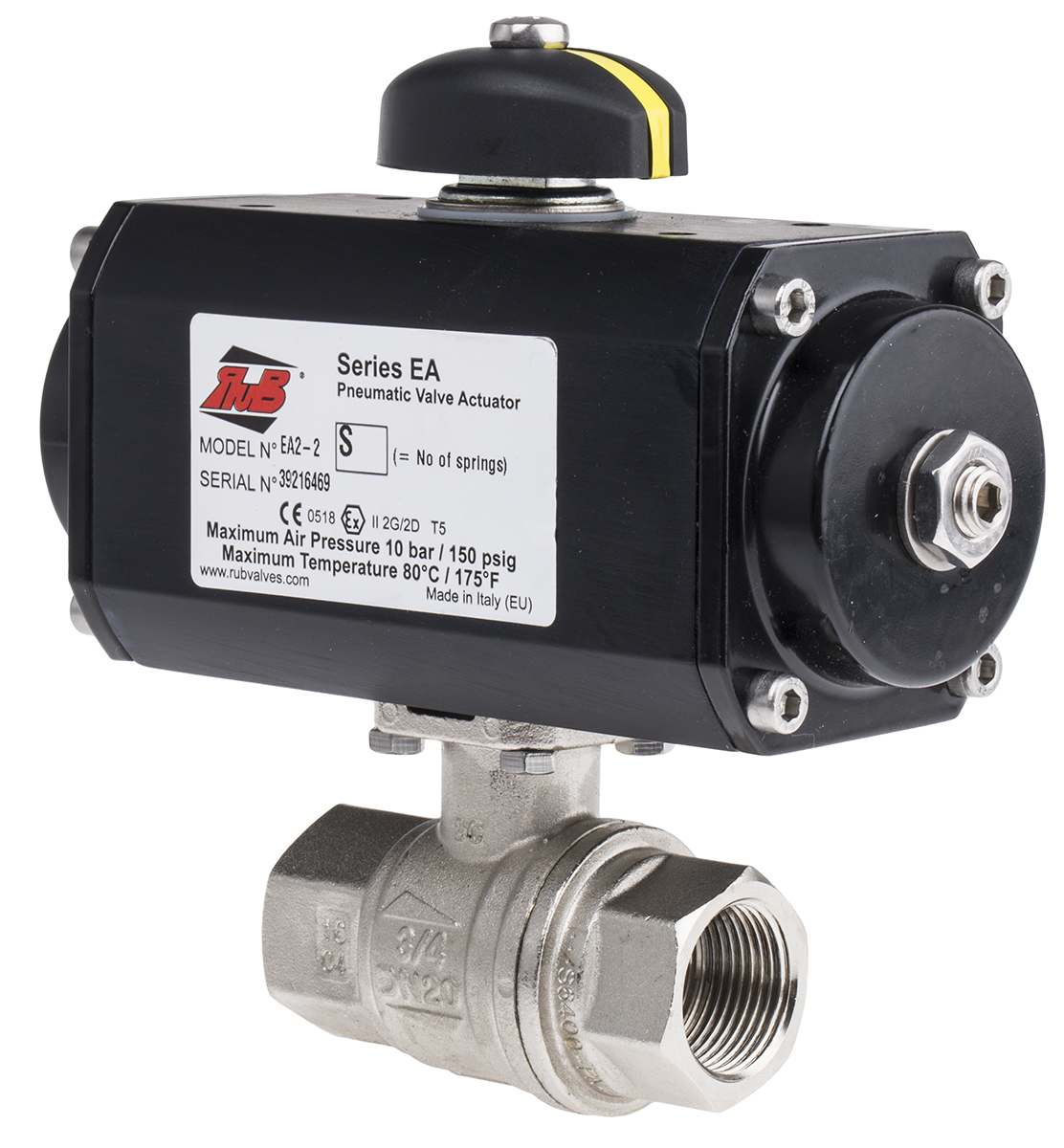

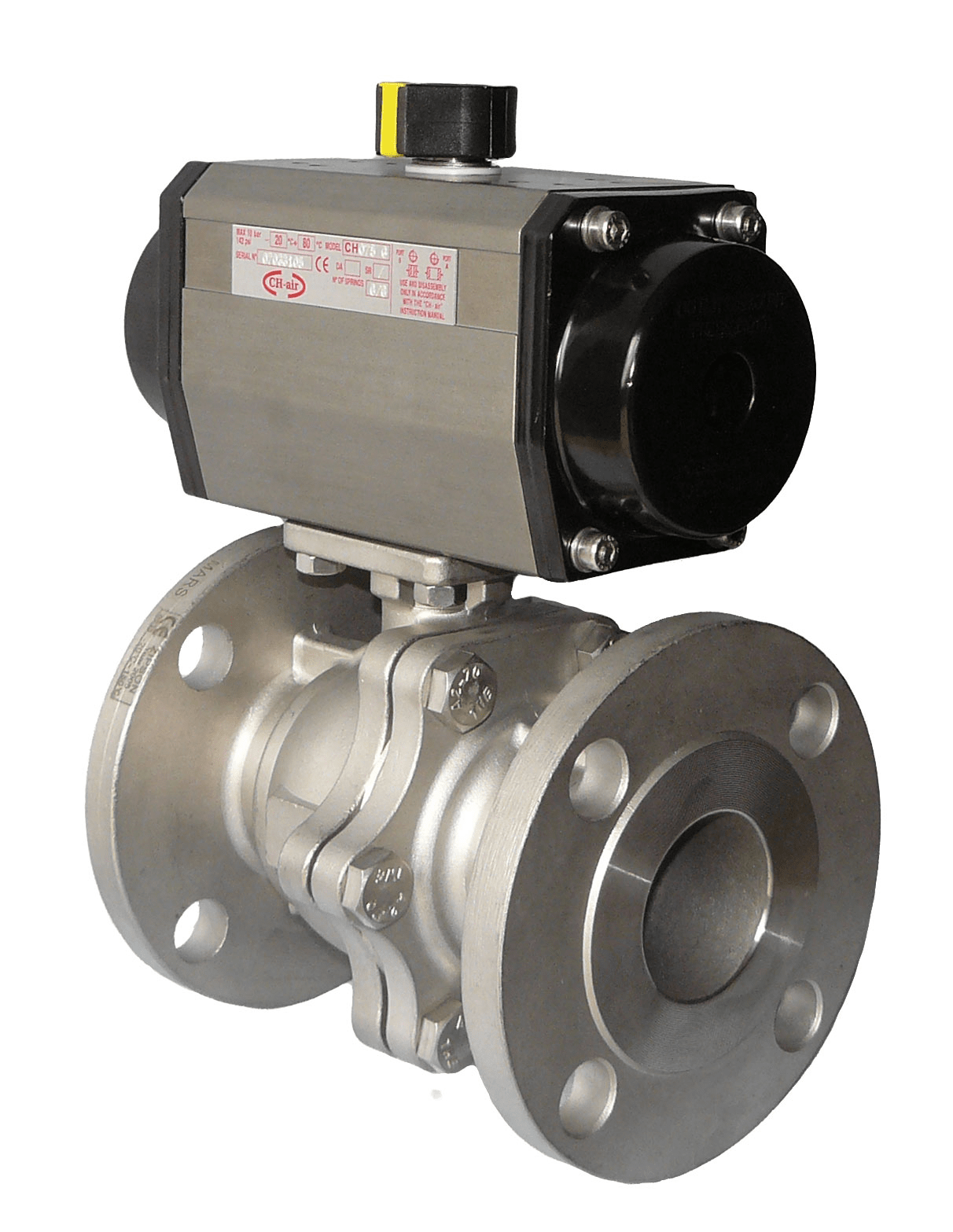

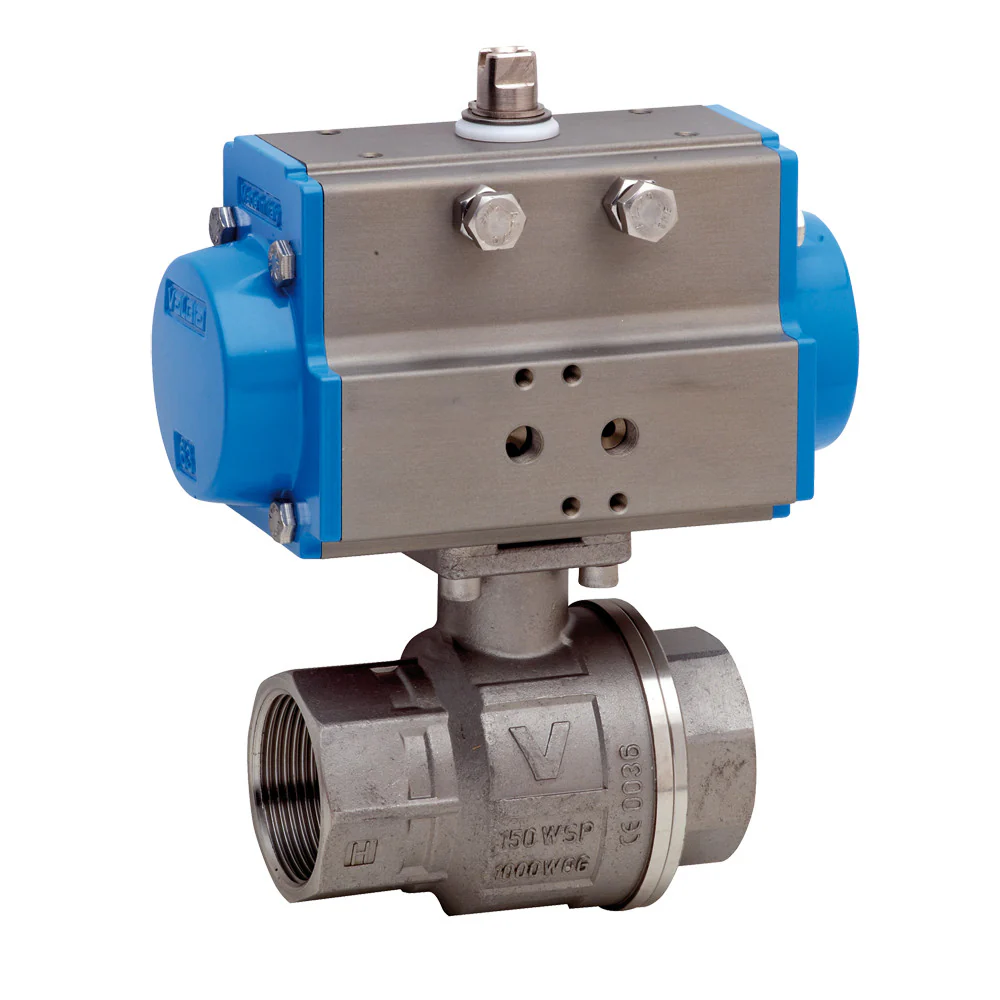

Valve actuator pneumatic

Description

Product Overview
Valve actuator pneumatic is an industrial-grade pneumatic actuator designed to automate quarter-turn and multi-turn valve operations across process, utility, and manufacturing plants. It converts compressed air into controlled rotary or linear motion to operate ball, butterfly, plug, and linear valves with precision and repeatability. The key value proposition is fast, reliable actuation with high torque-to-weight efficiency, minimal maintenance, and tight control for safety-critical and continuous-process environments. This actuator is strategically important because it enables remote automation, reduces manual intervention, and supports process optimization, uptime improvement, and regulatory compliance across oil & gas, chemical, water treatment, power generation, and manufacturing sectors.

Key Specifications & Technical Characteristics

• Actuation type: Double-acting and spring-return single-acting pneumatic options.

• Torque range: 50 Nm to 20,000 Nm (model-dependent).

• Materials of construction: Aluminum alloy housing (anodized), ductile iron end caps, stainless steel fasteners (SS304/SS316 optional), nitrile (NBR) or fluoroelastomer (FKM/Viton) seals.

• Drive interface: ISO 5211 mounting flange standard, multiple output shaft sizes and coupling options.

• Pressure rating: Designed for 2–10 bar (29–145 psi) supply pressure; optional high-pressure variants.

• Operating temperature range: -40 °C to +120 °C (standard), extended ranges with special seals.

• Cycle speed: Adjustable cushioning and travel speed, typical actuation time 0.2–10 seconds depending on model.

• Control features: Simple on/off; optional integrated positioner, solenoid valves, limit switches (mechanical/electrical), and feedback sensors (potentiometer, NAMUR, proximity).

• Protection class: IP65 standard; IP67/IP68 optional for subsea or washdown applications.

• Coatings and finishes: Corrosion-resistant coatings, epoxy painting, and specialty coatings for offshore/chemical exposure.

• Weight and footprint: Model-dependent; engineered for high torque-to-weight ratio to minimize support structures.

• Packaging options: Crated wooden pallets for export, steel-reinforced crates for heavy units, custom skids for assembled actuator-valve packages.

• Shelf life and storage: No chemical degradation; recommended dry, covered storage; service life dependent on operation cycles and maintenance (typical warranty period 12–24 months).

• Documentation: Includes dimensional drawings, torque charts, piping and instrumentation diagram (P&ID) guidance, maintenance manual, and FAT (Factory Acceptance Test) certificates on request.

Core Industrial Applications

• Oil & Gas: Remote valve automation for wellheads, pipeline isolation, and custody-transfer systems; preferred for fast actuation and fail-safe spring-return options.

• Petrochemical & Refining: Control of feedstock, fractionation, and safety relief valves where precise, repeatable valve position reduces product loss and improves process control.

• Chemical Processing: Corrosion-resistant variants for aggressive media; reliable sealing and materials ensure longevity in harsh chemistries.

• Water & Wastewater Treatment: Automated isolation and throttling of large-diameter valves in treatment plants and distribution networks; low maintenance suits continuous operation.

• Power Generation: Boiler feed, cooling systems, and turbine bypass control where high duty cycles and safety interlocks are required.

• Mining & Bulk Solids Handling: Dust-tolerant enclosures and robust construction for slurry and abrasive services.
  Why it outperforms alternatives

• Higher torque density yields smaller, lighter units for the same performance, lowering retrofit and support costs.

• ISO mounting compatibility simplifies integration, reducing engineering lead time.

• Advanced sealing and optional stainless-steel hardware extend service life in corrosive environments, lowering total cost of ownership.

• Optional integrated positioners and smart feedback improve process control and reduce commissioning time.

Competitive Advantages

• Quality consistency: Manufacturing to ISO 9001 systems with batch traceability, material certificates (MTC), and long-term performance testing.

• Supply reliability: Multi-site production and strategic inventory reserves ensure continuity for large projects and emergency spares.

• Logistics capability: Global export packaging, lead-time-managed shipments, and coordinated customs documentation for rapid international delivery.

• Price competitiveness: Tiered pricing structures for volume procurement with transparent cost breakdowns for CAPEX budgeting.

• Sustainability: Options for low-leak pneumatic designs, recyclable materials in housings, and supply-chain sourcing with environmental compliance documentation.

• Technical support: Comprehensive pre-sales engineering, on-site commissioning support, remote diagnostics guidance, and full documentation (maintenance schedules, spare parts lists, FAT/SAT reports).

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Dependent on unit size and packing; typical loading estimates:

  • 20ft container: up to 18–20 MT (packed units, space-optimized)

  • 40ft container: up to 24–27 MT (packed units, space-optimized)

• Lead times: Model- and quantity-dependent; standard models from stock, custom configurations subject to confirmation.

• Warranty & aftersales: Standard 12–24 month warranty; extended service agreements available.

• Compliance: Can be supplied with materials and testing certificates to meet industry standards (API, ISO, ATEX/IECEx on request).
