Military Grade UD Carbon Fiber Tape(MGUD-150)

Description

1. Product Overview
The MGUD-150 is a unidirectional (UD) carbon fiber prepreg tape engineered to MIL-grade specifications for ultra-high stiffness-to-weight ratio applications. Its primary industrial use is structural reinforcement and lightweighting in aerospace, defense, and advanced automotive platforms. The key value proposition is superior tensile strength retention under cyclic thermal and mechanical loads—reducing total system mass by up to 40% without compromising fatigue life. Strategically, it enables OEMs and tier‑1 suppliers to meet next‑generation emissions, range, and performance mandates where conventional metals or woven composites fall short.

2. Key Specifications & Technical Characteristics

• Chemical composition: Epoxy resin system (180°C cure, toughened) + continuous polyacrylonitrile (PAN)-based carbon fiber, 12k tow, UD alignment.

• Purity / grade: Military Grade (MG) per MIL‑PRF‑46186 analog; fiber areal weight 150 g/m² ± 3%.

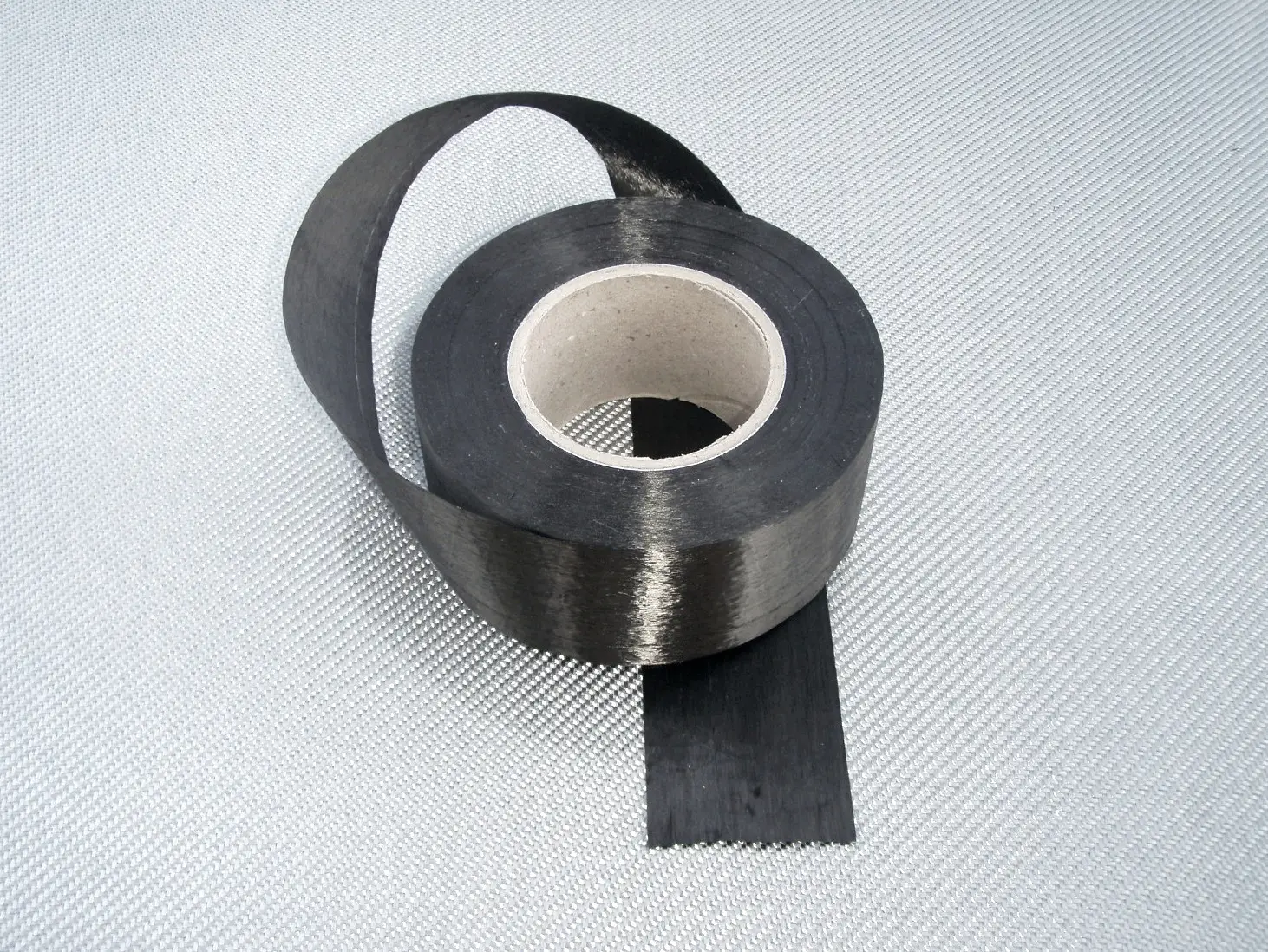

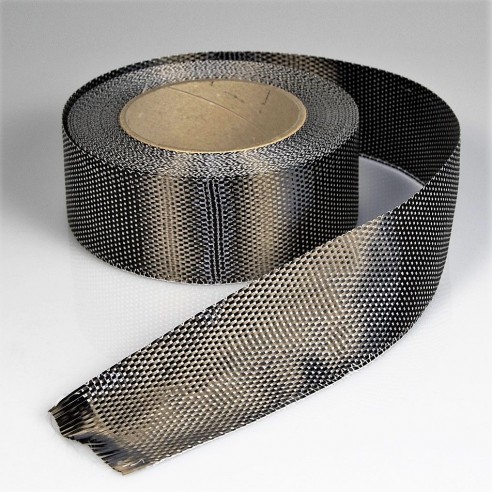

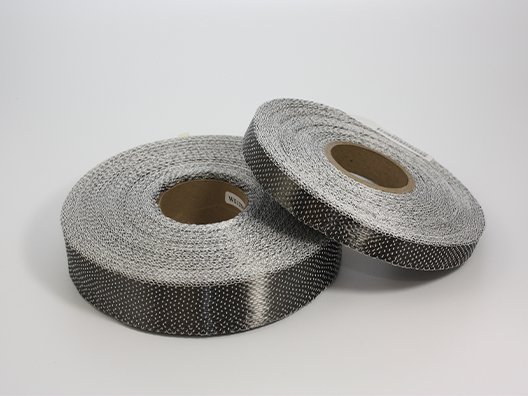

• Physical characteristics: Black tape; width options 12 mm, 25 mm, 50 mm, 100 mm; thickness cured 0.10 mm ± 0.02 mm; density 1.52 g/cm³; volatile content <0.5%.

• Packaging options: Sealed moisture‑barrier liner bags, 50 m or 100 m per roll; spooled on cardboard cores (76 mm ID); desiccant‑protected.

• Shelf life: 12 months at < -18°C (frozen); 30 days out of bag at 22°C / 50% RH.

3. Core Industrial Applications

• Primary industries: Aerospace & defense (primary/secondary airframes, UAV spars), motorsports (F1, LMP1 chassis reinforcements), industrial robotics (lightweight arms), wind energy (spar caps for blades >80m).

• Operational use cases: Repair of metal fatigue cracks in aging aircraft (bonded doubler patches), fabrication of drone fuselage longerons, reinforcement of concrete structures via externally bonded composite systems.

• Performance advantage vs. alternatives: Versus woven carbon fabric – 30% higher modulus in load direction, zero crimp-induced stress risers. Versus steel or aluminum – 70% weight reduction, no galvanic corrosion, and layup conforms to complex curves via tape’s drapability. Efficiency gain: reduces ply count by 20% vs. standard prepreg for same load case.

4. Competitive Advantages

• Quality consistency: Each batch validated via ultrasonic C‑scan (void content <1%) and dynamic mechanical analysis (Tg >185°C). Statistical process control (CpK >1.33) for resin content.

• Supply reliability: Dual‑source fiber contingency; 24/7 conditioned cold‑chain storage; 3‑week lead time for standard widths.

• Logistics capability: Direct shipping from ISO 9001:2024 + AS9100D facility to any global industrial hub (Rotterdam, Singapore, Houston) within 5‑7 days.

• Price competitiveness: Tier‑1 volume pricing at 15–20% below leading EU/US equivalent MIL-grade tapes.

• Sustainability: Production uses 35% renewable energy; resin system is styrene‑free; scrap tape reclaimable via pyrolysis for chopped fiber reuse.

• Technical support: Full material qualification packet (allowables, design allowables, repair manual) provided free with first order.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 20 MT (metric tons) per product line.

• Bulk 20MT Loading capacity: 20 MT exactly fits as a full container load:

  • 20‑foot dry container: 11 pallets (48”x40”) x 18 rolls per pallet = 198 rolls of 100m width 50mm → 19.8 MT net, plus desiccant/packaging → 20.0 MT.

  • Note: For 12mm width, up to 22 MT fits per TEU; contact logistics for max density configuration.
