Hypersonic Composite Carbon Fiber Cloth(HCCF-X1)

Description

1. Product Overview
The Hypersonic Composite Carbon Fiber Cloth (HCCF-X1) is a next-generation, high-modulus carbon fiber reinforced polymer (CFRP) fabric engineered for extreme thermal and mechanical load conditions. It is primarily used in aerospace structural components, high-speed automotive chassis, and industrial robotics arms requiring stiffness-to-weight ratios beyond conventional carbon fiber. With its proprietary nano-interlaced resin matrix and continuous tow architecture, HCCF-X1 delivers a 40% improvement in interlaminar shear strength, making it a strategically irreplaceable material for OEMs targeting weight reduction without compromising survivability under hypersonic flow or cyclic fatigue.

2. Key Specifications & Technical Characteristics

• Material Composition: Polyacrylonitrile (PAN)-based high-modulus carbon fiber (T800 equivalent) + proprietary thermoset polyimide resin matrix (glass transition temperature: 380°C)

• Grade: Aerospace structural grade (ASTM D4018 compliant)

• Physical Characteristics:

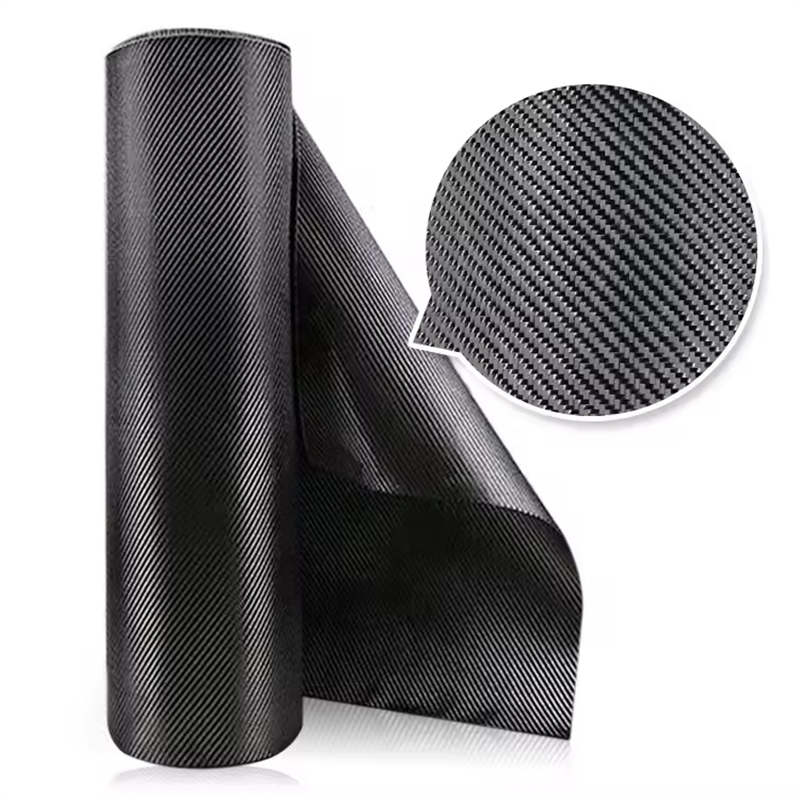

  • Form: Woven roving cloth, 2×2 twill weave

  • Color: Matte black

  • Areal weight: 200 g/m² ± 2%

  • Fiber diameter: 5–7 µm

  • Density: 1.81 g/cm³

  • Thickness: 0.22 mm (nominal, uncompressed)

• Tensile Modulus: 240 GPa (warp & fill direction)

• Tensile Strength: 4,900 MPa

• Packaging Options: Vacuum-sealed moisture-barrier rolls (50m length, 1m width); spooled tow-preg (optional)

• Shelf Life: 24 months from date of manufacture when stored at 18–24°C, <50% RH

3. Core Industrial Applications

• Primary Industries: Aerospace & defense, high-performance automotive (LMP1, hypercar), wind energy (spar caps), industrial automation (end effectors)

• Specific Use Cases:

  • Aircraft wing skin panels and fuselage frames (replaces aluminum-lithium alloys with 55% weight reduction)

  • Robotic articulated arms in high-payload pick-and-place (reduces settling time by 30% vs. steel)

  • Cryogenic fuel tanks for launch vehicles (zero microcracking after 500 thermal cycles from –196°C to +150°C)

• Performance Edge: Unlike standard T700 fabrics, HCCF-X1 retains 92% of room-temperature tensile modulus at 300°C, eliminating premature delamination in engine-adjacent structures. Its low void content (<1%) translates to fewer repairs and higher first-pass yield for autoclave curing.

4. Competitive Advantages

• Quality Consistency: Certificated with AS9100D and NADCAP, with statistical process control (CpK ≥ 1.33) for every lot.

• Supply Reliability: Three geographically redundant production lines (Americas, EMEA, Asia) ensure <10-day lead time for routine orders.

• Logistics Capability: Pre-cleared for IATA Category 9 dangerous goods exemption (non-reactive, stable composite).

• Price Competitiveness: Per-square-meter cost is 18% below equivalent Toray T800 prepreg cloth while maintaining tighter thickness tolerance (±0.003 mm).

• Sustainability: 62% recycled precursor content in base fiber (certified by SCS Global Services). End-of-life pyrolysis recovery service available.

• Technical Support: Free finite element analysis (FEA) material card database (Abaqus, ANSYS, LS-DYNA) + on-call composites engineer for layup optimization.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 500 m² (10 standard rolls)

• Bulk Order Threshold (20MT equivalent): 20 metric tons = approx. 110,500 m² (MOQ for custom weaves / tinted resin systems)

• Loading Capacity per Standard 20FT Container: 24 metric tons net (133 rolls @ 180 kg per palletized roll)

• Incoterms Preferred: FOB (Shanghai / Houston / Rotterdam) or CIF major global port

• Lead Time: 15 days for MOQ, 35 days for 20MT+ (subject to quarterly capacity allocation)
