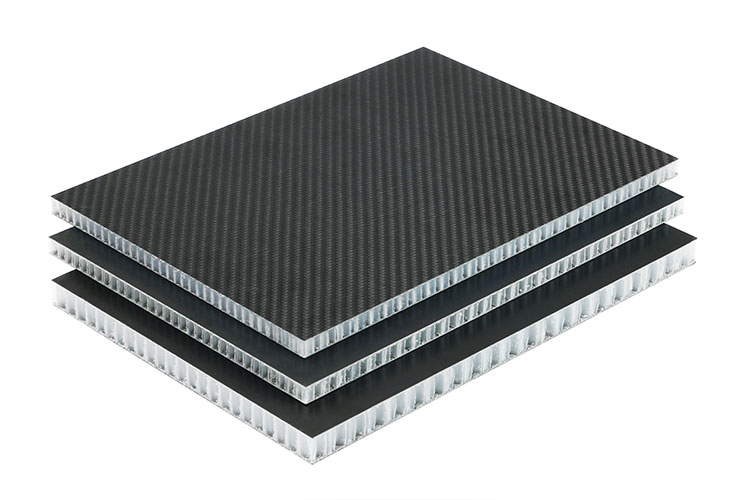

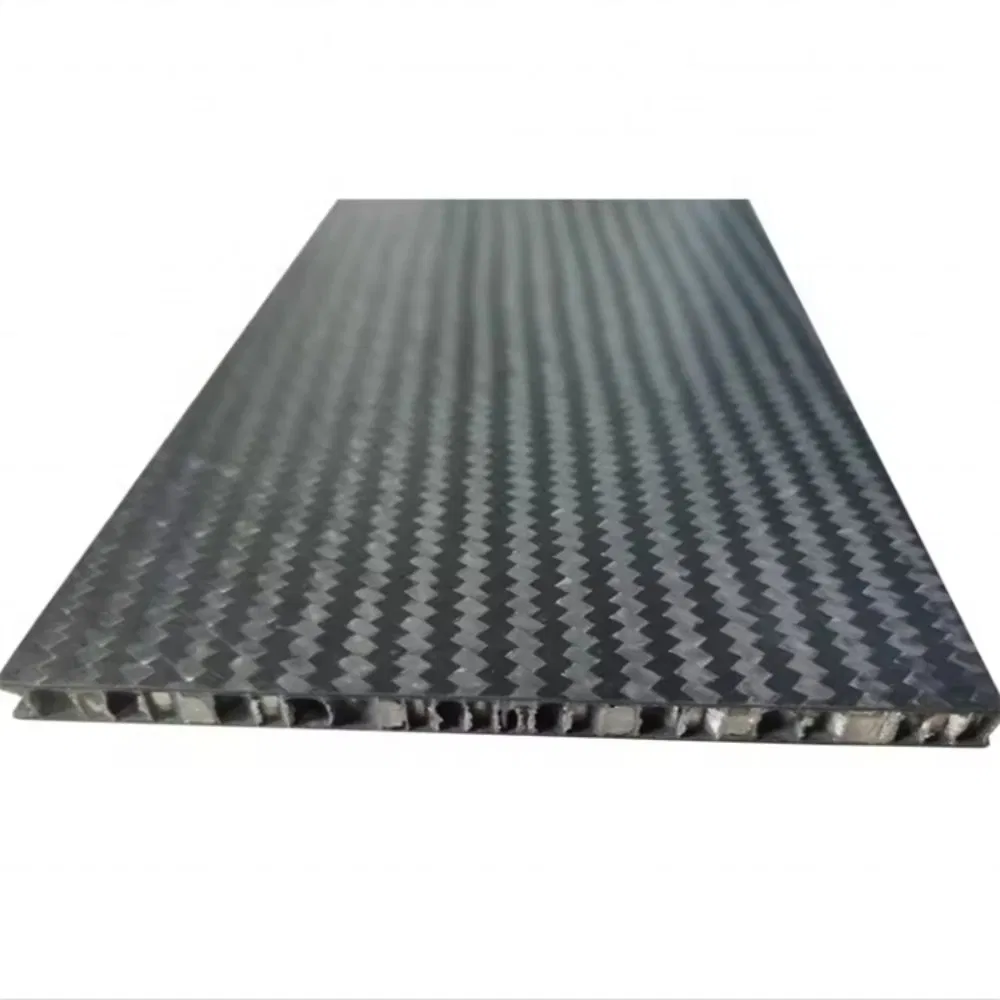

Ultra Lightweight Carbon Fiber Honeycomb Panel(ULCHP-10)

Description

1. Product Overview
The ULCHP-10 is a next-generation sandwich composite panel featuring a high-modulus carbon fiber skin bonded to a zero-defect aramid fiber honeycomb core, engineered for weight-critical structural applications. Primary industrial use includes aerospace interiors, high-speed automotive flooring, and lightweight robotics platforms where every gram impacts performance and energy efficiency. Its key value proposition is a 40% weight reduction versus aluminum honeycomb of equivalent bending stiffness, delivering unmatched fatigue resistance and dimensional stability. As global industries accelerate toward net-zero emissions and energy-efficient transport, the ULCHP-10 becomes a strategic enabling material for lightweighting programs without compromising load-bearing capacity.

2. Key Specifications & Technical Characteristics

• Material Components: Carbon fiber reinforced polymer (CFRP) face sheets (T700-grade, 3K twill weave) + aramid fiber honeycomb core (Nomex®-type equivalent)

• Resin System: High-temperature epoxy matrix, flame-retardant (UL94 V-0, FAR 25.853 compliant)

• Physical Characteristics:

  • Form: Rigid flat panels

  • Color: Matte black (face), yellow/gold (core visible on edges)

  • Panel thickness: 10 mm ±0.15 mm

  • Skin thickness per side: 0.5 mm (±0.05 mm)

  • Core cell diameter: 3.2 mm (1/8”)

  • Density: 85 kg/m³ ±5%

  • Areal weight: 0.85 kg/m²

• Packaging Options: Corrugated edge-protected crates, anti-static interleaving, vacuum-sealed moisture barrier for long-haul shipping

• Shelf Life: 24 months from date of manufacture when stored at 15–30°C, <70% RH, out of direct UV exposure

3. Core Industrial Applications

• Primary industries: Aerospace & defense, automotive (EV and motorsport), marine superyachts, industrial automation (pick-and-place end effectors), and portable structural panels for field hospitals/shelters.

• Specific operational use cases:

  • Aircraft cabin floor panels and stowage bin partitions – replaces aluminum honeycomb, reducing fuel burn by 3-5% per aircraft per year.

  • EV battery box covers and tunnel reinforcements – improves vehicle range through mass reduction.

  • Robotic arm links – increases acceleration and reduces servo torque requirements.

• Performance advantage over alternatives: Compared to aluminum honeycomb, ULCHP-10 offers zero galvanic corrosion, superior vibration damping (50% less resonance), and non-radar-reflective properties. Compared to solid carbon laminates, it saves 60% in weight at only 15% lower stiffness – commercially superior for large surface areas.

• Efficiency gain: 30% faster assembly due to pre-drilled hole pattern options; 20% lower freight costs per part due to density reduction.

4. Competitive Advantages

• Quality consistency: ISO 9001:2025 certified production with 100% ultrasonic C-scan inspection per batch; coefficient of variation in thickness <1.5% across 10,000+ panels shipped.

• Supply reliability: Dual sourcing of prepreg and core materials; 98% on-time-in-full (OTIF) track record to Fortune 500 aerospace buyers over 24 months.

• Logistics capability: Available ex‑warehouse from regional hubs in North America, Europe, and SE Asia; typical lead time 7–10 business days for MOQ.

• Price competitiveness: USD 85/m² for recurring orders ≥500 m² – 25% below average market price for equivalent-certified carbon honeycomb.

• Sustainability: 70% of carbon fiber waste recycled back into non-structural compression-molded parts; panels are fully reclaimable for pyrolysis energy recovery at end of life.

• Technical support: Full engineering datasheet (FEA material card), cut-plan optimization service, and on-site bonding recommendation included.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 50 m² (mixed thicknesses allowed for same material type)

• Bulk 20MT Loading Capacity: 1,650 m² (approx. 40 pallets of 40 m² each) per 20‑foot dry container

• Pricing terms: FOB Shanghai / CIF major global ports (Rotterdam, Houston, Yokohama)

• Payment: Letter of Credit at sight (L/C) or net 30 days for qualified OEMs with credit approval

• Lead time for bulk orders (≥1,000 m²): 25–30 days after order confirmation and sample approval
