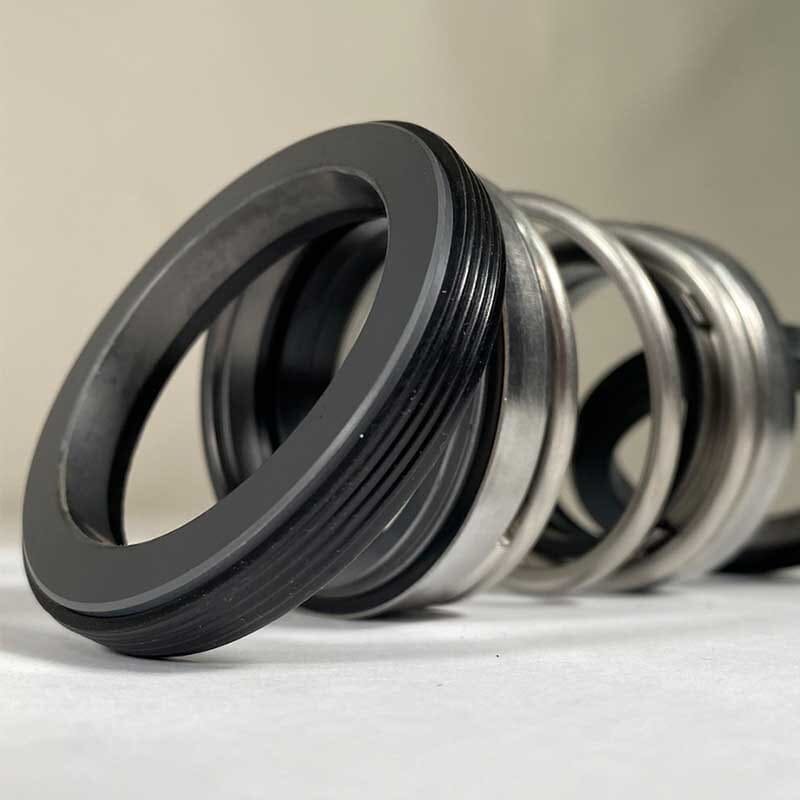

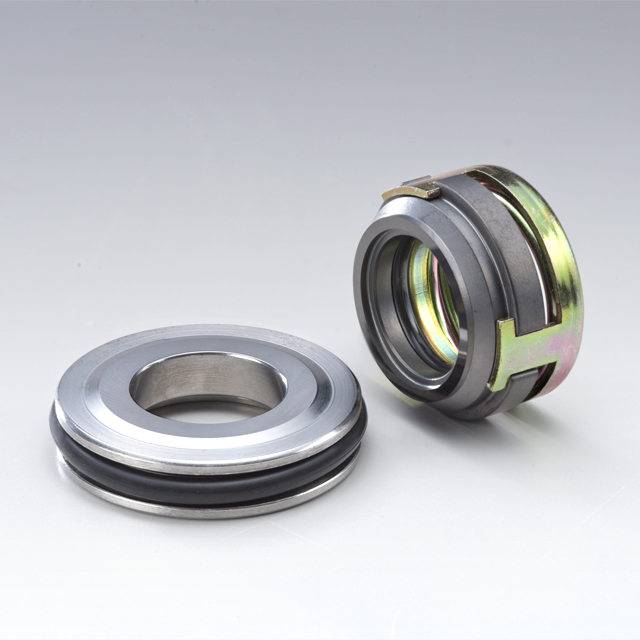

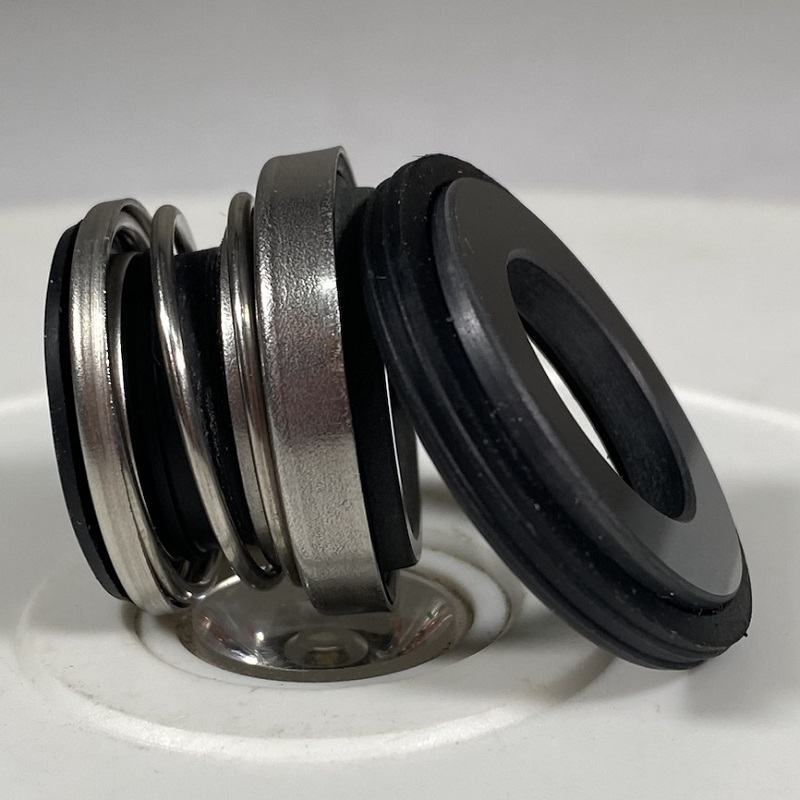

Mechanical seal R30 type

Description

Product Overview
The Mechanical Seal R30 type is a high-performance rotating equipment seal engineered for centrifugal pumps, mixers, and industrial agitators. It provides robust fluid containment for sealing shafts in oil, chemical, water treatment, and petrochemical services, minimizing leakage and unplanned downtime. The R30 delivers superior face stability and axial compensation under variable pressure and temperature, reducing maintenance frequency and total cost of ownership. Strategically, it serves as a critical reliability component for plants prioritizing uptime, safety, and predictable operating economics.

Key Specifications & Technical Characteristics

• Seal type: Cartridge-style mechanical seal, single-spring (or balanced/unbalanced configurations available on request)

• Materials of construction: Carbon (stationary face), SiC/TC or Tungsten Carbide (rotating face) options; 316L stainless steel metal parts; FKM, EPDM, or PTFE elastomers selectable by service compatibility

• Surface finish: Lapped seal faces to industry-standard flatness and Ra ≤ 0.2 µm (typical)

• Pressure rating: Up to 16 bar (higher ratings available with specific configurations)

• Temperature range: -20 °C to +180 °C depending on materials; extended ranges with special materials

• Shaft size compatibility: Standard range 20–80 mm (custom sizes available)

• Balance: Balanced design option for higher-pressure services

• Seal configuration: Inboard/outboard mounting possible; optional quench/flush ports

• Physical characteristics: Precision-machined metal components; nominal weight varies with size (typically 0.8–6.5 kg per unit)

• Chemical compatibility: Resistant to hydrocarbons, aqueous solutions, acids and alkalis within material compatibility limits (selection guidance provided)

• Packaging options: Individual sealed cartons with desiccant for single-unit orders; wooden crates or palletized boxes for bulk; each unit labeled with part number, date code, and QC certificate

• Shelf life: Indefinite for metal parts when stored dry; elastomers recommended usage within 24 months if stored at controlled temperature (≤25 °C) and humidity

• Documentation: Includes material certificates (EN/ASTM), dimensional drawings, installation and maintenance manual, and API/ISO compliance statements where applicable

Core Industrial Applications

• Petrochemical & Refining: Shaft sealing for centrifugal charge pumps, reclaim pumps, and product transfer pumps where contamination control and hydrocarbon containment are critical.

• Chemical Processing: Seals for corrosive or solvent services using elastomer and face material options matched to media, reducing leak risk and cross-contamination.

• Water & Wastewater Treatment: Mechanical sealing in transfer and dosing pumps, offering long run-times in abrasive or variable-duty cycles.

• Power Generation: Boiler feed and condensate pump sealing where thermal cycling resistance and reliability reduce outage windows.

• Mining & Mineral Processing: Slurry-capable configurations (with appropriate materials and flush plans) deliver enhanced abrasion resistance and maintenance intervals.
  Why it outperforms alternatives

• Material flexibility lets engineers match face and elastomer combinations to aggressive chemistries, improving service life versus one-material seals.

• Balanced design options reduce hydraulic load on faces at higher pressures, lowering wear and heat generation.

• Cartridge-style geometry simplifies installation, minimizing alignment errors and reducing mean time to repair.

• Tight manufacturing tolerances and surface finish lower leakage rates and extend operational intervals, producing measurable cost-per-hour savings.

Competitive Advantages

• Quality consistency: Factory-controlled machining and lapping processes with full batch traceability and inspection records.

• Supply reliability: Strategically located production and distribution channels with safety-stock-backed lead times to support planned outages and emergency replacements.

• Logistics capability: Bulk palletization and containerized export packing; experience with hazardous/non-hazardous transport documentation (IMDG, ADR) as required.

• Price competitiveness: Tiered pricing for bulk 20 MT orders, contract pricing for annualized purchase agreements, and total-cost-of-ownership modeling available for large consumers.

• Sustainability: Material selection and packaging optimized to reduce waste; option for remanufactured exchange programs to reduce lifecycle environmental impact.

• Technical support: Application engineering, installation guidance, on-site troubleshooting, spare parts kits, and comprehensive technical datasheets and test reports upon request.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Standard 20-foot dry container loading capacity up to ~20 MT (subject to packaging and unit dimensions); 40-foot container capacity up to ~25–27 MT. Exact loading depends on selected packaging configuration and unit sizes.

• Lead time: Standard production lead times and expedited options available; contact sales for confirmed delivery schedules based on order volume and destination.

• Warranty & service: Standard manufacturer warranty against defects, with extended service agreements available for long-term supply contracts.
