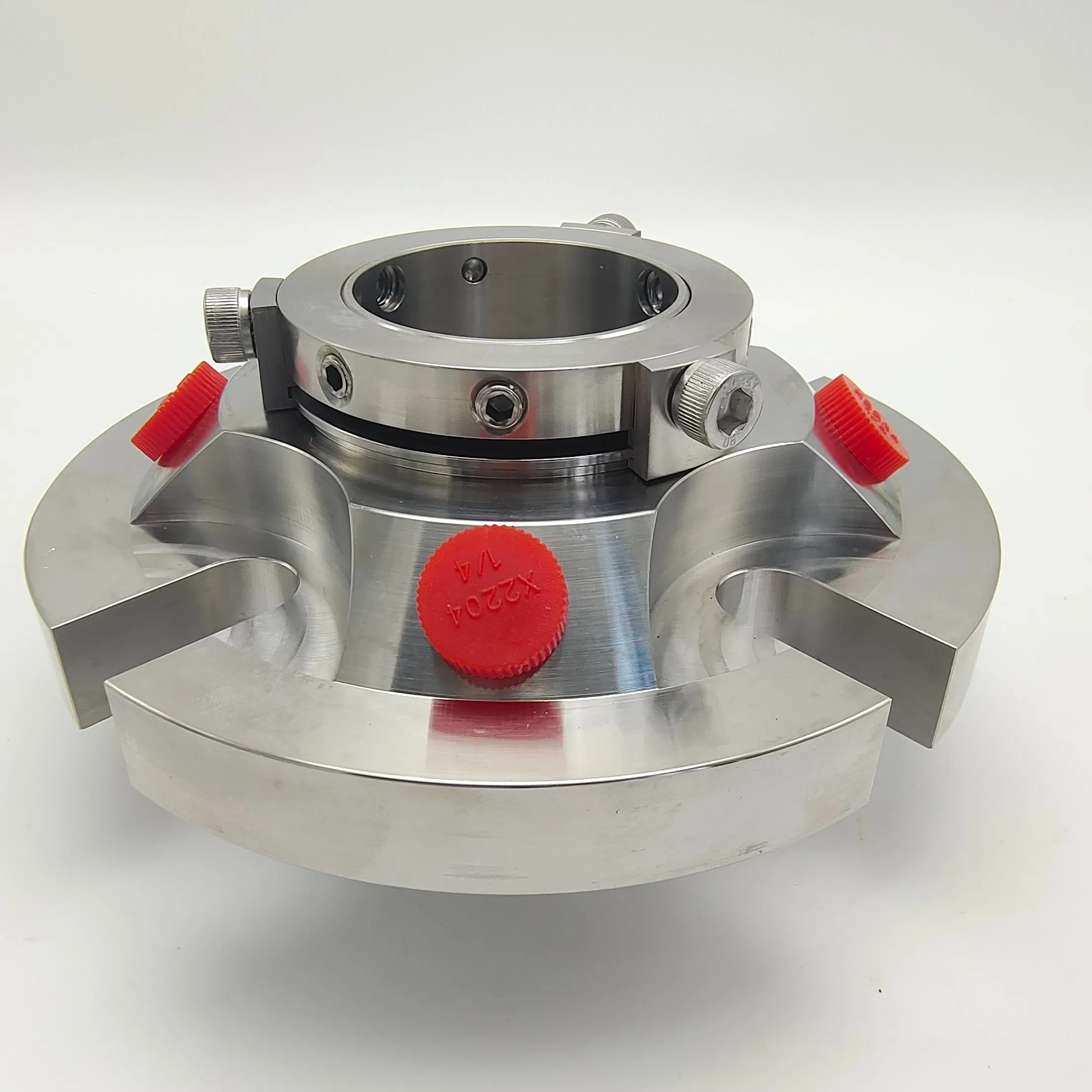

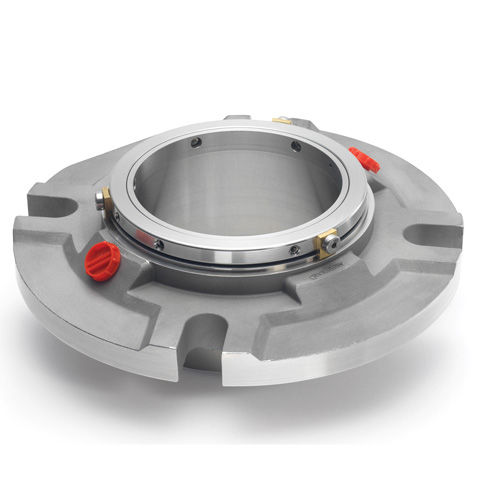

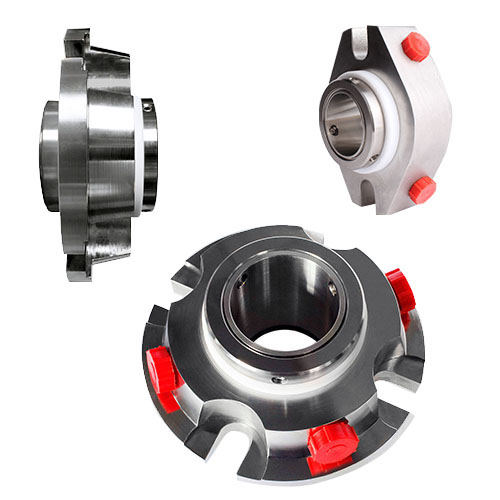

Cartridge mechanical seal CURC type

Description

1. Product Overview

The Cartridge Mechanical Seal CURC Type is a precision-engineered, pre-assembled cartridge seal designed to provide reliable shaft sealing for centrifugal and rotary equipment across demanding industrial environments. It is primarily used to prevent fluid leakage in pumps, mixers, compressors and agitators handling water, hydrocarbons, chemicals and slurries. The CURC cartridge design delivers rapid, error-free installation, consistent sealing performance, and reduced downtime compared with component-style seals. Strategically, it reduces lifecycle operating costs and technical risk for large-scale plant operators and OEMs that require predictable, maintainable sealing solutions in continuous-process operations.

2. Key Specifications & Technical Characteristics

• Seal type: Cartridge mechanical seal, CURC configuration (pre-assembled cartridge with gland and sleeve).

• Materials of construction: Rotating face—silicon carbide (SiC) or carbon; stationary face—ceramic or tungsten carbide (WC); secondary seals—FKM (Viton) standard, EPDM or PTFE optional; metal components—316L stainless steel or duplex stainless steel options.

• Material grades: 316L SS (UNS S31603) or Duplex 2205 (UNS S32205); silicon carbide (pressure-sintered, high-density); tungsten carbide (cobalt-bonded, industrial grade); carbon (graphite composite, ISO-grade).

• Temperature range: -20°C to +180°C (standard); high-temperature variants to +260°C available on request.

• Pressure rating: Up to 16 bar (standard); higher-pressure designs available per specification.

• Speed rating: Up to 3600 RPM depending on configuration and lubrication.

• Seal faces finish: Lapped to industry tolerance for face flatness and surface finish (Ra ≤ 0.1 μm typical).

• Secondary seal hardness and compatibility: FKM standard (chemical compatibility across hydrocarbon and many chemical services); alternatives for aggressive chemistries.

• Balance and hydraulics: Hydraulically balanced seal face options to reduce load and extend life.

• Physical characteristics: Pre-assembled cartridge package; overall lengths and diameters per shaft size (standard shaft bore range 15 mm–120 mm; custom sizes available).

• Packaging options: Individual protective cartons with desiccant for spare parts; wooden crates or palletized skids for bulk orders; sealed plastic sleeve for immediate-use cartridges.

• Shelf life: 24 months under recommended storage conditions (dry, ambient 5–35°C, away from UV and solvents).

• Documentation supplied: Material certificates (EN/ASTM), dimensional drawings, installation instructions, and performance datasheets.

3. Core Industrial Applications

• Primary industries: Oil & gas (upstream/downstream), chemical processing, water & wastewater treatment, power generation (steam and cooling systems), mining and mineral processing, pulp & paper, and general process manufacturing.

• Specific operational use cases: Seal replacement and upgrade on API pumps and ANSI pumps, sealing of process transfer pumps handling hydrocarbons and solvents, slurry services where robust face materials necessary, and high-reliability sealing in critical balance-of-plant rotating equipment.

• Why it outperforms alternatives:

  • Installation consistency: Pre-assembled cartridge eliminates complex field assembly errors that reduce service life.

  • Faster MTTR (mean time to repair): Cartridge design enables rapid swap-out, minimizing unplanned downtime and maintenance labor costs.

  • Material flexibility: Face and secondary seal options allow tailoring to corrosive, abrasive or high-temperature process streams.

  • Reduced inventory complexity: One cartridge part number covers multiple mating geometries, simplifying spares management and lowering total cost of ownership.

4. Competitive Advantages

• Quality consistency: Manufactured under controlled production and QA processes with traceable material certificates and face finish tolerances to industry standards.

• Supply reliability: Global production and logistics footprint with safety stock strategies and expedited replenishment for critical spares.

• Logistics capability: Packaged and palletized for sea/air freight, container-optimized loading; compatibility with standard ICD/IMDG shipping protocols for hazardous goods when applicable.

• Price competitiveness: Competitive unit economics for bulk procurement (MOQ pricing tiers), and lifecycle cost advantages by lowering downtime and maintenance frequency.

• Sustainability benefits: Long-life sealing materials reduce replacement frequency and waste; recyclability of metal components; low-leak performance minimizes fugitive emissions in regulated operations.

• Technical support: Full documentation set (installation, maintenance, material certs), application engineering support for siting and compatibility checks, and field-service guidance for first-fit installations.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity: Typical loading per 20-foot container—up to 20 MT depending on packaging; per 40-foot container—up to 25–27 MT depending on palletization and packing density. Final loading figures tailored to order packaging and crate dimensions; confirm at time of order for exact container manifesting.
