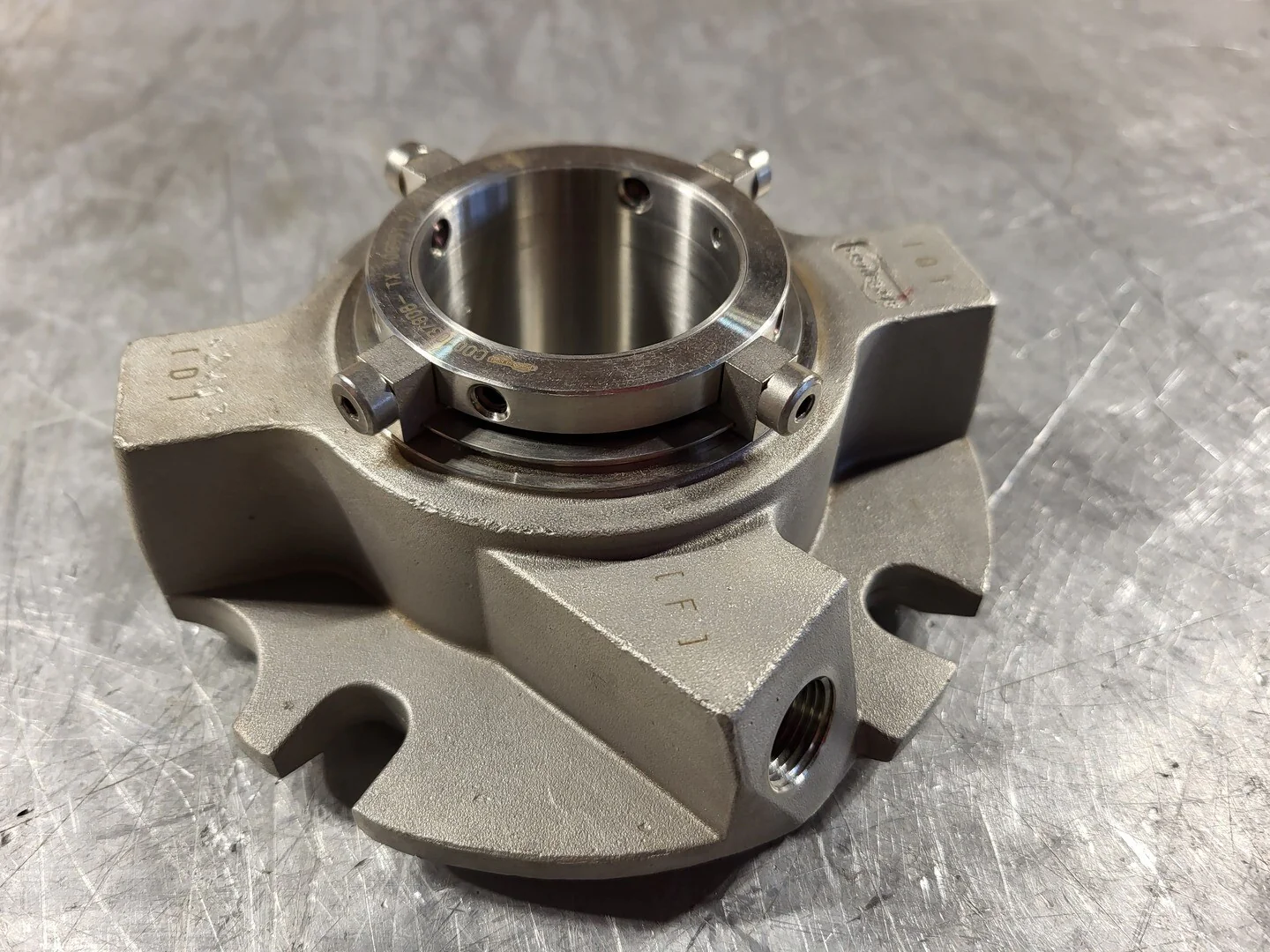

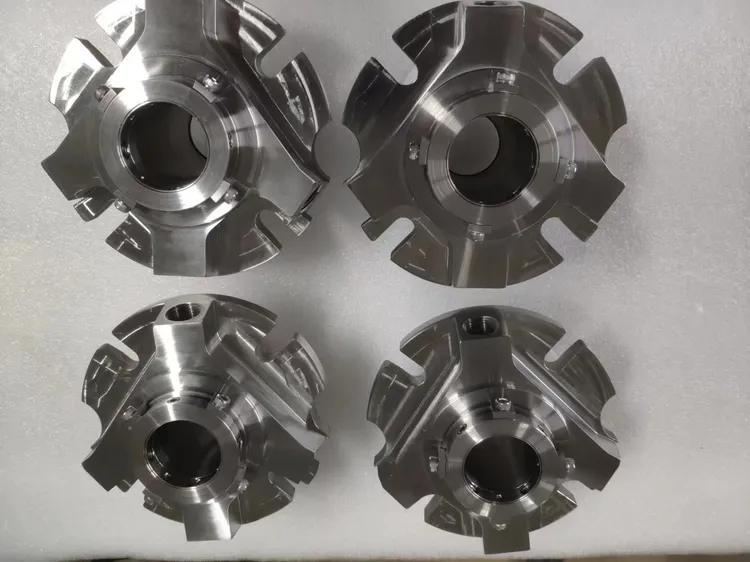

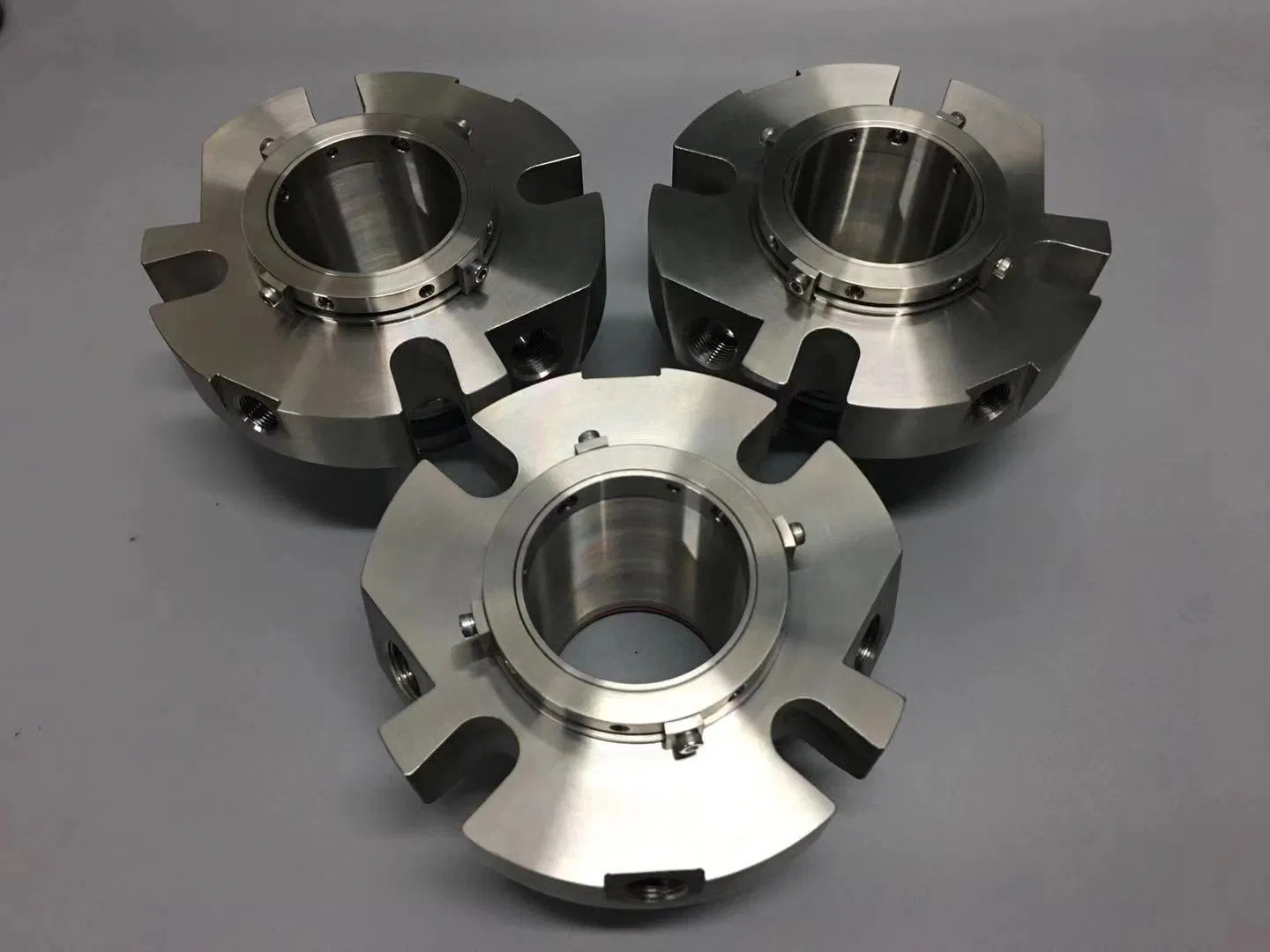

Cartridge mechanical seal ISC2 type

Description

1. Product Overview

The Cartridge Mechanical Seal ISC2 type is a precision-engineered cartridge seal assembly designed to provide reliable shaft sealing for rotating equipment across demanding industrial environments. Primarily used in pumps, mixers, and compressors handling liquids or slurries, it delivers leak-tight performance, simplified installation, and reduced maintenance downtime. Its key value proposition is rapid, repeatable fitment with pre-set internal clearances and integrated components that eliminate field-setting errors and accelerate mean time between repairs (MTBR). Strategically, the ISC2 cartridge seal reduces operational risk and total cost of ownership for large-scale processing plants and contract maintenance programs, making it a core component for efficient rotating-equipment asset management.

2. Key Specifications & Technical Characteristics

• Seal type: Cartridge mechanical seal, ISC2 family design (pre-assembled cartridge)

• Materials of construction: Carbon graphite or ceramic stationary face; tungsten carbide or silicon carbide rotating face; stainless steel 316/316L cartridge housing and drive components; FKM (Viton) or EPDM secondary elastomers (selectable)

• Face combination options: Carbon vs. tungsten carbide; silicon carbide vs. silicon carbide; ceramic combinations available on request

• Hardness & finish: Mating faces lapped to industry-standard flatness and surface finish for high sealing integrity

• Temperature range: Typical service -20 °C to +180 °C (material-dependent)

• Pressure rating: Suitable for up to industry-standard intermediate pressures (specify in PO for exact duty)

• Shaft sizes accommodated: Modular cartridge design for common shaft diameters (consult ordering guide for exact fits)

• Runout tolerance: Designed to tolerate typical pump shaft runout per OEM standards due to cartridge alignment features

• Elastomer compatibility: FKM for hydrocarbon/chemical resistance; EPDM for aqueous/steam services

• Corrosion resistance: 316/316L stainless steel wetted components; optional duplex/super duplex or nickel alloys for aggressive chemistries

• Physical characteristics: Pre-assembled cartridge unit; nominal weight varies by size (refer to datasheet)

• Packaging options: Industrial cardboard crate with protective inner wrap; palletized 20–40 units per pallet depending on size; export-ready wooden crate on request

• Storage & shelf life: Store dry in original packaging; recommended shelf life 3 years for elastomer integrity if stored at 5–25 °C away from UV and ozone sources

• Documentation: Includes dimensional drawing, material certificates (upon request), and installation procedure

3. Core Industrial Applications

• Primary industries: Oil & gas, petrochemical refining, chemical processing, water & wastewater treatment, pulp & paper, mining and mineral processing, power generation, and general industrial manufacturing.

• Operational use cases: Pump shaft sealing for centrifugal and vertical pumps; mixers and agitators with moderate to high solids content; seal replacement during planned maintenance to reduce downtime; retrofit programs standardizing seals across fleets.

• Performance advantages versus alternatives: Cartridge format eliminates complex in-field face setting required by component seals, reducing installation time and operator error; robust material pairings (e.g., SiC vs. SiC or WC) provide superior wear resistance in abrasive or erosive services; selectable elastomers and metallurgy allow tailored chemical compatibility, reducing premature failures.

• Commercial relevance: Standardized cartridge seals simplify spare-parts inventory management and enable faster turnaround in maintenance contracts, improving pump availability and lowering lifecycle cost.

4. Competitive Advantages

• Quality consistency: Factory-assembled and inspected units ensure repeatable sealing geometry and documented QC for batch traceability.

• Supply reliability: Modular manufacturing and standardized components support scalable production and predictable lead times for enterprise sourcing.

• Logistics capability: Export-ready packaging, palletization, and container loading support bulk shipments to global sites; compatibility with standard container metrics ensures efficient freight planning.

• Price competitiveness: Standardized designs and material options enable cost-optimized configurations for high-volume procurement without sacrificing performance.

• Sustainability benefits: Longer MTBR and reduced leakage lower fluid losses and waste; material options permit selection of recyclable metals and lower-impact elastomers where required.

• Technical support: Comprehensive installation instructions, dimensional drawings, and material certificates available; engineering support for material selection, failure analysis, and retrofitting programs upon request.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Calculated per container based on unit size and packaging; typical full container loading examples available in the commercial datasheet and shipping plan (provide pump model/size to receive exact MT per container).
