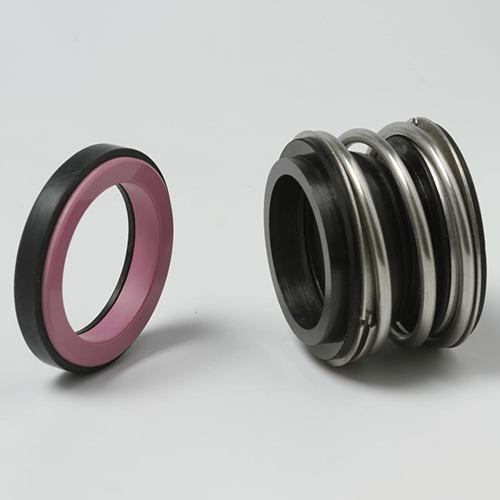

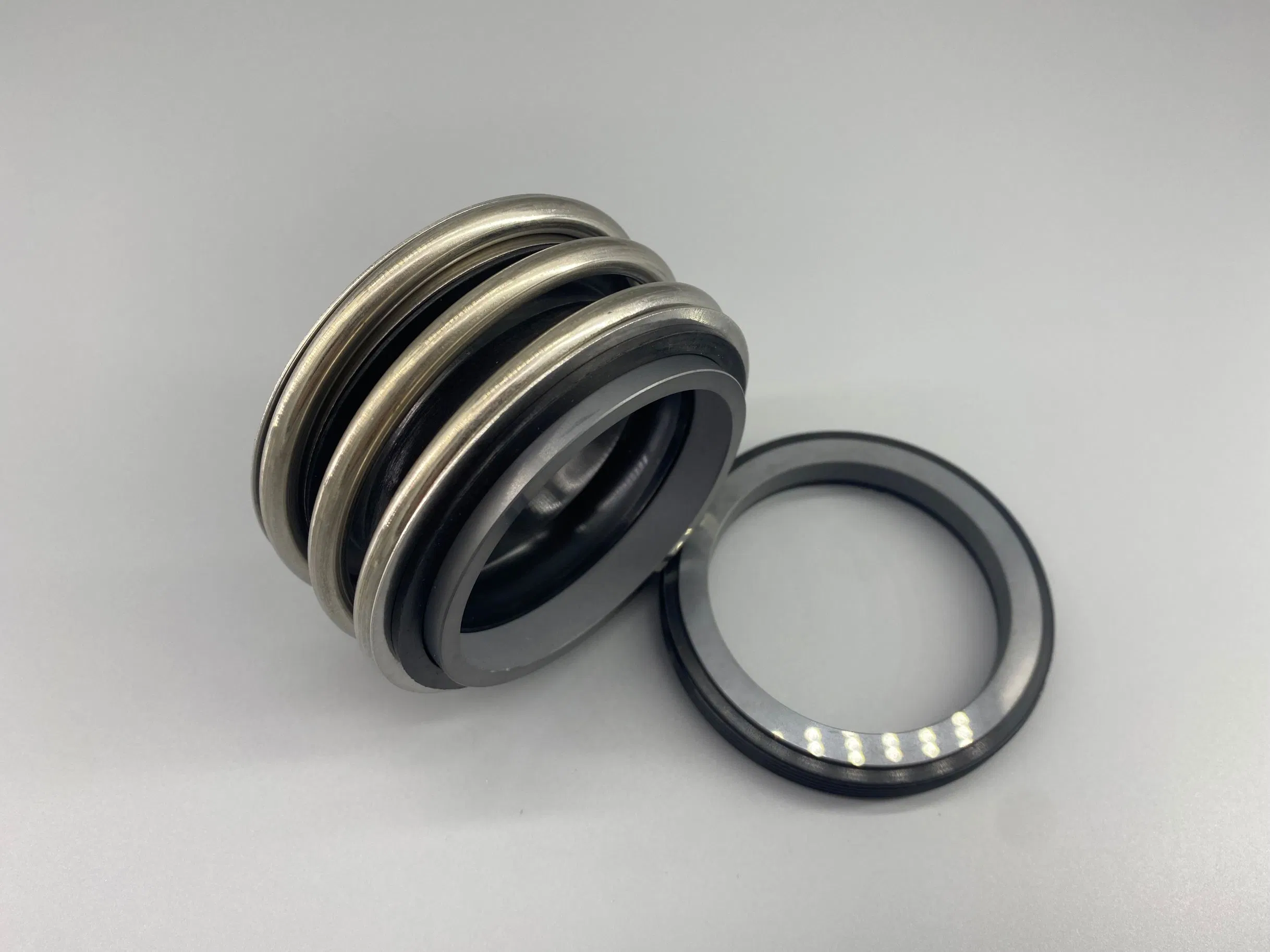

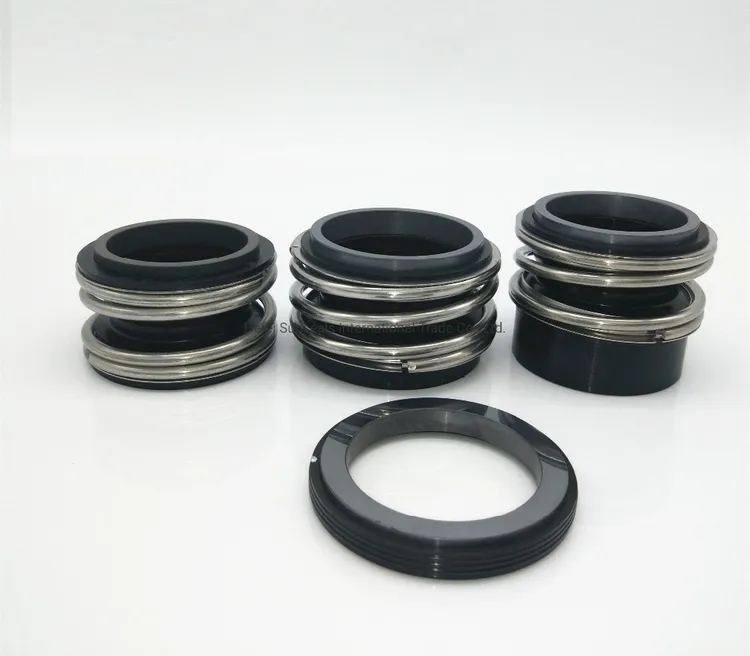

Mechanical seal MG1 type

Description

1. Product Overview

Mechanical Seal MG1 typee is a precision-engineered rotary shaft sealing solution designed for heavy-duty pumps, mixers, and rotating equipment across industrial process plants. It provides reliable containment of process fluids and prevents external contamination, enabling extended equipment uptime and reduced unscheduled maintenance. The MG1 typee delivers a high-performance seal through robust materials and proven face geometry, minimizing leakage and lifecycle cost compared with generic seals. Strategically, it addresses critical reliability and safety requirements in sectors where fluid containment, asset availability, and compliance drive procurement decisions.

2. Key Specifications & Technical Characteristics

• Seal type: Cartridge-style mechanical seal, MG1 typee configuration.

• Primary materials: Carbon graphite rotating face; silicon carbide stationary face; 316L stainless steel gland and sleeve; elastomers: FKM (standard) with options for EPDM or HNBR.

• Surface finish: Lapped seal faces, Ra ≤ 0.2 µm.

• Temperature range: -20°C to +200°C (FKM); extended ranges available with alternate elastomers.

• Pressure rating: Up to 16 bar (depending on installation and sleeve length).

• Shaft diameters supported: 12 mm to 110 mm (standard sizes); custom sizes available.

• Chemical compatibility: Suitable for hydrocarbons, water, glycol, mild acids and alkalis; consult chemical compatibility chart for aggressive media.

• Balance: Unbalanced (standard) with balanced variants for higher-pressure applications.

• Secondary seals: Double-spring design, corrosion-resistant spring material.

• Physical characteristics: compact cartridge assembly; typical weight range 0.5–8 kg depending on size.

• Packaging options: Individual sealed kraft box with desiccant for single units; palletized wooden crates for bulk; export-ready shrink-wrapped 20–25 units per pallet (depending on size).

• Shelf life: Recommended storage in dry, temperature-controlled environment; useful life in storage up to 3 years if stored per instructions.

• Documentation: Includes dimensional drawings, installation instructions, material certificates (EN 10204/3.1 on request), and standard warranty card.

3. Core Industrial Applications

• Primary industries: Oil & gas processing, petrochemicals, chemicals, water & wastewater treatment, power generation, mining, pulp & paper, and general industrial manufacturing.

• Specific operational use cases: Sealing pump shafts handling process fluids, vertical and horizontal centrifugal pumps in refinery services, slurry pumps in mining, boiler feed pumps in power plants, and circulating pumps in HVAC and water treatment systems.

• Performance advantages: MG1 typee’s austere face materials (silicon carbide/graphite) and precision lapping sustain low leakage rates and resist abrasive or corrosive wear better than generic cast-iron or ceramic-face seals. Cartridge configuration reduces installation time and alignment risk, delivering faster mean time to repair and lower total cost of ownership. The availability of elastomer options ensures compatibility with diverse process chemistries, preserving seal life and reducing replacement frequency.

4. Competitive Advantages

• Quality consistency: Manufactured under ISO 9001-controlled processes with batch traceability and material certificates available to enterprise purchasers.

• Supply reliability: Local stock programs and scheduled production slots support predictable replenishment; ability to support blanket orders and staggered deliveries.

• Logistics capability: Export-ready packaging, pallet optimization for container loads, and partnerships with major freight forwarders reduce transit damage and lead times.

• Price competitiveness: Economies of scale for bulk purchases (20 MT MOQ) with tiered pricing and volume discounts for long-term contracts.

• Sustainability: Extended service life reduces equipment waste; material choices and packaging optimized to minimize non-recyclable components; optional eco-friendly elastomer available on request.

• Technical support: Comprehensive installation guides, troubleshooting flowcharts, and access to application engineering support for seal selection, sizing, and failure analysis; options for on-site commissioning support for major projects.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical 20-foot container load up to 20 MT; 40-foot container load up to 25–26 MT depending on packaging configuration and unit sizes.

• Lead time: Subject to order size and stock status; standard lead for stocked sizes 2–4 weeks; engineered or nonstandard sizes 6–10 weeks (confirm at time of enquiry).

• Payment and terms: Negotiable for contract customers; standard commercial terms available on request.

• Contact and documentation: Full technical data sheets, material test reports, and commercial quotes provided upon submission of RFQ specifying shaft size, process fluid, temperature, and pressure.
