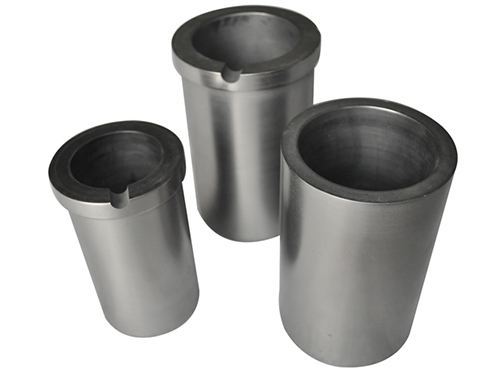

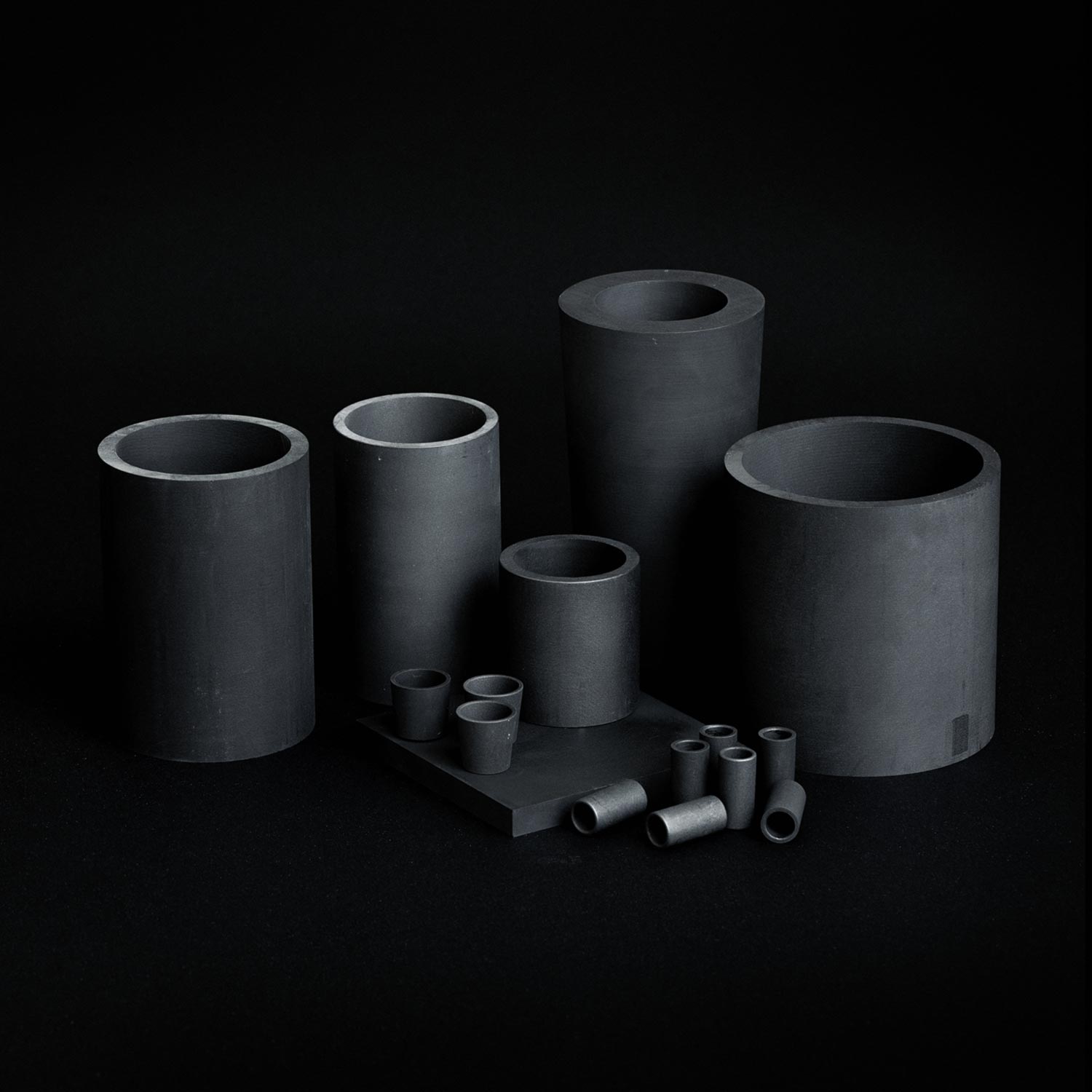

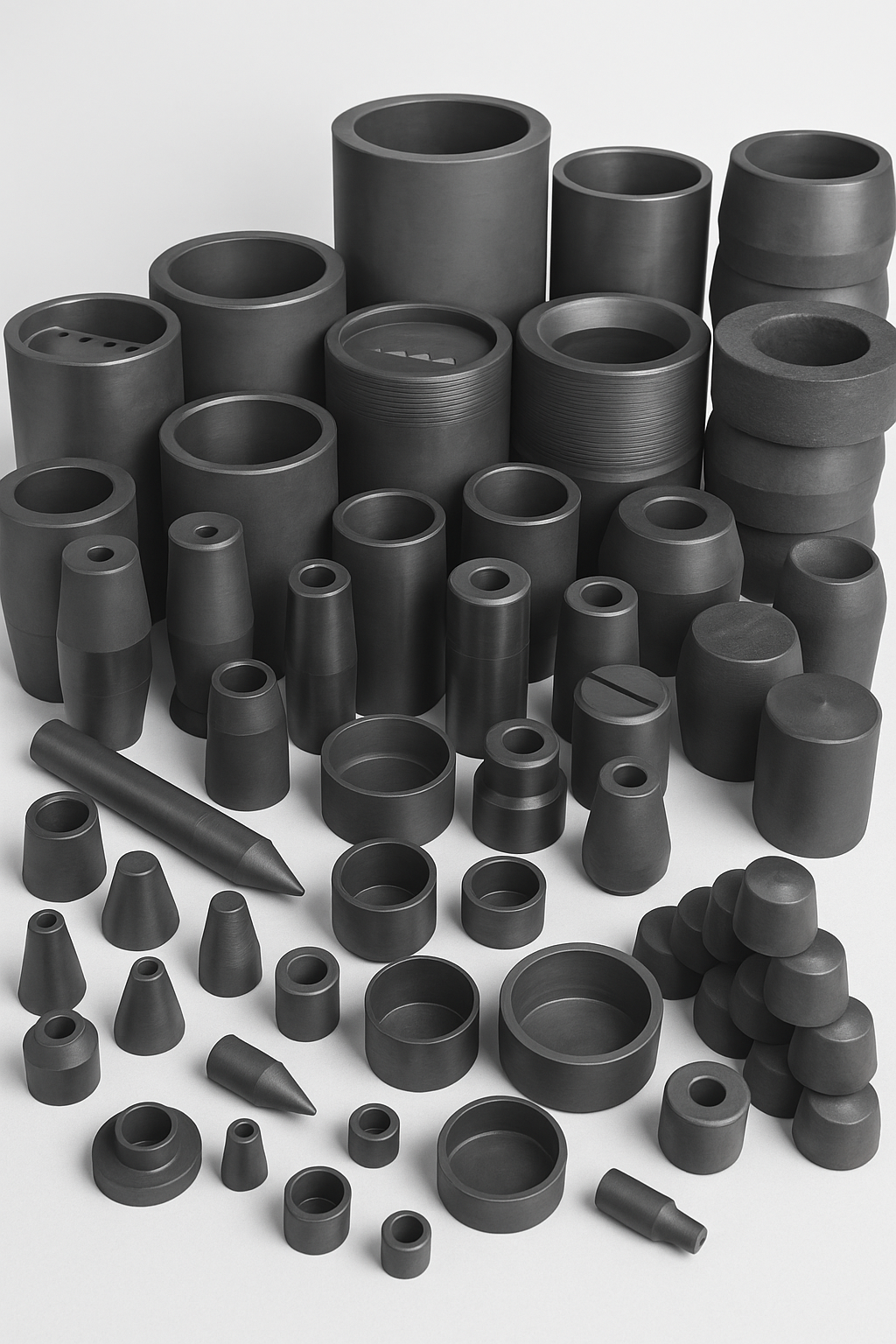

Graphite Crucible (ISO MOLDED GRAPHITE)

Description

1. Product Overview
This ISO molded graphite crucible is a high-purity, dimensionally precise containment vessel engineered for extreme thermal applications, including non-ferrous metal melting and high-temperature chemical processing. Its primary industrial use lies in foundries, jewelry manufacturing, and R&D labs where contamination-free melting and thermal shock resistance are non-negotiable. The key value proposition is superior service life—up to 30% longer than conventional crucibles—reducing replacement frequency and total cost of ownership. Strategically, it enables energy-efficient, low-impurity metallurgy, making it critical for industries transitioning to high-purity alloys and sustainable casting.

2. Key Specifications & Technical Characteristics

• Material Composition: High-density ISO-molded fine-grain graphite (>99.9% carbon)

• Purity Level: Ash content ≤0.1%, sulfur ≤0.05% (trace metals minimized for critical alloys)

• Physical Characteristics:

  • Color: Matte black to dark gray

  • Bulk density: 1.75 – 1.85 g/cm³

  • Maximum particle size: ≤0.5 mm (ultra-fine grain)

  • Thermal conductivity: ≥100 W/m·K (at 20°C)

• Packaging Options: Anti-corrosion wooden crates with foam lining; vacuum-sealed moisture-barrier bags upon request

• Shelf Life: Indefinite if stored in dry, non-oxidizing environment (RH <60%)

3. Core Industrial Applications

• Primary Industries: Non-ferrous metal foundries (aluminum, copper, brass, zinc), precious metal refiners (gold, silver, platinum), advanced ceramics, and battery material synthesis.

• Specific Use Cases: Melting aluminum alloys at 660–800°C; holding molten copper at 1,100°C for continuous casting; calcining lithium salts for battery precursors.

• Performance Advantage: Unlike clay-bonded or silicon carbide crucibles, ISO molded graphite exhibits zero wetting by molten aluminum and superior thermal shock resistance (from 20°C to 1,000°C in 30 seconds without cracking). This reduces metal oxide buildup and dross formation by ~15%, directly increasing yield.

• Efficiency & Durability: Lower specific heat capacity means faster melt cycles (≈20% energy saving per batch). Typical lifespan: 80–120 melts in aluminum foundries vs. 60–90 for extruded graphite alternatives.

4. Competitive Advantages

• Quality Consistency: Every batch verified via 3-point flexural strength test and ultrasonic non-destructive inspection; coefficient of variation (CV) <5% across shipments.

• Supply Reliability: Stocked inventory across three regional hubs (Asia, EU, NAFTA) with 7-day lead times for standard sizes; contract volume up to 200 MT/month.

• Logistics Capability: Shock-monitored container shipping; pre-shipment packing certification for ISTA-3E impact standards.

• Price Competitiveness: 12–18% lower cost per crucible-hour compared to European or Japanese ISO grades, driven by vertically integrated molding and graphitization.

• Sustainability: Crucibles are 100% recyclable into carbon products; no toxic binders used in molding; ISO 14001-certified production.

• Technical Support: Included material certificate (EN 10204 3.1), CAD dimensional drawings, and application engineering consultation for cycle optimization.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT (mixed sizes permitted within one container)

• Loading Capacity: 20 MT per standard 20-foot container (palletized and strapped); 25 MT per 40-foot high cube (max stack height)
