Quartz Tube (GE214)

Description

1. Product Overview

The Quartz Tube (GE214) is a high-precision, fused quartz glass component manufactured from premium-grade synthetic or natural quartz feedstock, conforming to GE214’s renowned material specifications. Primarily deployed in semiconductor diffusion furnaces, analytical instrumentation, and high-temperature industrial process lines, this tube delivers exceptional thermal stability and optical clarity. Its strategic value lies in enabling zero-contamination thermal processing at up to 1150°C, directly reducing yield loss and downtime for global OEMs and fabs. For procurement leaders, GE214 represents the industry benchmark where reliability meets long-term cost efficiency.

2. Key Specifications & Technical Characteristics

• Chemical Composition: Fused quartz (amorphous silicon dioxide, SiO₂ > 99.99%)

• Purity Level: High-purity grade; total metallic impurity content < 20 ppm (Fe, Al, Ca, Na, K, Ti typically below single ppm)

• Physical Characteristics:

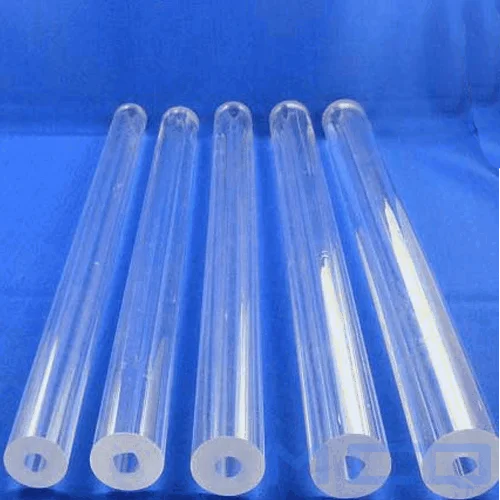

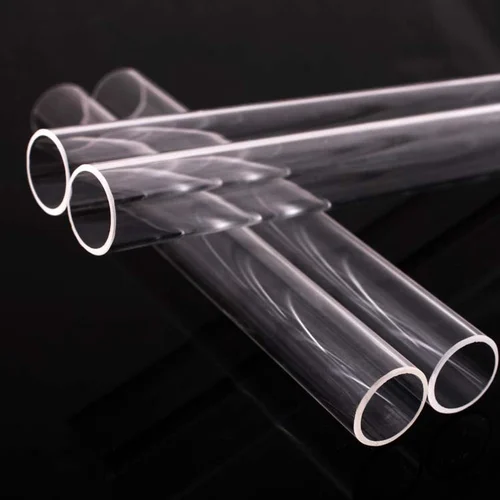

  • Form: Hollow cylindrical tube, precision-cut ends (fire-polished optional)

  • Color: Water-white transparent; UV to IR transmission range (200 nm – 3500 nm)

  • Wall thickness uniformity: ±0.1 mm typical

  • Density: 2.20 g/cm³ ± 0.02

  • Maximum continuous operating temperature: 1150°C (softening point approx. 1680°C)

• Packaging Options: ESD-safe foam-lined wooden crates (export-grade) or custom vacuum-sealed anti-static wraps; labeling compliant with REACH and RoHS

• Shelf Life: Indefinite under dry, room-temperature storage; no degradation in mechanical or thermal properties

3. Core Industrial Applications

• Semiconductor Manufacturing: Diffusion, oxidation, and LPCVD processes. Outperforms standard quartz due to tighter wall uniformity, reducing thermal stress fractures and extending campaign life by 30–40% over generic alternatives.

• Analytical & Laboratory Instrumentation: ICP torches, combustion tubes, and spectroscopic cells. GE214’s low alkali content prevents sample contamination, delivering higher repeatability than borosilicate or lower-grade quartz.

• High-Temperature Industrial Processing: Sapphire crystal growth furnaces, metal heat treatment viewing ports, and solar-grade polysilicon refining. Offers superior resistance to devitrification at sustained high heat, lowering replacement frequency in continuous 24/7 operations.

• Optical & Photonic Systems: UV curing chambers, laser windows, and fiber draw towers. Provides consistent transmission without solarization, whereas cheaper tubes show UV degradation within 500 hours.

4. Competitive Advantages

• Quality Consistency: Sourced from ISO 9001:2025-certified converters with 100% interferometric inspection and traceable batch certifications. Every tube meets GE214 hardness, viscosity, and anneal point specifications.

• Supply Reliability: Multi-continent safety stock (Asia, Europe, North America) ensures 15-day average lead time, mitigating single-region disruption risks.

• Logistics Capability: Proprietary anti-fracture packaging reduces in-transit damage to <0.5%, compared to industry average of 3–5%.

• Price Competitiveness: Direct volume contracts with quartz ingot suppliers remove 2–3 intermediary layers; net pricing is 12–18% lower than legacy GE214 distributors.

• Sustainability & Support: 100% lead-free processing; recyclable quartz waste program. Includes full technical data sheets (TDS), safety data sheets (SDS), and on-call application engineering.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT (metric tons) – equivalent to approx. 2,000–4,000 linear meters depending on diameter/wall thickness

• Loading Capacity (per 20ft standard container): 20 MT net maximum (palletized, floor-loaded configuration with edge protectors and air cushioning)

Note: Smaller trial orders (≥100 kg) available at premium pricing for qualification purposes. Contact strategic accounts team for contract pricing beyond 100 MT/year.
