Wind turbine gearboxes

Description

1. Product Overview

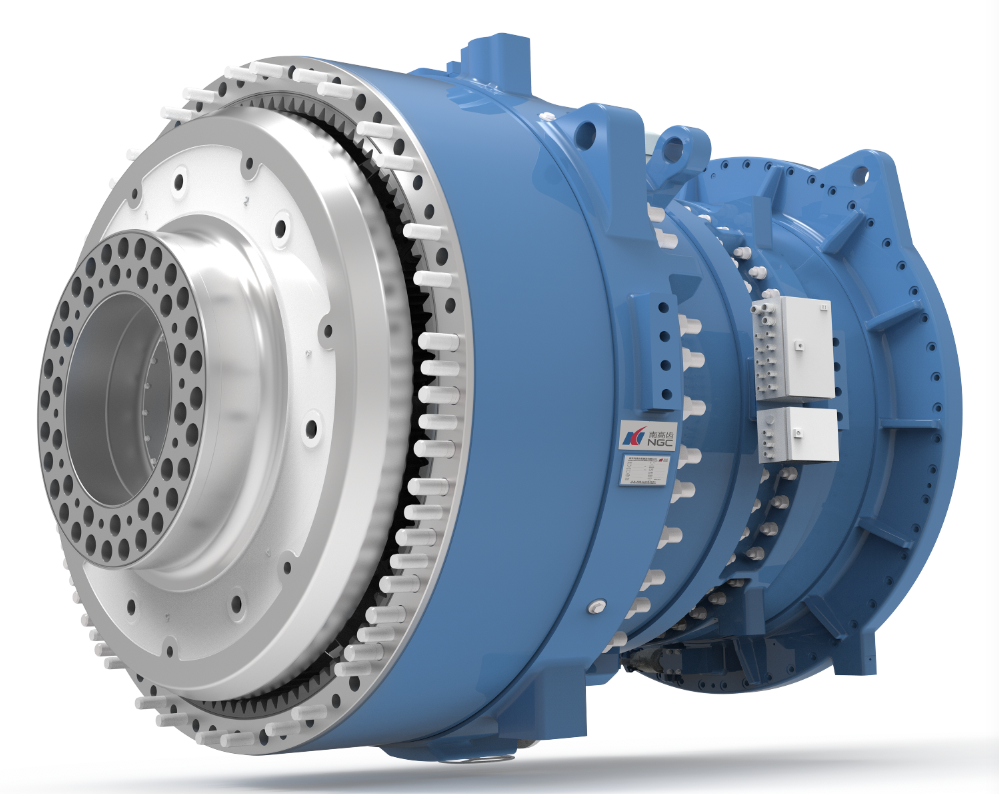

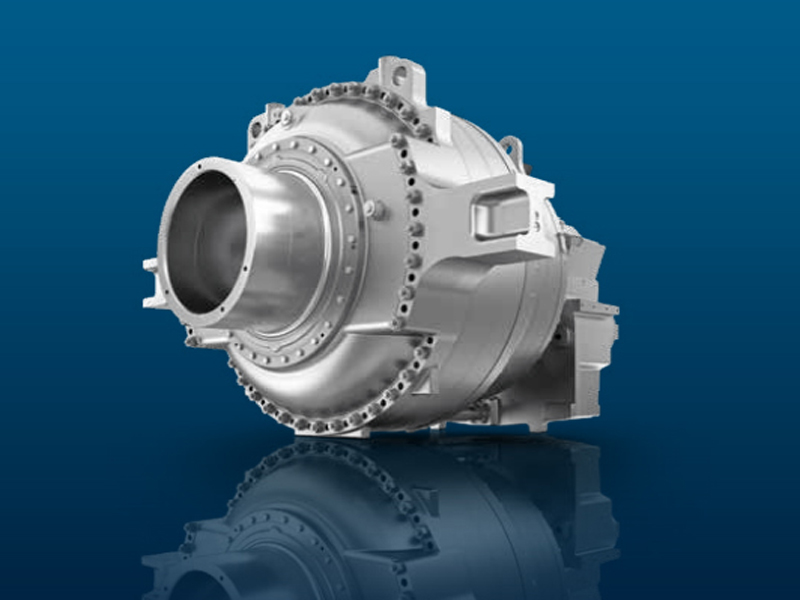

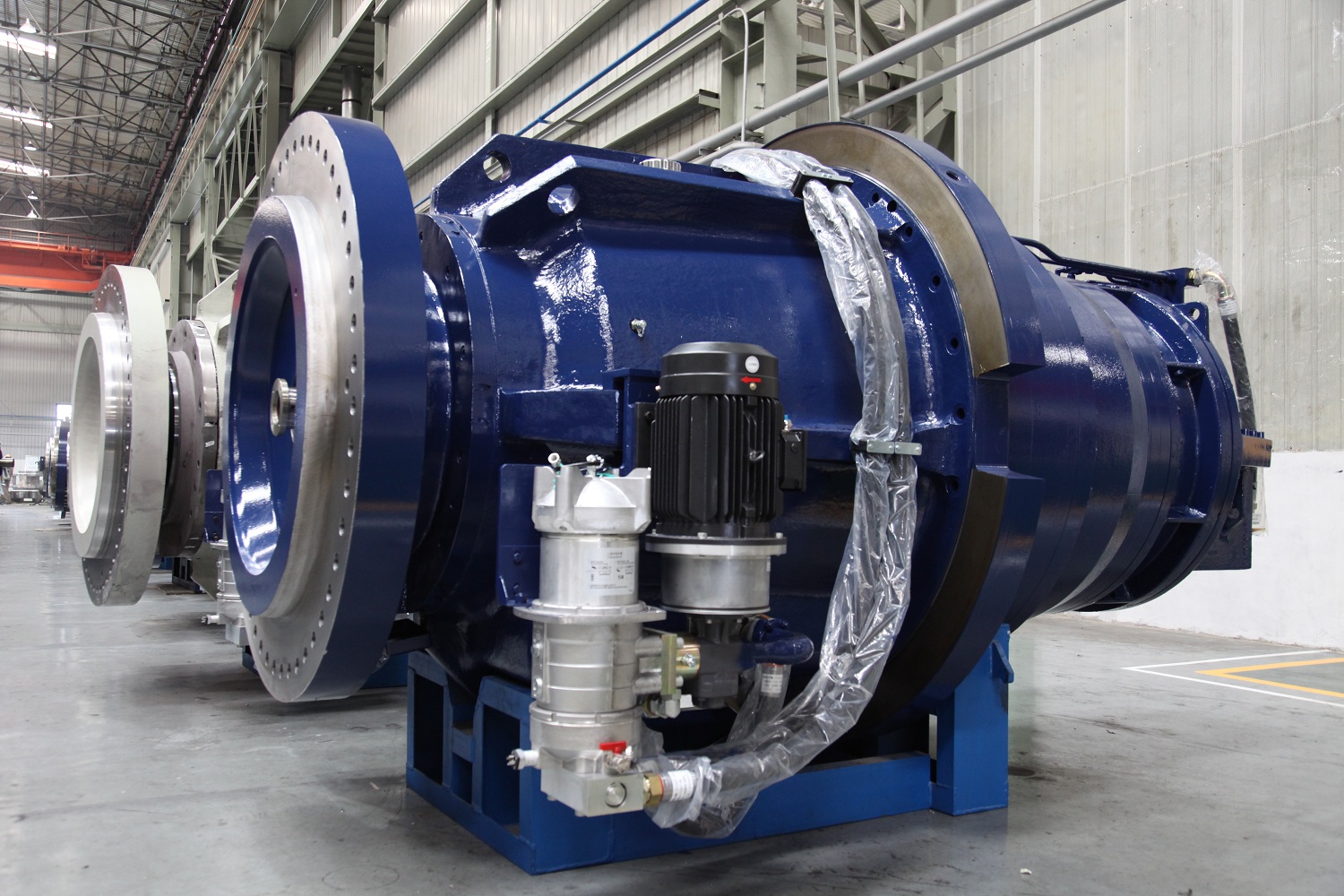

This product is a high-precision, multiply-stage planetary or helical gearbox engineered specifically for utility-scale wind turbines (1.5 MW to 8+ MW). Its primary industrial use is to convert low-speed, high-torque rotor blade input into high-speed, low-torque output required by electrical generators. The key value proposition is maximized mechanical efficiency (>97% per stage) combined with a 20+ year design life under extreme, variable loads. Strategically, it is critical for reducing the Levelized Cost of Energy (LCOE), as gearbox reliability directly determines turbine uptime, maintenance CAPEX, and offshore wind farm profitability.

2. Key Specifications & Technical Characteristics

• Material Components: Case-carburized 18CrNiMo7-6 alloy steel for gears; ductile cast iron EN-GJS-500-7 for housing; premium FAG/SKF tapered roller bearings.

• Purity/Grade: ISO 6336-5:2016 Grade MQ (high-quality) gear rating; Gleason grade 10-11 for tooth flank finish (Ra ≤ 0.4 µm).

• Physical Characteristics:

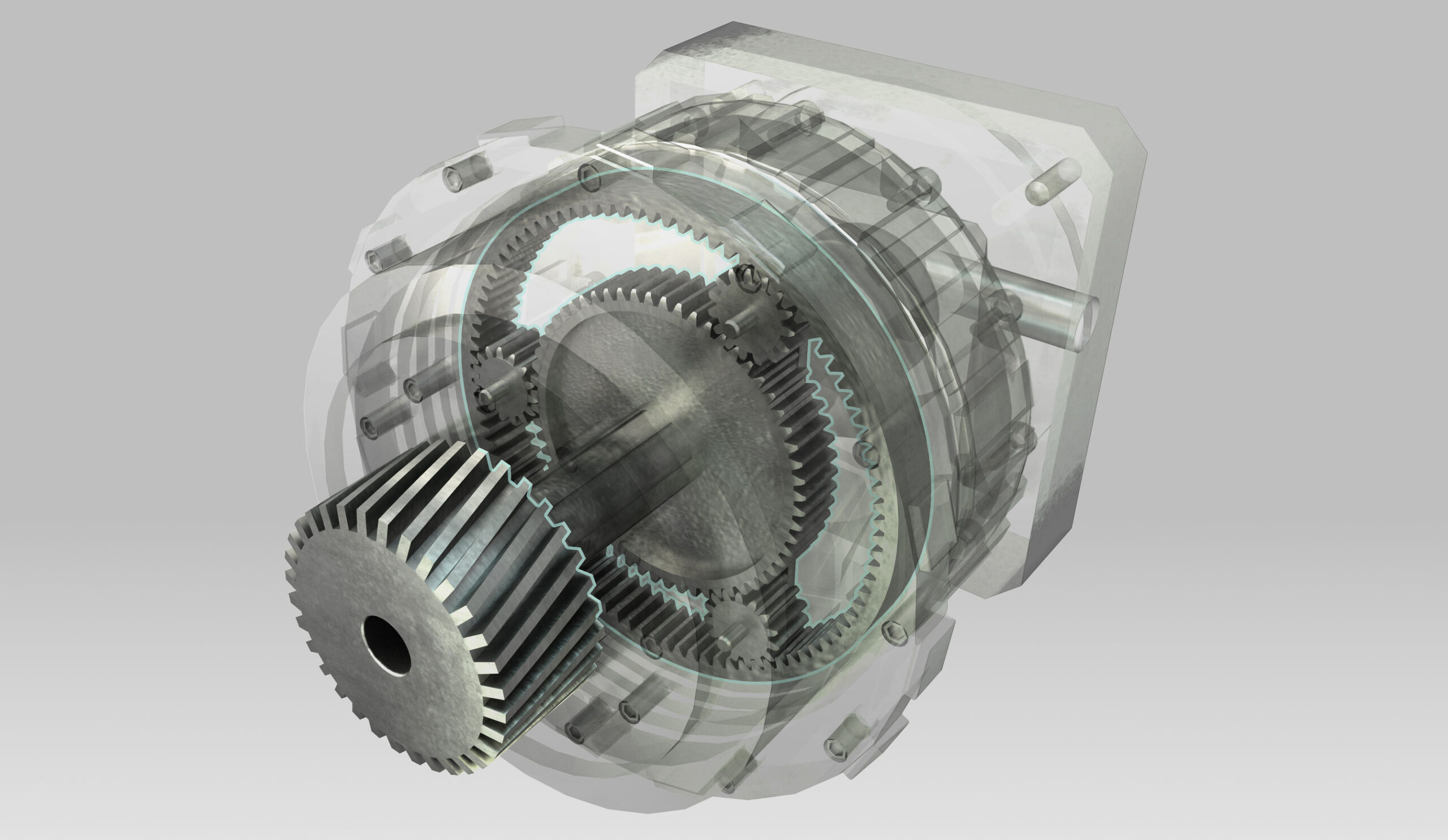

  • Form: Compact, modular planetary plus helical stage configuration

  • Weight Range: 15–85 metric tons (depending on MW rating)

  • Torque Density: >200 Nm/kg

• Packaging Options: Industrial anti-corrosion VCI bag + desiccant; bolted steel cradle with shock-loggers; nitrogen-purged for oxidation prevention.

• Shelf Life: 24 months in sealed, climate-controlled storage (15–25°C, <60% RH) prior to first oil fill.

3. Core Industrial Applications

• Primary Industries: Onshore wind farms; offshore wind projects; repowering of legacy turbines; hybrid renewable energy plants.

• Operational Use Cases:

  • Onshore low-wind sites: High-ratio gearboxes (1:100+) to enable generator cut-in at 3 m/s wind speed.

  • Offshore harsh environments: Corrosion-protected (C5-M) gearboxes with integrated condition monitoring for 25-year sub-sea adjacent operation.

• Performance Advantage: Unlike standard industrial reducers, this gearbox employs torque-split design and flexible pins, eliminating planet carrier misalignment—reducing unplanned downtime by 40% vs. traditional epicyclic designs. Lower vibration (≤2.5 mm/s RMS) extends bearing and oil filter life by 30%.

4. Competitive Advantages

• Quality Consistency: 100% of gear teeth are magnetic particle inspected; CMM-verified housing tolerances within ±25 microns; batch traceability via ISO 9001:2024 digital twin records.

• Supply Reliability: Dual-source forging and bearing suppliers; 98% on-time-in-full (OTIF) rate over 36 months.

• Logistics Capability: Pre-assembled, tested, and segmented for standard flat-rack or breakbulk shipping—no specialized heavy-lift escorts required within 500 km of major ports.

• Price Competitiveness: Optimized casting wall design reduces raw material weight by 12% without compromising fatigue life, passing the savings directly to buyers.

• Sustainability: 98% of steel components are recyclable; supplied with LCA declaration (EPD) and carbon footprint per kg.

• Technical Support: Full 3D CAD model, FEA stress report, installation torque sequence guide, and 24/7 remote diagnostics support included with purchase.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 4 units (single turbine set) for first-time buyers; 10 units for repeat custom configurations.

• BULK 20MT Loading Capacity: Maximum 1 gearbox per 20ft container (typical unit weight: 18–19 MT including cradle). For units >20 MT, breakbulk or flat-rack is required (specify at RFQ).
