Safety relief valve

Description

Product Overview

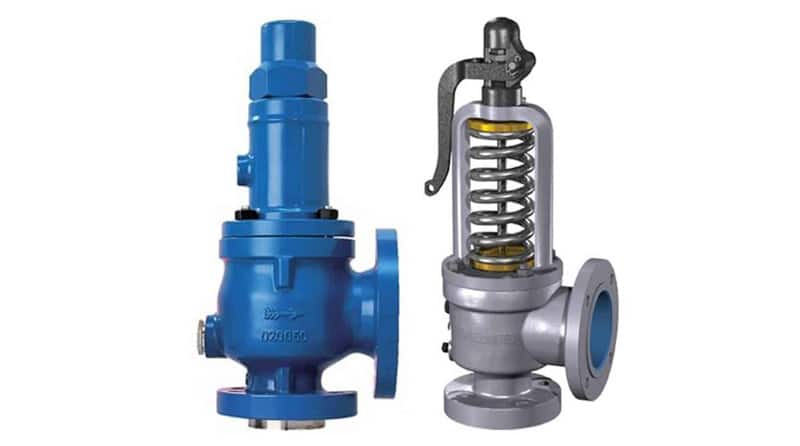

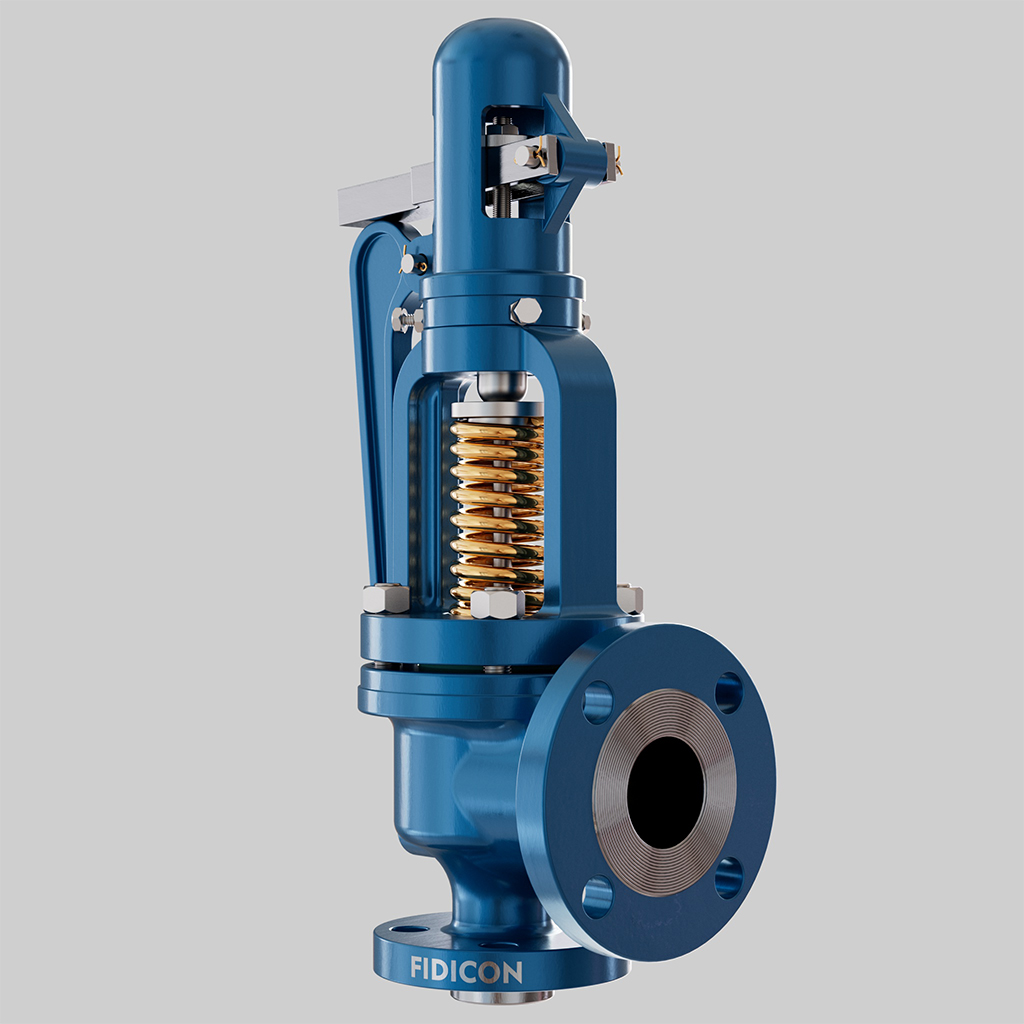

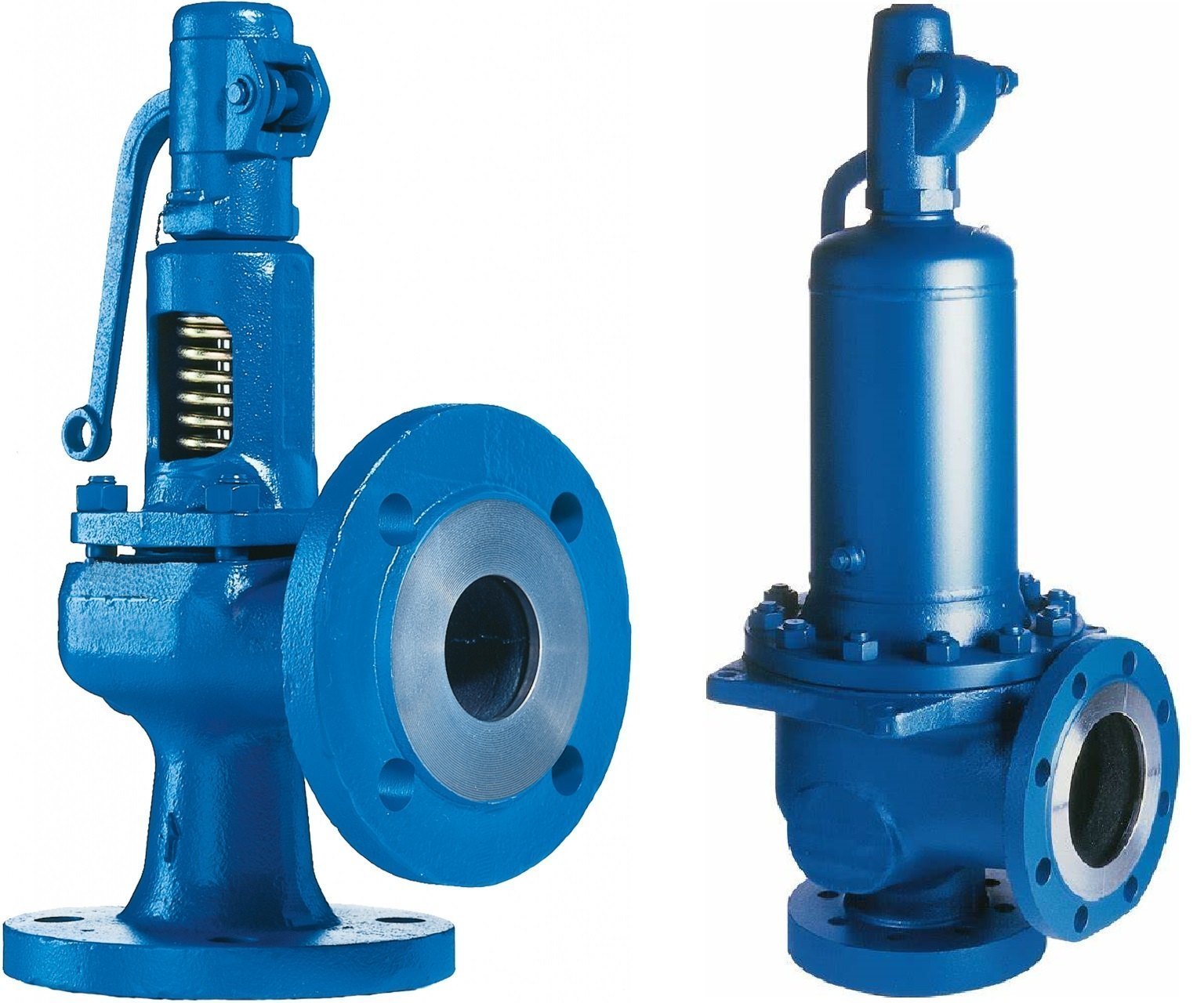

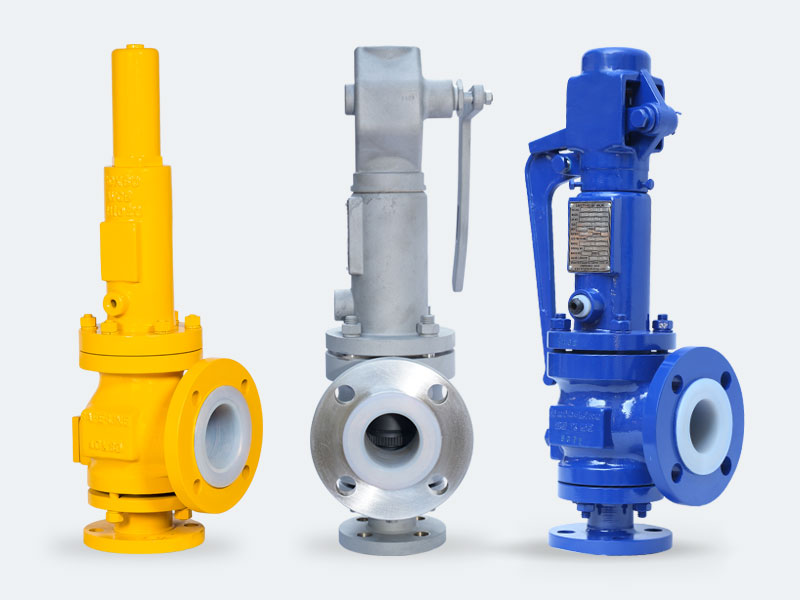

Safety relief valve — a precision-engineered mechanical device that protects pressure systems by automatically relieving excess pressure to prevent equipment damage, process interruptions, and safety incidents. Designed for use across oil & gas, petrochemical, power generation, chemical processing, compressed gas storage, and heavy manufacturing, it provides fast, predictable pressure relief with minimal leakage and reliable reseating. The valve’s key value proposition is its certified overpressure protection delivered with consistent set-point accuracy, robust materials of construction for corrosive and high-temperature environments, and modular designs that simplify maintenance and compliance. Strategically, supplying this safety-critical component reduces operational risk, supports regulatory adherence (API, ASME, EN), and safeguards asset uptime for large-scale industrial operators.

Key Specifications & Technical Characteristics

• Model family: spring-loaded safety relief valve (available pilot-operated variants on request)

• Materials of construction: body and bonnet — carbon steel (A216 WCB), stainless steel 316/316L, alloy 20, duplex/super duplex; trim options: 316/316L, Stellite hardfacing, Inconel for high-temperature/corrosion service

• End connections: flanged (ANSI B16.5), butt-weld, socket-weld, threaded (NPT/BSP) per customer spec

• Pressure rating: available ASME Class 150–2500 (PN 16–420) and custom ratings up to design limits

• Set pressure accuracy: ±3% standard, ±1% available (factory-certified)

• Capacity certification: API 526 or equivalent sizing and capacity testing; K-factor and Cv published per model

• Temperature range: cryogenic to 600°C depending on material and trim selection

• Seat tightness/leakage: soft-seat (bubble-tight where applicable) and metal-seat options for sour or high-temp service

• Actuation: direct spring or pilot actuation; quick-opening and modulating variants

• Surface finish/coatings: epoxy, zinc, PTFE, or specialized anti-corrosion coatings available

• Physical characteristics: typical weights 5 kg to 1200 kg depending on size and material; compact to large industrial sizes; flow areas and lift stroke per datasheet

• Compliance & testing: ASME Section I/ VIII/III where applicable, API 526/527/520, ISO 4126, PED, ATEX options; hydrostatic and seat tightness testing, calibration certificates

• Documentation: material test certificates (MTCs), EC declaration, inspection & test plan (ITP), installation, operation & maintenance (IOM) manuals

• Packaging options: wooden crate, steel crating, vapor-barrier film, desiccant, and shock protection for export; single-piece or palletized bulk

• Shelf life: not applicable for mechanical devices; recommended storage: dry, protected from UV and corrosive atmospheres

Core Industrial Applications

• Oil & Gas upstream, midstream, and downstream: overpressure protection on separators, separators, compressors, pipelines, and storage tanks; pilot-operated variants for high back-pressure and high-capacity scenarios.

• Petrochemical & chemical processing: protection of reactors, heat exchangers, distillation columns, and transfer lines handling corrosive, toxic, or flammable fluids.

• Power generation & utilities: steam boiler and turbine protection, feedwater systems, and auxiliary steam systems; high-temperature steam service trims available.

• Industrial gas & cryogenics: pressure relief for compressors, storage vessels, and vaporisers in oxygen, nitrogen, argon, and LNG facilities, using materials and seats suitable for low-temperature service.

• Heavy manufacturing & process industries: protection for hydraulic accumulators, heat-transfer systems, and pressure vessels in pulp & paper, mining, and metallurgy.
  Why it performs better than alternatives:

• Precision set-point control with factory calibration reduces nuisance releases and downtime.

• Broad material and trim options enable tailored resistance to corrosion, sour gas (H2S), and high-temperature service where off-the-shelf valves fail.

• Pilot-operated variants offer higher capacity, lower blowdown, and more stable performance under varying back-pressure compared with direct spring designs.

• Robust testing and documentation reduce acceptance time at client sites and simplify regulatory audits, lowering total cost of ownership.

Competitive Advantages

• Quality consistency: manufactured under ISO 9001 quality systems, with traceable material certificates and batch-level testing.

• Supply reliability: production planning and strategic inventory positions enable prompt fulfillment for routine and emergency requirements; supplier network supports global delivery.

• Logistics capability: packaged and export-ready to ocean/air freight standards, with container loading plans and LCL/FCL options; export documentation and customs support available.

• Price competitiveness: scalable manufacturing and configurable designs provide cost-effective baseline models plus premium options for harsh-service applications.

• Sustainability: extended life materials and repairable trim assemblies reduce lifecycle waste; packaging options minimize non-recyclable materials on request.

• Technical support: application engineering, sizing verification, on-site commissioning guidance, and lifetime maintenance contracts available; calibration and re-certification services offered.

• Documentation: comprehensive IOM, test certificates, and third-party inspection options to support procurement and regulatory compliance.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): typical 20-foot container up to 20 MT (subject to valve size and packing configuration); 40-foot container up to 26–28 MT optimized load. Final loading depends on crate dimensions and weight distribution; supplier will provide container loading plan per order.
