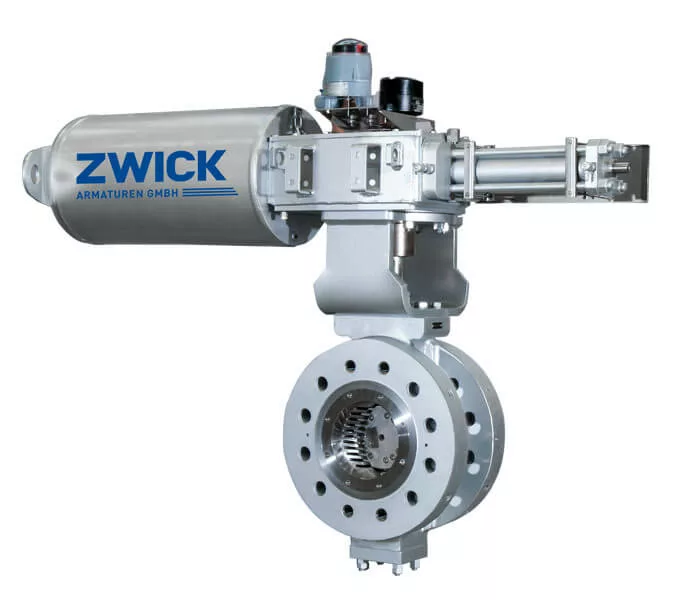

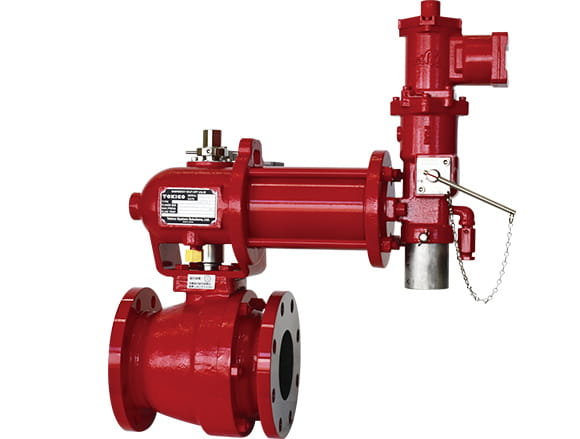

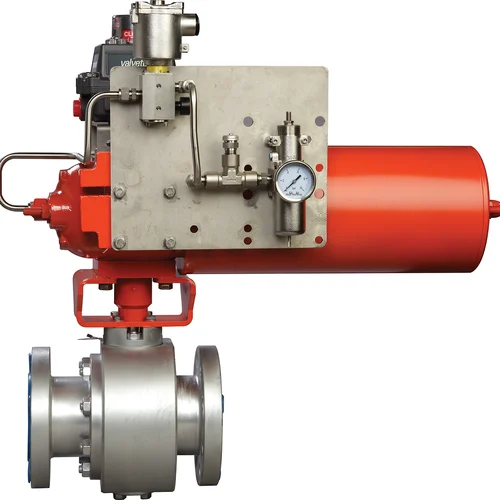

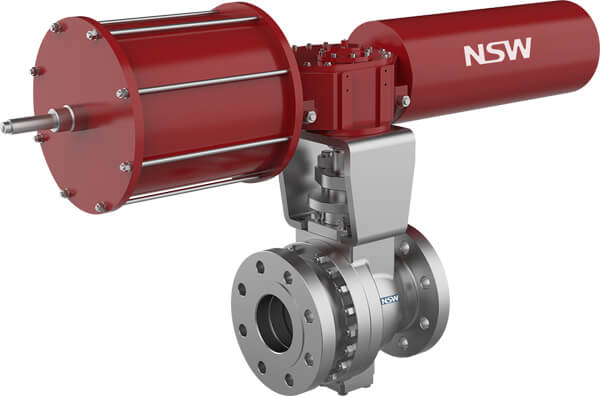

Emergency shutdown valve (ESD)

Description

1. Product Overview

Emergency Shutdown Valve (ESD) is a fail-safe industrial valve designed to rapidly isolate sections of pipelines, vessels, or process equipment during emergency conditions such as fire, overpressure, loss of containment, or critical process deviations. It serves as a primary safety and asset-protection device within process safety systems for oil & gas, petrochemical, chemical manufacturing, power generation, and marine applications. The key value proposition is rapid, reliable shut-off with proven actuator and sealing technologies that minimize leak-through and enable deterministic safety responses, reducing incident scale, downtime, and insurance exposure. Strategically, the ESD valve is a core component of functional safety architectures (SIL-aligned) and risk mitigation programs, making it a high-priority procurement item for CAPEX and LTO (loss‑of‑turnaround) planning.

2. Key Specifications & Technical Characteristics

• Valve type: Trunnion-mounted ball valve, double block & bleed, or rotary plug options (specify model on request).

• Body material options: Alloy steel (ASTM A182 F11/F22), carbon steel (API 6A / A216 WCB), stainless steel (316/316L), duplex/super duplex (2205/2507), and exotic alloys (Inconel, Monel) available.

• Trim materials: Stellite-faced seats, hardened stainless trims, Monel, or corrosion-resistant coatings for sour/HC service.

• Actuation: Hydraulic, pneumatic spring-return, electric motor-driven failsafe actuators; integral or remote-mounted.

• Sealing: Metal-to-metal or soft-seat configurations; fugitive emission-compliant packing and stem seals (API 622/ISO 15848 options).

• Pressure rating: ANSI/ASME Class 150–2500 / API 6A PR1–PR2 equivalents (consult for custom ratings).

• Temperature range: Cryogenic to high‑temperature service (typical -196 °C up to +538 °C depending on materials).

• Leakage class: API 624/API 598 low-leakage options; bubble-tight shutoff available.

• End connections: Flanged (ANSI/ASME, DIN), butt-weld, RTJ, or threaded per client specification.

• Instrumentation & interfaces: Position feedback switches (NAMUR, proximity), limit switches, solenoid isolation valves, pressure/temperature ports, local or SIL-certified solenoid trip assemblies.

• Control & certification: Built for integration with PLC/DCS and safety instrumented systems; available with SIL 2/3 documentation packages, Factory Acceptance Test (FAT) reports, and third-party certification.

• Physical characteristics: Typical unit weight and dimensions vary by size and rating; material-specific densities and machining tolerances available on request.

• Surface finish & protection: Shot-blasted and primed, epoxy coatings, galvanizing, or specialty corrosion-resistant coatings.

• Packaging: Export-ready crating, corrosion inhibitor wrapping, desiccant and sealed packaging; special packaging for marine/shipping or long-term storage.

• Shelf life / Storage: Indefinite for non-perishable metallic components when stored in dry, controlled conditions; periodic lubrication and preservation recommended for long-term stock.

• Traceability: Full material traceability (MTRs), heat numbers, and serial-numbered documentation included.

3. Core Industrial Applications

• Oil & Gas Upstream & Midstream: Wellhead and pipeline emergency isolation, subsea or platform ESD stacks, pigging isolation, and emergency pipeline shut-off. The ESD valve minimizes hydrocarbon release and enables safe evacuation and emergency response.

• Refining & Petrochemical: Unit isolation in distillation, cracking, and feedstock systems to prevent cross-contamination and rapid containment during process excursions.

• Chemical & Specialty Manufacturing: Isolation of reactive or toxic streams to protect personnel and prevent runaway reactions; compatible materials for corrosive chemistries.

• Power Generation & Utilities: Turbine bypass, boiler feed isolation, and fuel feed shutdown to safeguard equipment and avoid cascading failures.

• Marine & LNG: Emergency isolation for cargo and bunker lines, compliant with marine safety standards and packaging for sea transport.
  Why it outperforms alternatives: engineered for deterministic actuation and redundant fail-safe options (spring-return, counterbalance), robust sealing options that reduce fugitive emissions, and material/trim customizations that extend service life in sour or erosive fluids. This combination yields lower lifecycle cost through reduced maintenance frequency, fewer unplanned shutdowns, and lower environmental compliance risk.

4. Competitive Advantages

• Quality consistency: Manufactured to stringent quality control processes with full MTRs, weld procedure specifications (WPS), non-destructive testing (NDT) results, and FAT protocols.

• Supply reliability: Global production and local stocking strategies, configurable lead-time options, and priority allocation for critical spares to minimize downtime exposure.

• Logistics capability: Export-grade packaging, coordinated sea/air logistics, and loading/transport planning for oversized units, including assistance with customs documentation.

• Price competitiveness: Tiered pricing for volume buys, long-term supply agreements, and total-cost-of-ownership models that highlight maintenance and downtime savings.

• Sustainability: Options for low-leakage, fugitive-emission-compliant designs and materials selected for durability to lower replacement rates and waste.

• Technical support: Engineering datasheets, valve sizing and selection support, installation & commissioning guides, SIL/FAT documentation, and lifecycle service contracts including training and field support.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Standard 20ft container: up to 20 MT depending on unit dimensions and packing; 40ft container: up to 25–28 MT, subject to dimensional/weight distribution and export regulations. For oversized/heavy-lift ESD units, RO-RO or flat-rack shipping options available; detailed load planning provided on order.
