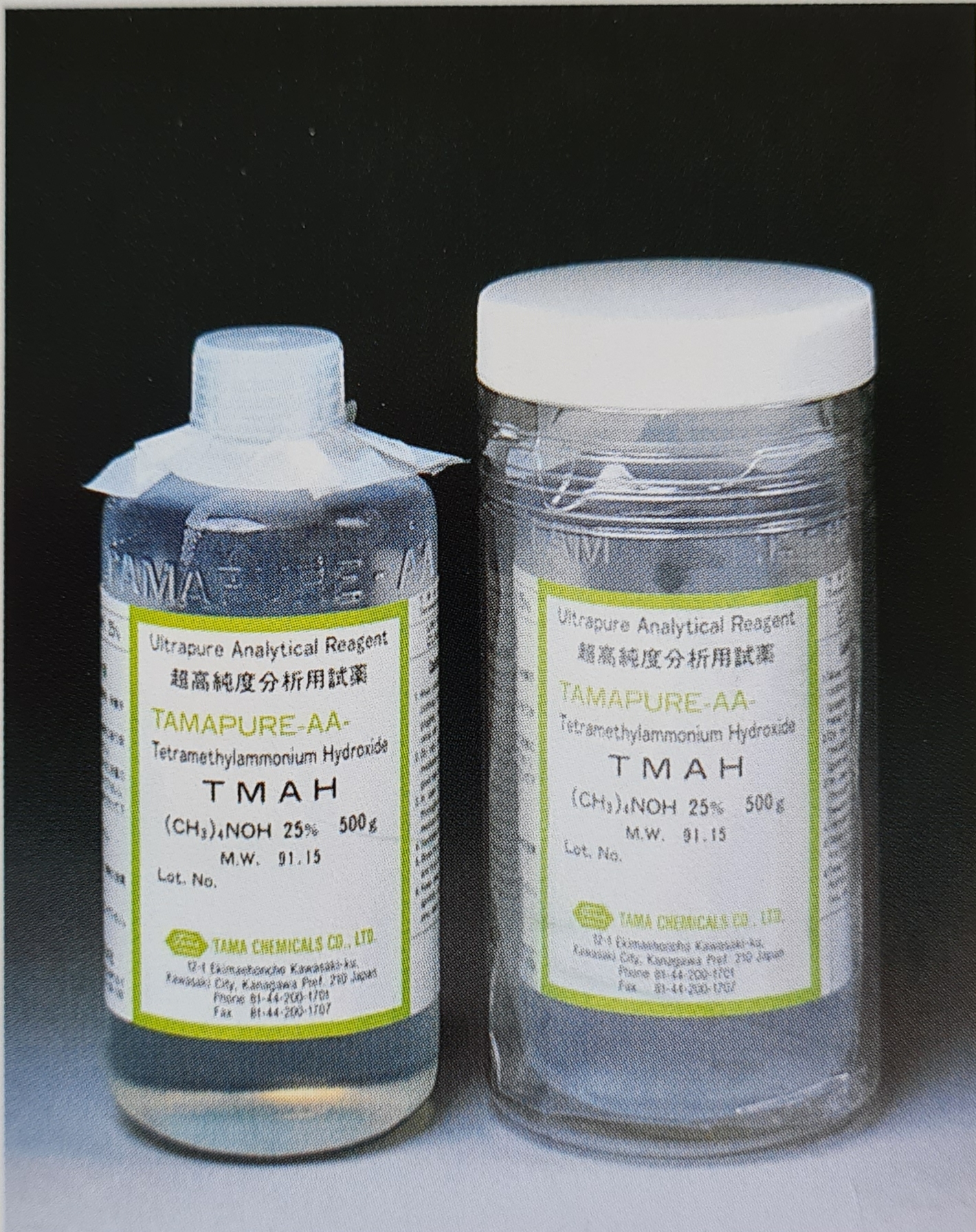

TMAH Developer (TMAH 25%)

Description

1. Product Overview

TMAH Developer (Tetramethylammonium Hydroxide, 25% aqueous solution) is a high-purity, photolithographic developing agent engineered for advanced semiconductor and flat-panel display manufacturing. Its primary industrial use is the selective dissolution of unexposed photoresist in positive-tone development processes, enabling sub-micron pattern formation. The key value proposition lies in its exceptional metal-ion-free formulation, which eliminates ionic contamination risks—a critical yield factor for 300mm wafer fabs and Gen 10.5 display lines. As global demand for AI chips, memory, and high-resolution displays accelerates, reliable TMAH 25% supply has become a strategic bottleneck, making this product indispensable for maintaining fab uptime and process control.

2. Key Specifications & Technical Characteristics

• Chemical Composition: Tetramethylammonium hydroxide, 25% wt/wt in deionized water (metal-ion free)

• Purity Grade: Semiconductor Grade (SEMI C46-0309 compliant)

• Critical Impurity Limits:

  • Each metallic impurity (Na, K, Fe, Cu, Zn, Ni, Cr, etc.): ≤ 1 ppb

  • Chloride, sulfate, nitrate: ≤ 1 ppm

  • Carbonate (as TMA carbonate): ≤ 0.5% max

• Physical Characteristics:

  • Form: Clear, colorless liquid

  • Density: ~1.02 g/cm³ (20°C)

  • Viscosity: ~2.5 cP (25°C)

  • pH: >13 (as 25% solution)

• Packaging Options:

  • 20L HDPE cubitainers (lab/qualification)

  • 200L HDPE drums (pilot lines)

  • 1000L IBC totes (production)

  • ISO tank trucks (bulk, ≥15 MT)

  • Custom fluorinated HDPE liners for high-purity spec

• Shelf Life: 12 months from date of manufacture when stored in sealed, unopened containers at 5–35°C, away from CO₂ and light.

3. Core Industrial Applications

• Primary Industries: Semiconductor foundries (logic, memory, power devices), flat-panel display (LCD/OLED/AMOLED), MEMS, advanced packaging (TSV), and photomask manufacturing.

• Operational Use Cases:

  • Positive photoresist development for i‑line, KrF, ArF, and EUV lithography

  • Stripping of dry-film resists in PCB and substrate manufacturing

  • Controlled etching of silicon dioxide in specialized wet benches

• Performance vs. Alternatives: Unlike KOH or NaOH developers, TMAH 25% leaves no mobile metal ions, preventing threshold voltage shifts in CMOS devices. Compared to lower concentrations (e.g., 2.38%), the 25% base allows on-site dilution with DI water, reducing logistics cost by 40% per liter of working solution and ensuring batch-to-batch uniformity. Process stability exceeds 0.5% concentration drift over 1,000 wafers, minimizing requalification cycles.

4. Competitive Advantages

• Quality Consistency: SPC-controlled batch synthesis with real-time FTIR and ICP-MS testing; each lot includes a Certificate of Analysis (CoA) reporting 30+ metal contaminants at sub-ppb levels.

• Supply Reliability: Dual-sourced raw materials (TMA carbonate + electrodialysis) with three redundant filling lines; safety stock of 200+ MT across regional hubs (North America, EU, SE Asia).

• Logistics Capability: Temperature-monitored hazmat shipping (UN 1830, Class 8) with leak-proof valved totes; just-in-time delivery windows available for JIT fabs.

• Price Competitiveness: Direct-from-manufacturer pricing for semi-contracted volumes; 5–8% below distributor average for annual agreements >100 MT.

• Sustainability: Closed-loop returnable IBC program reduces single-use plastic waste by 70%; low-VOC formulation meets RoHS and REACH Annex XVII restrictions.

• Technical Support: Dedicated process engineer for integration assistance (dilution protocols, bath life extension, waste neutralization design); 24‑hour CoA access via portal.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 20 MT (single shipment, bulk or IBC totes)

• Bulk Loading Capacity: 20 MT per 20-foot ISO tank container (net weight) – equivalent to 20,000 liters at 25°C density

• Container Loading (IBC): 18 MT per 20’ standard container (18 x 1000L IBC totes, palletized)

• Lead Time: 14–21 days from PO confirmation (ex-works or CIF major port)
