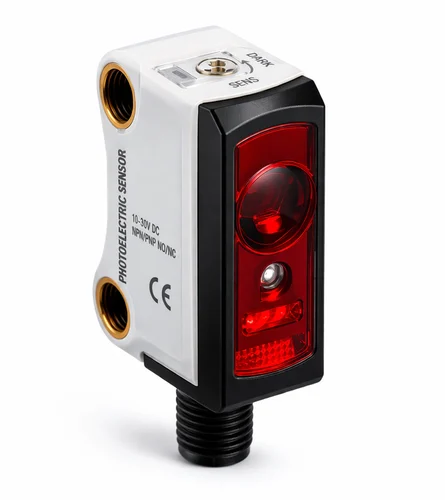

Photoelectric Sensor Industrial Automation

Description

1. Product Overview

Photoelectric Sensor Industrial Automation is a precision optoelectronic proximity sensor engineered for reliable object detection and position sensing in demanding manufacturing environments. It converts light signals into electrical outputs to detect presence, distance, or contrast for conveyor systems, robotic pick-and-place, packaging lines, and safety interlocks. Its key value proposition is consistent, high-speed detection with wide operating ranges and robust industrial ingress protection, delivering lower downtime and higher throughput versus mechanical switches. Strategically, this sensor enables automated process accuracy, traceability, and uptime improvements that directly reduce unit cost and risk across global industrial supply chains.

2. Key Specifications & Technical Characteristics

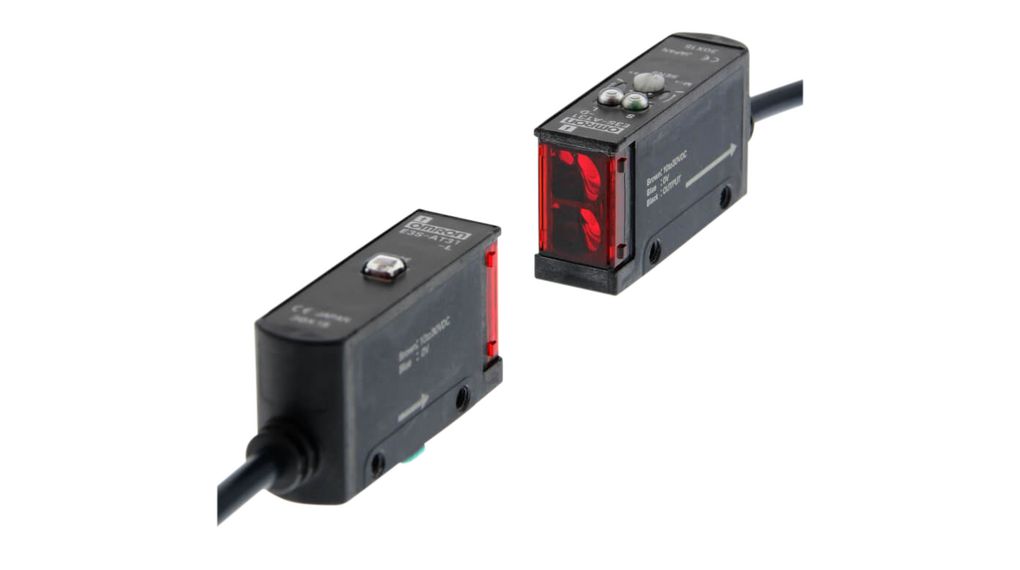

• Sensing principle: Photoelectric (through-beam / retro-reflective / diffuse options available).

• Light source: Infrared LED or visible red LED options (wavelength specified per model).

• Detection range: 0.05 m to 15 m (model dependent).

• Output types: NPN/PNP, NO/NC, NPN/PNP complementary, analog (4–20 mA or 0–10 V) options.

• Response time: ≤ 1 ms typical (high-speed models available).

• Repeatability: ≤ 0.1 mm (model dependent).

• Supply voltage: 10–30 V DC standard, 24 V DC nominal.

• Current consumption: ≤ 30 mA typical (idle).

• Housing material: Nickel-plated brass or stainless steel 304/316 for corrosive environments; polycarbonate or PBT for lightweight models.

• Optical window: Tempered glass or polycarbonate with anti-reflective coating.

• Ingress protection: IP67 standard, IP69K option for high-pressure washdown.

• Operating temperature: -25 °C to +70 °C (extended-range versions -40 °C to +85 °C).

• Vibration and shock: IEC 60068-2 compliant; 10–55 Hz and 30 g shock rating (model dependent).

• Cable/connector: M12 4-pin/3-pin connector or integral PUR cable (length options 2 m, 5 m, 10 m).

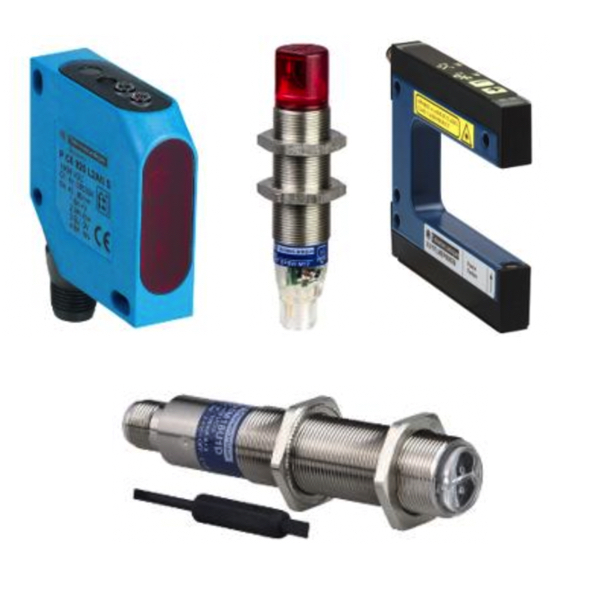

• Mounting: M18, M12, and customizable bracket options; 360° swivel mounts available.

• Certifications: CE, RoHS, UL options, and ATEX-rated versions for hazardous areas.

• Packaging options: Individual boxed with foam insert; 50 pcs per transit carton; palletized bulk crates with protective film; wooden crates for sea freight.

• Shelf life: Not applicable (electronic device); recommended storage conditions: dry, 0–40 °C, relative humidity <70%.

• Traceability: Batch number and serial number on each unit; full BOM and material certificates available on request.

3. Core Industrial Applications

• Primary industries: Automotive assembly, food & beverage packaging, pharmaceuticals, logistics and warehousing, material handling, textile, plastics injection molding, and heavy machinery manufacturing.

• Operational use cases:

  • Conveyor object detection and spacing control to optimize line speed and prevent jams.

  • Robot end-of-arm tooling (EOAT) part presence verification during pick-and-place operations.

  • End-of-line inspection for part counting and quality gating in packaging lines.

  • Safety zone monitoring and gate interlocks when combined with safety controllers.

  • Level detection for opaque or translucent materials in bins and hoppers using diffuse or background suppression types.

• Why it outperforms alternatives: Photoelectric sensors provide non-contact sensing with faster response and longer service life than mechanical switches, better reach than many inductive sensors, and lower maintenance than ultrasonic units in dusty environments. Configurable optics and output options allow precise tuning to reduce false triggers, improving overall line efficiency and reducing scrap rates.

4. Competitive Advantages

• Quality consistency: Manufactured to ISO 9001-controlled processes with incoming component inspection and end-of-line functional testing to ensure uniform performance across production runs.

• Supply reliability: Established inventory buffer and multi-sourcing strategy for critical components to maintain continuity during global supply disruptions.

• Logistics capability: Palletized, export-ready packaging; coordinated sea/air/road forwarding; customs documentation and CIF/FOB/DAP Incoterm support for enterprise contracts.

• Price competitiveness: Tiered pricing for volume procurement, long-term contract rebates, and cost-neutral replacement programs for qualifying enterprise customers.

• Sustainability: Low-power LED optics reduce energy consumption; RoHS-compliant materials; packaging designed to minimize waste and support recyclable corrugates. Custom eco-pack options available.

• Technical support: Global technical datasheets, wiring diagrams, installation guides, and application notes included. Dedicated technical account manager, online troubleshooting portal, and optional on-site commissioning and training services.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT (equivalent packaging and unit counts will be provided with RFQ).

• Loading capacity (MT per container): Typical loading capacity for standard-packaged sensors is approximately 18–22 MT per 20’ container (depends on packaging configuration and ancillary accessories). For full-container optimization and exact cubic calculations, provide packaging preference and accessory lists.
