Sulfur hexafluoride (SF₆)

Description

1. Product Overview
Sulfur Hexafluoride (SF₆) is a high‑density, chemically inert, non‑toxic dielectric gas essential for high‑voltage electrical power systems. Its primary industrial use is as an insulation and arc‑quenching medium in gas‑insulated switchgear (GIS), circuit breakers, and gas‑insulated lines (GIL). The key value proposition is unrivaled dielectric strength (approx. 2.5× that of air) combined with exceptional thermal stability and arc‑interruption performance. Strategically, SF₆ is critical to global grid modernization and renewable energy integration, where compact, reliable, and high‑capacity substations are non‑negotiable.

2. Key Specifications & Technical Characteristics

• Chemical composition: Sulfur Hexafluoride (SF₆) – ≥99.99% pure, with trace moisture and acidity tightly controlled

• Purity level: Technical grade (99.9%) and High‑Purity Electronic grade (99.99% – 99.999%) available

• Physical characteristics: Colorless, odorless, non‑flammable gas; molecular weight 146.06 g/mol; density ~6.14 kg/m³ at 20°C, 1 atm; critical temperature 45.5°C; dielectric strength 8.5–9 kV/mm at 1 bar

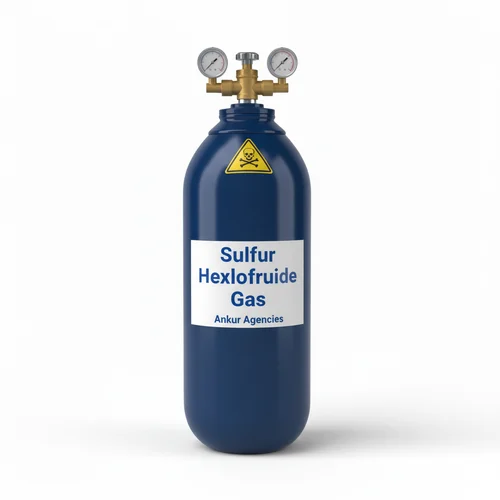

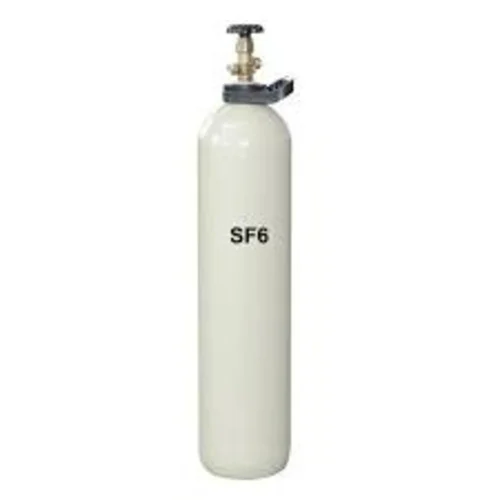

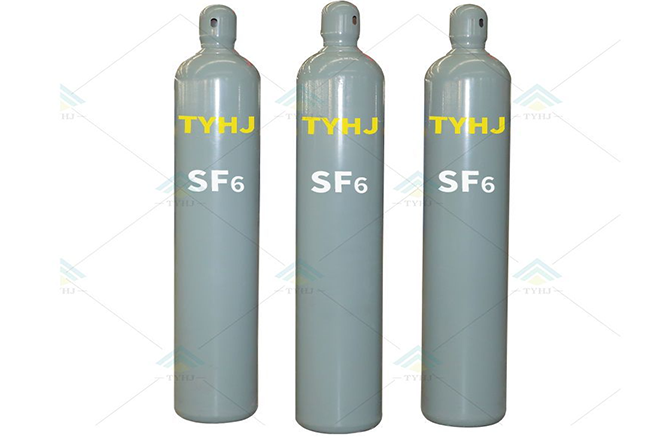

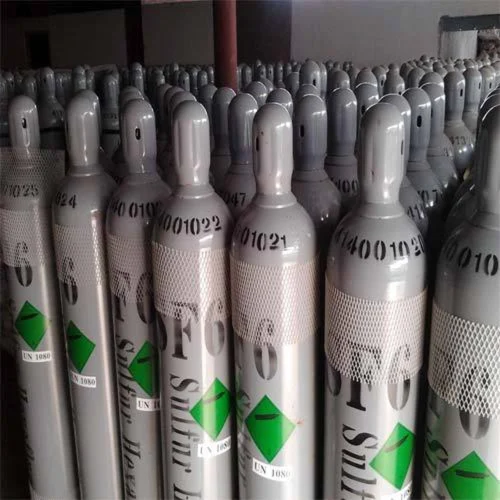

• Packaging options: High‑pressure seamless steel cylinders (20L, 40L, 50L), cylinder bundles (12×50L or 16×40L), ISO containers for bulk liquid SF₆, and returnable refillable packs

• Shelf life: 5 years from date of analysis when stored in sealed cylinders under dry, shaded conditions (≤50°C)

3. Core Industrial Applications

• Primary industries: Electric power transmission & distribution (T&D), renewable energy (offshore wind & solar farms), heavy industrial manufacturing, electronics (semiconductor etching & chamber cleaning), medical (limited: ophthalmic surgery tamponade)

• Specific operational use cases:

  • Gas‑insulated switchgear (GIS) for urban substations and offshore platforms – enables footprint reduction of up to 90% vs. air‑insulated alternatives

  • High‑voltage circuit breakers (72.5 kV to 800 kV) – arc‑quenching time < 20 ms, extending contact life by 3× compared to vacuum or oil breakers

  • Particle accelerators and X‑ray equipment – stable insulating medium under high radiation

• Why better than alternatives: SF₆ outperforms air, N₂, or vacuum in dielectric strength, thermal conductivity, and arc extinction. It allows compact, sealed, maintenance‑free operation for 25–40 years, drastically lowering total cost of ownership (TCO) in high‑reliability environments.

4. Competitive Advantages

• Quality consistency: ISO 9001:2015 certified manufacturing with online gas chromatography and moisture analysis; each batch certified to IEC 60376 or ASTM D2472 standards

• Supply reliability: Dedicated production lines with >10,000 MT annual capacity; dual‑source raw material contracts; global stocking hubs (Asia, Europe, Middle East, Americas)

• Logistics capability: In‑house fleet of certified hazardous gas carriers; door‑to‑door tracking; emergency replacement stock for critical infrastructure clients

• Price competitiveness: Long‑term fixed‑price contracts for utility buyers; volume‑tiered discounts (10,000+ kg); lower cost per dielectric strength unit vs. competing gases like fluoronitriles

• Sustainability & compliance: Full adherence to EU F‑Gas Regulation (517/2014) reporting; SF₆ take‑back & recycling program (recovery rate >95%); technical documentation includes Material Safety Data Sheet (MSDS), batch COA, and carbon footprint statement

• Technical support: 24/7 application engineering; on‑site gas handling training; remote purity monitoring integration available

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 1,000 kg (equivalent to ~25 standard 40L cylinders)

• BULK 20MT Loading capacity: 20 metric tons (20,000 kg) per ISO tank container (liquefied SF₆, ~3.0 m³ liquid volume)
