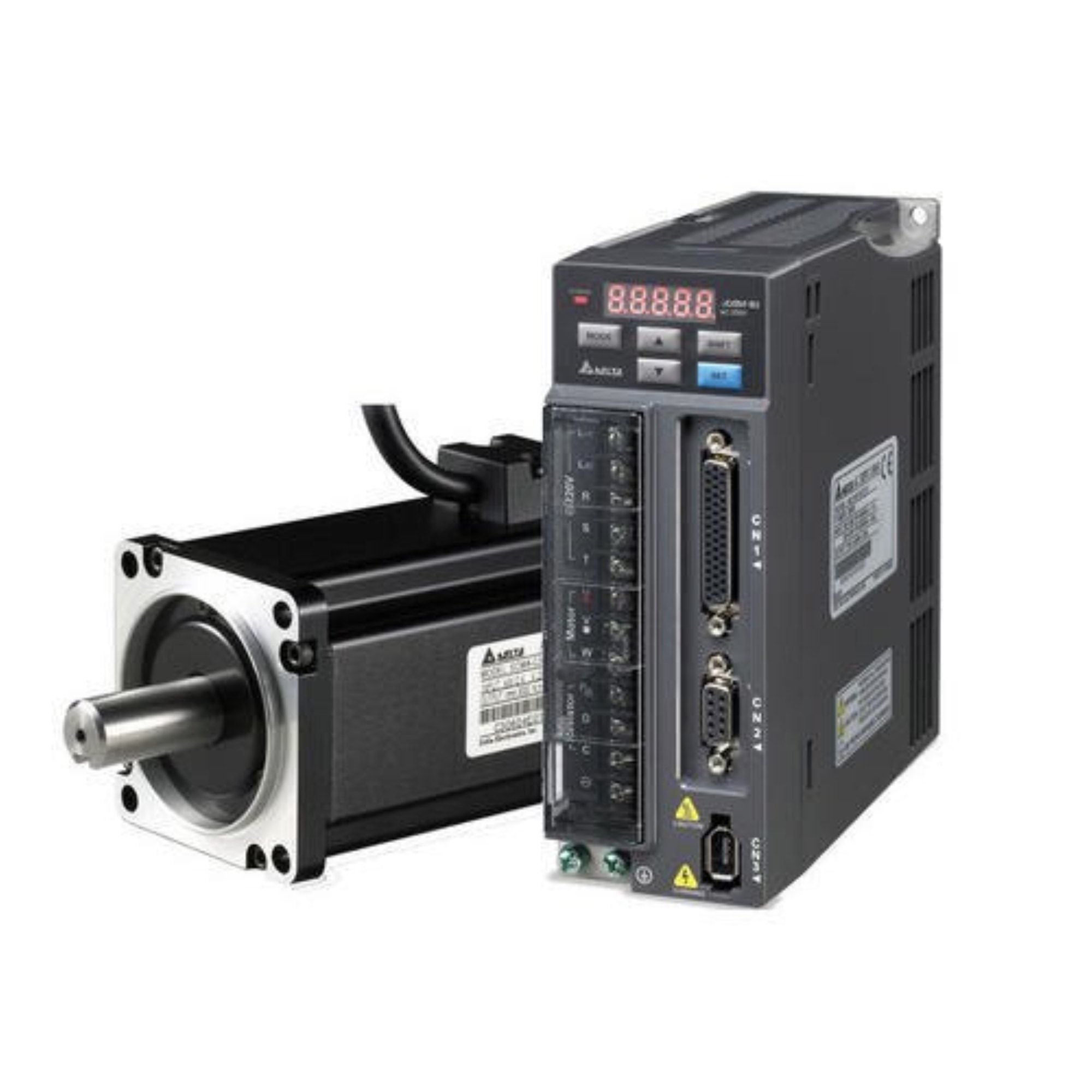

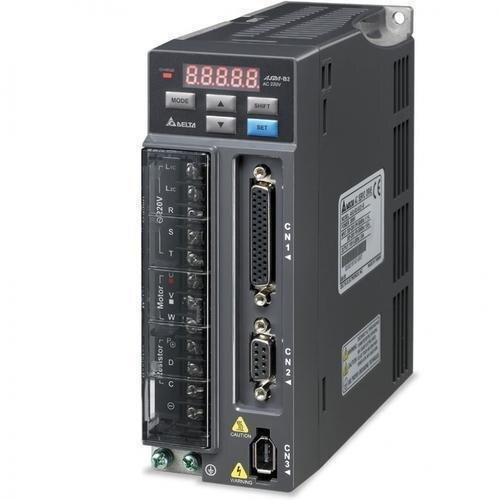

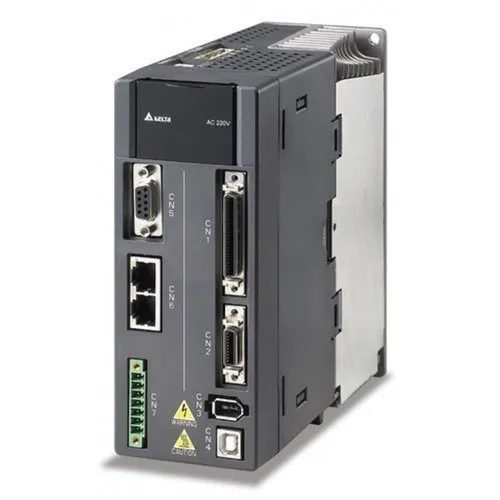

Servo Controller (DELTA ASD-A2)

Description

1. Product Overview
The DELTA ASD-A2 series is a high-performance, networked servo drive and controller engineered for precision motion control in complex industrial automation systems. Primarily used in CNC machining, robotics, electronic assembly, and packaging lines, this device delivers unparalleled torque responsiveness and position accuracy. Its strategic market value lies in bridging the gap between standard servo control and high-end machine intelligence—reducing cycle times while maintaining micron-level precision, making it a critical enabler for Industry 4.0 manufacturing environments.

2. Key Specifications & Technical Characteristics

• Input Power Rating: 200–230 VAC, single or three-phase, 50/60 Hz

• Output Power Range: 100W to 15kW (depending on drive model)

• Control Modes: Position, Speed, Torque, and full闭环 control with auto-tuning

• Encoder Resolution: 20-bit (1,024,000 ppr) incremental or absolute serial encoder

• Communication Protocols: CANopen (DS402), MODBUS, and DMCNET for real-time synchronized motion

• Physical Characteristics: Rugged IP20-rated chassis; natural convection cooling (up to 1kW) / forced fan cooling (>1kW); approx. 1.8–6.5 kg weight

• Environmental Compliance: RoHS, REACH, UL/cUL, CE marked

• Packaging Options: Anti-static ESD bag + industrial grade corrugated carton (individual unit) or 10-unit master carton

• Shelf Life: 5 years (non-operating, when stored at -20°C to 60°C, <90% RH non-condensing)

3. Core Industrial Applications

• Primary industries: Precision machine tools, semiconductor handling equipment, medical device manufacturing, automated packaging, and robotic arms (SCARA/6-axis).

• Specific use cases:

  • CNC laser cutters – achieves ±1 micron positioning repeatability, reducing material waste by up to 12%.

  • Pick-and-place machines – executes 0.5 ms settling time for 4x faster throughput vs. standard 16-bit drives.

  • Electronic component insertion – maintains stable torque at near-zero speeds, preventing PCB trace damage.

• Performance advantage: The ASD-A2’s high-gain auto-tuning and notch filter algorithm eliminates mechanical resonance 30% faster than comparable drives, enabling higher machine duty cycles without overheating.

4. Competitive Advantages

• Quality consistency: Delta’s ISO 9001:2015 certified plants maintain <0.2% global field failure rate over 10,000+ units.

• Supply reliability: Dual sourcing of semiconductors + regional distribution hubs (Asia, EU, NA) ensure 98% on-time delivery even during spot shortages.

• Logistics capability: Ready-to-ship from Taiwan and China warehouses; air freight option for emergency replacements (3–5 days globally).

• Price competitiveness: Tier-1 performance at 18–25% lower total ownership cost vs. equivalent Japanese or German brands, due to economies of scale.

• Technical support: Lifetime free firmware updates + complete Modbus register map and XML files for PLC integration, included with every unit.

• Sustainability: Energy-saving mode reduces idle power consumption by 40%; fully lead-free solder and recyclable aluminum heatsink.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT (approx. 1,200 units of 1kW drives, mixed models permitted)

• Loading capacity per container:

  • *20-ft dry container:* 20 MT net (standard palletized configuration)

  • *40-ft HC container:* 26 MT net (max payload limit)
