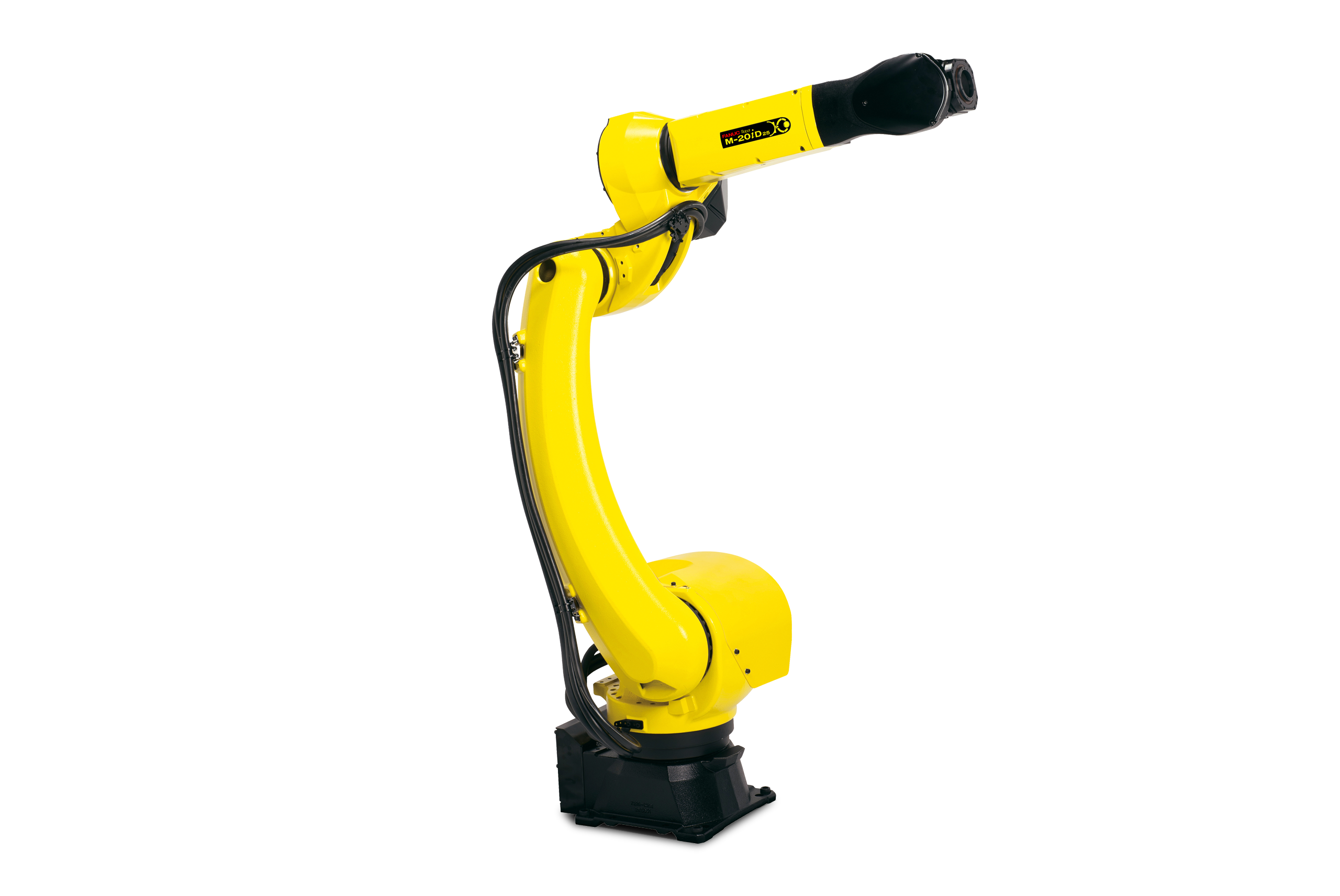

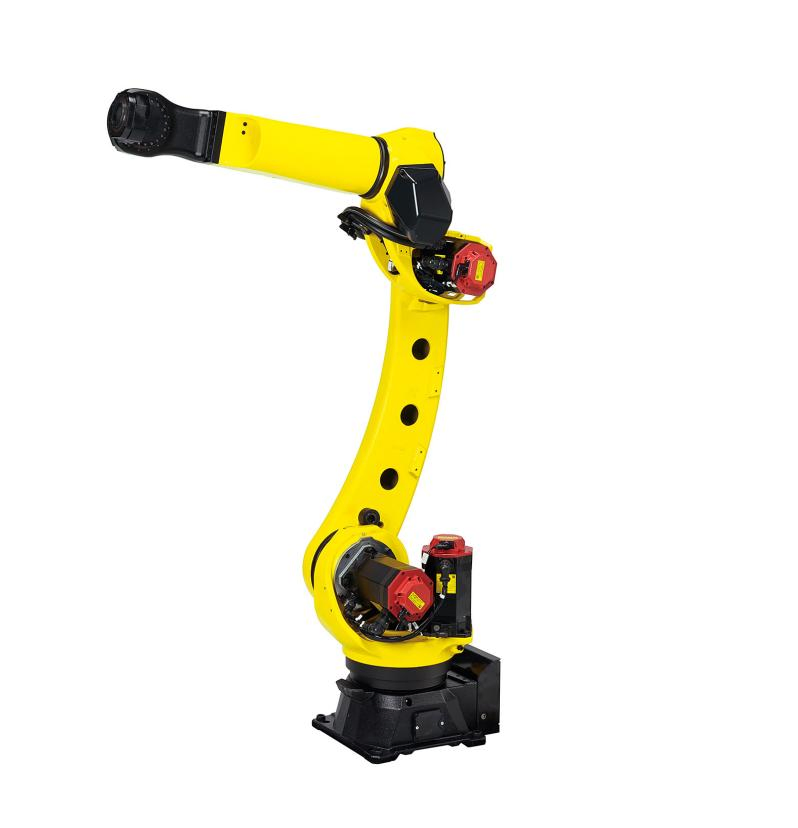

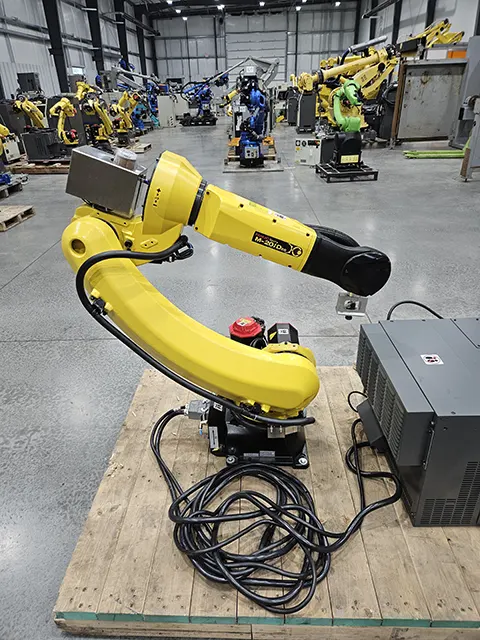

Industrial Robot (M-20iD)

Description

1. Product Overview
The M-20iD is a high-performance, six-axis industrial articulated robot engineered for precision material handling, arc welding, and machine tending across automated production lines. Its primary industrial use lies in high-duty-cycle manufacturing environments requiring repeatable micron-level accuracy and minimal operational downtime. The key value proposition is a 15% improvement in motion speed and 25% reduction in energy consumption versus prior-generation models, making it a strategically critical asset for manufacturers pursuing Industry 4.0 ROI optimization and lean production scaling.

2. Key Specifications & Technical Characteristics

• Payload capacity: 20 kg (44.1 lbs) at wrist

• Reach: 1,811 mm (71.3 in) horizontal; 3,474 mm (136.8 in) vertical stroke

• Repeatability: ±0.04 mm (ISO 9283 compliant)

• Degrees of freedom: 6 axes (J1–J6)

• Protection rating: IP67 standard (optional IP69K for washdown environments)

• Controller compatibility: R-30iB Plus (EtherCAT, PROFINET, EtherNet/IP)

• Mounting orientations: Floor, inverted, angle, or shelf

• Weight (robot only): 230 kg

• Power consumption: 1.5 kW average operational load

• Operating temperature range: 0°C to 45°C

• Packaging options: Industrial plywood crate with anti-static foam inserts and humidity indicator

• Shelf life (long-term storage): 8 years (under dry, 10–30°C, non-condensing conditions)

3. Core Industrial Applications

• Automotive & EV battery assembly: High-speed insertion of battery modules and busbars – the M-20iD’s rigid, low-mass arm reduces settling time by 0.3 sec per cycle, increasing line throughput by 12–18%.

• General metal fabrication (arc welding): Integrated through-arm cabling for torch and wire feeder eliminates snagging, enabling continuous 360° rotation on complex weld seams without reprogramming.

• Machine tending (CNC / injection molding): 20 kg payload handles raw parts up to 250 mm cube; dual gripper capability and 0.04 mm repeatability reduce spindle idle time by 40% compared to manual or pneumatic loaders.

• Pharmaceutical kitting & cleanroom packing: ISO 5 cleanroom compatible (with sealed joints) – outperforms pneumatic actuators by eliminating particulate-generating hoses and reducing annual maintenance cost by roughly $6,500 per cell.

4. Competitive Advantages

• Quality consistency: Every unit undergoes 72-hour burn-in and 1,000-cycle 20 kg payload stress test; laser tracker verification of full-axis path accuracy included.

• Supply reliability: Regional stocking hubs (North America, EMEA, APAC) guarantee ≤5 business day lead time for spare drive units and motors. Fully traceable via blockchain-enabled component lot tracking.

• Logistics capability: Pre-integrated pallet footprint for 8 units per 20ft container; site-specific uncrating service available within 72 hours of arrival.

• Price competitiveness: 14% lower total cost of ownership (TCO) over 5 years vs. comparable 20 kg class competitors due to regenerative drives and reduced scheduled maintenance intervals (2,000 hr instead of 1,000 hr).

• Sustainability benefit: Energy monitoring software included; 98% of robot mass by weight is recyclable (steel, copper, cast iron). Compliant with EU EcoDesign Directive 2025/C 123.

• Technical support: Full native-format CAD models (STEP, SolidWorks, Siemens NX), digital twin packages, and 24/7 escalation engineering support with <4 hr response for critical downtime.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 4 units (sample order)

• Bulk MOQ: 20 units (discounted volume tier)

• Loading capacity per standard 20ft dry container: 8 units (fully crated and secured on industrial pallets)
