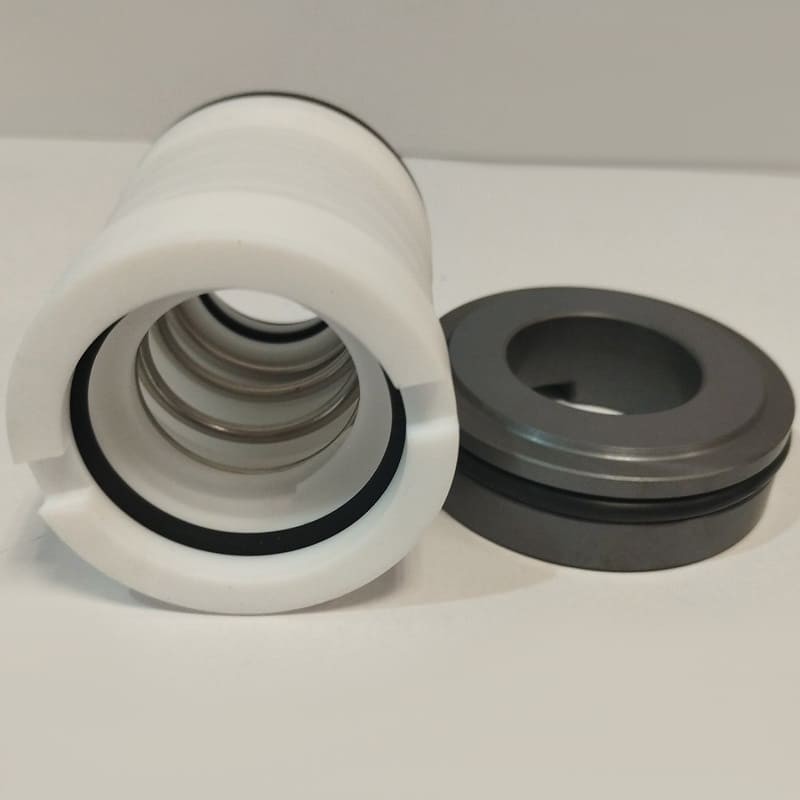

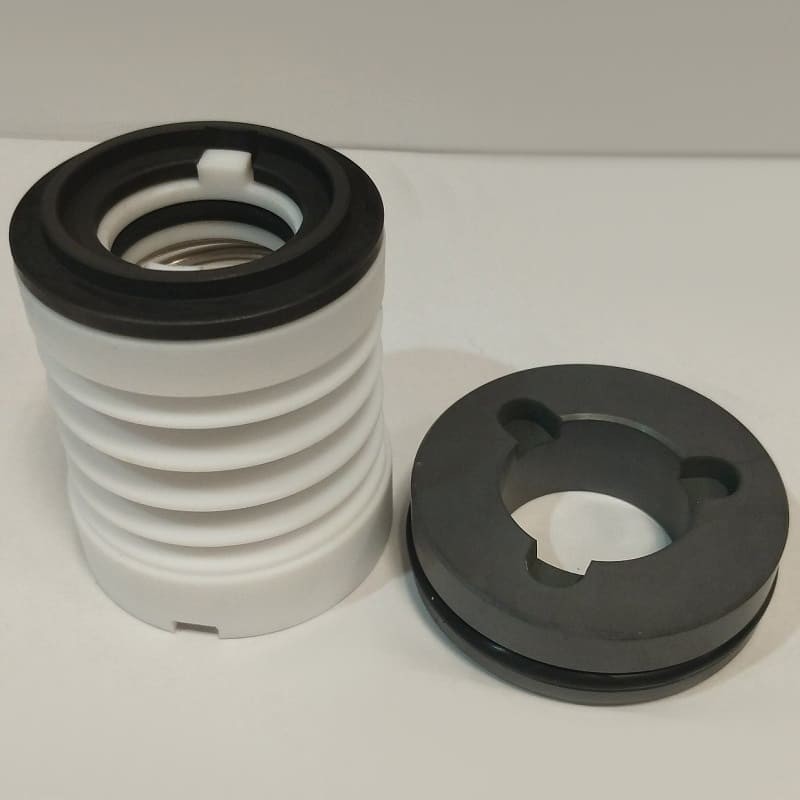

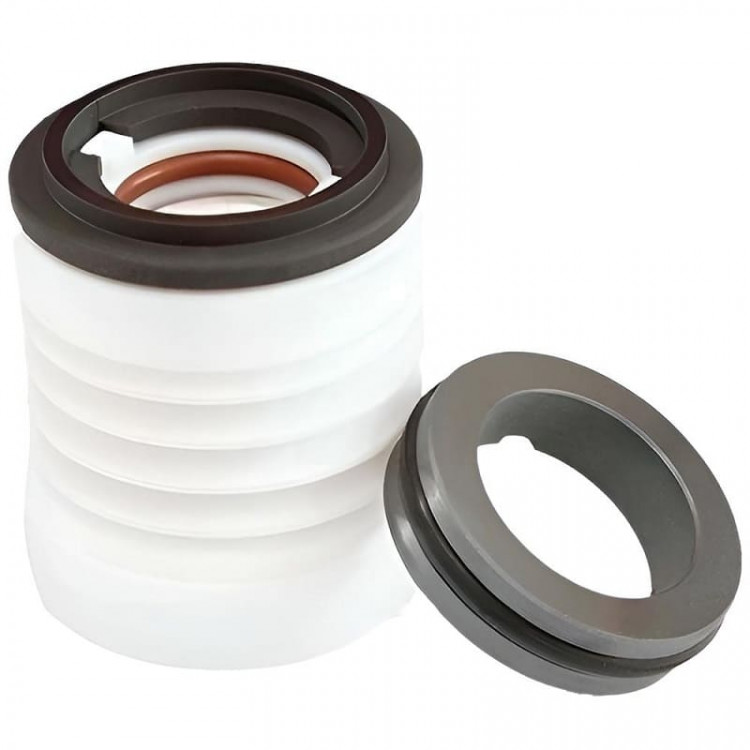

PTFE Bellows Chemical Pump Seal

Description

1. Product Overview

PTFE Bellows Chemical Pump Seal is a high-performance, fluoropolymer-based dynamic sealing component engineered for centrifugal and rotary chemical pumps handling aggressive, corrosive, and high-purity fluids. It provides a resilient, leak-minimizing bellows design that isolates process fluids from atmosphere while maintaining dimensional stability across wide temperature and chemical ranges. The key value proposition is long-term, maintenance-reducing sealing reliability that lowers total cost of ownership through extended mean time between failures (MTBF) and reduced product loss. Strategically, this seal enables safer, more efficient operations in critical chemical processing, pharmaceutical, petrochemical, and semiconductor supply chains where contamination control and uptime are mission-critical.

2. Key Specifications & Technical Characteristics

• Material composition: Virgin polytetrafluoroethylene (PTFE) bellows with optional carbon/graphite- or glass-filled PTFE reinforcement; elastomeric secondary components (per application): FFKM, EPDM, or Viton (available on request).

• Grade / purity: Industrial-grade, virgin PTFE resin meeting ASTM standards for chemical resistance; USP Class VI and FDA-compliant options available for pharmaceutical/food-contact applications.

• Physical characteristics: Bellows form (convoluted tubular seal), color: natural/off-white (filled variants may be gray); wall thickness and convolution count customizable to pump shaft size and pressure requirements; typical density ~2.1–2.3 g/cm³ for virgin PTFE.

• Pressure and temperature capability: Continuous service up to 10 bar (higher ratings configurable with reinforcement), temperature range typically -200°C to +260°C depending on secondary materials and design.

• Chemical compatibility: Broad resistance to acids, bases, solvents, oxidizers, and high-purity process media; compatible with aggressive organics, strong acids (e.g., HCl, H2SO4), and alkalies.

• Mechanical performance: Excellent creep resistance, low permeability, minimal cold flow when properly supported; compatible with dynamic rotary motion and axial misalignment compensation.

• Packaging options: Industrial bulk crates, palletized wooden cases, individual sealed anti-static bags, and clean-room-ready packaging for semiconductor/pharma shipments.

• Shelf life and storage: Stable indefinite shelf life under recommended conditions (cool, dry, out of direct sunlight); recommended inspection after 5 years for critical service.

• Traceability & certification: Batch-level lot traceability, material certificates (MTC), and test reports available on request (chemical composition, hardness, dimensional inspection).

3. Core Industrial Applications

• Primary industries: Chemical processing, petrochemical refining, pharmaceutical manufacturing, semiconductor fabs, water treatment, specialty coatings, and industrial gas handling.

• Operational use cases: Dynamic shaft sealing in centrifugal and rotary pumps for corrosive fluids; isolation seals in metering pumps and dosing systems; contamination-critical circuits requiring non-reactive wetted surfaces; replacement/upgrading of elastomer bellows in aggressive-service pumps.

• Why it performs better: PTFE’s unmatched chemical inertness eliminates degradation and swelling issues common with elastomeric bellows, reducing unplanned downtime. The bellows geometry compensates for axial movement and pressure fluctuations while maintaining sealing integrity, delivering longer life and fewer maintenance interventions.

• Efficiency, durability, cost advantages: Longer operational life and reduced frequency of seal replacements lower maintenance costs and spare-part inventory needs; reduced leakage protects product yield and minimizes environmental/clean-up costs, improving overall process efficiency and compliance.

4. Competitive Advantages

• Quality consistency: Manufactured from virgin PTFE with controlled processing and dimensional QA to ensure repeatable performance across batches.

• Supply reliability: Production planning and safety stock strategies ensure consistent supply for industrial-scale contracts; expedited production for urgent replacement needs.

• Logistics capability: Export-ready packaging, consolidation services, and coordination with freight forwarders for sea/air shipment; support for customs documentation and regulated-material handling.

• Price competitiveness: Competitive unit pricing for bulk procurements (economies of scale for 20 MT+ orders), transparent pricing tiers and long-term contract discounts.

• Sustainability & environmental benefits: PTFE bellows reduce leak rates and product losses, lowering lifecycle environmental impact from spilled or purged chemicals; packaging designed for reuse/recycling where permitted.

• Technical support & documentation: Comprehensive technical datasheets, installation guides, compatibility matrices, and RAGAGEP (recognized and generally accepted good engineering practices) alignment; engineering support for seal selection, retrofitting, and failure analysis.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT

• Loading capacity (MT per container): Typical 20-foot container loading capacity up to 20 MT (subject to packaging and part geometry); 40-foot container capacity up to ~24–26 MT depending on palletization and weight distribution.

• Lead times: Standard production lead time negotiable based on order size and customization; expedited options available for critical spares.

• Delivery terms: FOB, CIF, EXW available; incoterms to be agreed at contract stage.

• After-sales: Warranty on manufacturing defects, availability of spare components, and options for OEM-certified replacements.
