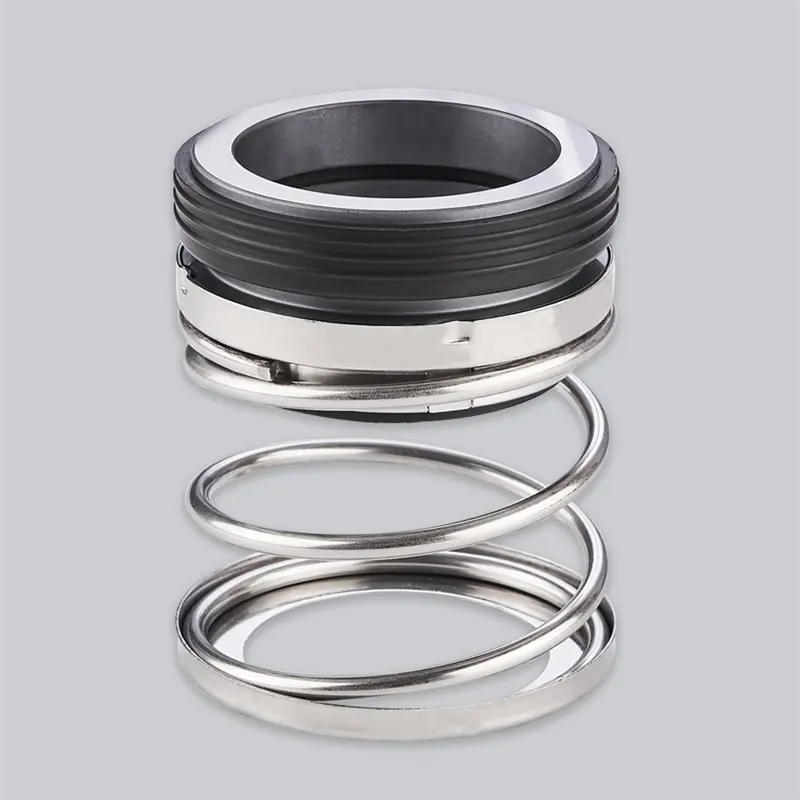

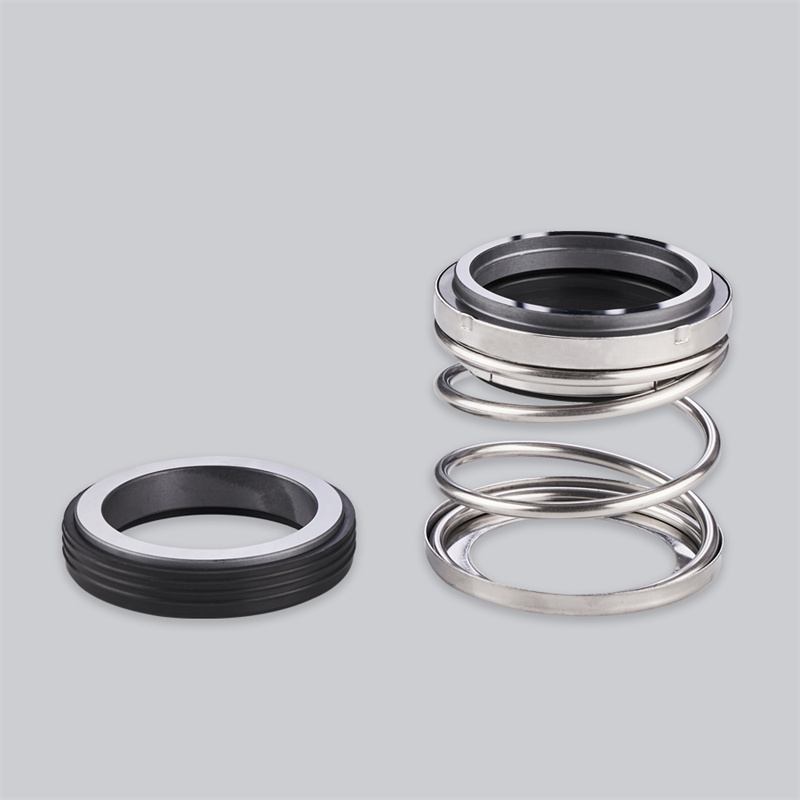

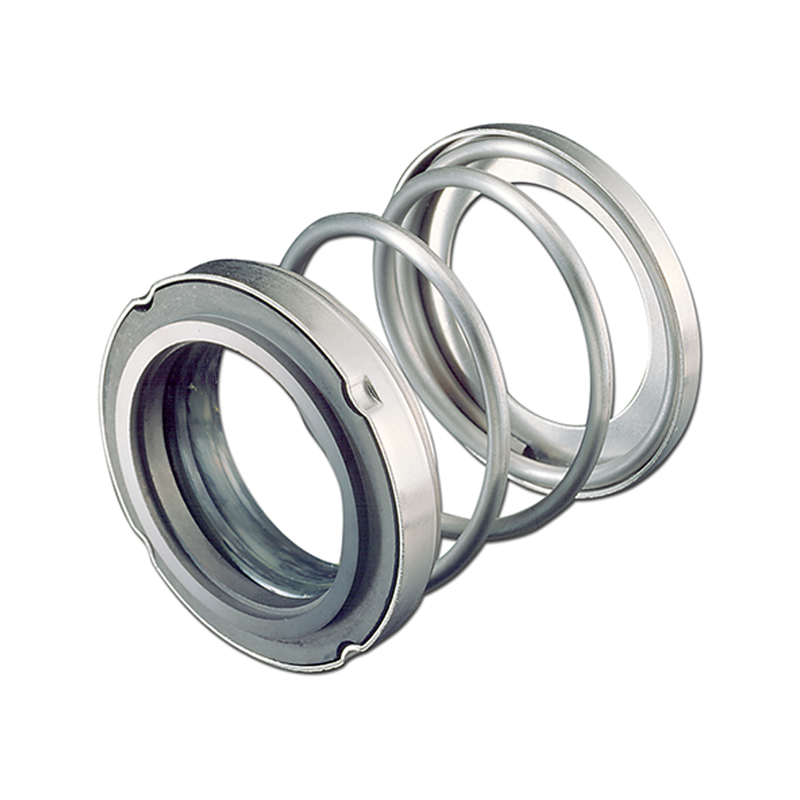

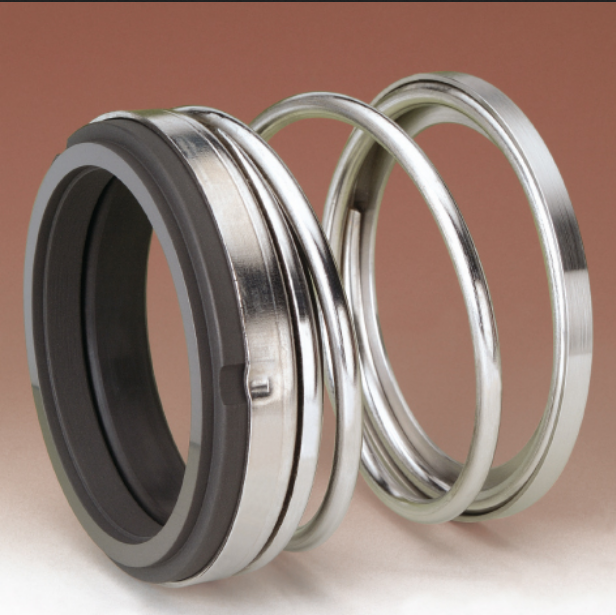

DIN 24960 Type 21 Mechanical Seal (Single Spring)

Description

1. Product Overview
   DIN 24960 Type 21 Mechanical Seal (Single Spring) is a precision-engineered rotary shaft seal designed to meet DIN 24960 Type 21 dimensional and performance standards for centrifugal pumps and rotating equipment. It provides dependable face sealing in water, light hydrocarbons, and general industrial process services where a single-spring cartridge-style seal is appropriate. The product delivers high reliability, low leakage, and simple installation, reducing downtime and maintenance costs across pump fleets. For strategic procurement teams, this seal offers standardized interchangeability, predictable lifecycle costs, and ease of integration into global spare-parts programs.

2. Key Specifications & Technical Characteristics

• Standard: DIN 24960 Type 21 dimensional conformity.

• Configuration: Single-spring, balanced face design.

• Primary materials: Stationary ring — carbon graphite (or optional silicon carbide); rotating ring — stainless steel 1.4401/316L with hard face (silicon carbide or tungsten carbide options).

• Secondary seals: NBR (nitrile) standard; options: FKM (Viton), EPDM for chemical or temperature-specific applications.

• Surface finish: Rotating/Stationary face finish ≤ 0.2 µm Ra for sealing faces.

• Temperature range: NBR standard -20°C to +100°C; FKM option -20°C to +200°C; EPDM option -40°C to +150°C.

• Pressure capability: Up to 10 bar (application dependent; refer to seal face material and installation).

• Speed capability: Up to 12 m/s peripheral velocity (dependent on fluid, lubrication, and cooling).

• Shaft tolerance: H7/g6 recommended; axial movement tolerance per DIN 24960.

• Balance ratio: Designed to minimize face loading for extended life in moderate-pressure applications.

• Corrosion resistance: 316L stainless wetted components; optional coatings for aggressive environments.

• Packaging options: Individual sealed boxes with desiccant; multi-pack cartons of 10; bulk wooden crates or palletized shipments for larger orders.

• Identification: Laser-etched part number, material code, and lot/batch traceability.

• Shelf life: Indefinite for metal components when stored dry; elastomer shelf life 24 months under recommended storage (cool, dark, <25°C).

• QA: Supplied with certificate of conformity and dimensional inspection report on request.

3. Core Industrial Applications

• Primary industries: Water & wastewater treatment, petrochemical and refining, power generation, pulp & paper, chemical processing, mining and minerals, HVAC and building services.

• Operational use cases: Shaft sealing on centrifugal pumps, agitators, mixers, boiler feed pumps, and service pumps handling clean to moderately contaminated fluids; ideal for OEM spares and maintenance-repair-overhaul (MRO) inventories.

• Performance advantages vs alternatives: Balanced single-spring design reduces face loading and sensitivity to axial shaft movement compared with unbalanced seals; compact Type 21 geometry ensures interchangeability with DIN-standard equipment, reducing retrofit costs. The selection of hard-face materials (silicon/tungsten carbide) and elastomer options extends service life in abrasive or chemically aggressive fluids, lowering lifecycle cost per operating hour.

• Practical commercial relevance: Standardization simplifies global spare-part management, minimizes cross-compatibility risk in multi-vendor fleets, and supports lean inventory strategies through a drop-in replacement profile.

4. Competitive Advantages

• Quality consistency: Manufactured to DIN dimensional tolerances with batch traceability and inspection certificates available.

• Supply reliability: Production planning aligned to industrial reorder cycles; safety stock established for core sizes to support just-in-time replenishment.

• Logistics capability: Palletized and container-ready packing, export documentation support, and optional local stocking agreements for large accounts.

• Price competitiveness: Optimized material selection and production workflows deliver competitive unit economics for bulk procurement while retaining premium material options.

• Sustainability: Durable components reduce frequency of replacement; packaging optimized for pallet efficiency; optional material choices (e.g., reduced-lead alloys) support environmental compliance needs.

• Technical support: Full technical datasheets, installation and troubleshooting manuals, dimensional drawings, and on-demand engineering consultation for seal selection and failure analysis.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity: Estimated MT per container — 20 ft container up to 20 MT gross (depending on packing configuration and palletization), 40 ft container up to 24–26 MT gross (optimized pallet stacking).

• Lead time: Standard catalogue sizes — typically 4–8 weeks for BULK orders; express sourcing for stocked sizes possible (subject to supplier confirmation).

• Documentation supplied: Commercial invoice, packing list, certificate of conformity, material test reports on request, export compliance paperwork.
