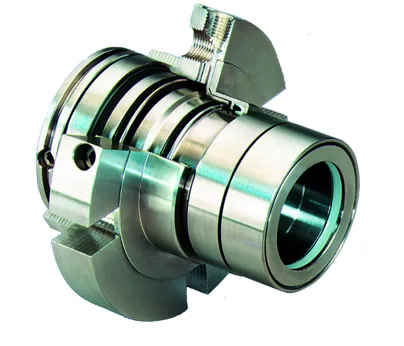

Cartridge Seal for Centrifugal Pumps (ANSI B73.1)

Description

1. Product Overview
   Cartridge Seal for Centrifugal Pumps (ANSI B73.1) is a factory-assembled mechanical sealing unit engineered for ANSI B73.1-compliant centrifugal pumps. It provides leak-free shaft sealing for a wide range of industrial fluids, enabling safe, continuous pump operation in process, utility, and transfer systems. The product delivers rapid, error-free installation, reduced mean time to repair, and predictable performance under variable pressures and temperatures — lowering total cost of ownership. For strategic buyers, it standardizes pump maintenance, reduces downtime risk, and simplifies spare-parts logistics across multi-site operations.

2. Key Specifications & Technical Characteristics

• Standard: ANSI B73.1 dimensional and interchangeability compliance.

• Seal Type: Cartridge mechanical seal, single or balanced configuration (specify at order).

• Materials (wetted): Carbon/graphite or silicon carbide stationary faces; silicon carbide, tungsten carbide, or chrome-plated rotating faces; ASTM A276 stainless steel or duplex stainless rotating components; elastomers: Viton (FKM) standard, EPDM or PTFE optional.

• Secondary Sealing: O-ring or pusher configuration depending on model; compatible with lubricating and non-lubricating fluids.

• Pressure Rating: Up to 16 bar (standard designs); high-pressure options available on request.

• Temperature Range: -40°C to +200°C depending on elastomer selection; extended-temperature materials available.

• Shaft Size Compatibility: Fits standard ANSI B73.1 shaft diameters (specify exact shaft size at order).

• Surface Finish/Tolerances: Rotating face tolerance ≤ 0.01 mm; housing concentricity per ANSI pump tolerance.

• Balance Ratio: Options for balanced/unbalanced designs to suit vaporous or viscous services.

• Leakage Control: Cartridge containment with integrated flush ports for plan 11/21/32/53B configurations (specify required flush plan).

• Corrosion Resistance: Protective coatings and corrosion-resistant alloys available for aggressive chemistries.

• Packaging Options: Palletized wooden crates for single units; steel-band bulk crates for multiple units; export-ready boxed units with silica desiccant and humidity indicator.

• Documentation: Certificate of Conformance (CoC), material test reports (MMTR), dimensional drawings, installation & maintenance manual.

• Shelf Life: Indefinite for mechanical components when stored dry; recommended storage < 25°C and < 60% RH, elastomer shelf life typical 3–5 years depending on compound.

3. Core Industrial Applications

• Primary industries: Oil & gas (upstream/downstream), petrochemicals, chemical processing, power generation, water & wastewater treatment, pulp & paper, mining, and marine.

• Operational use cases: Seal replacement during turnarounds; new equipment OEM fitment; critical-service pump systems handling hydrocarbons, solvents, slurries, acids, or hot water; seal standardization for fleet reliability programs.

• Performance advantages: Cartridge design eliminates complex in-place assembly, reducing installation errors and alignment-related failures. Balanced face options improve performance in vaporous or suction-lift conditions; material choices (silicon carbide, tungsten carbide) extend wear life in abrasive or corrosive services.

• Commercial relevance: Predictable MTBR (mean time between repairs) and simplified spare-part inventories decrease outage durations and labor costs, directly improving uptime and operational throughput.

4. Competitive Advantages

• Quality consistency: Manufactured to ISO-controlled production processes with batch traceability and CoC/MMTR for every unit.

• Supply reliability: Dedicated production lanes and safety-stock policy for ANSI B73.1 cartridge seals, enabling expedited replenishment for critical spares.

• Logistics capability: Export-ready packaging, FCL/LCL consolidation services, and partnership with freight forwarders for global deliveries.

• Price competitiveness: Tiered pricing for volume buys and long-term contracts; lifecycle cost focus—higher initial cost offset by reduced downtime and maintenance.

• Sustainability: Long-life materials and repairable components reduce waste; packaging optimized for reuse and recyclable materials where possible.

• Technical support: Detailed installation guides, troubleshooting flowcharts, and access to engineering support for material selection, flush-plan specification, and field commissioning.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT.

• Loading Capacity (MT per container): Typical 20-foot container loading up to 20 MT (subject to packaging and unit dimensions); 40-foot container up to 26–28 MT. (Final load plan confirmed at order based on unit dimensions and palletization.)
