Pneumatic actuator rotary

Description

Product Overview

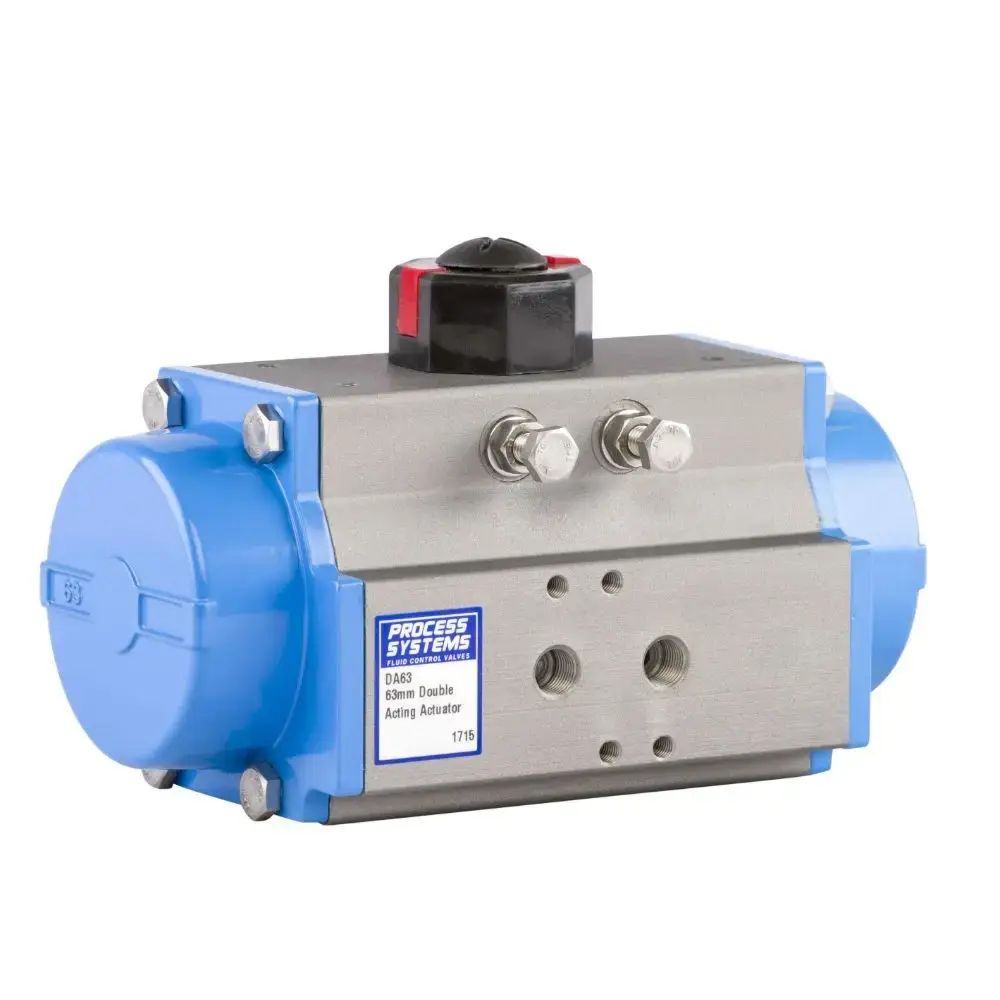

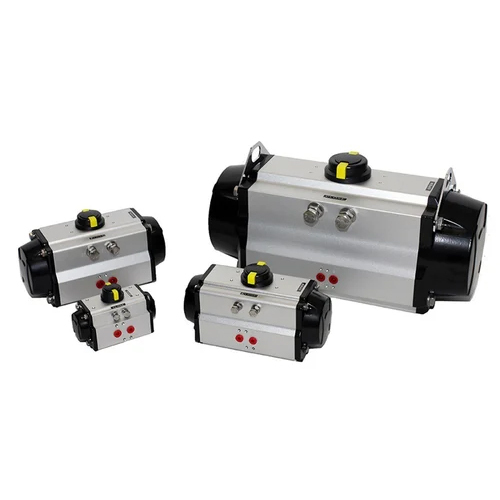

Pneumatic actuator rotary is a high-performance rotary motion device that converts compressed-air energy into controlled torque and angular displacement for industrial valve and motion-control systems. It is primarily used to automate quarter-turn valves (ball, butterfly, plug) and rotary indexing mechanisms in process, utilities, and manufacturing plants. Key value propositions are precise, repeatable control, rapid response, and rugged construction for continuous heavy-duty operation. Strategically, this actuator reduces manual intervention, increases process uptime, and enables integrated pneumatic automation in facilities where electric actuation is impractical or where intrinsic safety and explosion-proofing are required.

Key Specifications & Technical Characteristics

• Materials: anodized aluminum housing, stainless steel (316) shafts and fasteners, nitrile (NBR) or FKM (Viton) sealing options, composite or aluminum vanes/gears depending on model.

• Actuation medium: filtered, lubricated or non-lubricated compressed air, operating pressure range 0.3–1.0 MPa (3–10 bar) standard; higher-pressure variants available.

• Output torque range: model-dependent, typically 50–10,000 Nm (specify model for exact values).

• Rotation: 90° (single-acting/double-acting) standard; customizable multi-turn and adjustable travel stops.

• Drive types: rack-and-pinion or scotch-yoke designs for compact high-torque and smooth motion options.

• Control interfaces: pneumatic spring-return (single acting), double-acting, with optional positioners, limit switches, rotary encoders, and NAMUR mounting for solenoid valves.

• Temperature rating: standard −20 to +80 °C; low- and high-temperature seals available for extended ranges.

• Protection and finish: IP66/IP67 options, corrosion-resistant coatings, optional stainless-steel housings for aggressive environments.

• Physical characteristics: compact modular design; weight varies by torque class and materials (refer to model datasheet).

• Packaging options: export-ready wooden crates, palletized skids, container-sealed packaging with desiccant and anti-corrosion film for ocean freight.

• Shelf life / storage: non-operational storage recommended in dry conditions; seals and lubricants stable for 24 months if stored per instructions.

• Compliance: available with ATEX/IECEx certification for hazardous areas, CE marking, RoHS where applicable.

Core Industrial Applications

• Oil & Gas and Petrochemical: Automated quarter-turn isolation and control valves in upstream, midstream, and downstream facilities; suited for hazardous, explosive atmospheres where pneumatic actuation is preferred over electric.

• Water & Wastewater: Butterfly and plug valve automation in treatment plants and distribution networks; performs reliably in wet, corrosive environments.

• Power Generation and Utilities: Rapid, fail-safe valve actuation for safety systems, steam isolation, and turbine bypass controls.

• Chemical & Process Manufacturing: Corrosion-resistant variants for handling aggressive media and high-cycle applications in continuous processes.

• HVAC and Building Services: Damper and valve control for large-scale air handling units and chilled-water systems.
  Why it outperforms alternatives

• Compared with electric actuators: superior intrinsic safety in explosive atmospheres, faster response, and simpler fail-safe spring-return options.

• Compared with hydraulic systems: cleaner operation (no hydraulic fluids), simpler maintenance, and better suitability where fire safety or fluid contamination is a concern.

• Efficiency & durability: optimized internal seals and bearing arrangements reduce air consumption and extend service intervals, lowering total cost of ownership in high-cycle operations.

Competitive Advantages

• Quality consistency: precision-machined components, ISO 9001 manufacturing, and batch traceability ensure consistent torque and performance across orders.

• Supply reliability: staged inventory, regional warehousing, and production planning for predictable lead times and expedited fulfillment for critical projects.

• Logistics capability: export-compliant packaging, experience with FCL/LCL containerization, and coordinated carrier networks to major industrial hubs.

• Price competitiveness: tiered pricing for volume procurement, long-term contract discounts, and option to supply spares kits to reduce lifecycle costs.

• Sustainability: durable design reduces replacement frequency; optional low-VOC coatings and recyclable packaging materials for reduced environmental footprint.

• Technical support: comprehensive datasheets, CAD models, installation and maintenance manuals, on-request performance curves, and project-level engineering support for sizing and integration.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Standard 20-foot container approx. 18–20 MT depending on packaging and model mix; 40-foot container approx. 22–24 MT subject to final packing configuration and regulatory limits.
