Pneumatic cylinder industrial

Description

Product Overview

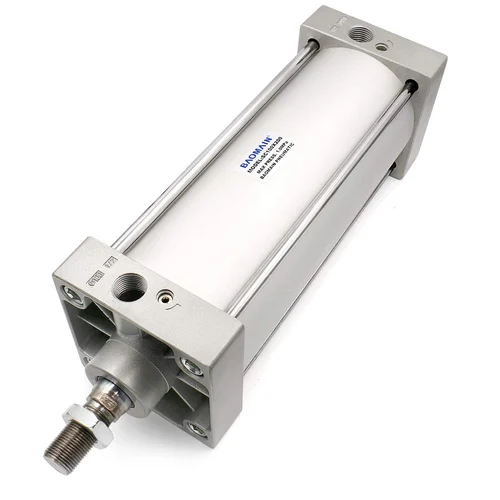

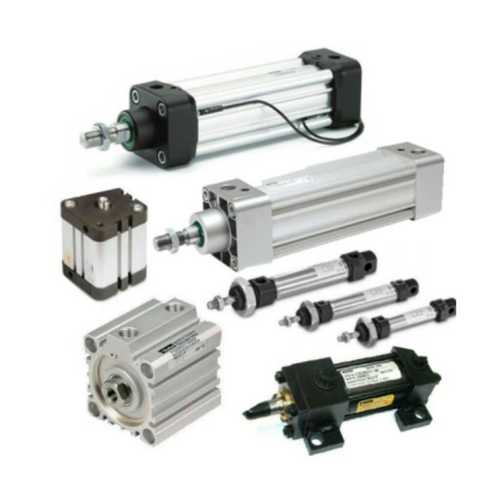

Pneumatic cylinder industrial: a precision-engineered actuating device that converts compressed-air energy into controlled linear motion for industrial automation. Primarily used to drive positioning, clamping, lifting, and transfer operations across assembly lines, packaging, material handling, and process equipment. The key value proposition is high-force, repeatable linear actuation with low maintenance and rapid cycle capability, enabling higher throughput and reduced downtime. Strategically, pneumatic cylinders remain a cornerstone of reliable, cost-effective factory automation where safety, simplicity, and scalability are required.

Key Specifications & Technical Characteristics

• Material construction: body options in anodized aluminum, hard-coated aluminum alloy, stainless steel (304/316) for corrosive environments; piston rod in chrome-plated steel or stainless steel.

• Seal system: multi-lip nitrile (NBR) seals standard; optional polyurethane (PU), Viton® (FKM) or PTFE composites for high-temperature or chemical resistance.

• Bore sizes: 12 mm to 320 mm (standard modular series); custom bores available on request.

• Stroke lengths: 5 mm to 3,000 mm (standard modular catalogue), extended strokes manufactured to order.

• Operating pressure range: 0.2 MPa to 1.0 MPa (2–10 bar) typical; designs rated up to 1.6 MPa for heavy-duty variants.

• Temperature rating: standard -20 °C to +80 °C; high-temp variants to +200 °C with upgraded seals.

• Mounting styles: base, flange, clevis, foot, trunnion, pivot, front/rear flange options for seamless integration.

• Speed range: 0.01 m/s to 1.5 m/s (adjustable with flow control); cushioning options for end-of-stroke deceleration.

• Surface finish and protection: anodized or electroless nickel plating; IP65/IP67 seals available for washdown or dusty environments.

• Lubrication: pre-lubricated for life in most units; optional external lubrication ports for extended service intervals.

• Certifications: ISO 15552 / ISO 21287 compatibility where applicable; CE marking, RoHS compliance; bespoke traceability and material certificates available.

• Packaging options: wooden crate, palletized shrink-wrap, export-grade steel banding; anti-corrosion packing (VPI or desiccant) for ocean transit.

• Shelf life & storage: indefinite shelf life when stored dry and protected; recommend indoor storage 0–40 °C, humidity <60% to preserve seals.

Core Industrial Applications

• Automotive assembly: precise actuation for welding fixtures, stamping transfer, and robotic end-effectors; delivers high cycle life and consistent stroke control to sustain automotive takt times.

• Packaging and FMCG: high-speed pick-and-place, sealing, and carton forming; excels where rapid, repeatable motion and minimal maintenance reduce line stoppages.

• Material handling and logistics: conveyor gates, clamps, lifters, palletizers; provides cost-effective linear force with simpler controls than servo systems.

• Process and chemical plants: valve actuators, dampers, and isolation gates using stainless variants and chemical-resistant seals for corrosive atmospheres.

• Aerospace and heavy machinery: heavy-duty cylinders for presses, jigs, and test rigs where force capacity and controlled deceleration are critical.
  Why it outperforms alternatives

• Simplicity and robustness: fewer failure modes than electromechanical actuators, resulting in lower total cost of ownership.

• Fast duty cycles: engineered for sustained high-frequency operation with minimal heat buildup.

• Field serviceability: modular components and standard seal kits reduce mean time to repair.

• Cost-competitive scalability: lower capital cost and simpler control architecture than servo or hydraulic systems for many linear tasks.

Competitive Advantages

• Quality consistency: tightly controlled production processes and batch traceability ensure repeatable performance across orders.

• Supply reliability: committed production capacity, safety-stock programs, and prioritized allocation for enterprise contracts.

• Logistics capability: global export-ready packaging, experience with multimodal shipping (sea/air/road), and consolidated LCL/FCL fulfillment.

• Price competitiveness: tiered pricing for enterprise volumes, long-term contract discounts, and local distribution options to reduce landed cost.

• Sustainability: material selection and surface treatments minimize toxic finishes; option for lead-free and RoHS-compliant components; packaging optimized for recyclability.

• Technical support: engineering datasheets, CAD models, application sizing documentation, and on-demand technical consultation for integration and lifecycle planning.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT

• Loading capacity (MT per container): Standard 20-foot container up to 22–24 MT, 40-foot container up to 26–28 MT depending on unit sizes and packaging configuration
