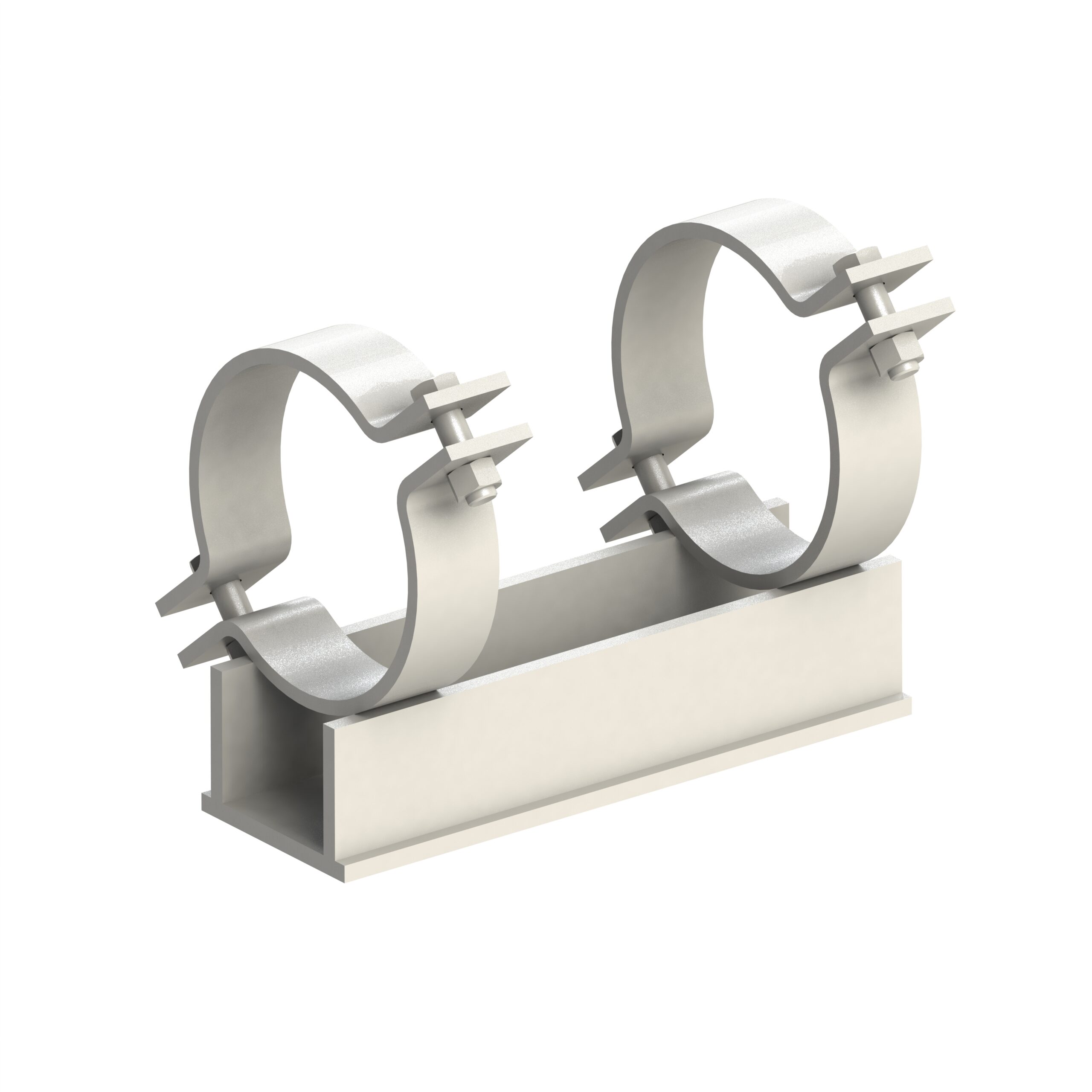

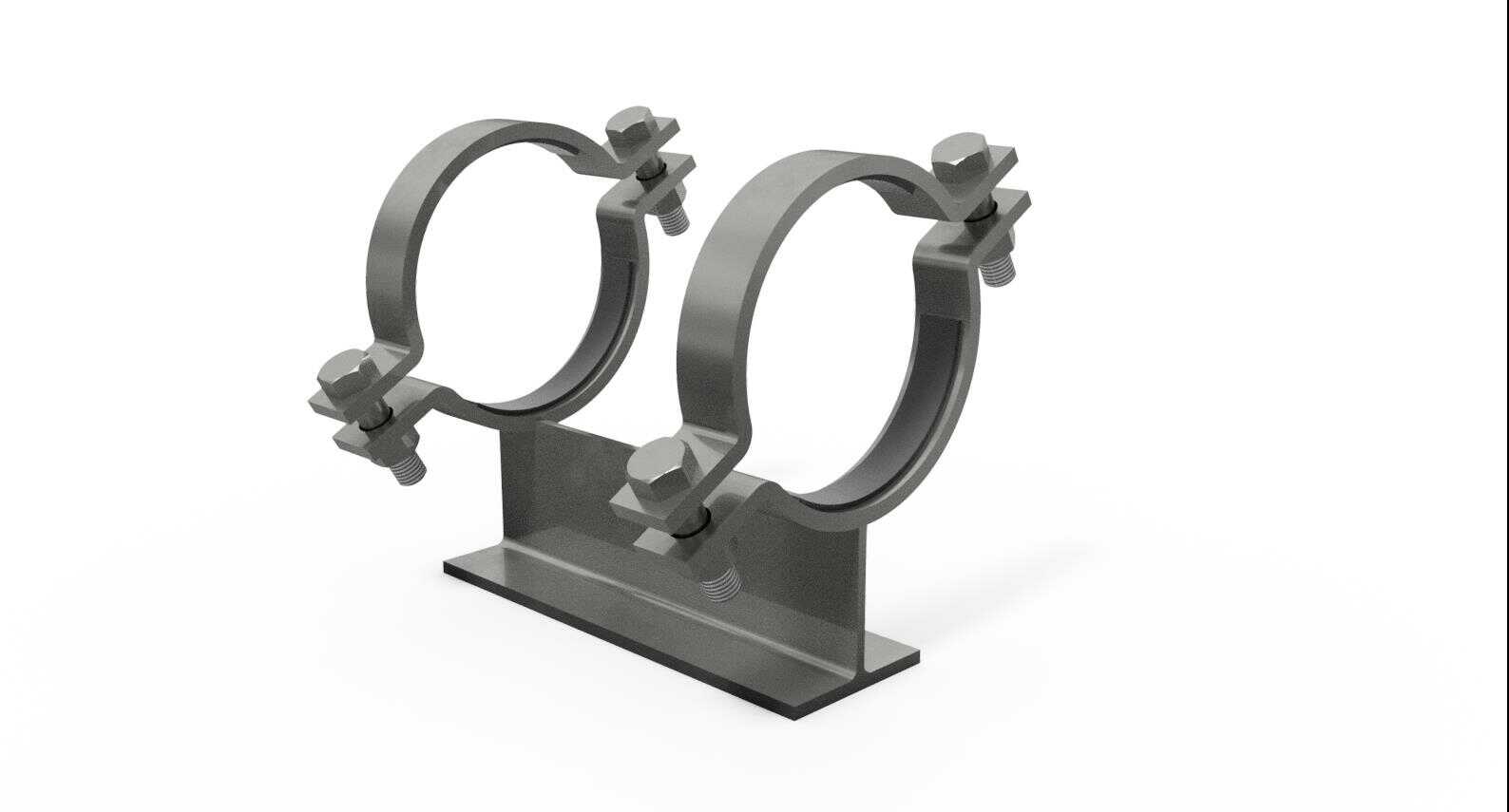

Pipe Shoe Support HDG Carbon Steel (ASME B31.3)

Description

1. Product Overview

Pipe Shoe Support HDG Carbon Steel (ASME B31.3) is a hot-dip galvanized carbon-steel pipe shoe engineered to support and anchor process piping in accordance with ASME B31.3 piping code requirements. It provides rigid, corrosion-resistant bearing and anchoring for high-temperature and high-pressure pipelines across chemical, petrochemical, oil & gas, power generation, and industrial process facilities. The product’s key value lies in its combination of structural strength, standardized compliance, and long-term corrosion protection—reducing maintenance, preventing pipe sag and misalignment, and protecting insulation and supports. As a specification-grade component, it is strategically important for projects that require code-compliant, durable pipe supports to ensure safe operation, regulatory acceptance, and predictable lifecycle costs.

2. Key Specifications & Technical Characteristics

• Material: Carbon steel (structural grade), hot-dip galvanized (HDG) finish per ASTM A123 / ISO 1461.

• Base steel grade options: ASTM A36 / EN S275 (standard); alternative grades available on request.

• Coating: Zinc coating typical thickness 55–85 µm (industry standard HDG range), uniform coverage including edges and welds.

• Design standard: Manufactured to meet ASME B31.3 piping support requirements; dimensional drawings and load ratings provided.

• Load capacity: Engineered for vertical bearing and lateral restraint; rated load certified per supplied datasheet (custom rating available per size).

• Physical characteristics: Form — welded shoe assembly with baseplate and clamp interface; color — metallic zinc finish; typical sizes — available for pipe ODs from 1″ to 48″ (custom sizes on request).

• Tolerances: Fabrication tolerances per ISO 2768-m (or specified project tolerance).

• Fasteners: Supplied with galvanized bolts/nuts or as specified (grade and finish per client requirement).

• Welding: Weld procedures per AWS D1.1 (documentation available on request).

• Surface condition: Clean galvanized surface; no loose zinc, free of significant imperfections affecting fit or function.

• Packaging: Bulk palletized in steel/wood crates, shrink-wrapped and protected with VCI film for export (custom packaging for project logistics available).

• Shelf life: Indefinite under normal, dry storage conditions; zinc layer provides long-term corrosion protection in storage.

• Documentation: Mill certificates, material test reports (MTRs), galvanizing certificate, dimensional drawings, and load rating datasheets supplied with shipment.

3. Core Industrial Applications

• Primary industries: Oil & gas (upstream, midstream, downstream), petrochemical and chemical processing, power generation (steam and combined-cycle), water treatment, LNG, and heavy industrial manufacturing.

• Operational use cases: Rigid pipe supports for process lines transporting steam, hydrocarbons, corrosive fluids, and cooling water; anchoring high-temperature runs where thermal expansion is managed via adjacent expansion joints or guides; support for insulated piping where shoe contact points must prevent insulation crush.

• Why it outperforms alternatives: Hot-dip galvanizing provides superior whole-part corrosion protection compared with painted or plated supports, lowering lifecycle maintenance and replacement frequency. Fabricated carbon-steel construction offers higher load-bearing capacity and predictable mechanical performance versus cast or low-grade alternatives. Standardized ASME B31.3 alignment reduces design review cycles and eases procurement acceptance in EPC and owner-operator workflows.

• Practical commercial benefits: Reduced downtime from fewer support failures, lower total cost of ownership via extended service life, and simplified inspection and certification during commissioning.

4. Competitive Advantages

• Quality consistency: Manufactured under documented quality control with traceable MTRs, weld procedure records, and galvanizing certification.

• Supply reliability: Production capacity for multi-ton orders with rotational stock of common sizes; flexible lead times for long-term contracts.

• Logistics capability: Export-grade packaging, consolidated container loading, and coordinated delivery to project sites worldwide; multiple loading points available to optimize freight.

• Price competitiveness: Bulk pricing tiers and contract pricing available for framework agreements and repeated orders.

• Sustainability: Galvanized steel is highly recyclable and durable, extending product lifetime and lowering embodied maintenance emissions versus frequent replacement options.

• Technical support: Engineering data packs, dimensional drawings, load-rating calculations, and on-request customization (welded details, pad sizes, bolt patterns) plus pre-shipment inspection reports.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical 20′ container: up to ~20 MT (subject to part geometry and packaging); 40′ HC container: up to ~26–28 MT (subject to part geometry and packaging). Exact container loading plans provided per order.
