Heavy Duty U-Bolt Clamp SS316 / HDG (Industrial Grade)

Description

1. Product Overview
   Heavy Duty U-Bolt Clamp SS316 / HDG (Industrial Grade) is a robust fastening solution engineered for critical pipe, conduit, and structural clamping in heavy industrial environments. Available in marine-grade stainless steel (SS316) and hot-dip galvanized (HDG) finishes, the clamp delivers superior corrosion resistance, mechanical strength, and long-term dimensional stability. It secures pipes, tubes, cable trays, and structural members in process plants, offshore platforms, infrastructure projects, and heavy machinery installations where failure is unacceptable. Strategically, this product reduces maintenance cost and downtime, simplifies inventory standardization across projects, and supports regulatory and client specifications for durability and safety.

2. Key Specifications & Technical Characteristics

• Material options: SS316 (AISI 316 / 1.4401, molybdenum-enhanced austenitic stainless steel) or Carbon Steel with Hot-Dip Galvanized (HDG) coating to ISO 1461 standards.

• Chemical composition (SS316 typical): Fe bal., Cr 16–18%, Ni 10–14%, Mo 2–3%, Mn ≤2%, Si ≤1%, C ≤0.08% (meets common industrial SS316 chemistry).

• Coating specification (HDG): Zinc coating thickness typically 60–90 µm (dependent on part size), conforming to ISO 1461 for outdoor/industrial corrosion protection.

• Mechanical properties (SS316 typical): Tensile strength ~500–700 MPa; yield strength ~170–300 MPa; hardness ~70–95 HRB (varies by heat treatment).

• Corrosion resistance: SS316—excellent resistance to chlorides and marine atmospheres; HDG—long-term sacrificial protection in non-aggressive environments.

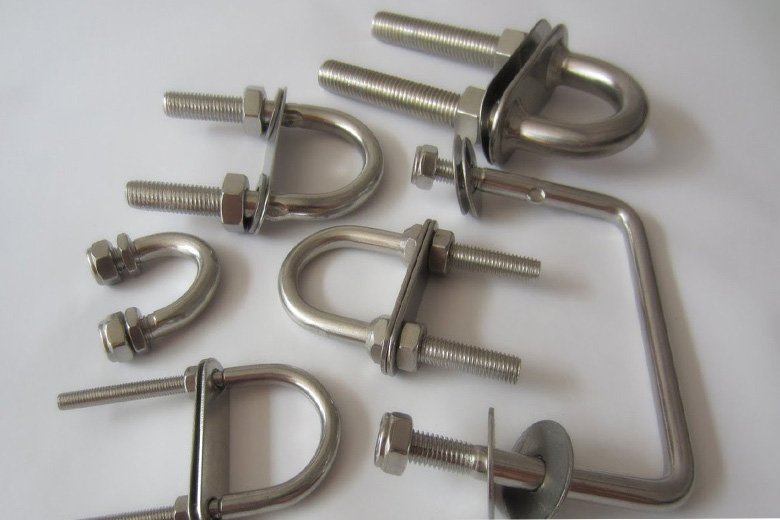

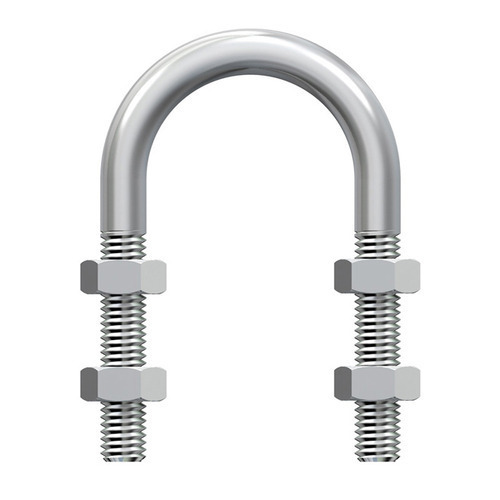

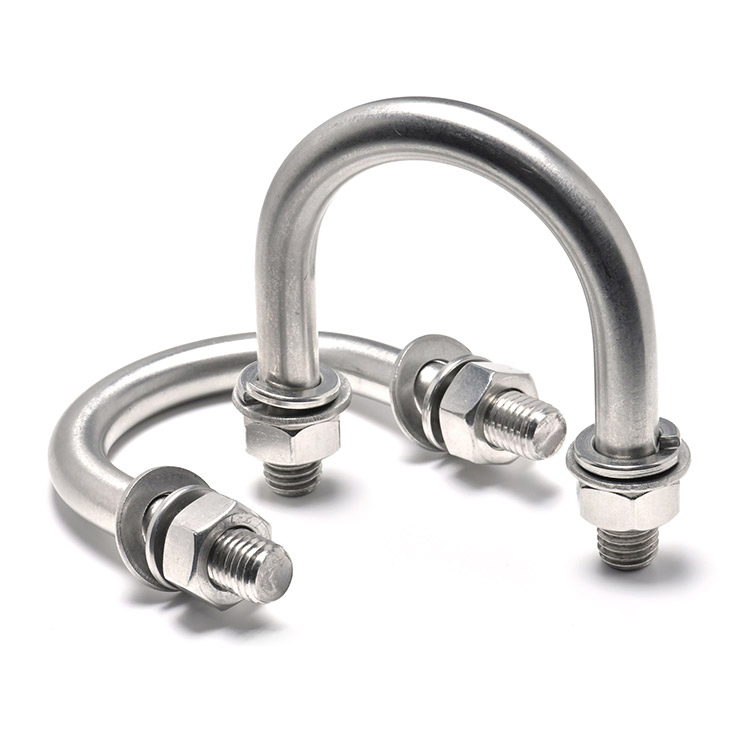

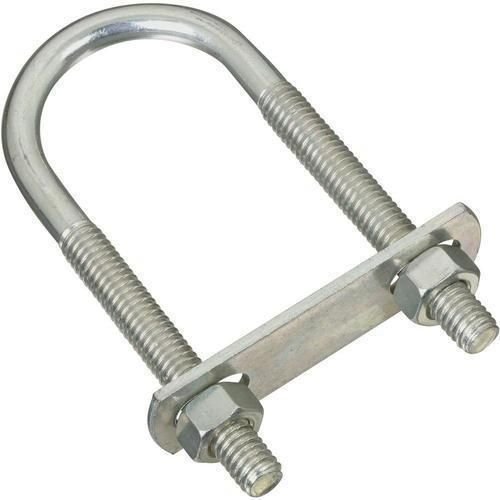

• Finish and form: U-shaped bolt with matching saddle and high-tensile nuts; standard finishes: natural stainless (brushed/passivated) or galvanized (bright to matte).

• Sizes and pipe capacity: available for nominal pipe sizes ranging typically from 1/2″ to 12″ (DN15–DN300) and custom sizes on request.

• Thread spec: Typical UNC/UNF or metric threads (M8–M24) with tolerances per ISO/ASME standards.

• Fastener grade: Nuts and washers available in Grade A2/A4 (stainless) or Grade 8.8/10.9 (carbon steel) options.

• Temperature range: Serviceable between -196°C to +400°C for SS316; HDG suitable up to ~200°C depending on environment.

• Packaging options: Bulk palletized crates, wooden boxes, steel drums, or bespoke export packaging; protective separators to prevent galvanic contact.

• Shelf life: Indefinite for SS316 when stored dry; HDG items should be stored in dry, ventilated conditions to avoid early white rust—recommended 12–24 months for optimal appearance.

• Traceability: Batch and heat number stamping available on SS316; mill certificates (EN 10204 3.1/2.2) provided on request.

3. Core Industrial Applications

• Primary industries: Oil & gas (onshore/offshore), petrochemical, chemical processing, power generation (thermal, nuclear), marine & shipbuilding, water/wastewater treatment, heavy civil infrastructure, mining, and industrial HVAC.

• Operational use cases: Pipe and conduit support systems, riser and bracket attachments on offshore platforms, securing process piping in refineries, clamping exhaust and fluid lines on heavy equipment, cable tray anchoring, and vibration-isolated installations.

• Why it outperforms alternatives:

  • Corrosion resilience: SS316 option resists chloride-induced pitting better than common stainless grades (e.g., SS304), extending service life in marine and chemical environments.

  • Mechanical integrity: Heavy-duty geometry and high-tensile fasteners deliver higher clamp loads and improved fatigue resistance versus light-duty clamps.

  • Lifecycle economics: Lower total cost of ownership from reduced replacement frequency, lower maintenance interventions, and predictable performance under severe conditions.

  • Compatibility and standardization: Available in a wide range of sizes and thread standards to integrate seamlessly with existing piping and structural systems.

4. Competitive Advantages

• Quality consistency: Manufactured to ISO/ASTM processes with dimensional control and optional third-party inspection; mill certificates available for traceable material verification.

• Supply reliability: Production capacity and inventory planning designed to support project lead times, blanket orders, and phased deliveries for large-scale EPC contracts.

• Logistics capability: Export-ready packaging, consolidations, and container loading expertise to optimize freight costs and minimize handling damage; LCL/FCL solutions.

• Price competitiveness: Cost-optimized HDG option for non-corrosive applications and bulk pricing tiers for 20 MT+ orders to reduce unit cost.

• Sustainability benefits: Long service life reduces material replacement frequency; SS316 is widely recyclable; HDG processes conform to industrial environmental standards when requested.

• Technical support: Detailed dimensional drawings, torque and installation guidelines, corrosion compatibility charts, and on-request engineering support for custom clamps and assemblies.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical capacities per standard containers:

  • 20′ GP container: approximately 20–22 MT (depending on packing density and part geometry).

  • 40′ GP container: approximately 24–26 MT (depending on packing density and part geometry).

  • 40′ HC container: 26–28 MT (subject to stowage optimization).

• Lead times: Available from stocked inventory for standard sizes; typical manufacturing lead time for custom or non-stocked items 4–8 weeks (dependent on order size and certification requirements).

• Documentation: Pro forma, commercial invoice, packing list, certificate of conformity/mill test certificate (on request), and customs paperwork for export.

• Payment & Incoterms: Available on negotiated commercial terms; common options include FOB, CIF, DAP; payment terms and financing to be agreed per contract.
