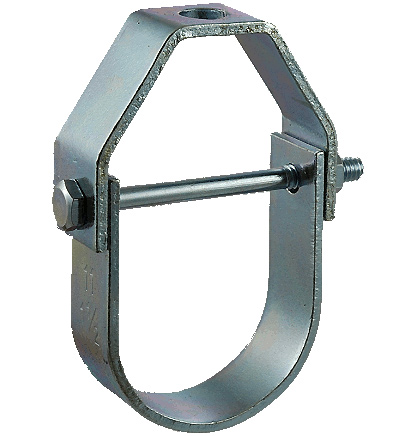

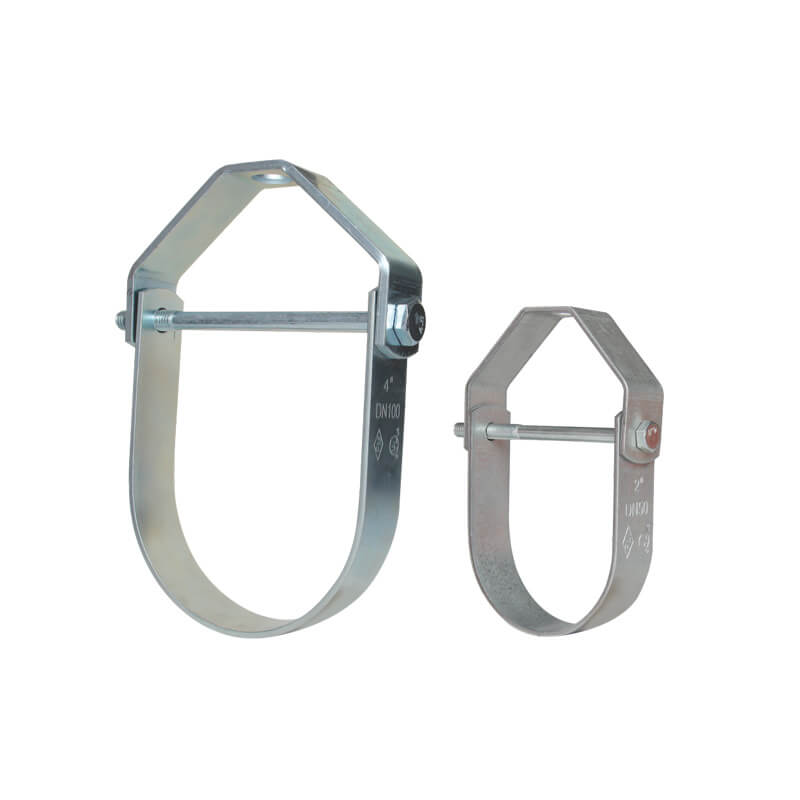

Clevis Hanger Pipe Support Assembly M16–M24

Description

1. Product Overview

The Clevis Hanger Pipe Support Assembly M16–M24 is a heavy-duty mechanical support system engineered to secure and suspend pipes in industrial and commercial installations. Designed for through-bolt connections using M16 to M24 fasteners, it provides robust load-bearing capacity and precise alignment for piping runs in process plants, HVAC systems, and offshore platforms. Its primary value lies in consistent, code-compliant pipe support that reduces vibration, prevents sagging, and simplifies installation and maintenance. As a standardized, high-strength component, it is strategically important for projects seeking predictable performance, reduced rework, and streamlined procurement across global engineering, procurement, and construction (EPC) supply chains.

2. Key Specifications & Technical Characteristics

• Material composition: Grade S235/S275 structural carbon steel or optional AISI 304 / AISI 316 stainless steel variants.

• Surface finish: Hot-dip galvanized to ISO 1461 standard for carbon steel; electropolished or passivated finish for stainless steel options.

• Fastener range: Compatible with M16, M20, and M24 bolt sizes; throat and pin dimensions machined for standard metric fasteners.

• Load capacity: Rated working loads per assembly are provided by size and material (detailed load tables available on request).

• Corrosion resistance: Zinc coating thickness ≥ 55 µm (typical) for galvanized parts; stainless grades meet ASTM A967 passivation expectations.

• Dimensional tolerance: Manufactured to ISO 2768-m/ANSI general machining tolerances; critical hole diameters to H9/H10 where specified.

• Physical form & weight: Pre-assembled clevis with saddle and pin; weight varies by size and material—typical single assembly weight range: 0.8–6.5 kg.

• Operating temperature: Suitable for -40 °C to +400 °C depending on material selection (confirm with application conditions).

• Packaging: Bulk palletized crates (standard wooden crates), stretch-wrapped and banded; smaller quantities boxed with edge protection.

• Traceability & marking: Each batch marked with heat/lot number; material certificates (EN 10204 3.1 or equivalent) supplied upon request.

• Shelf life/storage: Indefinite when stored dry and protected from corrosive atmospheres; recommend indoor storage or covered outdoor storage for galvanized/stainless parts.

3. Core Industrial Applications

• Primary industries: Oil & gas upstream and downstream, petrochemical and chemical processing, power generation (conventional and nuclear), marine and offshore platforms, water/wastewater treatment, commercial HVAC, and industrial manufacturing facilities.

• Specific use cases: Vertical and horizontal pipe suspension, alignment of long pipe runs, restraint/bracing systems to control movement from thermal expansion, vibration isolation when combined with isolators, and secure support in seismically sensitive installations.

• Performance advantages: Precision-manufactured clevis geometry ensures predictable load distribution and reduces point loading on pipe saddles. High-strength materials and certified finishes extend service life in corrosive and high-temperature environments versus generic or non-certified supports. Standardization across M16–M24 sizes simplifies spares inventories and reduces procurement complexity.

• Commercial relevance: Low installation time and compatibility with common metric fasteners reduce labor costs on large projects; superior durability lowers lifecycle maintenance and replacement spend.

4. Competitive Advantages

• Quality consistency: Produced to tight dimensional and metallurgical controls with full batch traceability and third-party material certification options.

• Supply reliability: Scalable manufacturing capacity and inventory hold enable on-time delivery for project schedules and emergency replenishment.

• Logistics capability: Palletized export packaging and optimized container loading plans support efficient global shipment; documentation for customs and project import supplied.

• Price competitiveness: Economies of scale for bulk orders (MOQ and tiered pricing) deliver lower unit costs compared with bespoke small-batch suppliers.

• Sustainability: Durable coatings and long service life reduce replacement frequency; optional low-VOC packaging and recyclable crate materials available.

• Technical support: Engineering datasheets, dimensional drawings, load tables, installation guidance, and on-request FEM/structural validation provided to support design integration and regulatory compliance.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Container loading depends on assembly size and packaging; typical 20-ft container load up to ~20–22 MT, 40-ft container load up to ~24–26 MT for palletized assemblies. Exact figures and loading plans provided per SKU to maximize container efficiency.
