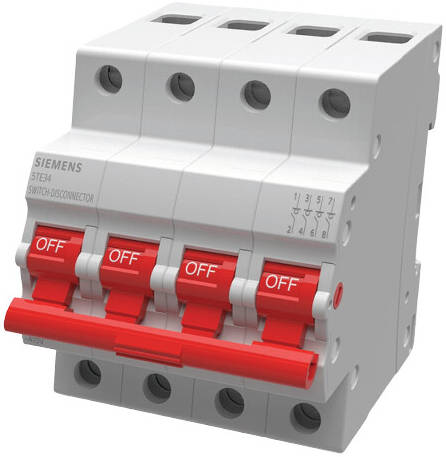

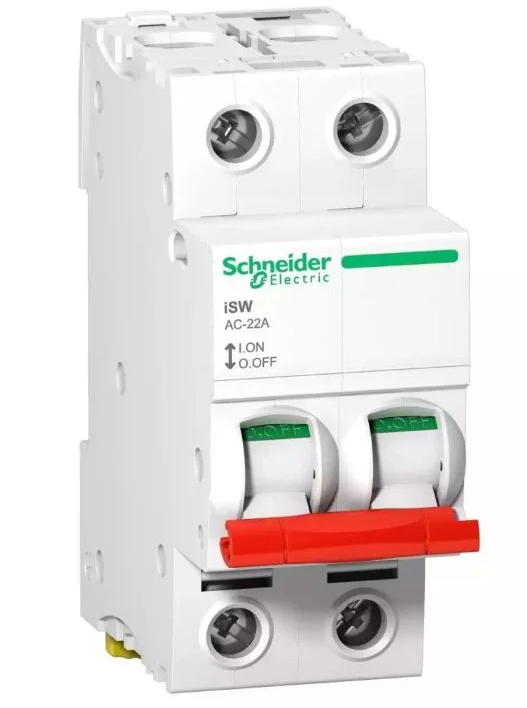

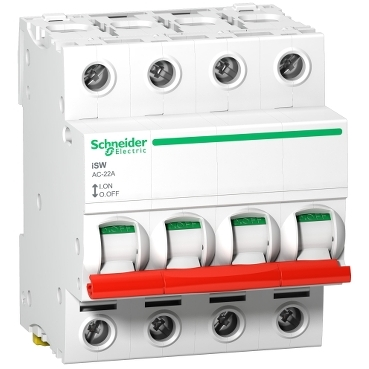

Isolator switch disconnector — IEC 60947-3

Description

1. Product Overview

The Isolator Switch Disconnector — IEC 60947-3 is a high-performance electrical switching device designed for safe circuit isolation, load switching, and maintenance protection in low-voltage power systems. It is widely used in industrial facilities, commercial buildings, renewable energy installations, and electrical distribution networks where reliable disconnection and operational safety are critical. Engineered to meet IEC 60947-3 standards, it provides superior electrical endurance, enhanced operator safety, and dependable performance under demanding operating conditions. Its strategic importance lies in enabling safer power management, regulatory compliance, and efficient energy infrastructure development worldwide.

2. Key Specifications & Technical Characteristics

• Product Type: Low-voltage isolator switch disconnector
• Applicable Standard: IEC 60947-3 compliant
• Material Components:
  • High-strength flame-retardant insulating housing (engineering thermoplastic)
  • Silver alloy or copper alloy electrical contacts for high conductivity
  • Copper or copper-plated terminals for reliable electrical connections
  • Stainless steel or corrosion-resistant metal operating components
• Electrical Characteristics:
  • Rated operational voltage: Typically up to 1000V AC / 1500V DC
  • Rated current range: Commonly 16A–1600A depending on model configuration
  • Frequency: 50/60 Hz
  • Utilization category: AC-22A / AC-23A applications depending on rating
  • High short-circuit withstand capability with suitable protection devices
• Physical Characteristics:
  • Form: Modular or enclosed switchgear assembly
  • Color: Commonly grey, black, or customized industrial colors
  • Mounting options: Panel mounting, DIN rail mounting, or enclosure installation
  • Protection rating: Available up to IP65/IP66 for outdoor and harsh environments
  • Operating temperature range: Typically -25°C to +55°C
• Packaging Options:
  • Individual protective cartons
  • Export-grade cartons with shock-resistant packaging
  • Palletized bulk packaging for industrial orders
• Shelf Life: Long service life with proper storage; typically 10–20 years operational lifespan depending on usage conditions and maintenance practices

3. Core Industrial Applications

• Industrial Power Distribution: Used in factories, processing plants, and manufacturing facilities for safe isolation of electrical equipment during maintenance and servicing.
• Commercial Infrastructure: Applied in office buildings, data centers, shopping complexes, and public facilities for reliable power control and protection.
• Renewable Energy Systems: Installed in solar PV systems, wind power installations, and battery energy storage systems for safe DC and AC circuit isolation.
• Electrical Panels and Switchboards: Integrated into distribution boards, control cabinets, and motor control centers to provide secure load switching capability.
• Infrastructure Projects: Used in transportation, utilities, and large-scale construction projects requiring dependable electrical safety solutions.

The product delivers advantages over conventional disconnect solutions through higher mechanical durability, improved contact reliability, reduced maintenance requirements, and compliance with international safety standards. Its robust design ensures efficient power management while minimizing operational downtime and safety risks.

4. Competitive Advantages

• Quality Consistency: Manufactured under strict quality control processes to ensure stable electrical performance, mechanical strength, and compliance with IEC requirements.
• Supply Reliability: Supported by scalable production capacity and consistent availability for OEM, industrial, and project-based procurement requirements.
• Logistics Capability: Suitable for global export with optimized packaging, container loading efficiency, and reliable supply chain coordination.
• Price Competitiveness: Offers strong value through long service life, reduced maintenance costs, and competitive manufacturing economics.
• Sustainability Benefits: Designed for energy-efficient electrical systems with durable materials that support reduced replacement frequency and lifecycle waste.
• Technical Support & Documentation: Available with technical datasheets, compliance certificates, installation guidelines, and engineering support for project integration.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity (MT per Container): Approximately 18–22 MT per 20-foot container depending on product configuration, packaging format, and enclosure size.
