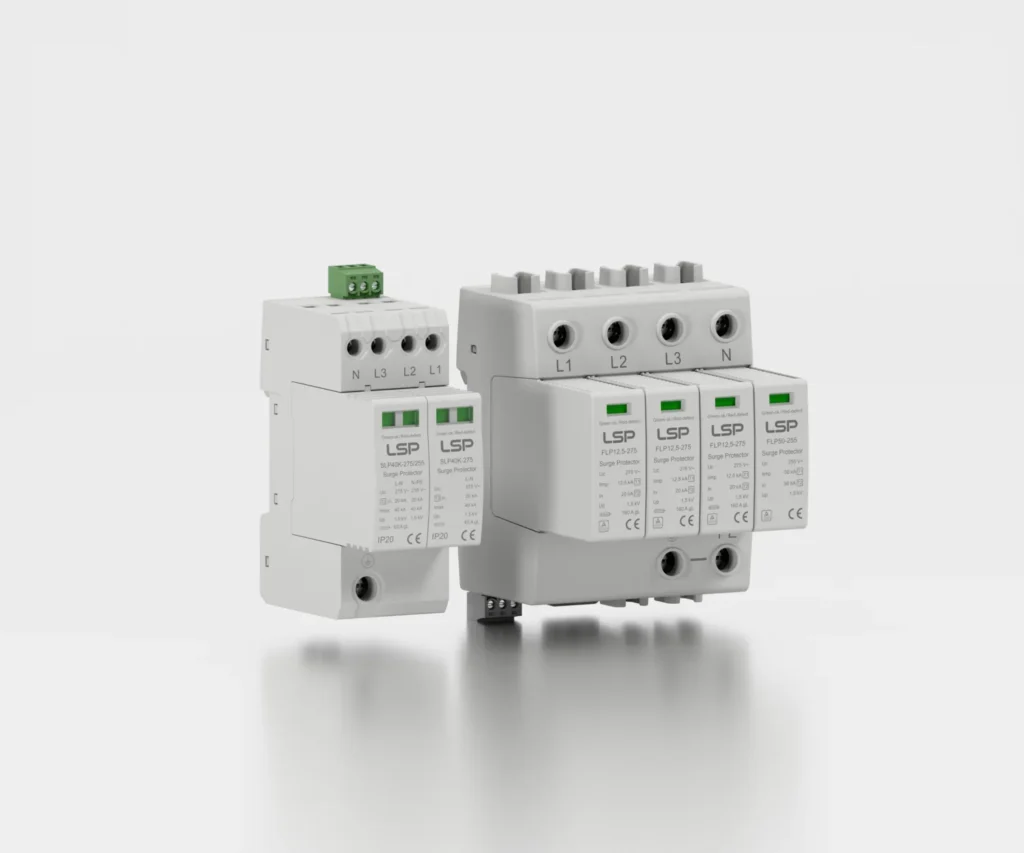

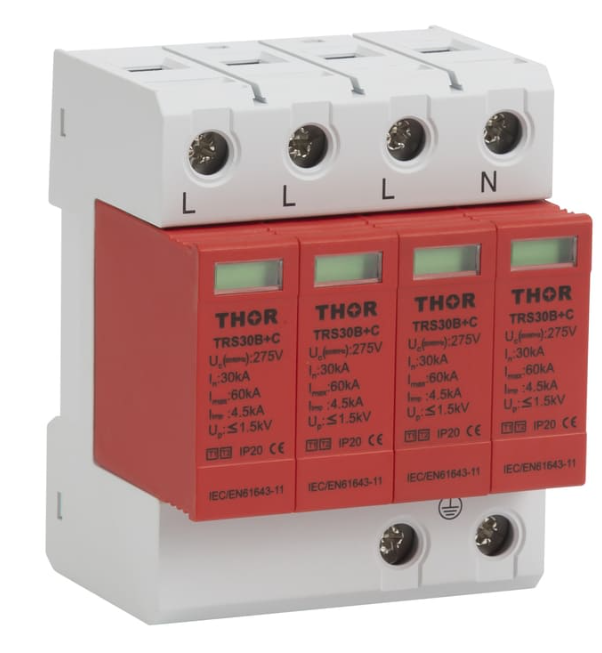

Type 1 surge protection device (SPD) — IEC 61643-11

Description

1. Product Overview

Type 1 Surge Protection Device (SPD) compliant with IEC 61643-11 is an advanced electrical protection component designed to safeguard critical power systems against high-energy transient surges caused by lightning strikes and switching events. It is primarily used in commercial, industrial, utility, and infrastructure installations where reliable overvoltage protection is essential for electrical continuity and equipment safety. Engineered for high discharge capacity and rapid response, this SPD minimizes downtime, extends equipment lifespan, and enhances overall power system resilience. As global electrification and smart infrastructure expand, Type 1 SPDs are becoming a strategic requirement for protecting high-value electrical assets.

2. Key Specifications & Technical Characteristics

• Product Type: Type 1 Surge Protection Device (SPD) — IEC 61643-11 compliant
• Material Components: High-performance thermoplastic housing, metal oxide varistor (MOV) or spark-gap discharge technology, conductive copper/brass terminals, thermal protection components, and flame-retardant insulating materials
• Electrical Grade: Industrial-grade overvoltage protection device suitable for high-energy surge environments
• Protection Technology: Lightning current discharge protection with high impulse current handling capability (typically 10/350 µs waveform)
• Nominal Voltage Range: Common configurations available for 120V, 230V, 400V, and industrial three-phase power systems
• Discharge Capacity: High impulse current ratings typically available from 12.5 kA to 100 kA depending on configuration
• Response Time: Ultra-fast surge reaction, typically within nanoseconds
• Physical Characteristics: Compact DIN-rail mounting design, modular structure, flame-retardant enclosure, and durable industrial casing
• Color/Form: Standard electrical enclosure design, commonly available in white, grey, or black flame-resistant housing
• Operating Temperature: Designed for demanding industrial environments with wide temperature tolerance
• Protection Features: Thermal disconnect function, visual status indication, overload protection, and optional remote monitoring capability
• Packaging Options: Individual protective cartons, industrial bulk packaging, export cartons, and palletized shipment options
• Shelf Life: Long operational storage life when maintained in dry, temperature-controlled conditions

3. Core Industrial Applications

• Industrial Manufacturing: Protects automated production lines, control panels, PLC systems, robotics, and sensitive electrical machinery from lightning and switching surges.
• Energy & Utilities: Used in power distribution networks, substations, renewable energy systems, and grid infrastructure to improve electrical reliability.
• Commercial Buildings: Installed in main distribution boards of offices, hospitals, data centers, and high-rise facilities to prevent costly electrical failures.
• Telecommunications & Data Infrastructure: Protects power supply systems supporting communication equipment and mission-critical electronics.
• Renewable Energy Systems: Applied in solar farms, wind power installations, and battery energy storage systems requiring robust surge protection.

Type 1 SPDs outperform basic surge protectors by handling significantly higher surge currents, providing direct lightning current protection, and offering superior reliability in harsh electrical environments. Their high-energy discharge capability reduces equipment damage, maintenance costs, and unexpected operational interruptions.

4. Competitive Advantages

• Quality Consistency: Manufactured under strict IEC 61643-11 quality standards to ensure dependable performance across large-scale installations.
• Reliable Supply Capability: Suitable for bulk procurement programs with stable production capacity and global distribution support.
• Logistics Capability: Available in export-ready packaging with container-scale shipment options for international industrial buyers.
• Cost Competitiveness: Optimized manufacturing processes provide competitive pricing without compromising electrical protection performance.
• Durability & Sustainability: Long service life reduces replacement frequency, minimizes electronic waste, and supports sustainable infrastructure development.
• Technical Support & Documentation: Available with compliance certificates, technical datasheets, installation guides, and performance documentation for engineering and procurement teams.
• Strategic Sourcing Value: Provides enterprises with a reliable solution for reducing electrical risks, protecting capital assets, and improving system uptime.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 18–22 MT per 20-foot container (depending on packaging configuration and product density)
