HRC fuse link cartridge — IEC 60269-2

Description

1. Product Overview

HRC Fuse Link Cartridge — IEC 60269-2 is a high rupture capacity electrical protection device engineered to safeguard industrial power systems against short-circuit and overload conditions. Designed for use in low-voltage electrical distribution networks, it provides rapid fault interruption with high breaking capacity, ensuring equipment protection and operational continuity. Its reliable performance, standardized compliance, and robust construction make it a critical component for modern electrical infrastructure. The product supports global industrial demand for safe, efficient, and cost-effective circuit protection solutions.

2. Key Specifications & Technical Characteristics

• Material Components:
  • High-conductivity copper or silver-plated copper fuse elements
  • Ceramic or high-strength insulating body
  • Quartz sand arc-quenching filling material
  • Brass or copper alloy contact terminals
• Grade / Standard Compliance:
  • Compliant with IEC 60269-2 standard for industrial fuse links
  • High Rupturing Capacity (HRC) design
  • Available in industrial gG, aM, and other protection categories
• Electrical Characteristics:
  • Rated Voltage: Typically 400V–690V AC (application dependent)
  • Rated Current Range: Available from low amperage ratings to several hundred amperes
  • High breaking capacity: Up to 80kA–120kA depending on model specification
  • Fast and reliable fault interruption performance
• Physical Characteristics:

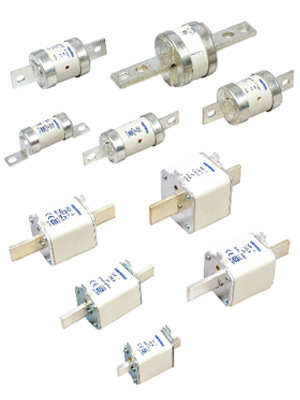

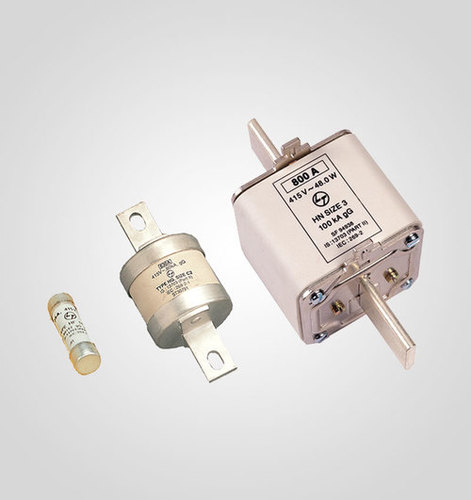

  • Form: Cylindrical or blade-type cartridge configuration
  • Body Color: Typically ceramic white with metallic terminals
  • Compact industrial design for fuse holder integration
  • High thermal resistance and mechanical durability
• Packaging Options:
  • Individual protective boxes
  • Carton packaging for industrial distribution
  • Export-standard pallets with moisture protection
• Shelf Life:
  • Typically 5–10 years when stored in dry, temperature-controlled conditions

3. Core Industrial Applications

• Primary Industries:
  • Power generation and distribution
  • Manufacturing and industrial automation
  • Renewable energy systems
  • Mining and heavy machinery
  • Oil & gas facilities
  • Commercial electrical infrastructure
• Operational Use Cases:
  • Protection of transformers, motors, cables, switchgear, and industrial control panels
  • Overcurrent protection in low-voltage electrical distribution systems
  • Backup protection for sensitive electrical equipment
• Performance Advantages:
  • Provides superior fault-clearing capability compared with conventional fuses
  • Minimizes equipment damage during electrical faults through rapid interruption
  • Delivers reliable protection in high-load industrial environments
  • Reduces downtime and maintenance costs through dependable operation

4. Competitive Advantages

• Quality Consistency: Manufactured under strict quality control systems to ensure stable electrical performance and compliance with IEC standards.
• Supply Reliability: Supported by scalable production capacity and consistent availability for industrial procurement requirements.
• Logistics Capability: Export-ready packaging and efficient bulk shipment solutions for international distribution networks.
• Price Competitiveness: Optimized manufacturing processes provide strong cost efficiency without compromising safety performance.
• Sustainability Benefits: Long service life and recyclable copper-based components contribute to reduced lifecycle environmental impact.
• Technical Support & Documentation: Available with technical datasheets, compliance certificates, performance specifications, and application guidance for engineering teams.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 18–22 MT per 20-foot container (depending on packaging configuration and product dimensions)
