Industrial vibration analyzer kit

Description

Product Overview
The Industrial vibration analyzer kit is a precision diagnostic system for monitoring, troubleshooting, and optimizing rotating machinery and structural vibration in heavy-industry environments. Designed for predictive maintenance teams, reliability engineers, and condition monitoring service providers, the kit measures vibration spectra, bearing condition, imbalance, misalignment, and resonance to reduce unplanned downtime and extend asset life. Its key value proposition is rapid, on-site root-cause detection combined with standardized data outputs for integration into CMMS/IoT platforms, enabling condition-based maintenance that lowers lifecycle costs. Strategically, the kit converts raw vibration data into actionable maintenance decisions, improving plant throughput and capital efficiency across global industrial operations.

Key Specifications & Technical Characteristics

• Sensor suite: 2× high-sensitivity IEPE accelerometers (±10 g range), 1× triaxial MEMS accelerometer for structural monitoring, 1× magnetic pickup (tachometer) for RPM sync.

• Frequency response: accelerometers 0.5 Hz – 25 kHz, tachometer up to 20 kHz capture for high-speed machinery.

• Resolution & accuracy: 24-bit ADC, dynamic range ≥ 120 dB, amplitude accuracy ±1 dB, phase accuracy ±1°.

• Measurement modes: overall vibration (RMS, Peak, Peak-Peak), FFT spectral analysis, envelope detection, order tracking, time waveform capture.

• Data interface & protocols: USB-C, Wi‑Fi 802.11ac, Bluetooth 5.2, Ethernet (1000Base-T), SD card slot; formats: CSV, UFF, HDF5, JSON; OPC-UA ready.

• Software & analytics: preloaded analysis software with automated fault diagnostics, ISO 10816 and ISO 20816 reporting templates, customizable alarm thresholds, trend visualization, and export APIs.

• Power & battery: internal rechargeable Li-ion pack (up to 10 hours continuous use), AC adapter 100–240 V, DC vehicle adapter.

• Physical characteristics: ruggedized handheld controller IP65, weight ~2.2 kg (controller + 2 accelerometers), kit case: flight-case ABS with custom foam insert.

• Materials: stainless-steel accelerometer housings, aircraft-grade aluminum controller chassis, anti-vibration mounts.

• Calibration & traceability: factory calibrated to ISO/IEC 17025 standards; calibration certificate included.

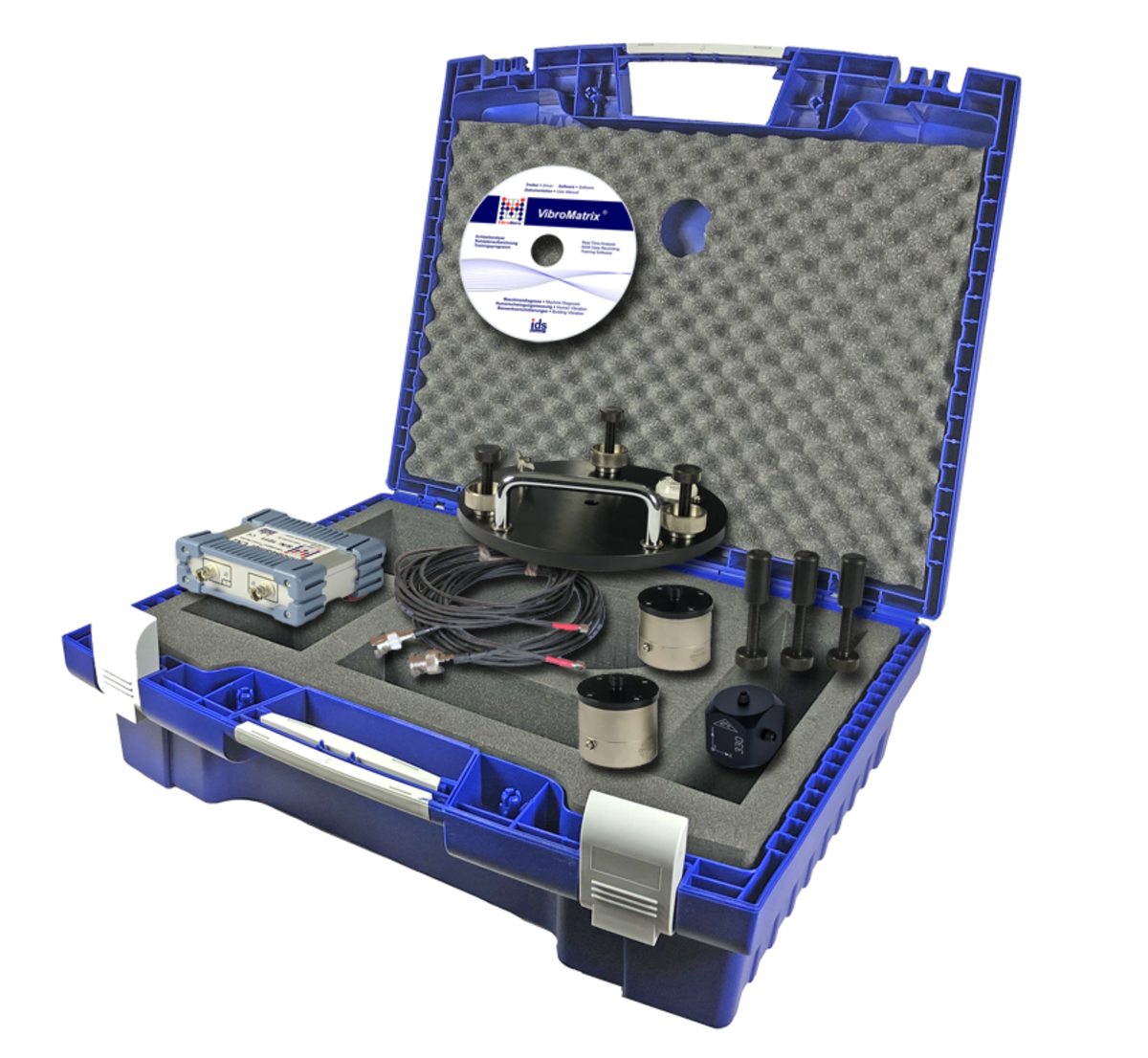

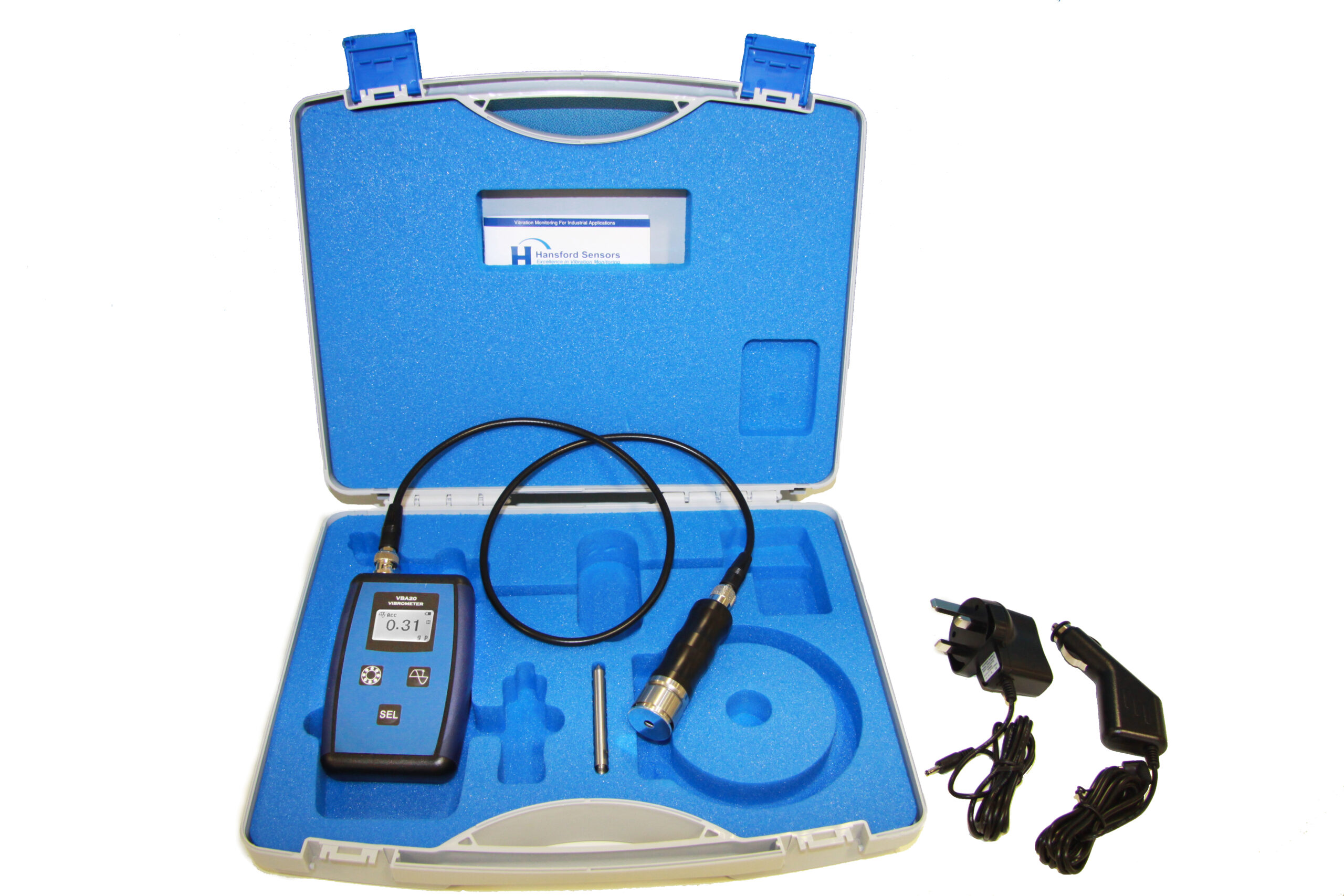

• Packaging options: standard kit (controller + 2 accelerometers + tachometer + cables + software), extended kit (adds triaxial sensor, magnetic mounts, stinger probes, 32 GB SD card), enterprise bundles (fleet licensing, spare sensors).

• Shelf / service life: electronics lifecycle support minimum 5 years, recommended recalibration interval 12 months.

• Compliance: CE, RoHS; optional ATEX zone 2/22 certification for hazardous areas (subject to configuration).

Core Industrial Applications

• Primary industries: power generation (turbines, generators), oil & gas (rotating pumps, compressors), petrochemicals, mining & metals (mills, conveyors), manufacturing (motors, gearboxes), marine propulsion, pulp & paper.

• Specific use cases: bearing fault detection via envelope analysis, imbalance and misalignment diagnosis with order tracking, resonance and structural modal checks, on-line shaft alignment verification, predictive maintenance scheduling through trend analysis, post-repair acceptance testing.

• Performance advantages over alternatives: higher dynamic range and frequency bandwidth capture low-energy faults earlier than consumer-grade tools; ISO/IEC 17025 traceable calibration provides defensible data for warranty and regulatory scenarios; integrated software with automated diagnostics reduces analyst time-to-action and improves mean time to repair (MTTR).

• Practical commercial relevance: rapid field deployment (handheld, battery-powered) lowers inspection labor costs; exportable standardized reports speed cross-site decision-making; modular sensor options scale from single-asset checks to fleet-level monitoring.

Competitive Advantages

• Quality consistency: factory calibration and ISO/IEC 17025 traceability ensure repeatable, auditable measurements across purchases and sites.

• Supply reliability: committed production scheduling with enterprise lead-time SLAs, safety stock for critical components, and regional distribution hubs for rapid fulfillment.

• Logistics capability: export-grade packaging, pallet-level handling, and options for DDP/DDU global shipping; technical documentation included in multiple languages.

• Price competitiveness: tiered pricing for bulk procurement and enterprise licensing; total cost of ownership focus through reduced downtime and extended asset life.

• Sustainability: durable, repairable hardware design minimizes electronic waste; low-power operation and recyclable packaging options available upon request.

• Technical support: global technical support and training packages, on-site commissioning, API integration assistance, firmware updates, and detailed manuals and fault libraries.

• Strategic sourcing: positions as a vendor-managed reliability tool—reducing OPEX risk and centralizing condition-monitoring standards across multi-site operations.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT

• Loading capacity (MT per container): 20 MT per standard 20-foot container (container loading subject to final packing configuration and accessory mix)

• Delivery terms: available EXW, FOB, CIF, DDP on request

• Lead time: standard lead time 6–8 weeks for bulk orders; expedited manufacturing available with surcharge

• Warranty & service: 12 months hardware warranty, optional extended maintenance contracts and calibration service plans
