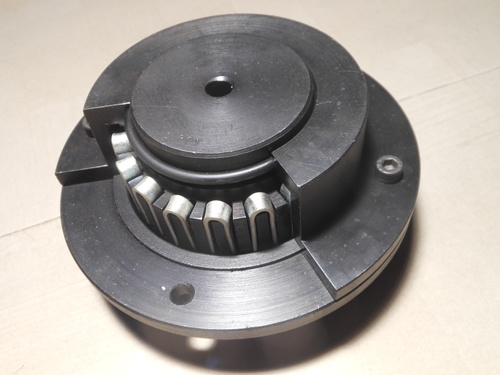

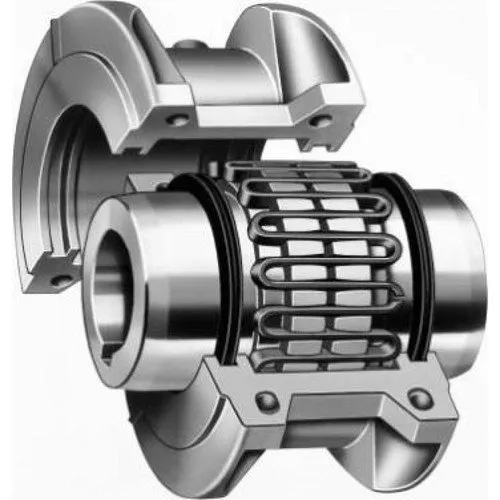

Industrial coupling (flexible/grid)

Description

Product Overview
Industrial coupling (flexible/grid) is a heavy-duty mechanical connector designed to transmit torque between shafts while accommodating misalignment, shock loads, and axial movement in industrial rotating equipment. Primarily used in heavy machinery, pumps, compressors, gearboxes, and conveyor drives, it reduces downtime and protects bearings and seals by absorbing torsional vibration and shock. The key value proposition is reliable torque transfer with reduced maintenance needs and extended equipment life, delivering predictable performance under high-load and variable-speed conditions. Strategically, flexible/grid couplings are critical components in industrial asset reliability programs and drive-line standardization initiatives, lowering total cost of ownership and improving plant uptime.

Key Specifications & Technical Characteristics

• Material: High-strength alloy steel (e.g., SAE 4140/4340) for hubs and grid; optional stainless steel (316) for corrosive environments.

• Finish: Shot-peened and black-oxide or phosphate coated; optional zinc or epoxy coatings.

• Hardness: Hubs and grid components case-hardened to 50–60 HRC surface zone (as-specified).

• Tolerance: H7 bore tolerances standard; keyway to DIN/ANSI standards.

• Dimensions: Available bore range typically 19 mm–250 mm (custom bores on request).

• Torque capacity: Standard models rated from 200 Nm to 250,000 Nm depending on size and configuration.

• Misalignment capability: Radial, axial, and angular misalignment absorption per model specifications (consult datasheet for exact values).

• Operational speed: Rated up to specified RPM per coupling size (balance-graded for high-speed applications).

• Temperature range: Standard -20°C to +120°C; high-temp versions available to +300°C.

• Vibration damping: Grid element design for torsional stiffness with shock absorption characteristics.

• Lubrication: Grease-packed grid assemblies; re-lubricatable designs available.

• Packaging options: Wooden crate for bulk/heavy units, palletized shrink-wrapped for smaller units, individually boxed for spare parts.

• Shelf life: Indefinite under proper storage; recommended storage dry, ambient conditions, protected from corrosion.

• Documentation: Dimensional drawings, material certificates (EN/ASTM), balance reports, installation & maintenance manual, test certificates on request.

Core Industrial Applications

• Power generation: Coupling turbines, generators, and auxiliary drives where absorption of torsional transients preserves generator stability.

• Oil & gas: Drive connections for compressors, pumps, and rotary equipment subject to shock loads and shaft misalignment.

• Mining & metals: Heavy conveyors, crushers, mills—applications requiring high torque capacity and robust shock tolerance.

• Marine & shipbuilding: Propulsion and auxiliary machinery where corrosion-resistant variants and vibration damping are essential.

• Pulp & paper and cement: Kiln drives, rollers, and refiner motors where continuous operation and low maintenance are critical.
  Why this product performs better than alternatives

• Superior shock and vibration absorption from grid element design reduces transmitted loads to bearings and seals.

• High torque-to-weight ratio and robust material selection enable longer service intervals and higher load capacity versus rubber or sleeve couplings.

• Rebuildable grid modules and standardized hub designs reduce lifecycle cost vs. single-use or bonded couplings.

• Broad temperature and speed ratings make it suitable for harsher and variable operating environments.

Competitive Advantages

• Quality consistency: Manufactured to tight tolerances with material traceability and certificate-of-conformance for each shipment.

• Supply reliability: Production capacity and stocked standard sizes for immediate shipment; scheduled production for large orders.

• Logistics capability: Palletized and crated packing optimized for container loads, door-to-door shipping coordination, and export documentation support.

• Price competitiveness: Volume pricing for bulk procurement and cost-effective rebuildable components reduce long-term acquisition cost.

• Sustainability: Durable, rebuildable design reduces replacement frequency and waste; optional recycled-packaging programs available.

• Technical support: Engineering selection assistance, installation guides, on-site commissioning support (contracted), and spare parts availability.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Standard 20-foot container up to ~20 MT gross depending on unit sizes and packaging; 40-foot container up to ~26–28 MT gross.
