Industrial screw compressor

Description

Product Overview

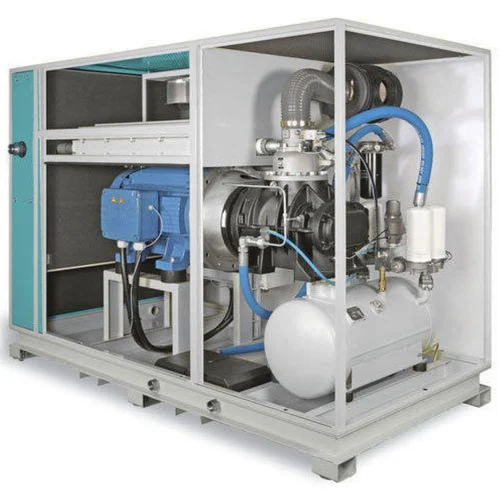

Industrial screw compressor — a rugged, high-throughput rotary positive-displacement compressor engineered for continuous industrial duty. It delivers reliable compressed air for manufacturing, processing, and utility systems where stable pressure, high uptime, and energy efficiency are essential. The compressor’s core value proposition is consistent flow with low pulsation, high volumetric efficiency, and reduced lifecycle cost through optimized sealing, bearings, and drive control. Strategically, it is critical for facilities aiming to lower operational risk, improve process stability, and reduce energy spend across heavy industries and large-scale plants.

Key Specifications & Technical Characteristics

• Compressor type: Oil-injected (or oil-free variant on request) twin-screw rotary positive-displacement.

• Materials: High-strength alloy steel rotors (hardened and ground), ductile iron or cast iron housing, stainless-steel fasteners in critical zones; synthetic oil and polymer seals rated to application.

• Capacity range: Configurable, typical models 0.5–5.0 m³/min (30–300 m³/hr) up to multi-module systems for higher flow demands.

• Discharge pressure: Standard 7–13 bar(g) (custom up to 40 bar(g) with staged or boosted configurations).

• Drive options: Direct-coupled electric motor (IE3/IE4 premium efficiency), V-belt or gearbox drives; variable-speed drive (VSD) available for energy optimization.

• Power rating: Typical motors 5–500 kW (site- and model-dependent).

• Cooling: Air-cooled or water-cooled aftercooler options; integrated oil separator and coolers.

• Noise level: Engineered to comply with industrial noise limits; typical 68–80 dB(A) at 1 m depending on enclosure.

• Oil separation efficiency: ≥99.5% with high-efficiency coalescing filters (oil-injected models).

• Dry air quality: Oil-free variant compliant with ISO 8573-1 classes (specify class required).

• Control and monitoring: PLC-based controller with local HMI; remote monitoring-ready (Modbus/Profinet/EtherNet/IP); fault diagnostics and preventive-maintenance alerts.

• Protection features: Automatic shutdowns for high temperature, low oil pressure, overspeed; soft-start and motor-protection integration.

• Physical characteristics: Modular skid or package-mounted units; typical footprint and weight vary by model — detailed drawings provided on request.

• Packaging options: Factory-sealed wooden crate for export, container-ready skids, or loose for bulk project loads. Spare parts kits and maintenance packs available.

• Installation & commissioning: Optional factory commissioning, site-startup, and operator training services.

• Documentation: Full technical datasheets, wiring diagrams, maintenance manuals, and test certificates (material and performance).

• Warranty & service: Standard warranty with extended-care service agreements available.

• Shelf life: Not applicable (equipment product); preservation and storage instructions provided for long-term warehousing.

Core Industrial Applications

• Manufacturing and fabrication: Provides stable compressed air for pneumatic tools, assembly lines, paint booths, and CNC equipment; reduces cycle-time variability and product rejects.

• Petrochemical and refining: Supplies instrument and process air with robust reliability under continuous operation; suitable for gas-lift, pneumatic conveying, and control systems.

• Food, beverage & pharmaceutical (oil-free variants): Delivers contaminant-free air for product contact processes, packaging, and sterilization systems, meeting hygiene and ISO standards.

• Mining and construction: High-durability units for drilling support, pneumatic rock tools, and onsite compressed-air utilities with proven resistance to harsh environments.

• Power plants and utilities: Auxiliary compressed air for control valves, instrument air, actuator systems, and emergency systems requiring high availability.

• Chemical processing: Corrosion-resistant options and controlled oil management for instrument air and process support, minimizing contamination risk.
  Why it outperforms alternatives

• Higher volumetric efficiency and lower slip across operating range, yielding lower specific energy consumption per m³ compressed air.

• Robust mechanical design (precision-ground rotors, optimized bearing life) reduces unplanned downtime and maintenance frequency.

• VSD option and advanced controls translate to 10–30% energy savings in variable-load operations versus fixed-speed compressors.

• Superior oil separation and filtration lower downstream contamination risk and extend service intervals versus low-end competitors.

Competitive Advantages

• Quality consistency: Manufactured under ISO 9001 processes with batch traceability for critical components and performance validation testing.

• Supply reliability: Global production network and safety-stock strategy ensure predictable lead times for standard models and consumables.

• Logistics capability: Containerized packing optimized for 20 ft and 40 ft ocean freight; project logistics coordination for multimodal delivery, FOB or CIF terms available.

• Price competitiveness: Tiered pricing for volume purchases and long-term supply agreements; total-cost-of-ownership focus rather than lowest upfront price.

• Sustainability: Energy-efficient motor options (IE3/IE4), VSD drives, and low-leakage seals reduce CO2 footprint; end-of-life recyclable materials and remanufacturing programs available.

• Technical support: Comprehensive installation, commissioning, and regional maintenance networks; spare-parts kits, OEM consumables, and maintenance training offered.

• Documentation: Complete compliance and test documentation (material certificates, performance curves, FAT reports) to support procurement and QA processes.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity: Loading capacity (MT per container) depends on model configuration and packaging; indicative capacities:

  • 20 ft container: up to 6–8 MT (typical single-package medium unit or multiple small units), or 1–2 skids depending on footprint.

  • 40 ft container: up to 24–28 MT (larger single-unit packages or several smaller units per container).

• Lead time: Standard models — consult for current lead times; expedited manufacturing and stocking programs available for project customers.

• Terms: FOB, CIF, DAP options; long-term service and supply contracts negotiable.

• After-sales: Commissioning, preventive-maintenance contracts, spare-part and consumables supply schedules available.
