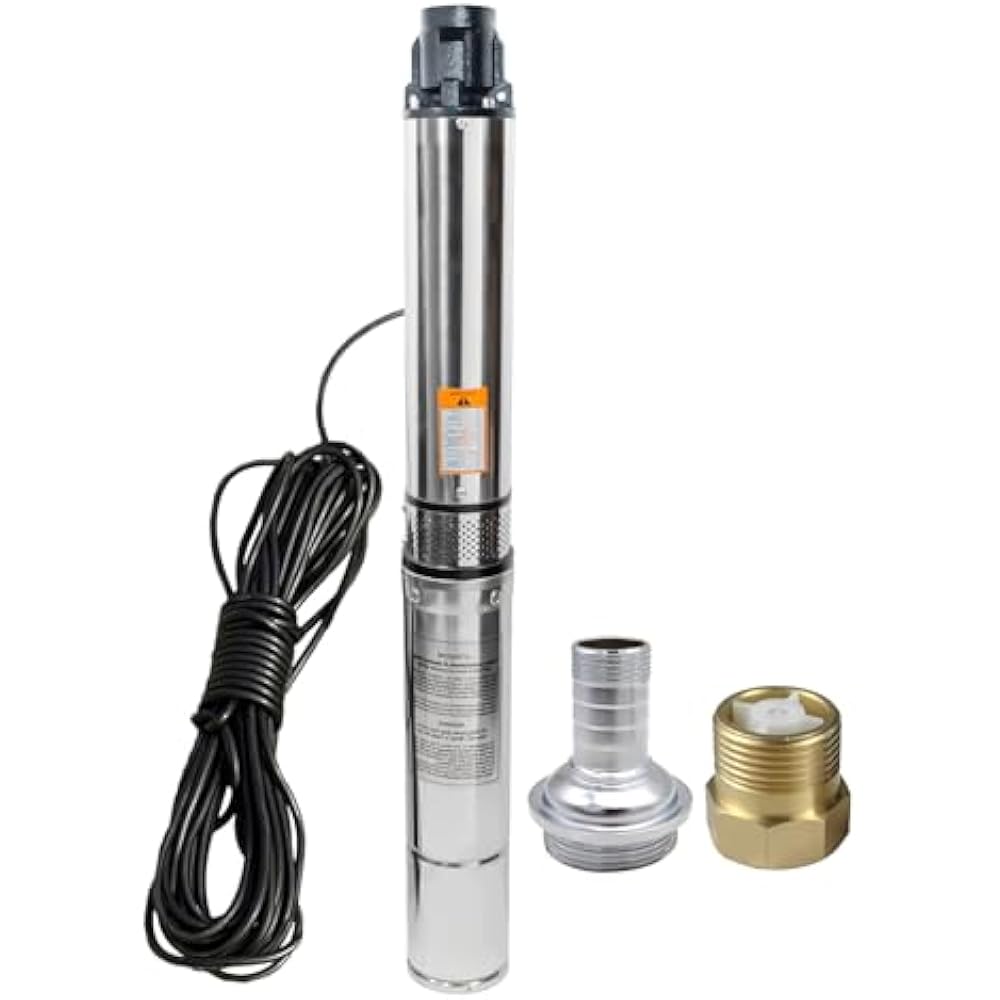

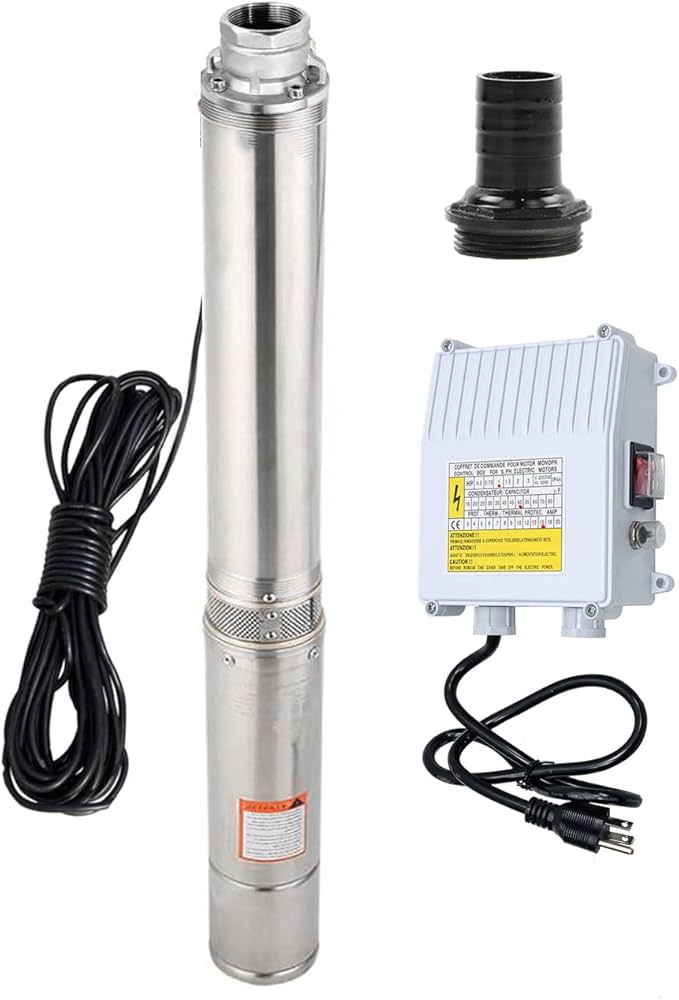

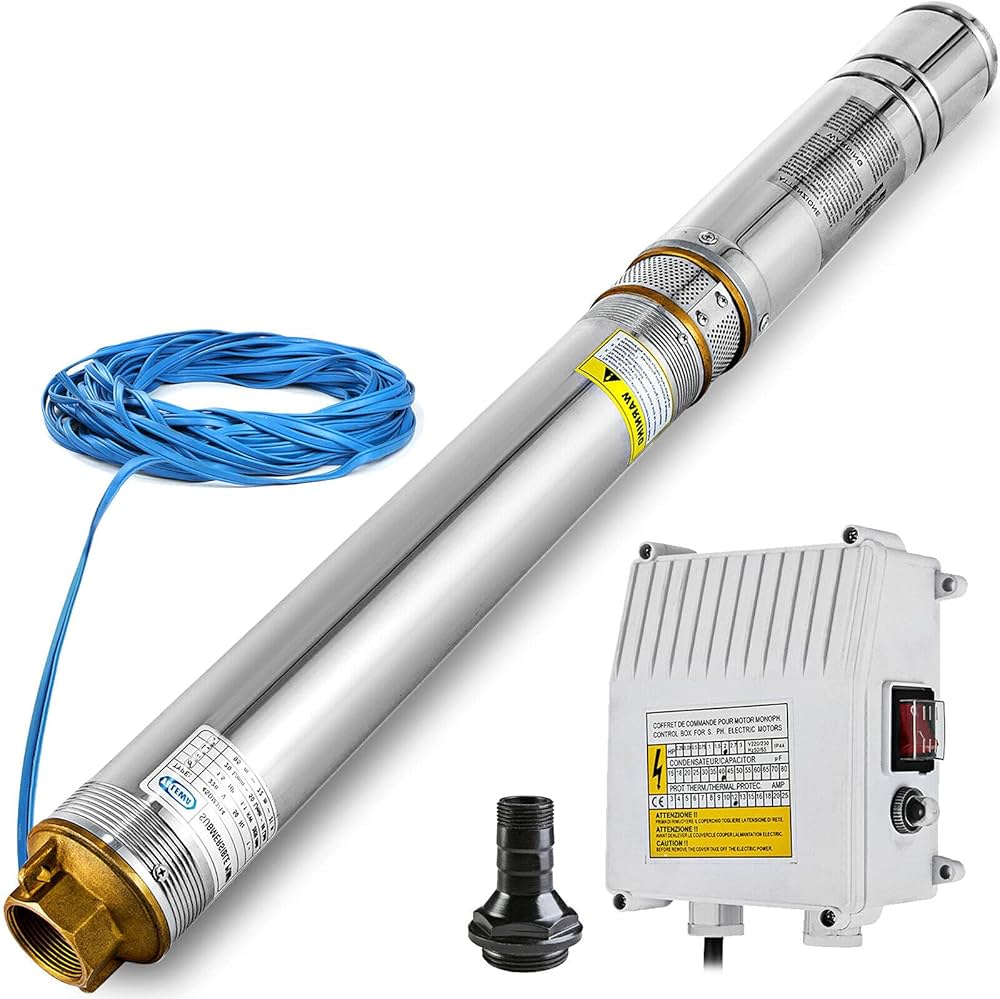

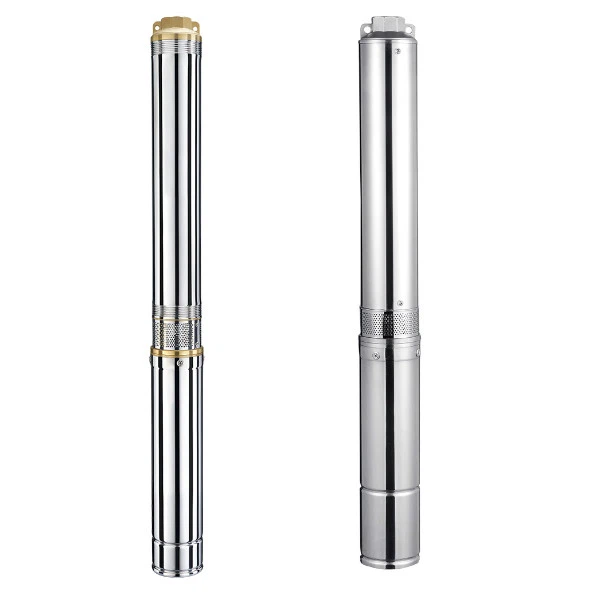

Submersible deep-well pump

Description

Product Overview
Submersible deep-well pump designed for industrial groundwater extraction and high-head fluid transfer in municipal, agricultural, mining, oil & gas, and large-scale commercial projects. Engineered for continuous submersed operation in boreholes and deep wells, it delivers high hydraulic efficiency, stable flow rates, and long service life under demanding conditions. Key value proposition: reliable, energy-efficient delivery of potable and process water from deep aquifers with low maintenance and predictable lifecycle costs. Strategically important because stable water lift and pressure capability directly reduce downtime, lower lifecycle operating expense, and secure supply for critical industrial processes.

Key Specifications & Technical Characteristics

• Pump type: Multistage submersible centrifugal deep-well pump, vertical turbine configuration.

• Materials of construction: Stainless steel (AISI 304/316) for pump body and impellers; duplex stainless or high-chrome alloys available for abrasive environments; NBR/EPDM/Viton seals.

• Motor: Submersible squirrel-cage induction motor, TEFC, class F/H insulation options, water-filled or oil-filled stator housings.

• Power ratings: 5 kW to 500 kW (custom ranges available).

• Voltage / Frequency: Configurable 380–690 V, 50/60 Hz; IEC/NEMA terminations.

• Hydraulic performance: Flow rates from 1 m3/hr up to 1,000 m3/hr; head per stage 5–40 m; total heads up to 1,200 m depending on model.

• Efficiency: Peak efficiencies >75% on standard models; premium hydraulics available for >85% system efficiency.

• Sealing & bearings: Double mechanical seal system with intermediate oil chamber, ceramic/graphite seal faces; anti-friction bearings rated for high axial loads.

• Ingress protection: IP68-rated motor enclosure for continuous submersion.

• Physical dimensions: Bore-compatible diameters from 4″ (100 mm) to 16″ (400 mm) nominal; length modular by stage count.

• Weight: Model dependent; typical range 30 kg (small) to several tonnes (large assemblies).

• Packaging options: Wooden crate with corrosion protection, shrink-wrapped, bolted skid mounting; export-ready with electrostatic and desiccant protection.

• Documentation: As-built O&M manual, hydraulic curves, material certificates (2.1/3.1), test certificates, and CE/ISO declarations where applicable.

• Warranty & service life: Standard 12–24 month warranty; expected operational life 10+ years under recommended maintenance.

• Spare parts & interchangeability: Modular stage units and common spare parts for rapid field replacement.

Core Industrial Applications

• Municipal water supply: Deep aquifer extraction for drinking water and distribution pumping, especially where high heads or long lift distances are required.

• Irrigation & agribusiness: Reliable high-volume supply for center-pivot, drip, and flood systems drawing from deep wells.

• Mining & mineral processing: Dewatering of shafts and pits, process water transfer where abrasive particles and high heads are common; heavy-duty metallurgy options resist wear.

• Oil & gas and petrochemical sites: Produced water handling, process make-up water and secondary injection applications with chemical-resistant material options.

• Industrial & commercial buildings: High-rise pressure boosting from deep wells for HVAC and domestic systems.
  Why it outperforms alternatives

• Higher hydraulic efficiency reduces energy consumption and operating cost per cubic meter pumped.

• Robust materials and sealing strategies extend mean time between failures (MTBF) in abrasive and corrosive water.

• Modular construction simplifies repairs and decreases downtime versus integral, non-modular competitors.

• Wide power and size range allow right-sizing for optimized capex and lower lifecycle cost.

Competitive Advantages

• Quality consistency: Factory-tested hydraulic curves and performance validation; traceable material certificates for each critical component.

• Supply reliability: Managed production schedules, buffer stock for standard models, and scalable OEM partnerships to meet large project timelines.

• Logistics capability: Export packaging, consolidated container loading, and local freight forwarding relationships for predictable lead times to major global ports.

• Price competitiveness: Tiered pricing for volume purchases and long-term supply agreements; total-cost-of-ownership focus rather than lowest upfront price.

• Sustainability: Energy-efficient hydraulic designs reduce pumpstation electricity demand; materials selected for recyclability where feasible.

• Technical support: Full pre-sales engineering (pump selection and system curve matching), commissioning support, spare-parts kits, and digital documentation; optional remote monitoring integration.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Loading depends on model dimensions; representative capacities:

  • 20-foot container (max gross ~28–30 MT): typically accommodates small/medium pump units and ancillaries up to ~20–24 MT.

  • 40-foot container (max gross ~26–28 MT each, high-cube ~30 MT): accommodates larger volumes or longer assemblies; typical loading up to ~25–28 MT per 40′ HC.

• Lead times: Standard models 6–10 weeks; engineered or alloy variants 12–20 weeks (confirm at time of enquiry).

• Payment & incoterms: FOB/CIF/DDP options available; payment terms negotiable for contract customers.

• After-sales: Spare kits, field service technicians, and long-term maintenance contracts available by region.
