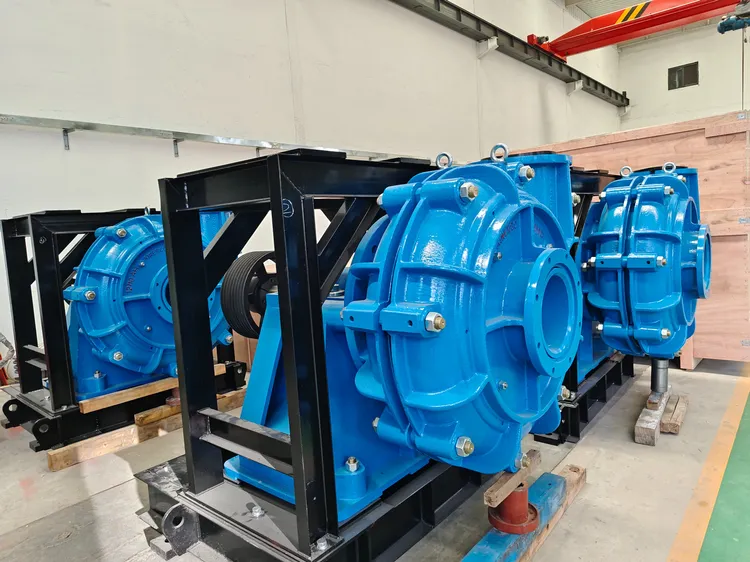

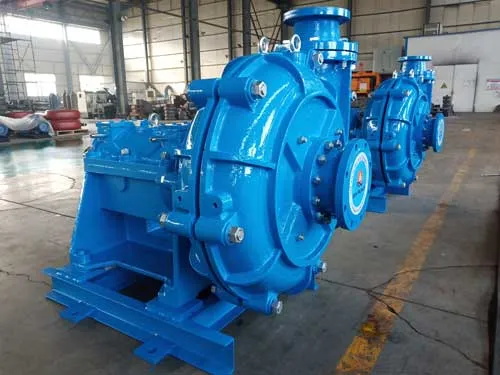

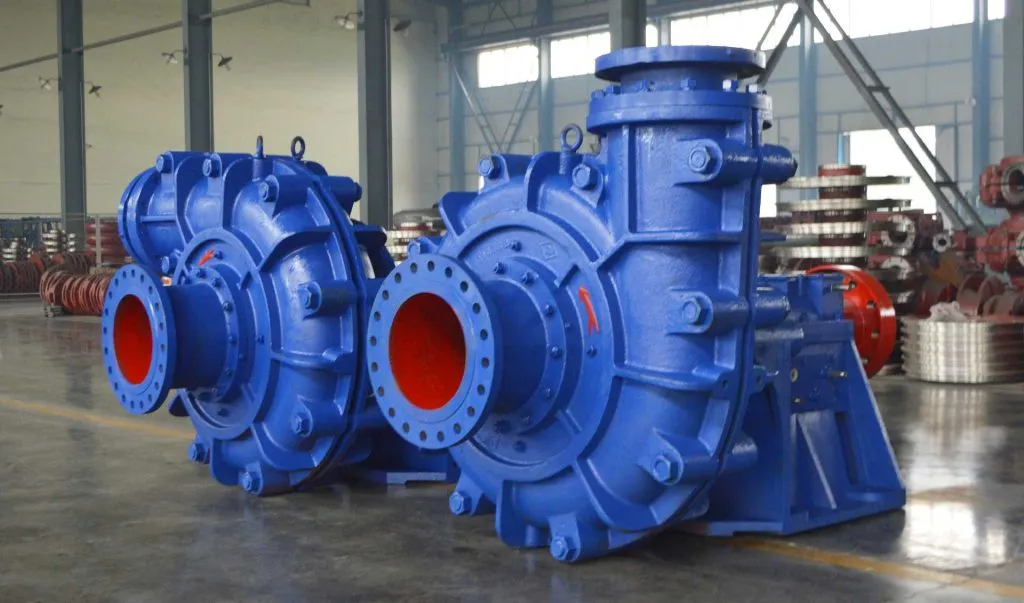

Slurry pump (mining grade)

Description

1. Product Overview
   Slurry pump (mining grade) is a heavy-duty centrifugal pump engineered for continuous handling of abrasive, high-density slurries in mineral processing, tailings transport, and heavy industrial applications. Its primary industrial use is to transfer ore, concentrates, tailings, and process slurries with high solids content while maintaining uptime and minimizing wear. The key value proposition is robust wear resistance and hydraulic efficiency that reduce lifecycle costs through longer component life, lower maintenance frequency, and improved energy efficiency. Strategically, this pump is critical for mining and mineral processing operations where reliability directly impacts production throughput, operating cost per tonne, and environmental containment performance.

2. Key Specifications & Technical Characteristics

• Material construction: High-chrome white iron (25–28% Cr) wet-end; optional alloyed Ni-hard, rubber-lined casing, or duplex stainless steel for corrosive slurries.

• Wear parts: Interchangeable impeller, throatbush, and liner segments; replaceable hardened wear rings.

• Hydraulic type: Horizontal, single-stage or multistage centrifugal design; expeller or gland sealing options.

• Performance range: Flow rates from 50 to 5,000 m3/h; total dynamic head up to 120 m (model-dependent).

• Solids handling: Maximum particle size up to 150 mm (depending on model); slurry density up to 2.2 t/m3.

• Physical characteristics: Casing configurations available in split-casing or end-suction layouts; impeller options include semi-open, open, and closed designs.

• Mechanical specs: Shaft material (chromium-molybdenum steel), bearing frame with oil- or grease-lubricated bearings; shaft sleeve sacrificial wear protection.

• Drive options: Direct-coupled electric motor (TEFC), V-belt, gearbox, or diesel-driven configurations.

• Sealing: Mechanical seal (single/dual), gland packing, and expeller options for varying abrasion and leakage tolerance.

• Efficiency: Best efficiency point (BEP) typically 65–82% depending on model and duty.

• Temperature range: Standard -10°C to 90°C; high-temperature variants available.

• Packaging options: Wooden crate for single units; steel frame skids for packaged pump sets; sealed pallets for spare parts kits.

• Shelf life/Storage: Pumps are mechanical equipment — standard storage recommendations: dry, climate-controlled environment; protective coatings applied to exposed metal; recommended preservation inspection every 6 months.

3. Core Industrial Applications

• Mining and mineral processing: Primary use for transporting ore slurries, mill discharge, cyclone feed, thickener underflow, and tailings pipelines. Designed to endure high abrasion and intermittent choking conditions.

• Metallurgy and smelting: Handling concentrates and slag slurries where both abrasion and corrosive components are present; alloy options minimize corrosion wear.

• Sand and aggregates: High-capacity dredging and dewatering tasks, sand-wash circuits, and slurry transport in aggregate production.

• Coal washing and power plants: Ash sluicing, coal slurry transfer, and ash handling systems requiring continuous, reliable pumping.

• Chemical and industrial processing: Corrosive slurry handling with rubber-lined or stainless options for longer service life.
  Why it performs better:

• Replaceable wear components and high-hardness materials extend service intervals and reduce total cost of ownership versus standard pumps.

• Hydraulic designs optimized for high solids throughput lower recirculation and blockages, improving uptime and energy efficiency.

• Broad range of sealing and material options allow precise matching to duty conditions, reducing corrosion and abrasion-related failures.

4. Competitive Advantages

• Quality consistency: Manufactured to ISO 9001 processes with rigorous material traceability and nondestructive testing on critical components.

• Supply reliability: Global production capacity with regional stocking hubs and expedited fabrication options for planned maintenance windows.

• Logistics capability: Containerized and skid-mounted options; coordinated heavy-lift and project logistics for site delivery, including FOB, CIF, and DDP arrangements.

• Price competitiveness: Tiered pricing for bulk procurement and long-term supply agreements; lifecycle cost focus that emphasizes reduced maintenance spend over initial capital cost.

• Sustainability: Longer-lasting wear parts reduce scrap and replacement frequency; energy-efficient hydraulics lower operational emissions; recyclable high-chrome alloys.

• Technical support: Comprehensive documentation including 3D CAD models, material certificates, performance curves, maintenance manuals, and spare parts kits; field commissioning and training available on request.
  Positioning: Recommended as a strategic sourcing decision for operations prioritizing throughput, predictable maintenance planning, and minimized lifecycle cost.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Depends on model/packaging; typical loading guidance:

  • 20 ft container: up to 18–20 MT (packaged components/spare parts)

  • 40 ft container: up to 25–28 MT (smaller pumps/spare kits)

  • Flat-rack or open-top: up to 40–45 MT (large assembled pump units and skids)
    For exact container loading calculations, provide model numbers, packaging dimensions, and weight to obtain optimized logistics planning.
