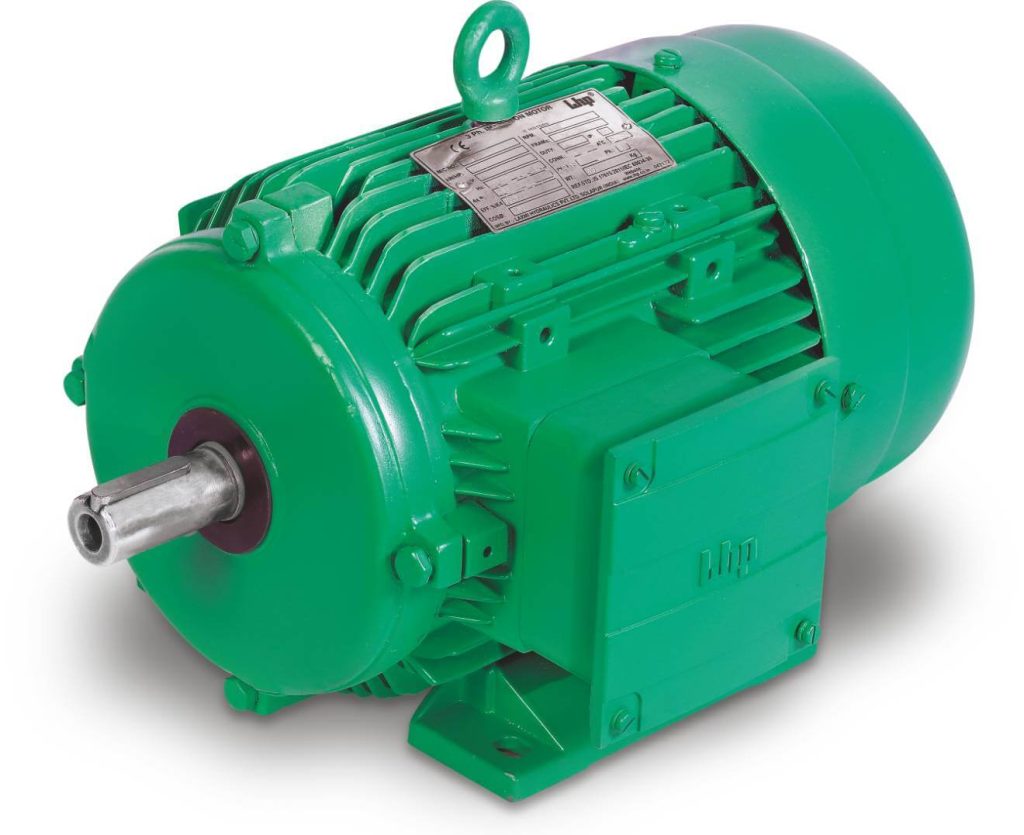

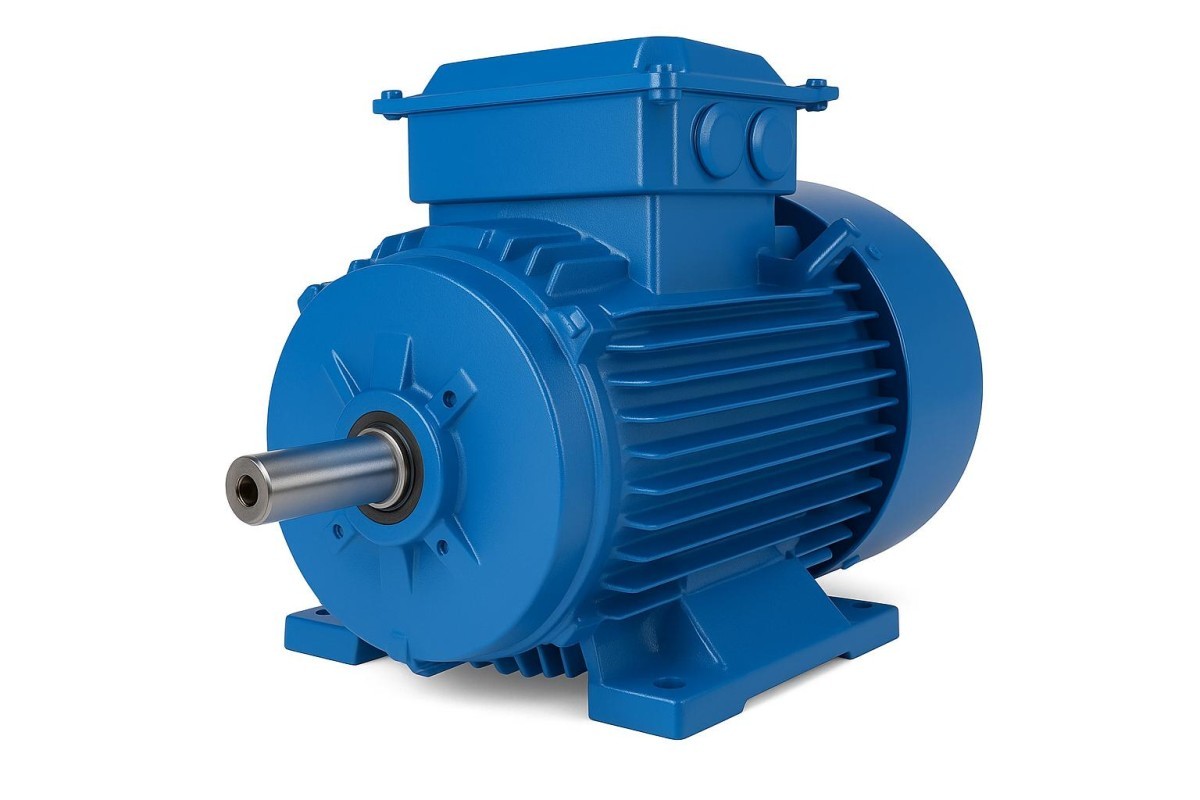

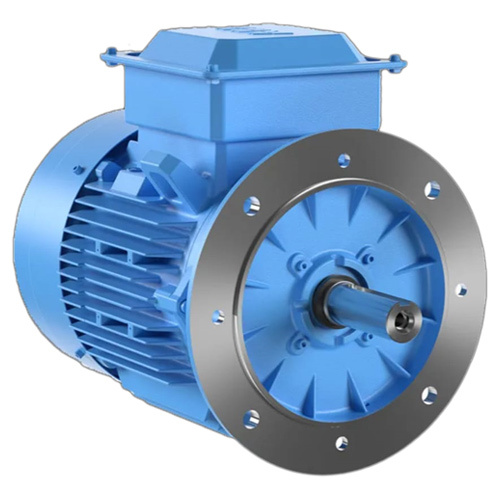

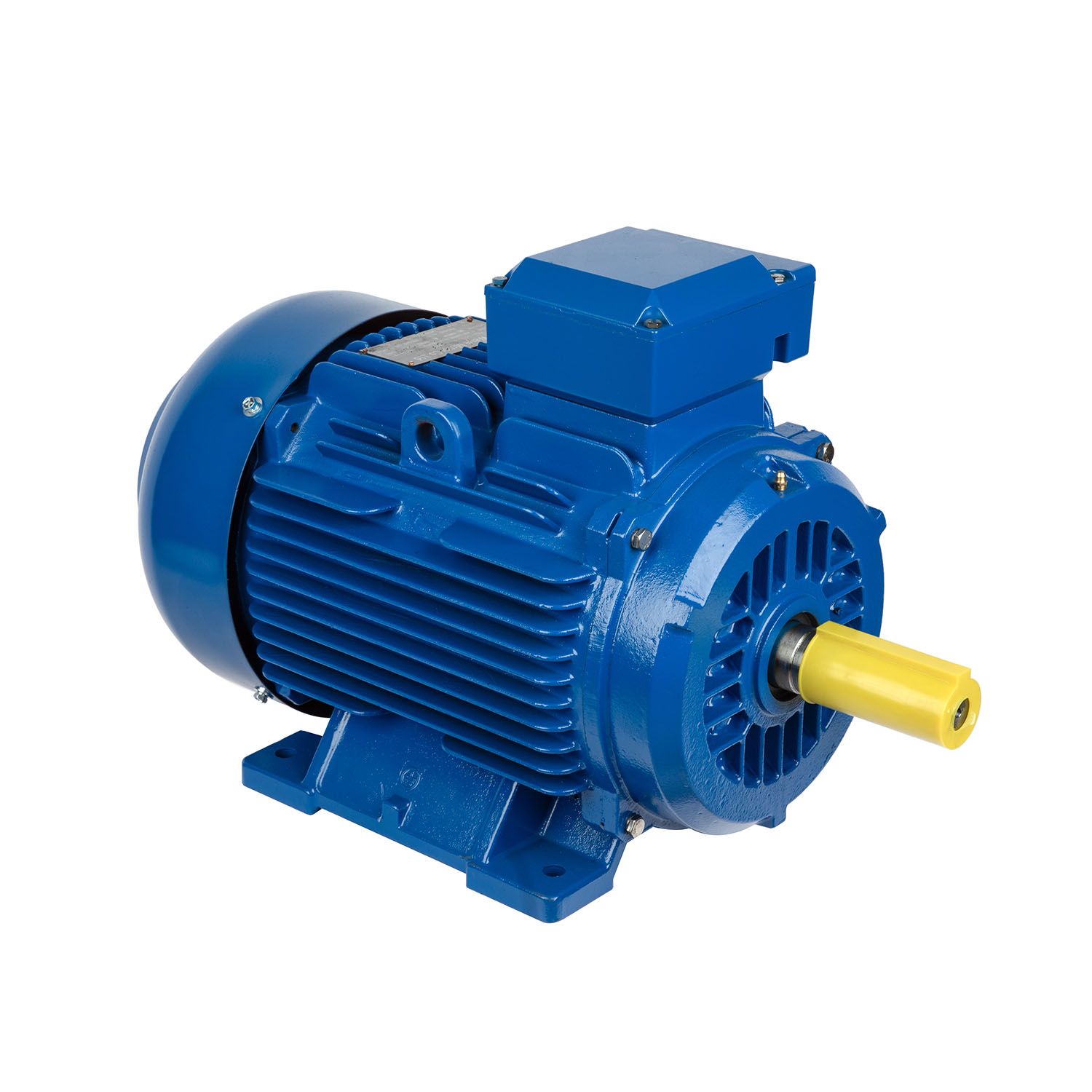

IE3/IE4 industrial electric motor

Description

1. Product Overview
   IE3/IE4 industrial electric motors are high-efficiency three-phase asynchronous (induction) motors engineered for demanding industrial drive applications. Designed to deliver superior energy performance and reliable continuous operation, these motors reduce operating costs across pump, fan, compressor, conveyor, and manufacturing drive systems. Their key value proposition is optimized efficiency (IE3 or IE4 class) that directly lowers energy consumption and lifecycle cost while meeting global energy regulations and sustainability targets. Strategically, specifying IE3/IE4 motors helps enterprises achieve regulatory compliance, improve process uptime, and realize measurable total-cost-of-ownership (TCO) savings at scale.

2. Key Specifications & Technical Characteristics

• Motor efficiency rating: IE3 (Premium) or IE4 (Super Premium) certifiable to IEC 60034-30-1 standards.

• Power range: typically 0.75 kW to 500 kW (custom sizes available on request).

• Frame sizes: IEC-standard frame sizes (e.g., 63–400+), foot/flange mounting options.

• Speed: 2-, 4-, 6-pole variants (nominal synchronous speeds per frequency); variable-speed compatible with VFDs.

• Voltage rating: 380–690 V three-phase (other voltages available by request).

• Insulation class: F (standard) or H (optional) with Class B temperature rise available.

• Protection rating: IP55 standard; IP56/IP65 options for harsh environments.

• Cooling method: IC411 (fan-cooled) standard; alternate cooling on request.

• Starting torque: high starting torque variants available for heavy-load starts.

• Materials: stator/rotor laminations—low-loss electrical steel; rotor—die-cast aluminium or copper bars where specified; end-shields and frames—cast iron or die-cast aluminium options.

• Bearings: premium greased rolling bearings; sealed-for-life or regreasable as per duty cycle.

• Vibration & balance: Grade A (ISO 1940-1) balancing; low-vibration construction for long bearing life.

• Noise level: optimized acoustic design, typical dB(A) levels dependent on power and speed—data sheets provided per model.

• Thermal protection: PT100/PT1000 or PTC thermistors integration available.

• Compliance and testing: factory-tested to IEC standards, CE marking, optional ATEX/IECEx certification for explosive atmospheres.

• Packaging: industrial export packaging—wooden crates, palletized with corrosion inhibitors and desiccants; custom packaging available.

• Documentation: full technical datasheet, wiring diagrams, installation & maintenance manual, test certificates (losses, efficiency curves), and FAT reports on request.

• Warranty: standard 12–24 months (extendable service agreements available).

3. Core Industrial Applications

• Water and wastewater: Efficient drives for pumps and blowers where continuous operation and energy cost reduction are critical; IE4 offers highest savings on high-duty pumps.

• HVAC and building services: Fans, chillers, and air-handling units benefit from reduced electrical consumption and quieter operation.

• Process manufacturing: Drives for mixers, extruders, conveyors, and compressors in chemical, food, and pharmaceutical plants where reliability and compliance matter.

• Mining and aggregates: Robust frame options and high starting torque configurations for conveyors, crushers, and mills in heavy-duty environments.

• Oil & gas and petrochemical: Explosion-rated variants (ATEX/IECEx) for compressors and pumps in hazardous zones.
  Why this product performs better than alternatives:

• Higher IE3/IE4 efficiency class reduces energy losses and heat generation versus standard motors, lowering electricity costs and cooling loads.

• Premium materials and balance standards extend bearing life and reduce downtime.

• Wide range of protection and certification options allow direct replacement across global installations with minimal retrofit.

4. Competitive Advantages

• Quality consistency: Manufactured to strict IEC production and QA processes with batch traceability and factory test reports.

• Supply reliability: Scalable production capacities and defined lead times with priority manufacturing for long-term contracts.

• Logistics capability: Export-ready packaging, consolidated container loading, and partner freight solutions to major global ports; support for DAP/DDP incoterms.

• Price competitiveness: Tiered pricing for volume purchases and long-term supply agreements; lifecycle cost focus rather than lowest upfront price.

• Sustainability: Lower operational CO2 footprint through higher efficiency; materials and processes aligned with supplier sustainability disclosures.

• Technical support: Pre-sales application engineering, installation guidance, matching to VFDs, and after-sales service including spare parts and retrofits; comprehensive documentation and test data provided.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT

• Loading capacity: typical maximum loading per 20ft container ~18–22 MT (depending on packing configuration), per 40ft container ~24–28 MT; confirm model-specific weights for exact planning.
