Reciprocating gas compressor

Description

Product Overview

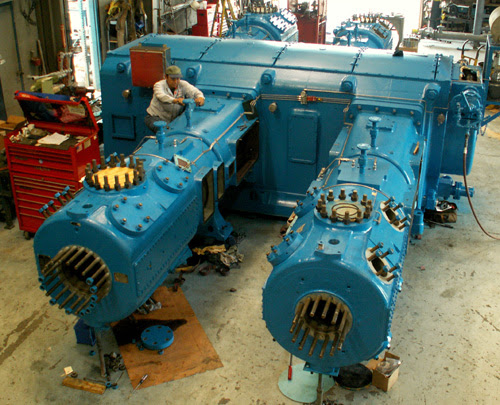

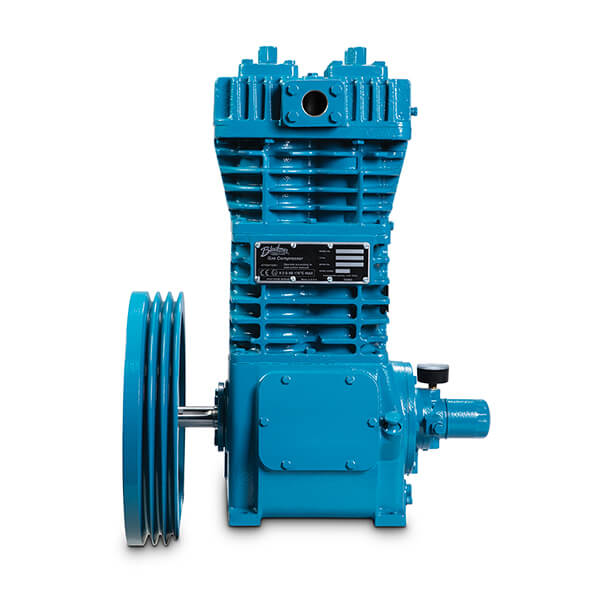

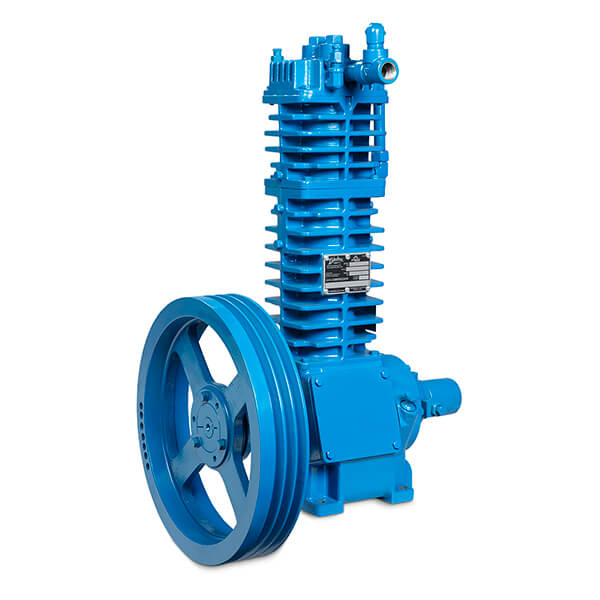

Reciprocating gas compressor — a mechanically positive-displacement compressor that uses pistons driven by a crankshaft to compress gaseous media for industrial processes. Primarily used to boost gas pressure for pipeline transport, wellhead reinjection, gas gathering, low- and medium-pressure gas processing, and instrument/utility gas supply. Key value proposition: precise pressure control and high compression ratios in intermittent or variable-load operations, delivering energy-efficient performance, predictable maintenance cycles, and long operational life. Strategically important because it enables critical upstream, midstream, and plant-side gas handling where reliability, controllable pulsation, and retrofit compatibility determine uptime and total cost of ownership.

Key Specifications & Technical Characteristics

• Compressor type: Reciprocating (single-, two-, or multi-stage options available); horizontal or vertical frame configurations.

• Materials of construction: Casing — API-rated carbon steel (A216 WCB) standard; optional corrosion-resistant alloys (AISI 316L / duplex stainless, Inconel) for sour or corrosive gases.

• Internal wetted parts: Forged steel or stainless steel pistons, rings, and rods; optional ceramic or chrome plating for wear resistance.

• Valves: Forged steel suction/discharge valves; stainless steel or metallic seat options; available with anti-surge and pulsation dampening packages.

• Sealing: Packed or mechanical seal systems; labyrinth and oil-seal configurations; gas-lubricated and dry-running variants on request.

• Frame and cranktrain: Heavy-duty forged crankshaft, precision bearings, and dynamically balanced connecting rods; vibration-isolated baseplate.

• Drive options: Direct-coupled electric motor, gearbox, or gas/engine drive; variable-speed drives (VFD) available for load control.

• Performance metrics: Flow range up to tens of thousands Nm3/h per unit (model dependent); discharge pressures up to 200 bar (model dependent); compression ratio per stage up to 10:1.

• Operating temperature range: -40 °C to +60 °C standard; extended range with specialized materials and heaters.

• Instrumentation & controls: PLC or DCS-ready control panels, safety shutdown systems, vibration and temperature monitoring; digital twin / remote monitoring optional.

• Tolerances & precision: ISO-compliant machining; dynamic balancing to ISO 1940; API 618 design and construction available.

• Packaging: Wooden boxed components for skid-mounted units; weatherproof steel crates for accessories; full skid with integrated piping, controls, and acoustic enclosure options.

• Surface treatment: Industrial primer + epoxy paint standard; optional corrosion coatings and insulation jacketing.

• Shelf life: Not applicable to mechanical equipment; recommended storage: dry, climate-controlled environment with periodic preservation maintenance for long-term layup.

• Documentation: Full equipment datasheets, GA drawings, NDT and material certificates, FAT protocols, and commissioning procedures included.

Core Industrial Applications

• Oil & Gas (Upstream and Midstream): Wellhead gas boosting, gas-lift support, pipeline pigging, gas gathering and reinjection. Works better than centrifugal options at high discharge pressures and intermittent flow due to superior volumetric efficiency at variable speeds.

• Petrochemical & Refining: Feedstock transfer, refrigerant compression, flare gas recovery. Favored where precise pressure control and pulsation management reduce downstream process disturbances.

• Industrial Gas & Utilities: Instrument and utility gas supply, hydrogen and specialty gas compression in packaged plants. Reciprocating compressors enable high-pressure small-batch compression more cost-effectively than large rotating machines.

• Power Generation & CHP: Fuel gas boosting for turbines and engines, biogas upgrading systems. Reliable on-off cycling and high-efficiency at part-load improves fuel utilization and reduces operating cost.

• Manufacturing & Chemical Processing: Air separation, gas injection, pneumatic conveying, and process gas recycling. High mechanical robustness and predictable maintenance cycles minimize production interruptions.
  Why it performs better than alternatives

• Efficiency at high pressure ratios and low-to-moderate flow rates versus centrifugal compressors.

• Superior turndown capability and effective sealing options for hazardous or toxic gases.

• Easier retrofit into existing plants due to compact skid designs and flexible drive options.

• Lower capital outlay for many high-pressure, lower-flow applications; predictable life-cycle costs due to modular spare parts.

Competitive Advantages

• Quality consistency: Manufactured to API 618/ISO standards with traceable material certifications and factory acceptance testing (FAT).

• Supply reliability: Production capacity aligned with global component suppliers; regional stocking and configurable lead-time acceleration for repeat customers.

• Logistics capability: Skid and containerized packing options for safe sea freight; export-ready documentation and export packaging from Buea, Cameroon; local handling and customs support available upon request.

• Price competitiveness: Tiered pricing for volume contracts; total-cost-of-ownership modeling offered to demonstrate lifecycle savings versus alternatives.

• Sustainability: Options for low-leakage sealing systems and low-emission packages; compatibility with electric drives and variable-speed control to minimize energy consumption.

• Technical support: End-to-end documentation, commissioning support, preventive maintenance schedules, spare-parts kits, and remote diagnostic services; training programs for on-site teams.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical 20-foot container loading up to 20 MT (project-dependent); 40-foot high-cube containers up to 26–28 MT with specialized packing; skid-mounted units usually shipped on flat-rack or breakbulk — contact for exact loading plan.

• Lead times: Standard models from regional stock; engineered-to-order units subject to manufacturing lead times—confirm at RFQ.

• Warranty & service: Standard commercial warranty with extended service contracts available.

• Purchase support: Specification verification, site pre-assessment, CIF or FOB terms negotiable, and assistance with export documentation.
