Pressure Vessel Carbon Fiber Tow 50K (PVCF-50K)

Description

1. Product Overview

The PVCF-50K is a high-filament-count (50,000 filaments per tow), industrial-grade carbon fiber specifically engineered for the automated filament winding and tape layup of Type III and Type IV pressure vessels. Its primary industrial use is the mass production of lightweight, high-burst-pressure containers for hydrogen storage, CNG transport, and high-pressure industrial gas cylinders. The key value proposition lies in its superior winding efficiency—reducing layup time by up to 30% compared to 12K/24K tows—while maintaining consistent tensile strength and modulus for compliant, ASME Section X-certified vessels. Strategically, PVCF-50K is critical as global hydrogen infrastructure scales, enabling OEMs to lower composite cost-per-vessel and meet rising demand for zero-emission transport.

2. Key Specifications & Technical Characteristics

• Material Components: Polyacrylonitrile (PAN)-based precursor; continuous carbon fiber; standard modulus (SM) grade

• Purity / Grade: >99.9% carbonization; industrial structural grade for pressure retention (non-aerospace)

• Physical Characteristics:

  • Filament count: 50,000 ± 1,000

  • Density: 1.78 – 1.82 g/cm³

  • Tensile strength: ≥ 4,100 MPa

  • Tensile modulus: 230 – 245 GPa

  • Elongation at break: 1.8 – 2.0%

  • Filament diameter: 7.0 µm nominal

  • Sizing type: Epoxy-compatible (standard) / specialty sizing available on request

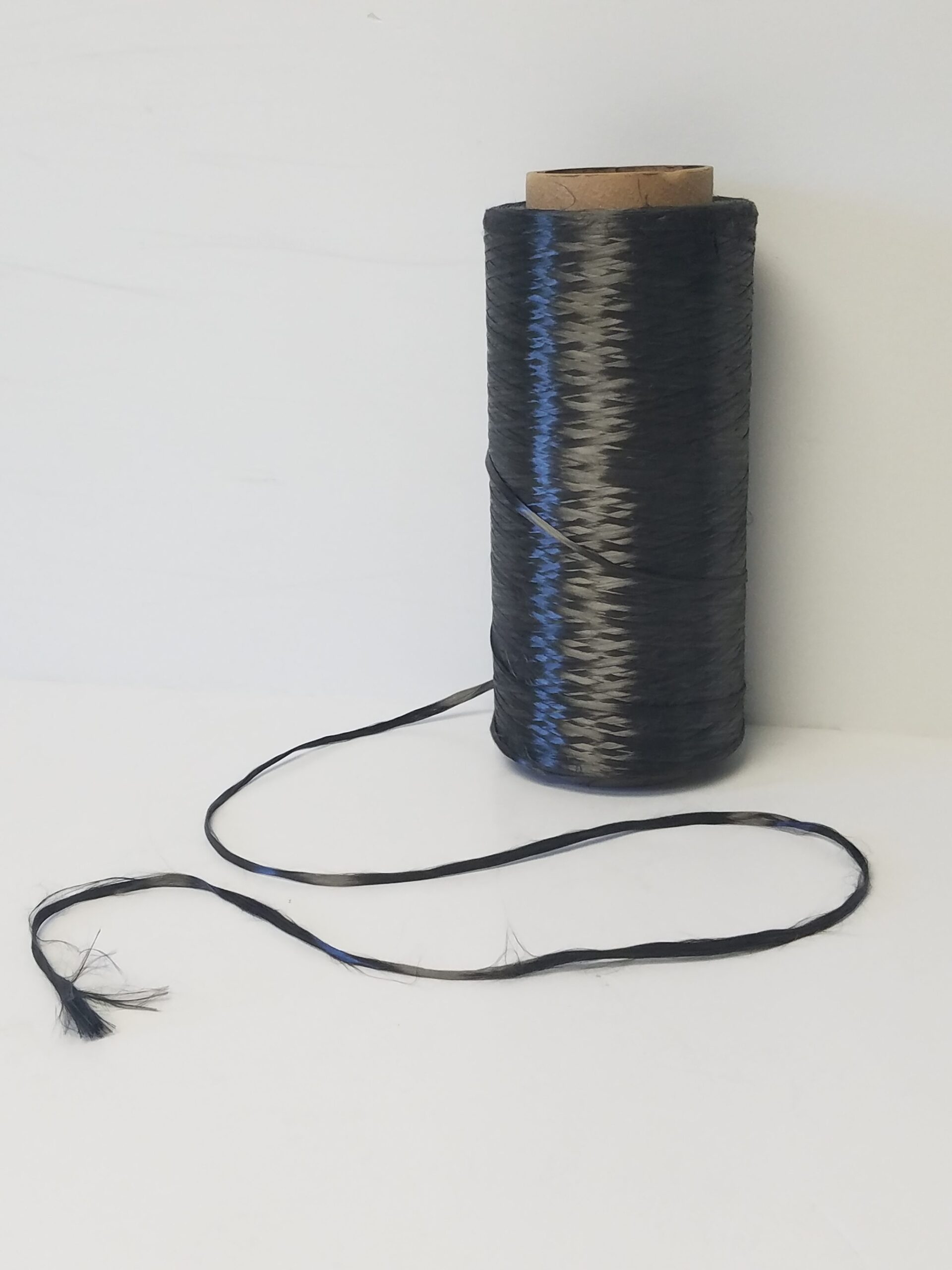

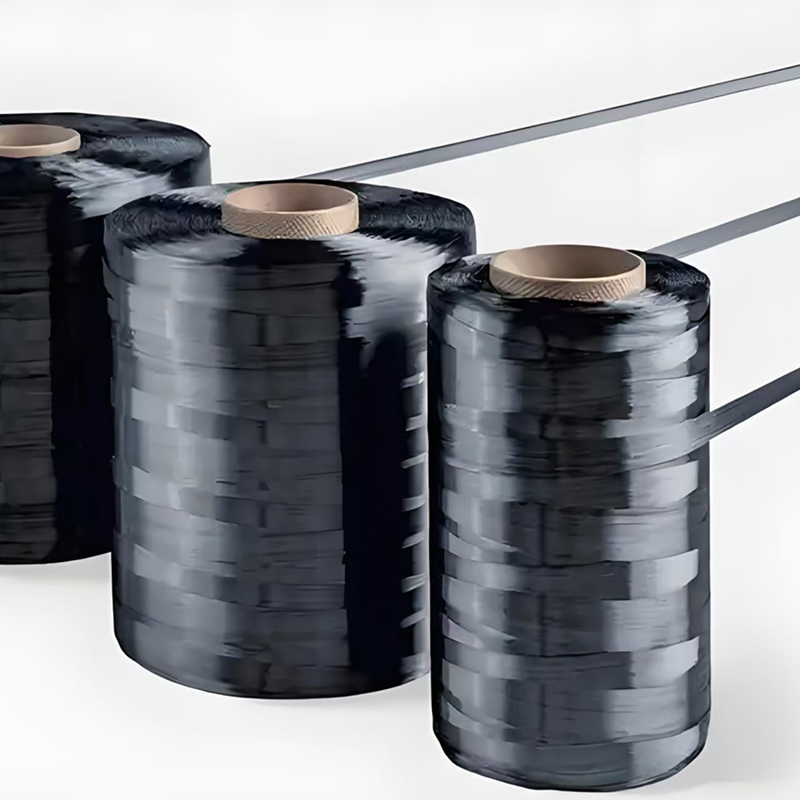

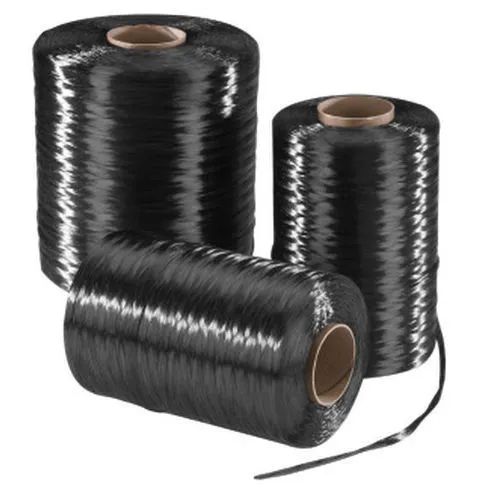

• Form: Continuous tow; wound on warp-free, industrial plastic spools (net weight 18 kg ± 0.5 kg per spool)

• Packaging Options: 4 spools per pallet; 72-spool master carton; anti-static, humidity-controlled liner

• Shelf Life: 24 months from date of analysis when stored in original, sealed packaging at 20°C ± 5°C and 40–60% RH

3. Core Industrial Applications

• Primary Industries: Hydrogen mobility (Type IV onboard storage), compressed natural gas (CNG) transport, high-pressure industrial gas, firefighting SCBA tanks, and desalination pressure vessels.

• Specific Operational Use Cases:

  • Filament winding of 350–700 bar hydrogen cylinders for heavy-duty trucks and buses

  • Helical + hoop winding for CNG cascades in refueling stations

  • Automated tape laying for composite overwrapped pressure vessels (COPVs)

• Performance vs. Alternatives: Compared to 12K or 24K tows, PVCF-50K reduces winding passes by >50%, lowering cycle time and energy use per vessel. Lower splice frequency improves burst pressure consistency. Unlike spread-tow fabrics, it maintains true 0° fiber alignment, maximizing hoop strength.

• Efficiency / Durability Advantages: Enables 30% faster laydown rates; reduces resin consumption by 6–8% due to optimized filament packing; delivers >10,000 pressure cycles to failure (validated per ISO 11439).

4. Competitive Advantages

• Quality Consistency: Lot-to-lot CV% ≤ 3.5% for tensile strength; statistically controlled via real-time infrared tow inspection; each spool includes CofA with UTS, modulus, and tex value.

• Supply Reliability: Dedicated PV-grade line with 12,000 MT annual capacity; safety stock held in three regional hubs (Americas, EMEA, APAC).

• Logistics Capability: Just-in-time (JIT) delivery windows ±3 days; RFID-tracked spools with full chain of custody.

• Price Competitiveness: 18–22% lower $/km than equivalent 50K from leading Japanese or European suppliers, driven by optimized precursor sourcing and continuous oxidation lines.

• Sustainability: ISO 14001-certified plant; 47% lower carbon footprint per tow vs. industry average (third-party verified); 100% of offcuts recyclable into non-woven carbon mats.

• Technical Support: Full winding simulation data (fiber placement, tension curves, wet-out profiles) provided; on-call composites engineer for process optimization.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 5 MT (approx. 278 spools) – reduced to 2 MT for certified strategic partners

• BULK 20MT Loading Capacity: 1,112 spools (20.0 MT net) per 20-ft dry container; palletized and shrink-wrapped with desiccant packs

• Lead Time (ex-works): 21 days for MOQ; 35 days for bulk 20MT orders

• Incoterms supported: FOB, CIF, DAP (buyer selects at contract)
