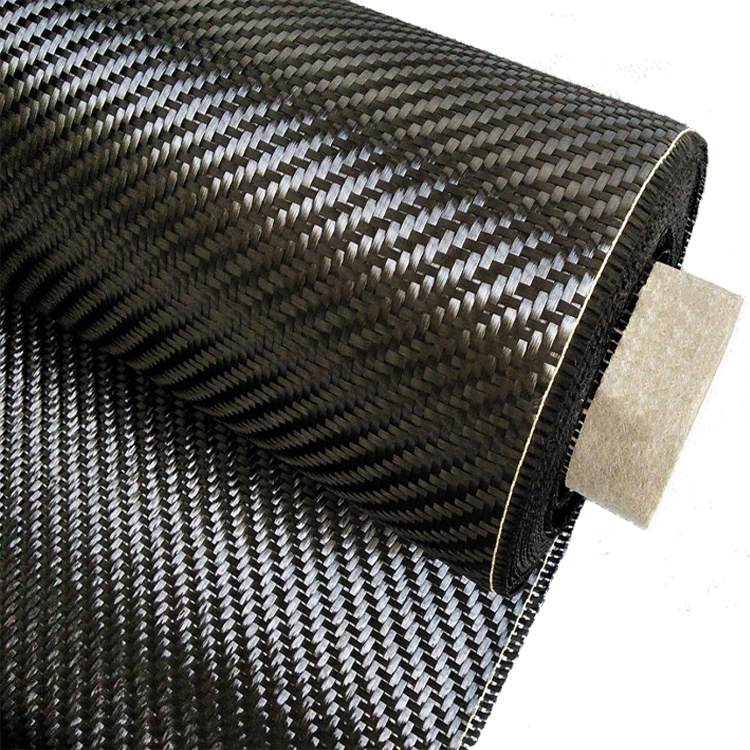

High Performance Carbon Fiber Fabric Twill 3K(HP-TW3K)

Description

1. Product Overview

The High Performance Carbon Fiber Fabric Twill 3K (HP-TW3K) is a premium-grade, continuous-filament woven reinforcement material engineered for applications demanding exceptional stiffness-to-weight ratio and fatigue resistance. Its primary industrial use lies in advanced composite manufacturing for aerospace secondary structures, high-end automotive components, and professional sporting goods. The key value proposition is its superior load distribution across the twill weave architecture, enabling faster lamination cycles and reduced void content compared to plain weaves. Strategically, this fabric is critical as industries accelerate lightweighting initiatives to meet carbon-neutral mobility and energy efficiency targets.

2. Key Specifications & Technical Characteristics

• Chemical Composition: Polyacrylonitrile (PAN)-based carbon fiber, 99.9% carbonized, surface-sized with epoxy-compatible sizing (1.2–1.5% by weight)

• Grade / Purity: Aerospace-grade precursor, no metallic impurities >50 ppm

• Physical Characteristics:

  • Weave: 2/2 Twill

  • Filament count: 3,000 filaments per tow

  • Areal weight: 200 g/m² (±5%)

  • Thickness: 0.22 mm (nominal, at 0.55% Vf)

  • Color: Matte black (standard), gloss black upon request

  • Density: 1.78 g/cm³

  • Tensile strength: 3,530 MPa (minimum)

  • Tensile modulus: 230 GPa

• Packaging Options: 100m rolls, 500m jumbo rolls; interleaved with polyethylene film; vacuum-sealed moisture barrier bag + cardboard core (76 mm ID)

• Shelf Life: 24 months from ship date when stored at 15–25°C, <60% RH in original packaging

3. Core Industrial Applications

• Aerospace & Defense: Secondary structures (fairings, floor panels, interior brackets). HP-TW3K outperforms fiberglass fabrics in 40% weight reduction while maintaining impact resistance per ASTM D7136.

• Automotive (Motorsport & EV): Monocoque chassis reinforcements, battery enclosures, drive shafts. Twill drapability conforms to complex double-curved molds 3x faster than unidirectional tapes, reducing labor hours per layup.

• Marine & Wind Energy: Racing yacht hull stiffeners, wind turbine blade shear webs. Superior fatigue life (>1M cycles at 80% UTS) reduces maintenance intervals by 30% over E-glass alternatives.

• Robotics & Prosthetics: Lightweight robotic arms, carbon fiber prosthetic feet. Dimensional stability under cyclic loading ensures position repeatability within 0.1 mm.

4. Competitive Advantages

• Quality Consistency: Statistical process control (SPC) with <2% CV in areal weight across 10,000+ linear meters per batch – traceable via heat-stamped roll ID.

• Supply Reliability: Dual-source precursor approval; 12-week lead time commitment with 98.6% on-time delivery history to Asia-Pacific and EU industrial hubs.

• Logistics Capability: Direct roll-to-roll shipping eliminates secondary rewinding damage; real-time RFID tracking per pallet.

• Price Competitiveness: Tier-1 Japanese tow at Tier-2 price point, enabled by vertically integrated weaving (no intermediate merchant converter).

• Sustainability: 45% lower carbon footprint vs. virgin PAN (utilizing pyrolyzed fiber recovery blend ratio up to 15%) – eligible for scope 3 reporting credits.

• Technical Support: Free laminate design simulation (Abaqus material card + LS-DYNA model) with first MOQ; on-site weave optimization audits available.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 100 linear meters (single roll, 200 g/m² width: 100 cm standard) for first-time buyers. Bulk tier pricing begins at 1,000 linear meters.

• BULK 20MT Loading Capacity: One standard 20’ dry container holds 20 metric tons of HP-TW3K, equivalent to approximately 65,000 linear meters (rolls packed vertically in palletized cartons).

• Loading Density per TEU: 20 MT net weight; 28 CBM occupied (palletized configuration). ≤22 MT for airfreight option available upon request.
