HDPE Resin (Pipe Grade)

Description

1. Product Overview

This HDPE (High-Density Polyethylene) Pipe Grade Resin is a high-molecular-weight polymer engineered specifically for the production of pressure and non-pressure pipe systems. Its primary industrial use lies in potable water transmission, natural gas distribution, industrial effluent handling, and mining slurry transport. The key value proposition is an exceptional balance of long-term hydrostatic strength (MRS ≥10 MPa), superior slow crack growth resistance (SCGR), and processability—delivering infrastructure-grade durability. Strategically, this resin is critical as global markets shift toward leak-free, corrosion-resistant, and 100-year service-life pipe networks, replacing traditional steel and concrete.

2. Key Specifications & Technical Characteristics

• Chemical composition: High-Density Polyethylene (PE100 or PE4710 compliant), bimodal copolymer

• Purity level: ≥99.5% virgin resin; no regrind, fillers, or recycled content

• Physical form: Natural-colored, spherical micro-pellets

• Melt Flow Rate (MFR, 190°C/5kg): 0.20 – 0.40 g/10 min (optimal for pipe extrusion)

• Density: 0.948 – 0.954 g/cm³

• Flexural Modulus: ≥1,100 MPa

• Tensile Strength at Yield: ≥23 MPa

• Slow Crack Growth Resistance (PENT test at 80°C, 2.4 MPa): >1,000 hours

• Oxidation Induction Time (OIT at 200°C): >40 minutes

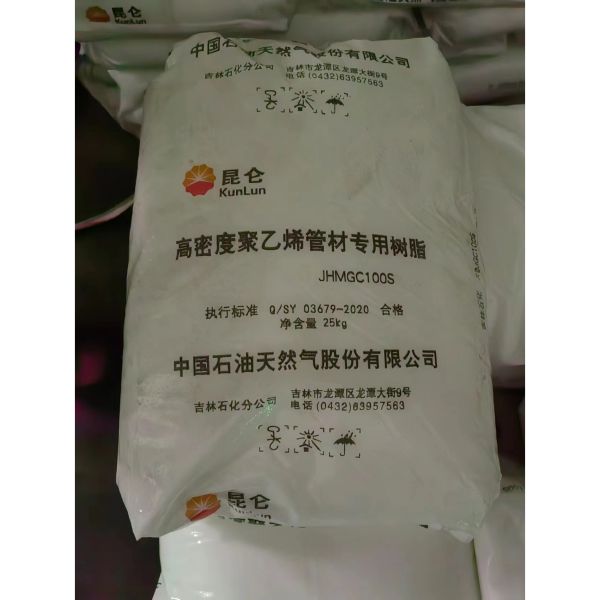

• Packaging options: 25 kg sealed barrier bags; 1,000 kg FIBC (super sacks); bulk pneumatic trailer delivery

• Shelf life: 24 months when stored indoors below 50°C, away from UV exposure

3. Core Industrial Applications

• Primary industries: Water utilities, oil & gas midstream, mining, chemical processing, telecommunications conduit, and geothermal systems

• Specific use cases:

  • Potable water transmission mains (up to DN2000)

  • Natural gas distribution networks (yellow color version available)

  • Abrasive tailings and slurry lines in mining

  • Horizontal directional drilling (HDD) pipes for trenchless installation

• Performance advantages:

  • Outlasts ductile iron (no corrosion) and PVC (no brittle failure) under cyclic stress.

  • Higher SCGR than commodity PE80 resins – reduces leak risk in aging infrastructure.

  • Low sag and die swell during extrusion – enables consistent wall thickness at line speeds 15–20% faster than standard grades.

• Efficiency/cost benefit: 100-year design life (per ISO 9080) lowers lifecycle replacement cost by 60% vs. steel.

4. Competitive Advantages

• Quality consistency: ISO 9001:2025 certified production with real-time SPC monitoring; each lot tested for OIT, MFR, and PENT.

• Supply reliability: Multi-feedstock supply chain (ethane-based from North America and Middle East) – no single-source disruption risk.

• Logistics capability: Dedicated rail and container shipping lanes from Houston, Rotterdam, and Singapore hubs; 7-day average lead time to major ports.

• Price competitiveness: Direct toll manufacturing agreements remove 2–3 distributor layers; volume-based rebates for ≥500 MT/month.

• Sustainability: 100% recyclable end-of-life pipes; mass-balance ISCC PLUS certified bio-attributed and chemically recycled grades available upon request.

• Technical support: Full PE pipe design guides, fusion welding parameters (butt, socket, electrofusion), and BIM-ready datasheets provided.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT (one full 20-ft container equivalent)

• Loading capacity:

  • 25 kg bags: 22.5 – 23.5 MT per 20-ft standard container (palletized and shrink-wrapped)

  • 1,000 kg FIBCs: 20 MT exactly per 20-ft container

  • Bulk pneumatic truck / silo trailer: 24 MT per trailer (regional delivery only)
