HDPE Pipes PE100

Description

1. Product Overview

The HDPE Pipe PE100 represents the global benchmark for high-density polyethylene pressure piping, engineered for high-demand water, gas, and industrial fluid transmission. Its primary industrial application lies in large-scale potable water distribution, natural gas networks, slurry transport, and sewerage systems. The key value proposition is an unparalleled combination of long-term pressure resistance (MRS 10 MPa at 50 years), chemical inertness, and leak-free butt-fused joints—delivering a 50+ year service life with near-zero maintenance. Strategically, PE100 is critical for infrastructure resilience and cost efficiency, replacing ductile iron and steel in corrosive environments while reducing total lifecycle cost by up to 30%.

2. Key Specifications & Technical Characteristics

• Material Composition: High-density polyethylene (PE100) – bimodal copolymer, carbon black dispersion (2–2.5%) for UV stability, no reprocessed material.

• Grade & Standard: PE100 – ISO 4427 (water), ISO 4437 (gas), ASTM D3035, EN 12201, WRAS, DVGW, and GOST certified.

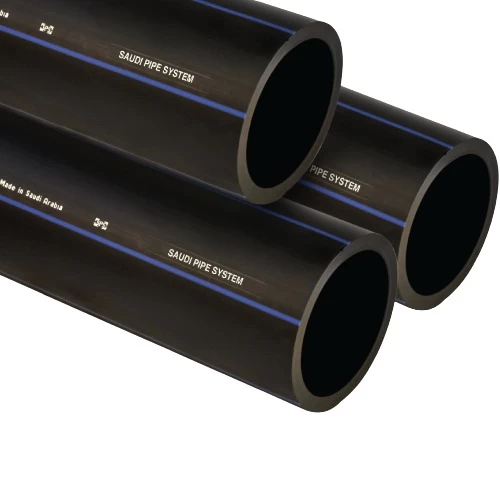

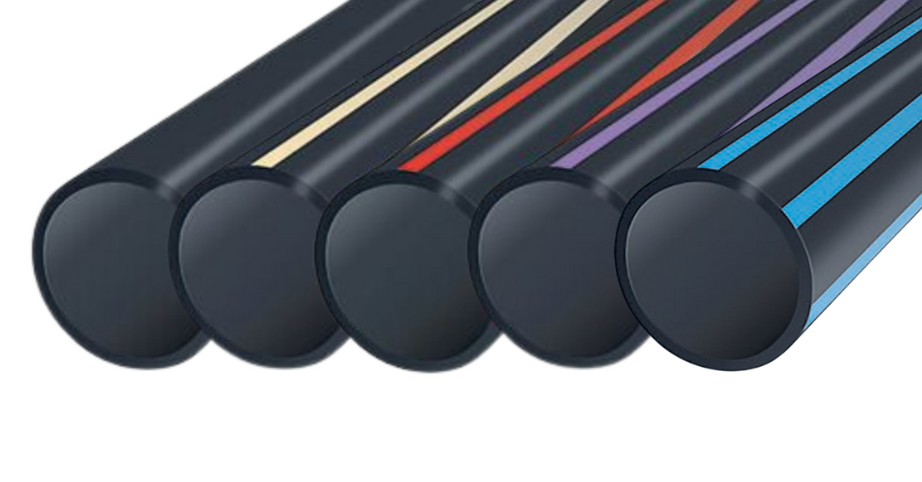

• Physical Characteristics: Black with blue stripes (water) or orange stripes (gas); smooth inner/outer surface; density 0.945–0.965 g/cm³; MRS ≥10 MPa; elongation at break >600%.

• SDR Range: SDR 11, 13.6, 17, 21, 26, 33 (OD 20mm to 1200mm).

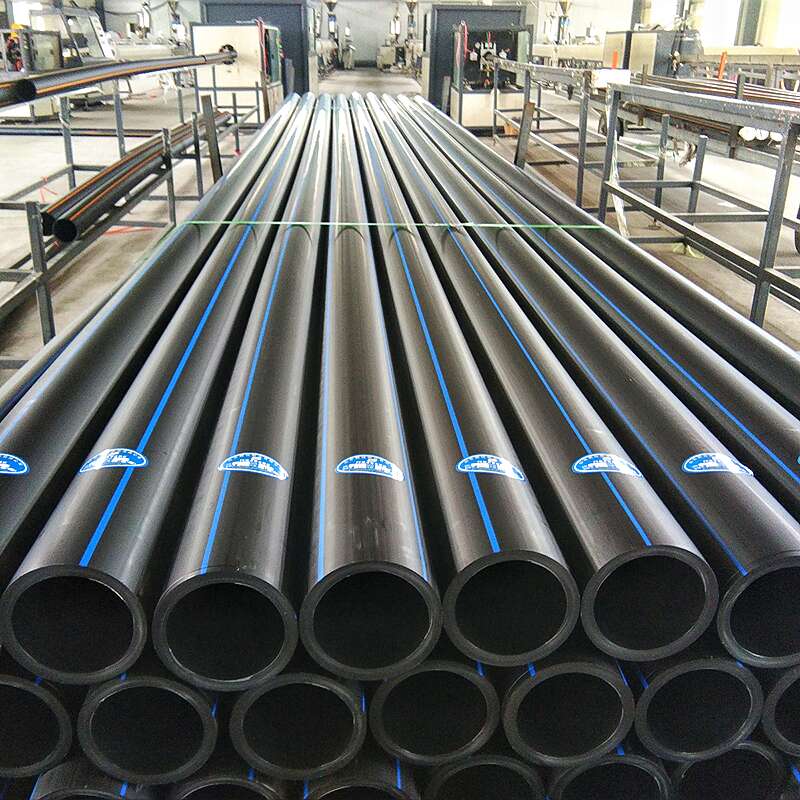

• Packaging Options: Coiled (≤63mm OD) on steel reels with protective wrapping; straight lengths (6m or 12m) in bundles with end caps and polythene shrouding; custom cut-to-length.

• Shelf Life: Indefinite when stored away from direct sunlight, ozone, and sharp objects (UV degradation negligible ≤2 years outdoor storage).

3. Core Industrial Applications

• Municipal Water & Wastewater: Potable water trunk mains, sewage force mains, and stormwater drainage – outperforms concrete/steel due to zero corrosion, lighter weight (1/8th of steel), and fused monolithic joints that eliminate leak points.

• Natural Gas Distribution: Medium-pressure gas networks (up to 10 bar) – PE100 is inherently leak-tight and non-corrosive vs. steel; electrofusion joints provide seismic resistance and faster trench-to-test times (60% less installation labor).

• Mining & Industrial Slurry: Transport of abrasive tailings, chemicals, and brine – PE100’s high abrasion resistance (4x longer than steel pipe in sand slurry tests) and chemical inertness (pH 1–14) reduce downtime and replacement cycles.

• Irrigation & Agriculture: Large-scale center pivot and drip supply systems – flexible PE100 allows meandering alignment without fittings, saving 20–30% on fittings cost vs. PVC.

4. Competitive Advantages

• Quality Consistency: ISO 9001:2015 certified production; 100% online wall thickness and ovality monitoring; random destructive testing per batch. Statistical process control data available on request.

• Supply Reliability: Three strategically located manufacturing hubs (Asia, Middle East, Europe); 50,000+ metric tons annual capacity; 24/7 dispatch with real-time tracking.

• Logistics Capability: Dedicated flatbed and container loading plans – up to 40MT per 40ft flat rack (straight pipes) or 28MT per 40ft HC (coils). Port-to-door anywhere.

• Price Competitiveness: Tier-1 virgin resin (e.g., SABIC, Borealis, LyondellBasell) at 5–8% below Western European average ex-works pricing due to vertical raw material contracts.

• Sustainability: 100% recyclable after service life; carbon footprint calculation available; production uses ≤0.5% water (closed-loop cooling). Compliant with EU Green Deal industrial criteria.

• Technical Support: Full fusion procedure qualification (butt & electrofusion), installation QA/QC templates, and BIM-compatible digital twin models delivered free per PO.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 20 metric tons (mixed diameters permissible within same SDR).

• Loading Capacity (MT per container):

  • Coiled pipes (≤63mm OD): 26–28 MT per 40ft high-cube container

  • Straight pipes (6m length, ≤200mm OD): 24 MT per 40ft flat rack container

  • Straight pipes (12m length, ≥250mm OD): 20–22 MT per 40ft open-top or flat rack (subject to bend radius optimization)
