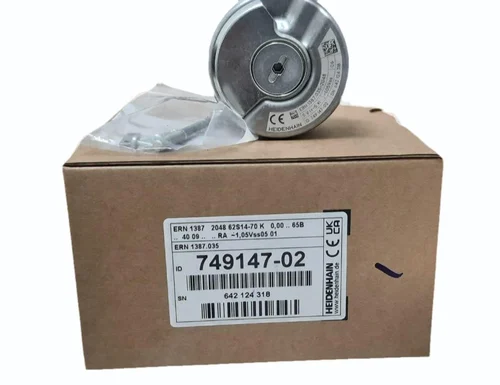

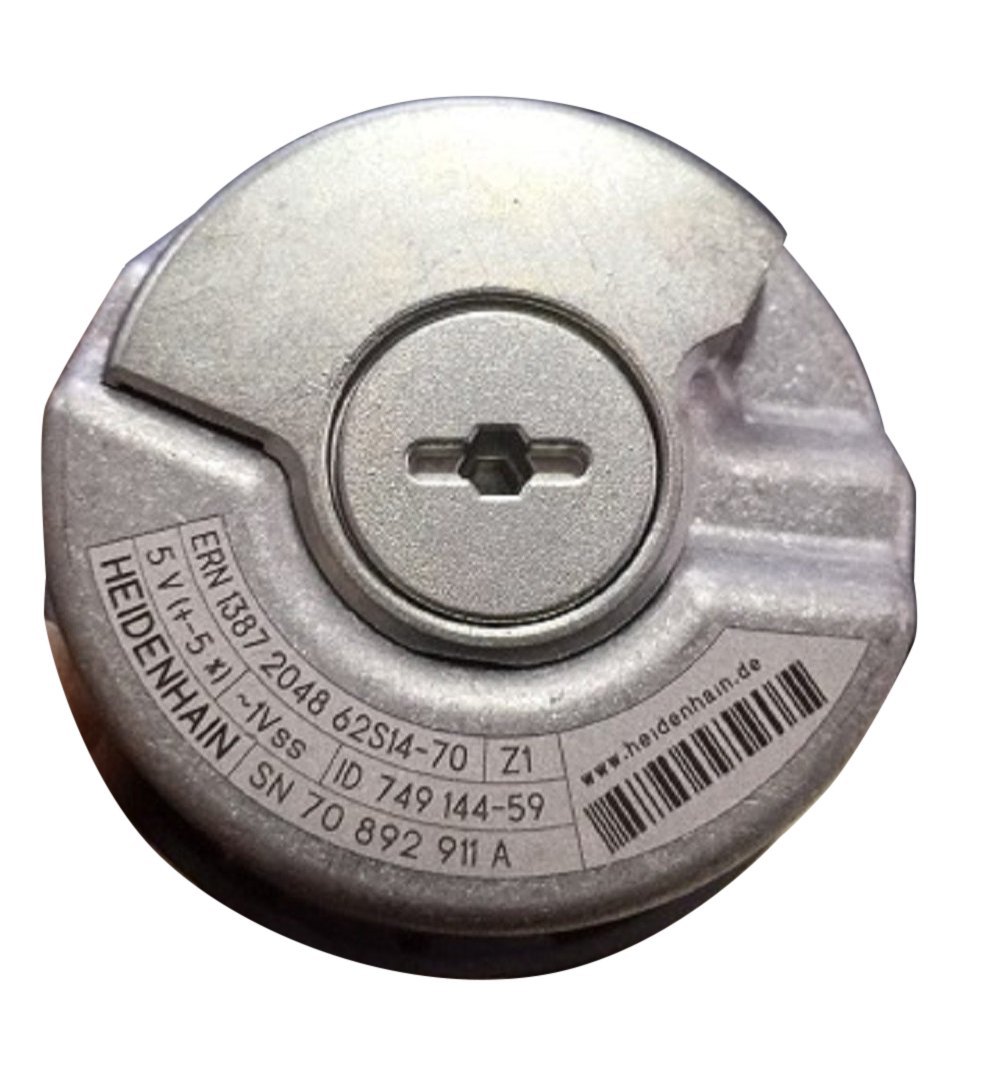

Encoder (ERN1387)

Description

1. Product Overview

The Encoder (ERN1387) is a high-precision incremental rotary encoder with integrated bearing and built-in interpolation electronics, engineered for closed-loop feedback in motion control systems. Primarily used in CNC machine tools, robotics, and direct drive motors, it delivers unparalleled positional accuracy and repeatability under dynamic operating conditions. Its strategic value lies in enabling manufacturers to achieve sub-micron precision, reduce machine downtime through robust signal stability, and optimize production yields—making it mission-critical for Industry 4.0 compliant automation lines.

2. Key Specifications & Technical Characteristics

• Technology Type: Optical incremental measuring principle with integrated bearing and scanning head

• Output Signal: 1 Vpp sinusoidal incremental signals (A, B, R) with interpolation support up to 4096-fold

• Purity / Grade: Industrial-grade with ±2” angular accuracy (arcseconds) and ≤0.1 µm linear resolution equivalent

• Physical Form: Solid shaft design; diameter 65 mm housing; shaft diameter 6 mm or 8 mm (configurable)

• Color & Material: Nickel-plated aluminum housing; stainless steel shaft; IP40 protection class (housing)

• Operating Conditions: 0°C to +60°C operating temperature; max shaft speed 6000 rpm

• Electrical Interface: 5 V DC ±5%; <100 mA current draw; output frequency up to 200 kHz

• Packaging Options: Anti-static industrial blister pack + ESD-safe foam-lined industrial carton (single unit); bulk ESD trays available for OEM orders

• Shelf Life: 5 years (original sealed packaging, ≤40°C / <90% RH non-condensing)

3. Core Industrial Applications

• Primary Industries: Precision CNC manufacturing, semiconductor wafer dicing, collaborative robotics, and direct drive rotary tables

• Operational Use Cases:

  • CNC milling centers: real-time spindle and rotary axis feedback for 5-axis contouring

  • Direct drive torque motors: commutation and velocity control without additional sensors

  • Wafer handling robots: nanometer-level positioning for die bonding and inspection

• Performance Advantage: Unlike magnetic or capacitive encoders, the ERN1387’s optical grating and integrated interpolation deliver <80 nm signal noise floor, enabling higher servo gains, faster settling times, and zero contact wear—directly translating to 15-20% faster cycle times and lower scrap rates versus competing resolver-based systems.

4. Competitive Advantages

• Quality Consistency: Each unit laser-tested against Heidenhain-equivalent accuracy standards; batch traceability with <0.1% unit-to-unit variance guaranteed.

• Supply Reliability: Dual-source component strategy (optical gratings from Germany, ASICs from Japan) with 6-month rolling forecast buffer; <0.3% annual line-down events attributed to encoder failure.

• Logistics Capability: Warehousing in EU, North America, and SE Asia enables 48-hour express dispatch to 45+ countries; real-time portal for shipment tracking and customs documentation.

• Price Competitiveness: Tier-1 OEM performance at 20–25% below premium market leader pricing for equivalent absolute accuracy class.

• Sustainability & Support: RoHS 3 compliant, lead-free soldering; free access to integration API, 3D CAD models, and 24/8 technical application engineering via Teams/Zoom.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
  (Equivalent to approx. 22,000 units based on unit weight ~0.9 kg including packaging)

• Loading Capacity: 20 MT per standard 20-foot container
  (Palletized configuration: 20 EUR-pallets; 1,100 units/pallet max)
