HMI Panel (MT8071iE)

Description

1. Product Overview

The MT8071iE is a next-generation, high-performance Human-Machine Interface (HMI) panel engineered for complex industrial automation environments. Designed for applications ranging from production line control to remote equipment monitoring, this device serves as the critical visualization and command nexus between operators and machinery. Its key value proposition—seamless integration, industrial-grade durability, and cloud connectivity readiness—positions it as a strategic enabler for manufacturers pursuing Industry 4.0 initiatives, offering a tangible reduction in downtime and an increase in operational efficiency.

2. Key Specifications & Technical Characteristics

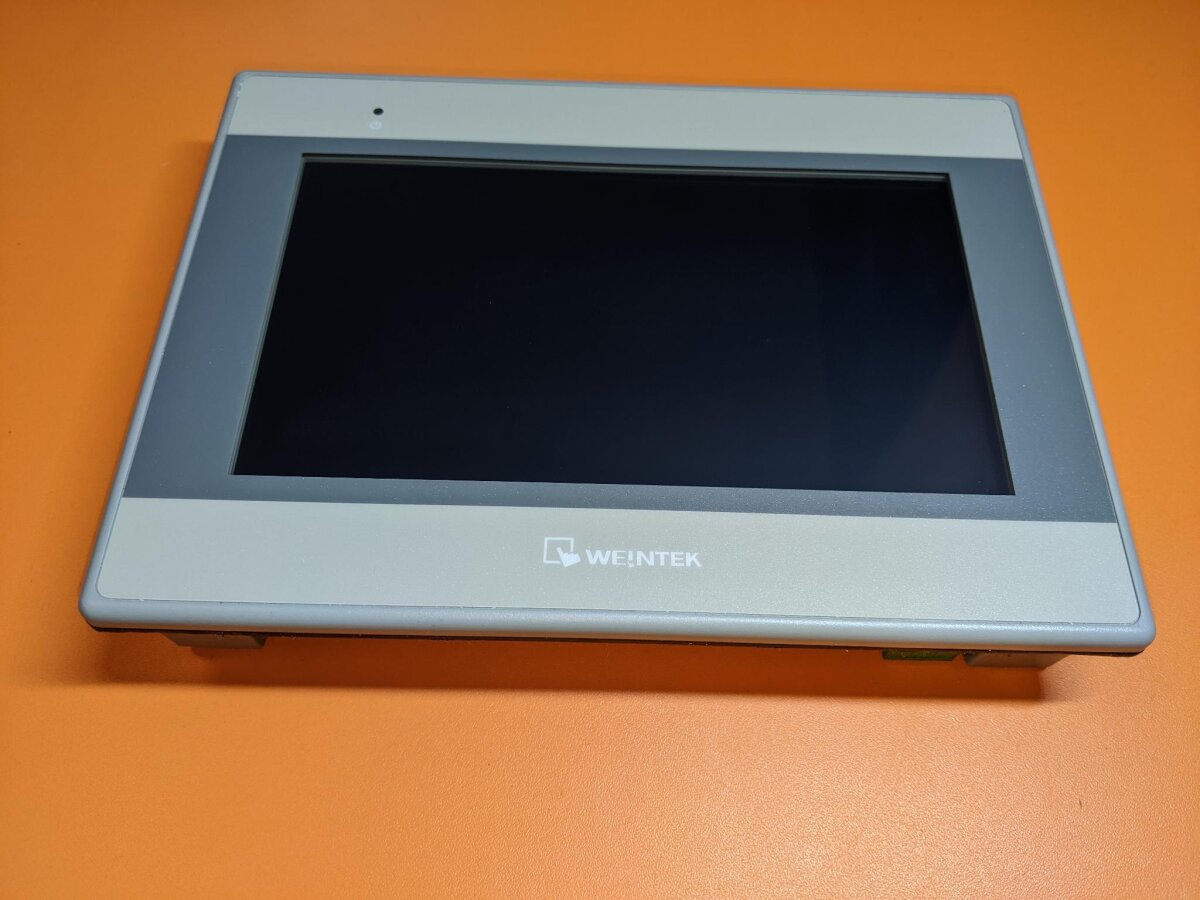

• Display Composition: 7” (800 x 480) TFT LCD with LED backlight; 16.7M colors; true flat projected capacitive touch technology.

• Protection Grade: IP65-rated front panel (dust-tight, low-pressure water jets); UL 61010-2-201 certified.

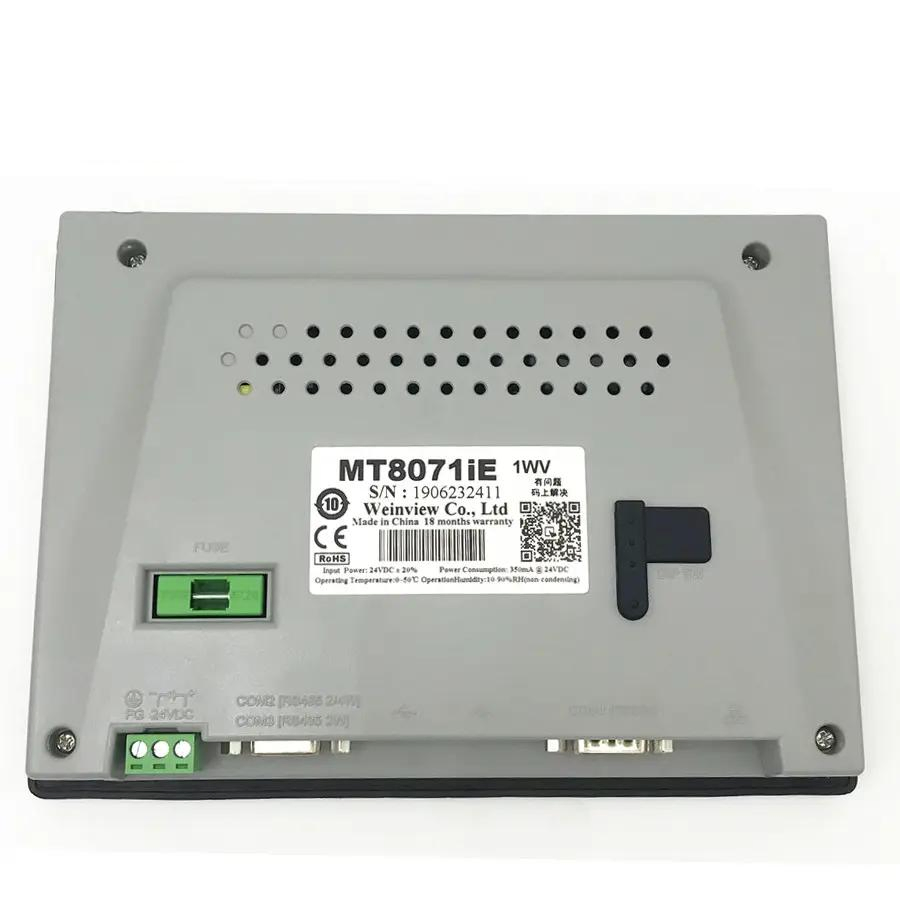

• Physical Characteristics: Form factor – 200.3 x 146.3 x 34.0 mm; Weight – approx. 0.61 kg; Cutout dimensions – 192 x 138 mm.

• Processing & Memory: ARM RISC-based CPU (32-bit); 128 MB Flash ROM; 64 MB DDR2 RAM.

• Connectivity Ports: 1 x Ethernet (10/100 Base-T); 2 x USB 2.0 host; 1 x RS-232; 1 x RS-485 2W/4W; 1 x CAN bus (optional).

• Power Input: 24 VDC ±20% (isolated); power consumption < 15W.

• Operating Environment: 0° to 50°C; 10% to 90% RH (non-condensing).

• Packaging Options: Individual anti-static bag + molded foam in certified export carton (20 units per master carton).

• Shelf Life: 5 years from date of manufacture (when stored in dry, ESD-protected, temperature-controlled conditions).

3. Core Industrial Applications

• Primary Industries: Automotive assembly, food & beverage processing, pharmaceutical manufacturing, packaging machinery, and water/wastewater treatment.

• Operational Use Cases:

  • Real-time production monitoring: Visualizes OEE, alarm logs, and batch recipes.

  • Remote diagnostics & control: Enables operators to adjust setpoints and acknowledge faults via Ethernet.

  • Data logging & trend analysis: Records process variables to USB drives for compliance reporting.

• Performance Advantage: The MT8071iE delivers 30% faster screen loading and swipe response compared to resistive HMIs in its class, reducing operator error. Its isolated power input and wide-temperature tolerance ensure stable operation in electrically noisy or thermally harsh environments—unlike consumer-grade panels.

• Cost Efficiency: Eliminates need for external protocol converters (supports 300+ PLC drivers natively), lowering total installed cost.

4. Competitive Advantages

• Quality Consistency: 100% factory-tested for backlight uniformity, touch linearity, and Ethernet throughput under ISO 9001:2015 controls. Mean Time Between Failures (MTBF) > 500,000 hours.

• Supply Reliability: Dual-sourced component buffers and regional stocking hubs (Americas, EMEA, APAC) ensure < 2-week lead time for standard units, even during semiconductor volatility.

• Logistics Capability: Standardized 20-unit cartons optimize LCL and FCL shipment consolidation; shock-rated packaging validated via ISTA 3A.

• Price Competitiveness: Tier-1 performance at a mid-tier price point—20–25% below comparable Siemens or Pro-face models for equivalent feature sets.

• Sustainability: RoHS-compliant, REACH-ready, and low-power design (<15W) reduces facility energy overhead.

• Technical Support: Free access to EasyBuilder Pro (no licensing fees), lifetime firmware updates, and 24/5 global technical support with responsive documentation (user manuals, application notes, and video tutorials).

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 10 units (mixed models allowed for authorized distributors).

• Bulk 20MT Loading Capacity: Approx. 1,250 units per 20-foot dry container (based on individual packaged dimensions: 24 x 18 x 7 cm per unit; 20 units/carton; 63 cartons/container).

• Loading Capacity per Container (20MT weight limit): Maximum 16,800 kg net (approx. 26,300 units) – limited by volume, not weight (single unit net weight = 0.61 kg). Note: Typical packing density caps at ~1,250 units due to cube utilization.
