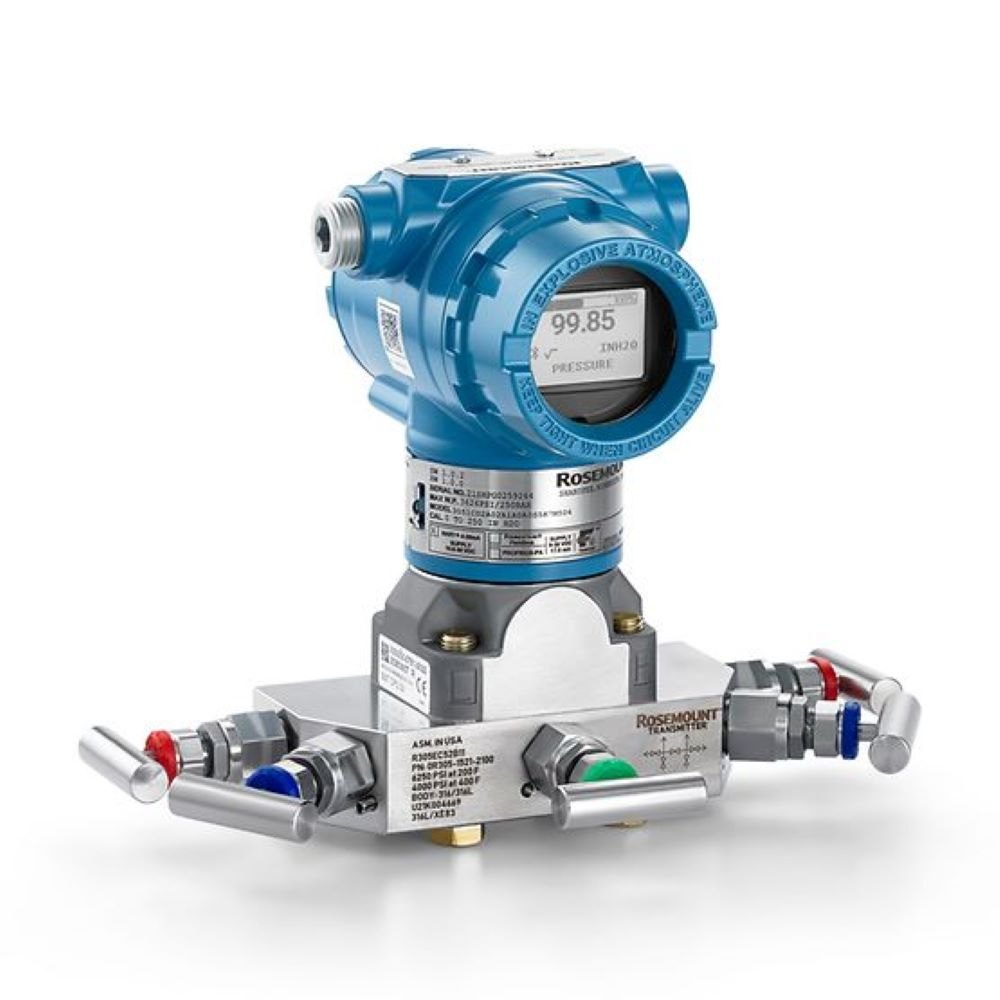

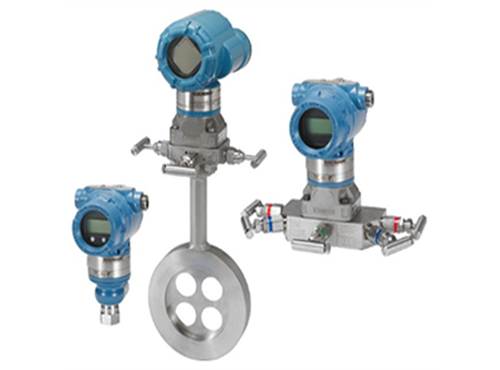

Pressure Transmitter (3051)

Description

1. Product Overview
The 3051 Pressure Transmitter is an enterprise-grade, high-performance instrument engineered for critical measurement of differential pressure (DP), gauge pressure (GP), and absolute pressure (AP) in industrial process automation. Primarily used in oil & gas, chemical, power generation, and water treatment facilities, this device ensures real-time, repeatable accuracy to ±0.04% of span, directly reducing process variability and unplanned downtime. Its strategic market importance lies in replacing legacy analog transmitters with a digital, fail-safe platform that maximizes operational efficiency and safety integrity (SIL 2/3 capable), making it the industrial standard for brownfield and greenfield projects alike.

2. Key Specifications & Technical Characteristics

• Material Components: 316L stainless steel process wetted parts (standard); Hastelloy C-276, Monel, or Tantalum available; glass-filled polyurethane housing with NEMA 4X / IP66 rating.

• Purity/Grade: Not applicable (electronic instrument). Factory-calibrated to NIST-traceable standards ±0.04% of upper range limit (URL).

• Physical Characteristics: Form factor – compact, coplanar flange design; color – blue epoxy or stainless steel natural; weight – 3.7 kg (8.2 lbs) standard; turndown ratio – up to 200:1.

• Packaging Options: Individual polybag + foam-lined industrial carton; palletized multi-unit packaging for bulk procurement; optional ESD-safe packaging.

• Shelf Life: 10 years (non-volatile memory configuration retained); calibration stability guaranteed for 5 years under normal operating conditions.

3. Core Industrial Applications

• Primary industries: Upstream oil & gas, refinery, petrochemical, pharmaceutical (sterile processing), pulp & paper, food & beverage, thermal/nuclear power.

• Specific use cases: Liquid level measurement in distillation columns; flow measurement via primary elements (orifice plates, pitot tubes); filter differential pressure monitoring; reactor pressure control in exothermic processes.

• Performance advantage over alternatives: Utilizes a resonant silicon sensor (no fill fluid thermal drift) achieving 5x faster response than capacitance-based transmitters. Offers 200:1 turndown vs. industry standard 100:1, reducing inventory by using one SKU for multiple ranges. Provides 15-year mean time between failures (MTBF), lowering lifecycle cost by 40% compared to competitive units.

4. Competitive Advantages

• Quality consistency: 100% factory-tested across 20 temperature points; ISO 9001:2024 certified; each unit includes a traceable calibration certificate.

• Supply reliability: Three dedicated manufacturing sites (Americas, EMEA, Asia-Pacific) with 98.5% on-time-in-full (OTIF) delivery for orders over 500 units.

• Logistics capability: Global hub-and-spoke distribution; expedited airfreight options within 48 hours for emergency replacements.

• Price competitiveness: Tiered pricing for OEM projects and annual frame agreements (volume discounts up to 22% above 1,000 units/year).

• Sustainability & technical support: Low-power consumption (< 1.5W) reduces scope 2 emissions; 24/7 application engineering + digital twin configuration tool; full IETM (Interactive Electronic Technical Manual) documentation suite.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 4 units (individual calibration) / 20 units (standard non-customized)

• BULK 20MT equivalent: Approx. 2,550 units (based on unit weight 3.7 kg + packaging 0.3 kg per unit)

• Loading capacity per 20FT container: 1,650 units (palletized, standard configuration); 1,900 units (unpackaged, factory bulk pack with dividers)
