Electric Motor IEC Standard Frame

Description

1. Product Overview

The Electric Motor IEC Standard Frame is a precision-engineered industrial AC motor built to International Electrotechnical Commission (IEC) frame dimensions and performance classes. Designed for heavy-duty rotational power in manufacturing, HVAC, pumps, compressors, conveyors, and material-handling systems, it delivers reliable torque, high efficiency, and straightforward interchangeability across global installations. Its key value proposition is standardized form-fit-function compatibility that reduces downtime, simplifies maintenance, and lowers lifecycle cost through optimized efficiency and spare-parts commonality. For global industrial buyers, the motor is strategically important because it enables scalable, multi-site deployments with predictable performance, streamlined procurement, and lower total cost of ownership.

2. Key Specifications & Technical Characteristics

• Frame standard: IEC 63–450 (specific frame size to be specified per SKU).

• Rated power: 0.18 kW to 315 kW (selectable per model).

• Voltage classes: 230/400 V up to 6 kV options; single-phase and three-phase variants.

• Frequency: 50 Hz / 60 Hz service versions.

• Speed ratings: 750, 1,500, 3,000 RPM (synchronous equivalents), plus variable-speed-ready designs.

• Efficiency class: IE2 / IE3 / IE4 options (per IEC 60034-30-1).

• Enclosure: IP54 / IP55 / IP65 options; TEFC and drip-proof constructions available.

• Cooling: IC411 (TEFC), IC416 (forced ventilation) options; optimized fan design for thermal performance.

• Insulation system: Class F (upgradeable to Class H); thermal performance per IEC 60034-1.

• Starting methods: Direct-on-line (DOL), star-delta, soft-starter and VFD-compatible windings.

• Materials: Stator laminations (low-loss electrical steel), copper windings (class-specific copper purity), cast-iron or aluminium housings depending on frame size.

• Bearings: Sealed, greased-for-life bearings; optional heavy-duty or anti-friction bearings for shock-load applications.

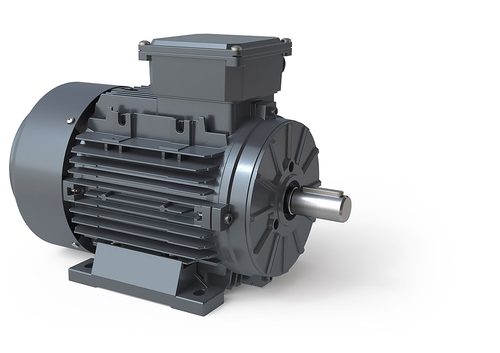

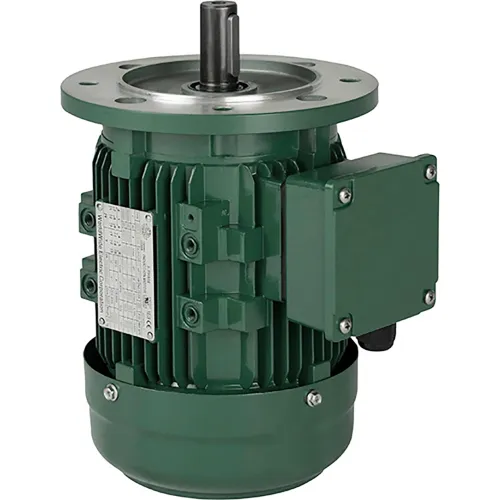

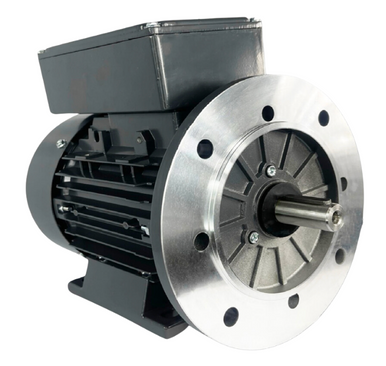

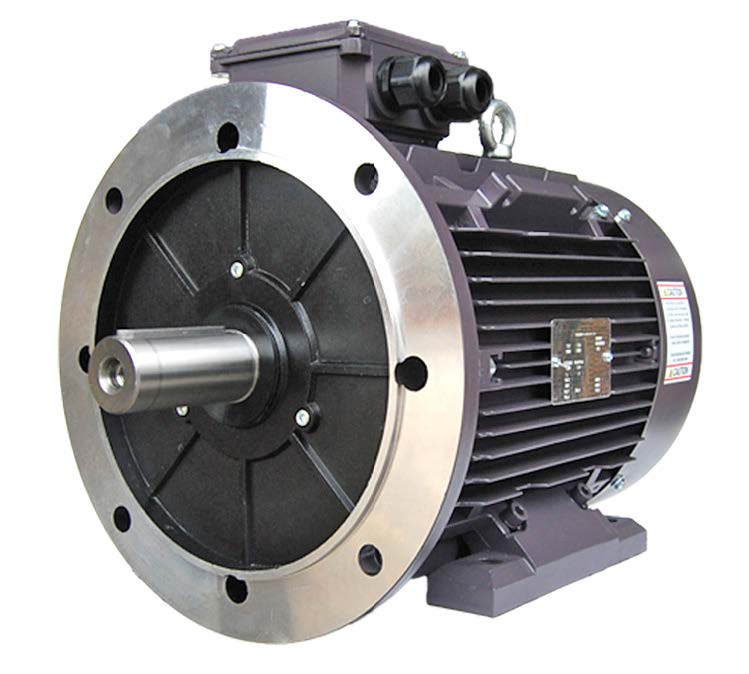

• Mounting: B3 (foot), B5 (flange), B35 (foot and flange) and other IEC standard arrangements.

• Mechanical tolerances: DIN/IEC tolerance classes for shafts, keyways, and mounting surfaces.

• Thermal protection: PTC/thermistor sensors and optional thermostats integrated in windings.

• Physical characteristics: color per customer spec (standard RAL grey), shaft diameters per IEC tables, mass varies by frame size (refer to technical datasheet).

• Packaging options: wooden crates, steel cradles, palletized with desiccant and humidity indicators, export-ready packing for container shipment.

• Documentation: IEC-compliant datasheet, performance curves, wiring diagrams, test certificates (including insulation resistance and no-load/load tests).

• Warranty: standard commercial warranty (term depends on contract), optional extended warranty and service agreements.

3. Core Industrial Applications

• Manufacturing and processing plants: Drives for conveyor systems, extruders, mixers, and presses where standardized frames enable rapid replacement and spares pooling.

• Water and wastewater: Pumps and aeration blowers requiring IP55/IP65 enclosures and robust bearings for continuous operation.

• Oil & gas and petrochemical: Compressors and auxiliary drives with high-reliability insulation and Class H upgrade options for high-temperature environments.

• HVAC and building services: Fans, chillers, and AHU drives benefiting from energy-efficient IE3/IE4 motors to reduce operational energy costs.

• Mining and aggregates: Heavy-duty conveyors, crushers, and mills requiring rugged housings and heavy-duty bearing arrangements.

• Marine and port equipment: Winches, cranes, and pumps with marine-grade coatings and appropriate ingress protection.

Why it outperforms alternatives:

• Standardized IEC frames ensure interchangeability and lower spare-parts inventory costs versus proprietary motors.

• High-efficiency classes and VFD compatibility reduce energy consumption and peak demand charges.

• Robust materials, proven insulation systems, and sealed bearing options deliver longer mean time between failures (MTBF) and lower maintenance overhead.

• Modular design allows rapid customization (shaft, mounting, enclosure) without long lead times.

4. Competitive Advantages

• Quality consistency: Manufactured under ISO 9001-controlled processes with batch traceability and factory acceptance testing.

• Supply reliability: Established global manufacturing and distribution network with safety-stock strategies to minimize lead times for multi-site customers.

• Logistics capability: Export-ready packaging, ISPM-15 compliant crating, and coordinated container loading (LCL/FCL) for predictable shipment planning.

• Price competitiveness: Tiered pricing for volume procurement and total-cost-of-ownership analyses showing payback via energy savings and reduced downtime.

• Sustainability: Energy-efficient IE3/IE4 variants reduce carbon footprint; recyclable materials and options for low-VOC coatings.

• Technical support: Comprehensive technical documentation, installation guides, tuning support for VFDs, and aftermarket services including local partners for commissioning and repairs.

• Certification and compliance: Conformity with IEC 60034 series, CE marking where applicable, and test certificates on request.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity: Typical loading capacity per 20′ container varies by frame and packing; estimated loading capacity (MT per container):

  • 20′ GP: up to 18–22 MT depending on dimensions and protective packing.

  • 40′ GP: up to 24–28 MT depending on stacking and crate configuration.

  • 40′ HC: up to 26–30 MT depending on configuration.

• Lead times: subject to order volume and specification; standard lead time provided on enquiry.

• Commercial terms: FOB, CIF, EXW available; custom supply agreements and long-term contracts negotiable.

• After-sales: spare-parts kits, maintenance contracts, and onsite commissioning services available per contract.
